Piaggio cylinder

Piston Ø 38.6 (10 mm KoBo) NOS | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.6 mm · Manufacturer: Piaggio · Thick piston ring: 1.5 mm · Thick piston ring: 1.9 mm · Ø outside piston (A): 38.54 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.6 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 77 g · Piaggio OEM number: 196116

DMP piston 41 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 41 mm · Manufacturer: DMP · Ø outside piston (A): 40.96 mm · Compression height (C): 26.2 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 75 g

Meteor piston ring 40.2 x 1.5 mm (FS)

Nominal diameter: 40.2 mm · Manufacturer: Meteor · Area of application: Tuning · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

swiing® revival cylinder base gasket blank | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: swiing® revival parts · Place of use: Cylinder base · Area of application: Standard · Material: Oiled paper · Thickness: 0.5 mm · Ø inside: 46 mm

GOL piston 41 mm (12 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Nominal diameter: 41 mm · Manufacturer: GOL · Ø outside piston (A): 40.94 mm · Compression height (C): 26.7 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 78 g

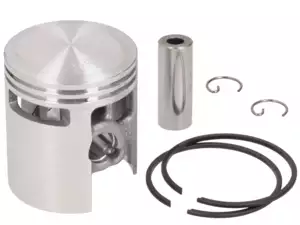

Malossi piston 43 mm (12 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Malossi · Thick piston ring: 1.75 mm · Ø outside piston (A): 42.96 mm · Compression height (C): 26 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 87 g

swiing® ingenious Cylinder Head Gasket 41 mm Copper | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Place of use: Cylinder head · Material: Copper · Ø cylinder: 41 mm · Ø cylinder: 42 mm · Thickness: 0.5 mm · Ø inside: 42 mm

swiing® ingenious Cylinder Head Gasket 46 mm Copper | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: swiing® ingenious parts · Place of use: Cylinder head · Material: Copper · Ø cylinder: 46 - 47 mm · Ø cylinder: 46.5 - 47 mm · Ø cylinder: 47 mm · Thickness: 0.5 mm · Ø inside: 47 mm

GPO piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: GPO · Ø outside piston (A): 42.94 mm · Compression height (C): 26.5 mm · Curvature (D): 2.5 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 82 g

GOL piston 41 mm (10 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Nominal diameter: 41 mm · Manufacturer: GOL · Ø outside piston (A): 40.94 mm · Compression height (C): 25 mm · Curvature (D): 2.4 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 78 g

Vertex piston 38.4 mm (10 mm KoBo) NOS | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Vertex · Thick piston ring: 1.5 mm · Thick piston ring: 1.9 mm · Ø outside piston (A): 38.34 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.6 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 76 g · Piaggio OEM number: 196115

Polini gasket set EVO REED engine case | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: Polini · Material: Rubber · Material: Sealing paper · Thickness: 0.3 mm · Thickness: 0.5 mm · Thickness: 0.7 mm · Number of components: 4 pcs

Athena piston 46 mm (12 mm KoBo) #B | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Athena · Ø outside piston (A): 46.03 mm · Compression height (C): 26.05 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 95 g

Polini 47 mm EVO cylinder head | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Ø cylinder: 47 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 43 x 52 · Camouflaged: No

Polini piston 47 mm EVO cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Nominal diameter: 47 mm · Manufacturer: Polini · Ø outside piston (A): 46.92 mm · Compression height (C): 31.6 mm · Curvature (D): 2 mm · Total piston height (E): 55.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 101 g

Polini gasket set 47 mm cylinder kit EVO | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: Polini · Material: Aluminum · Material: Copper · Material: NBR · Thickness: 0.1 mm · Thickness: 0.2 mm · Thickness: 0.5 mm · Number of components: 5 pcs

Meteor piston 38.2 - 39.6 mm (12 mm KoBo) L-ring | Piaggio Ciao, SI, Bravo Boxer

Nominal diameter: 38 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Manufacturer: Meteor · Ø outside piston (A): 38.17 mm · Ø outside piston (A): 38.33 mm · Ø outside piston (A): 38.54 mm · Ø outside piston (A): 38.76 mm · Ø outside piston (A): 38.94 mm · Ø outside piston (A): 39.15 mm · Ø outside piston (A): 39.34 mm · Ø outside piston (A): 39.53 mm · Compression height (C): 26.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm

Pinasco 42 mm cylinder head | Piaggio Ciao

Manufacturer: Pinasco · Area of application: Tuning · Material: Aluminum · Ø cylinder: 42 mm · Width: 78.4 mm · Height: 57 mm · Candle thread: long · Ø outside: 55 mm · Total length: 118.6 mm · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: Yes

38.4 mm gasket cylinder head graphite | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Netherlands · Material: Graphite / Graphite · Area of application: Original · Area of application: Standard · Ø cylinder: 38.4 mm · Thickness: 0.6 mm · Number of components: 1 pcs

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Oiled paper · Place of use: Cylinder base

GPO piston 38.4 mm (10 mm KoBo) oversize | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Nominal diameter: 38 mm · Ø outside piston (A): 38.35 mm · Ø piston pin (B): 10 mm · Compression height (C): 26 mm · Curvature (D): 3.7 mm · Total piston height (E): 51.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 75 g

Needle bearing 10/13/14.2 Piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Dimension needle bearing: 10/13 x 14.2 · Width: 14.2 mm · Ø inside: 10 mm · Ø outside: 13 mm

swiing® revival needle roller bearing 12/15/14.2 original

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 14.2 · Ø inside: 12 mm · Ø outside: 15 mm · Manufacturer: swiing® revival parts · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 155 001 · Tomos OEM number: 035548

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

Malossi piston rings Ø 46.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 46.5 mm · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

GPO piston 38.2 mm 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Nominal diameter: 38.2 mm · Ø outside piston (A): 38.16 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 65 g

Malossi piston 46.5 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 46.5 mm · Ø outside piston (A): 46.4 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.9 mm · Curvature (D): 2.4 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Weight piston kit: 101 g

Athena gasket set 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 43 mm · Decompressor: Yes · Area of application: Tuning

Olympia piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.34 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Weight piston kit: 76 g

Olympia 38.4 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.34 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

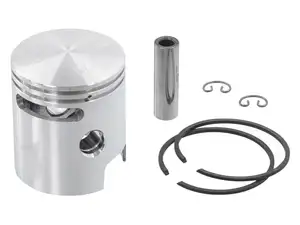

Olympia 43 mm piston (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 43 mm · Ø outside piston (A): 42.91 mm · Ø piston pin (B): 10 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Weight piston kit: 85 g

Olympia 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 43 mm · Ø outside piston (A): 42.91 mm · Ø piston pin (B): 12 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Weight piston kit: 99 g

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.33 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 78 g

Polini piston ring 46 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Nominal diameter: 46 mm · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Area of application: Racing

Polini gasket cylinder head 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.5 mm · Ø cylinder: 43 mm

Polini piston ring 43 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Nominal diameter: 43 mm · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

Gasket cylinder head 43 mm aluminum | Piaggio Ciao, SI, Bravo Boxer

Material: Aluminum · Place of use: Cylinder head · Thickness: 0.4 mm · Ø cylinder: 41 - 43 mm

Polini cylinder head for 41 - 43 mm cylinder | Piaggio SI

Manufacturer: Polini · Ø cylinder: 41 - 43 mm · Area of application: Racing

Olympia / DR piston rings 38.4x1.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 38.4 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

DR 43 x 1.2 piston rings (pair) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 43 mm · Piston ring impact: Internal fuse (IS) · Height: 1.2 mm

Meteor piston ring 38.4 x 1.5 (FS)

Manufacturer: Meteor · Nominal diameter: 38.4 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

Meteor piston ring 38.6 x 1.5 (FS)

Manufacturer: Meteor · Nominal diameter: 38.6 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

Meteor piston ring 39.2 x 1.5 (FS)

Manufacturer: Meteor · Nominal diameter: 39 mm · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

Meteor piston ring 38.8 x 1.5 (FS)

Manufacturer: Meteor · Nominal diameter: 38.8 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio Ciao

Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Number of fixing points: 3 pcs · Candle thread: short · Total length: 120 mm · Width: 78 mm · Height: 60 mm · Area of application: Racing · Area of application: Tuning

38 mm Cylinder Head | Piaggio Ciao, Bravo, Boxer

Ø cylinder: 38 mm · Decompressor: Yes · Total length: 120 mm · Width: 78 mm · Height: 62 mm

Malossi cylinder head for 44 - 47 mm cylinder | Piaggio Ciao, Bravo 1, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio SI

Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing

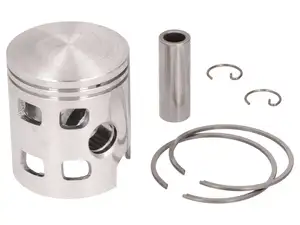

DR 43 mm piston (12 mm KoBo) Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 43 mm · Ø outside piston (A): 42.9 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Weight piston kit: 83 g

Connecting rod bushing crankshaft 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Brass · Ø piston pin (B): 12 mm · Area of application: Standard · Dimension needle bearing: 12 / 14 x 12 mm (axe 12)
