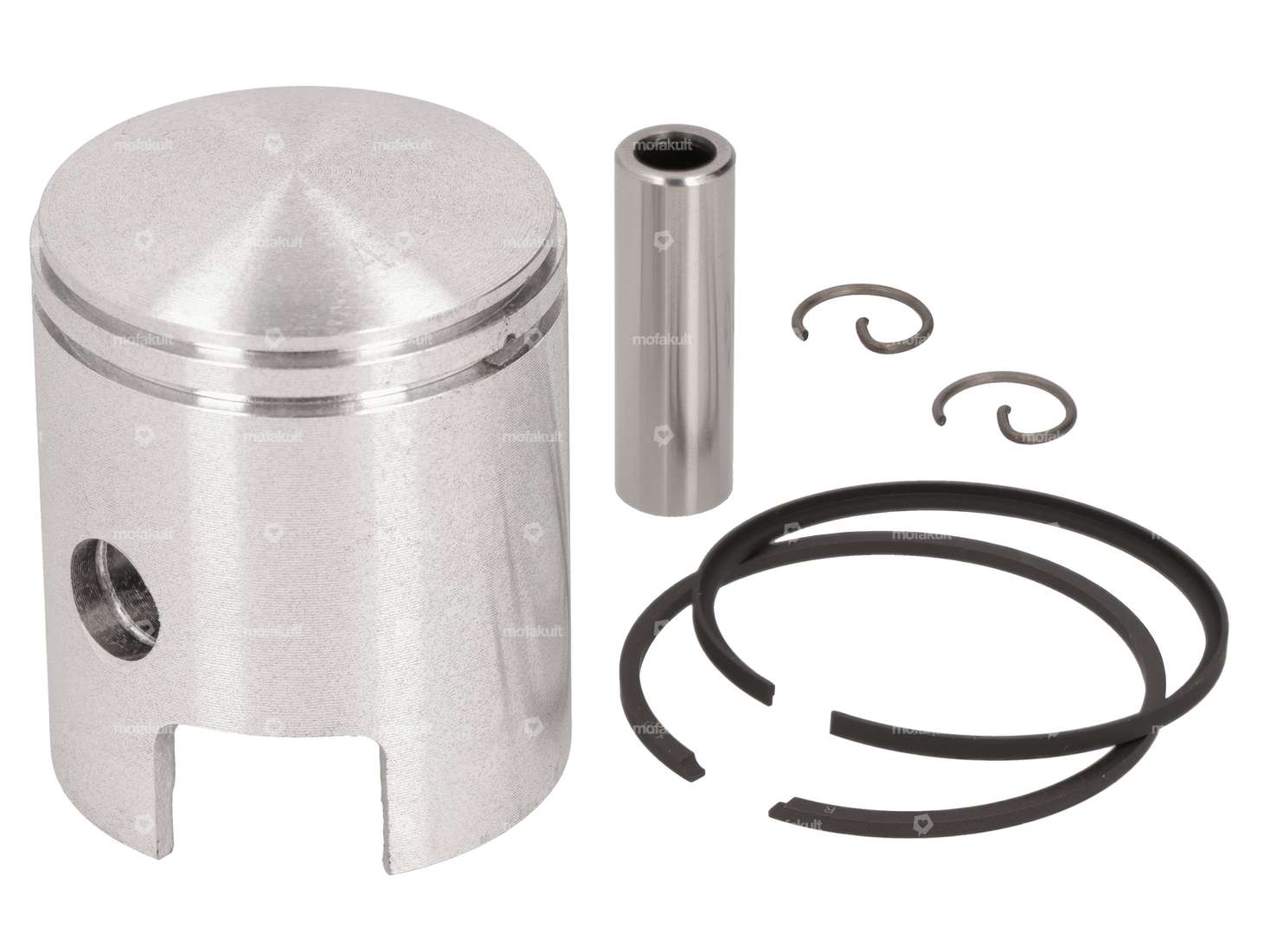

41.0 mm piston with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) to fit the 41 mm Gilardoni ital kit for various Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Ø outside piston (A) | 40.95 mm |
| Compression height (C) | 26.2 mm |
| Curvature (D) | 2.3 mm |
| Total piston height (E) | 50.55 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
