Not so nice

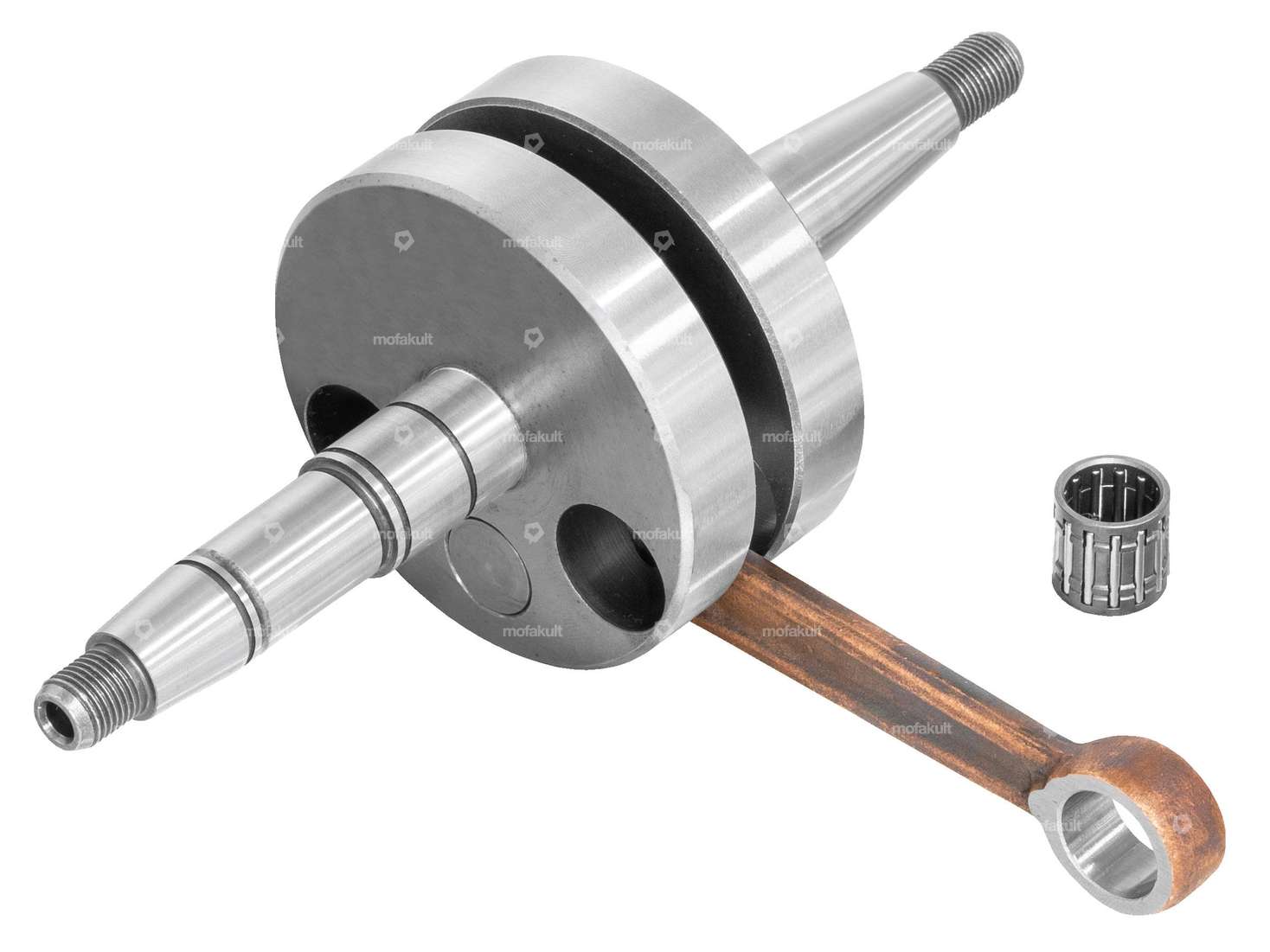

Full cheek shaft suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The connecting rod bearing may exhibit excessive roughness, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Manufacturer | Jasil |
| Thread length | 11 mm, 15 mm |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.6 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Weight | 942 g |
| Number of gears | 1 pcs |
| Puch | E50 |
Ratings
Accessories & related products

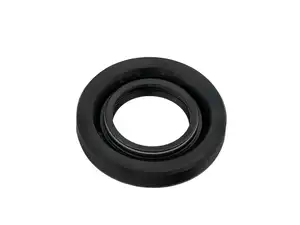

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Temperature resistance (min.): -30 - 100 °C · Material: NBR · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Place of use: Crankshaft · Surface: rubberized · Width: 7 mm · Ø outside: 40 mm · Ø inside: 22 mm
7,00 EUR
Hot
swiing® ingenious 15 mm intake manifold camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 15 mm · Total length: 46 mm · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Height flange center hole: 43 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Camouflaged: Yes · Total height: 53 mm · Area of application: Tuning · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1
41,30 EUR

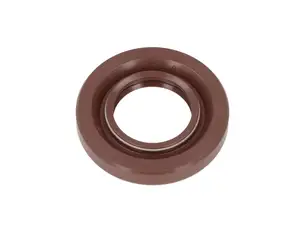

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50
Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Ø outside: 40 mm · Material: FPM - Fluororubber · Surface: rubberized · Width: 7 mm · Ø inside: 22 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C
14,10 EUR

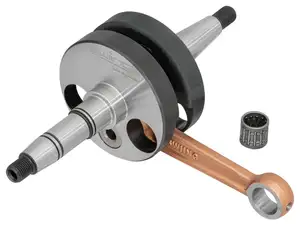

swiing® revival crankshaft "Original" | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Area of application: Standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 873 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
106,50 EUR
swiing® ingenious crankshaft set "High End" (+1 mm stroke) | Puch E50
Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: High End
225,00 EUR
Hot

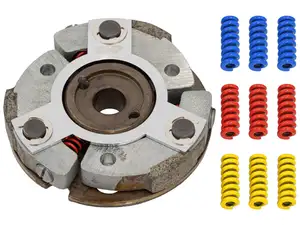

DMP clutch "Racing" aluminum reinforced | Puch E50
Thickness: 22 mm · Manufacturer: DMP · Ø outside: 94 mm · Material: Steel · Material addition: Chrome steel (colloquially known as stainless steel) · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
142,10 EUR
Moped fans also bought
Hot
BERU spark plug connector / 1 kΩ interference suppressed
Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
10,40 EUR

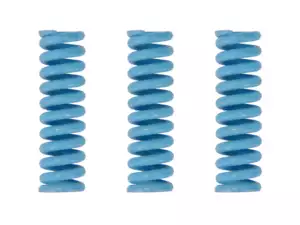

swiing® ingenious clutch springs reinforced (+20%) | Puch E50
