Product description

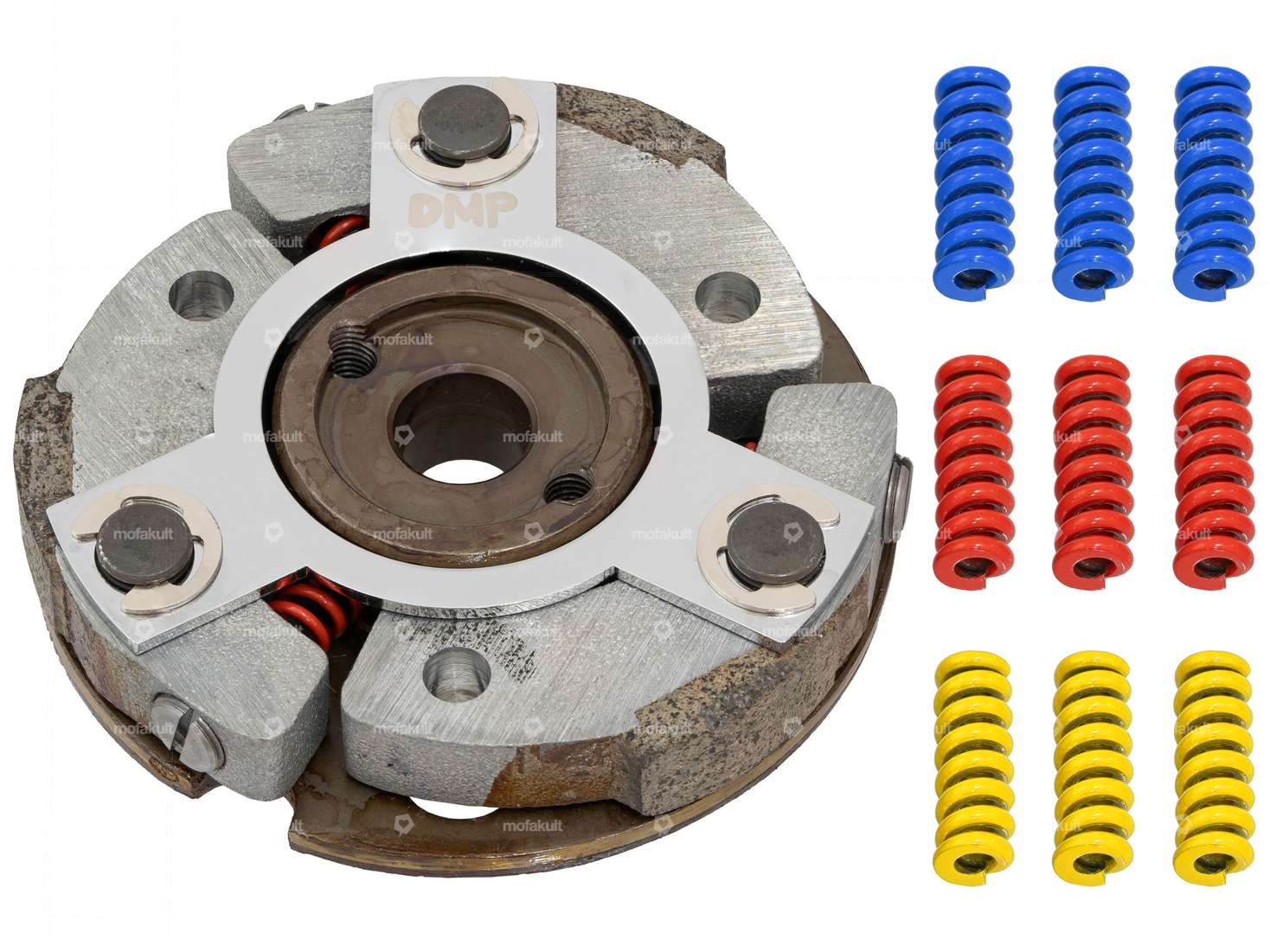

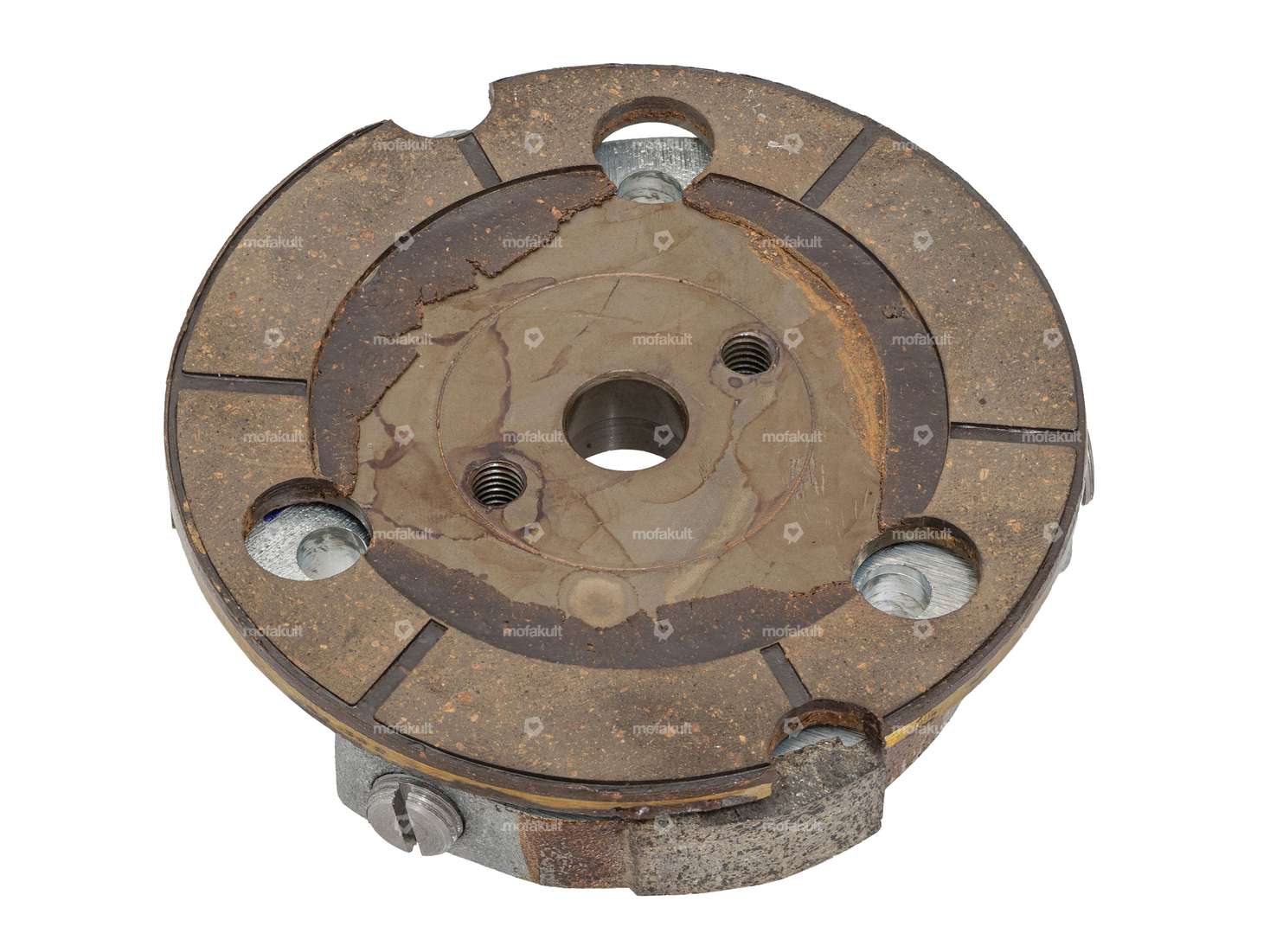

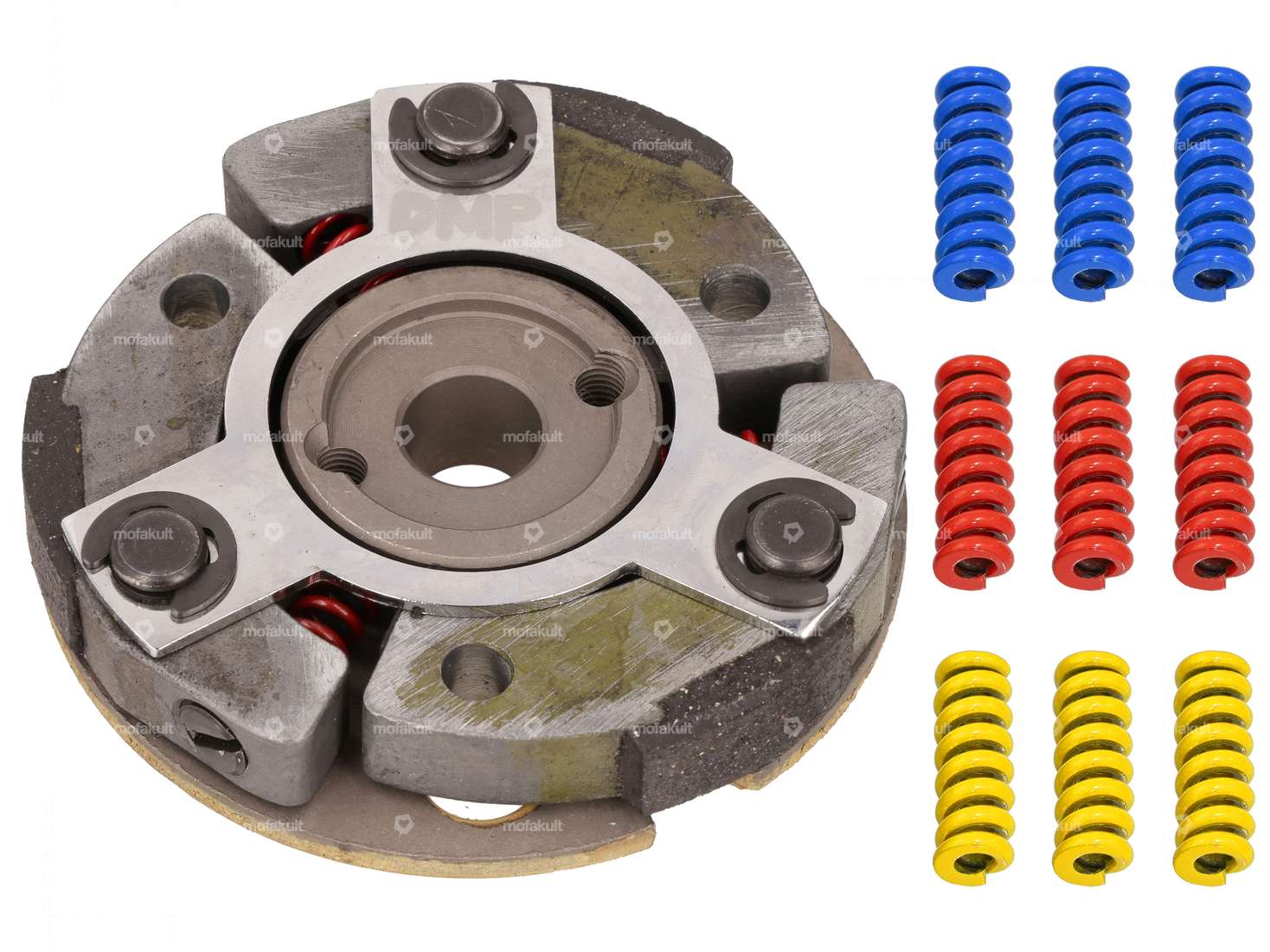

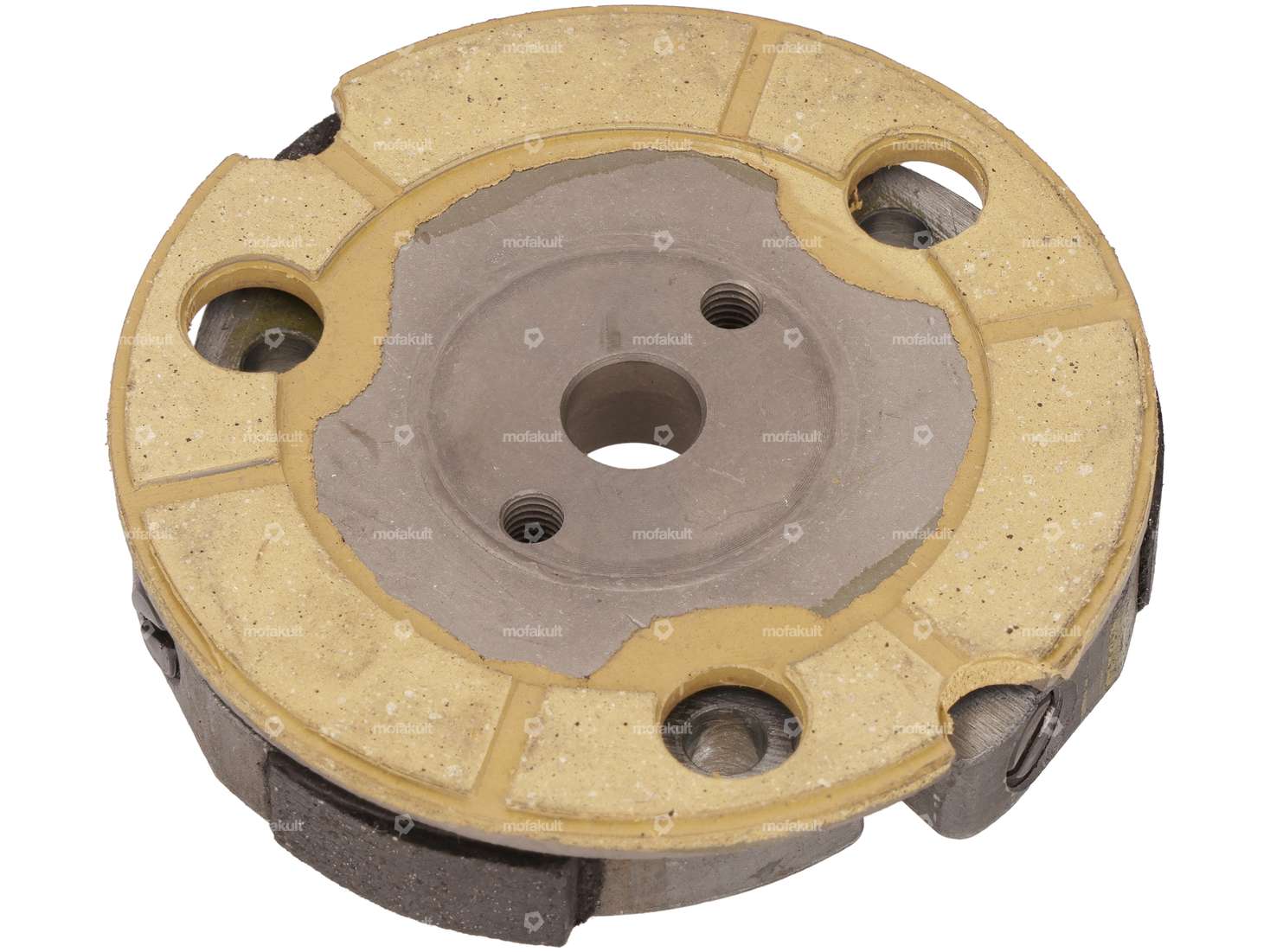

Tuning clutch for Puch Maxi S / N, Puch Supermaxi LG1 mopeds / mopeds which have an E50 input engine installed.

The racing clutch is equipped with a reinforcement plate, which provides the necessary stability at high speeds.

The scope of delivery includes four different spring strengths for the corresponding application range:

Red (installed springs with thin wire): correspond to original clutch springs
Blue: Slightly tuned engines (approx. 1000-1500 rpm higher speed when engaging the clutch)
Yellow: Medium tuned engines (approx. 3000-3500 rpm higher speed when engaging the clutch)
Red: High-end tuning (approx. 4500-6500 rpm higher speed when engaging)

Before installing the centrifugal clutch, make sure that the openings of the retaining rings (BZ rings) are facing outwards.
This prevents the BZ rings from loosening during operation.

Branded product from the manufacturer DMP.

Product details

Manufacturer	DMP
Material	Steel
Material addition	Chrome steel (known as Nirosta®)
Area of application	Performance, Racing, High End, Tuning
Number of jaws	3 pcs
Recording type	Cone mounting
Ø outside	94 mm
Thickness	22 mm
Number of springs	3 pcs

Suitable for the following models

Puch

E50
