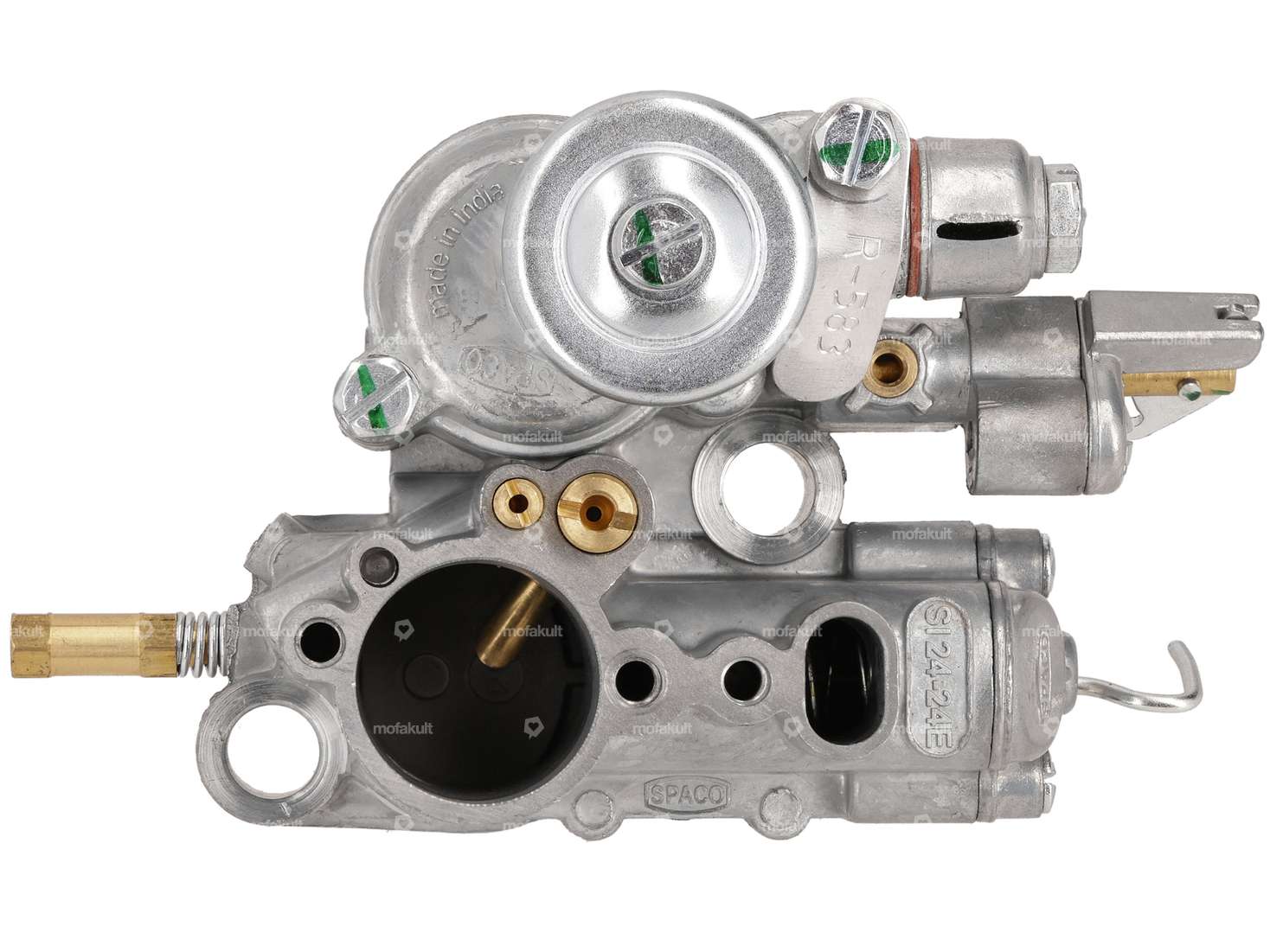

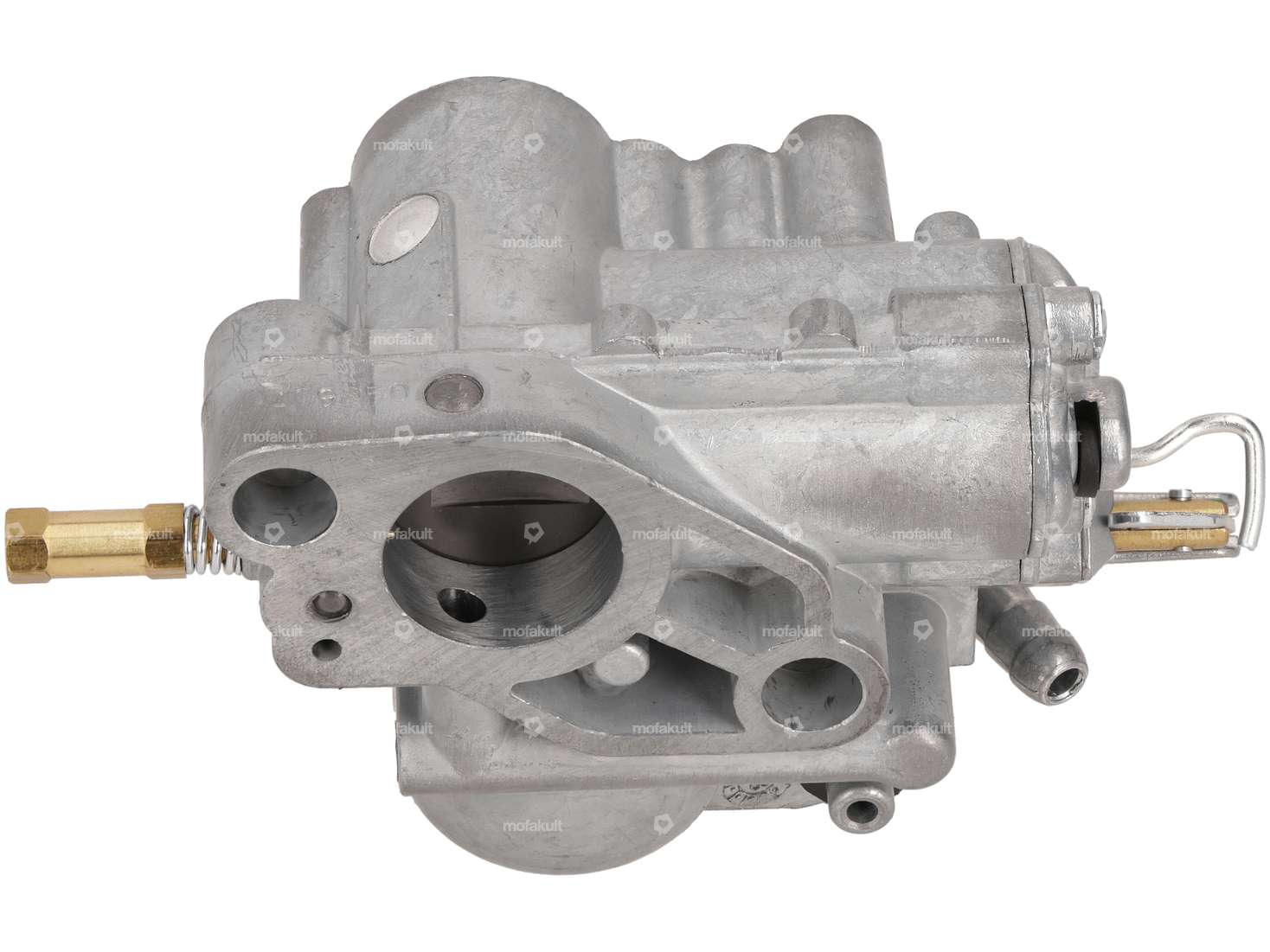

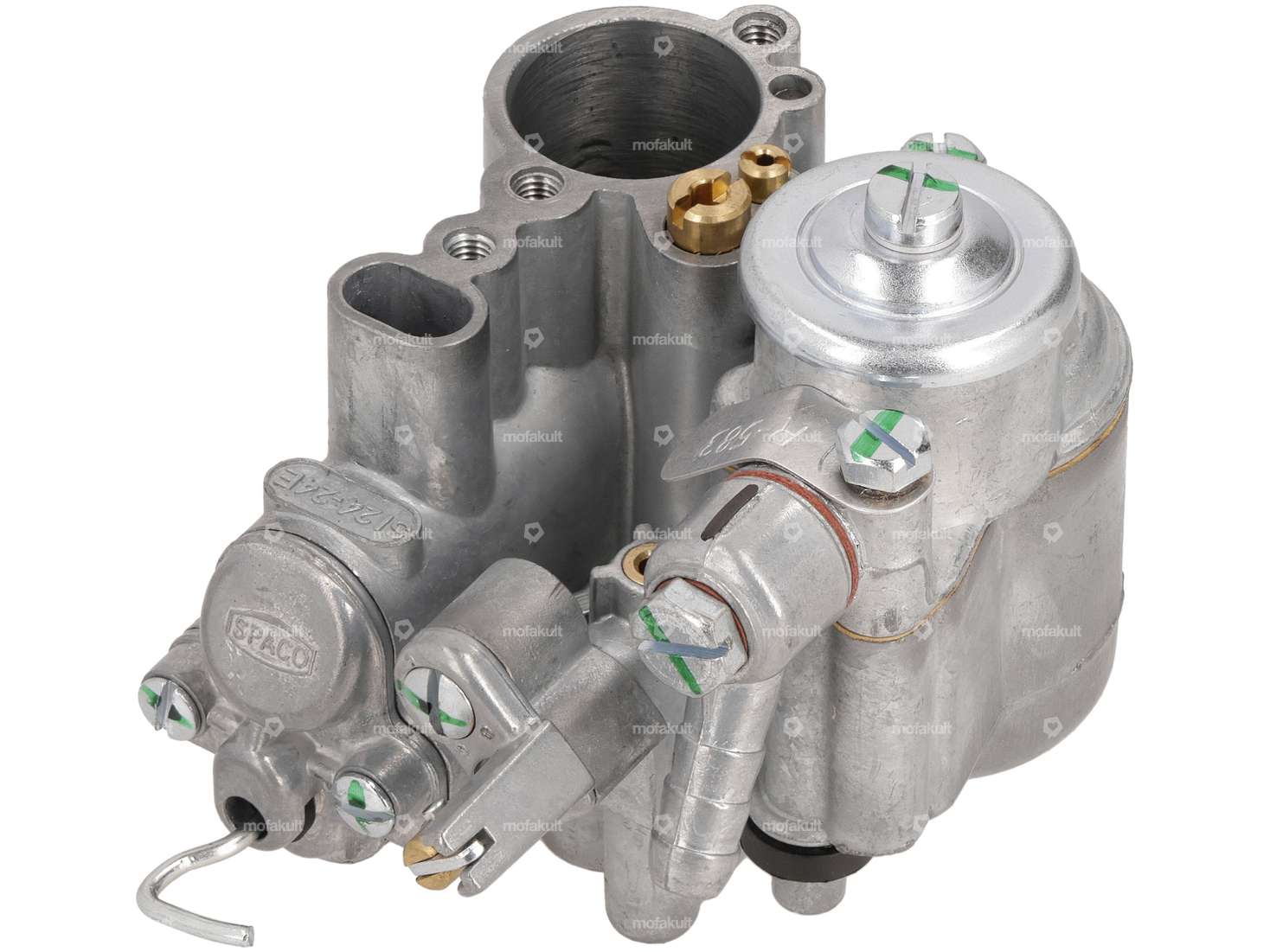

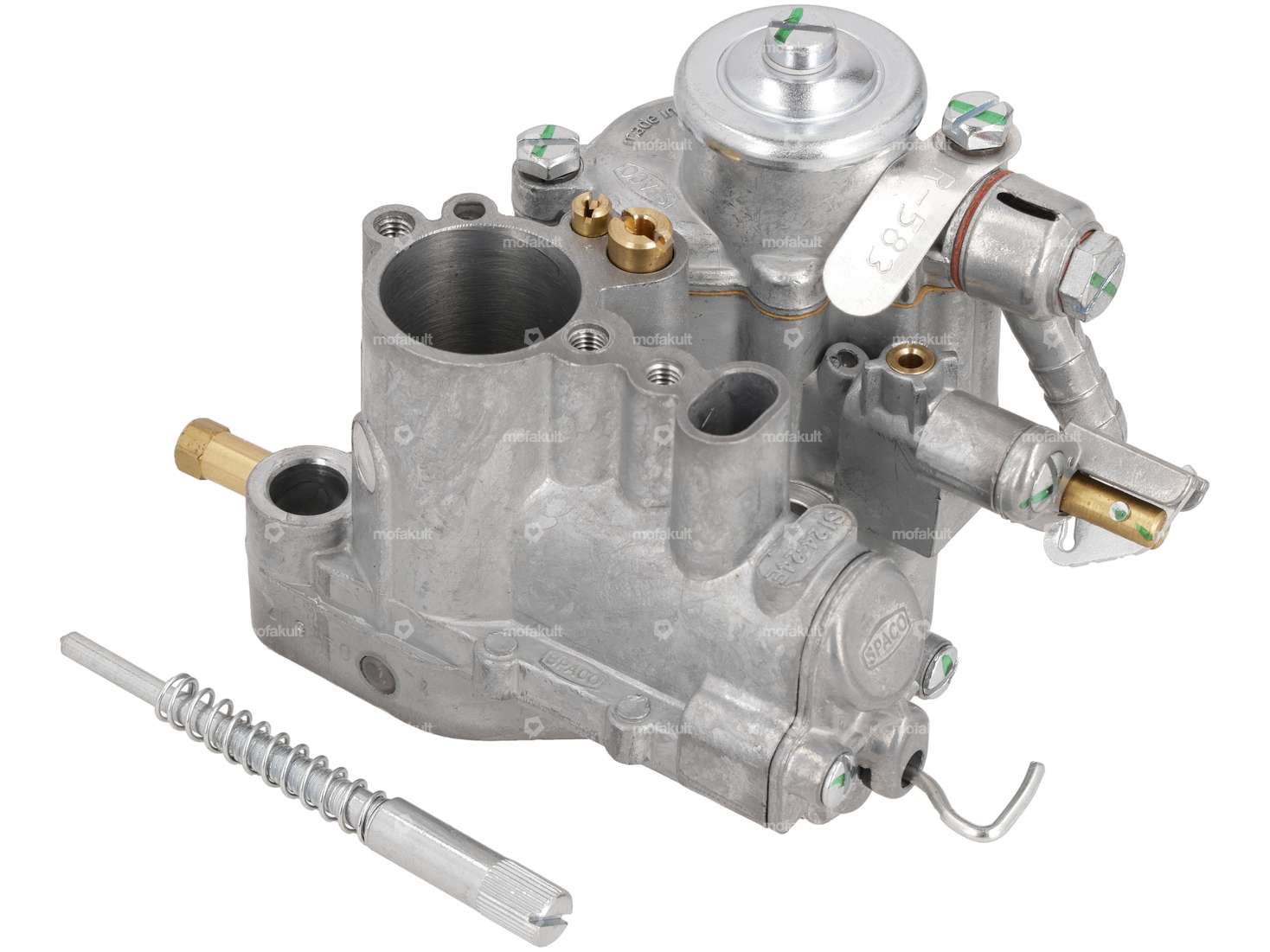

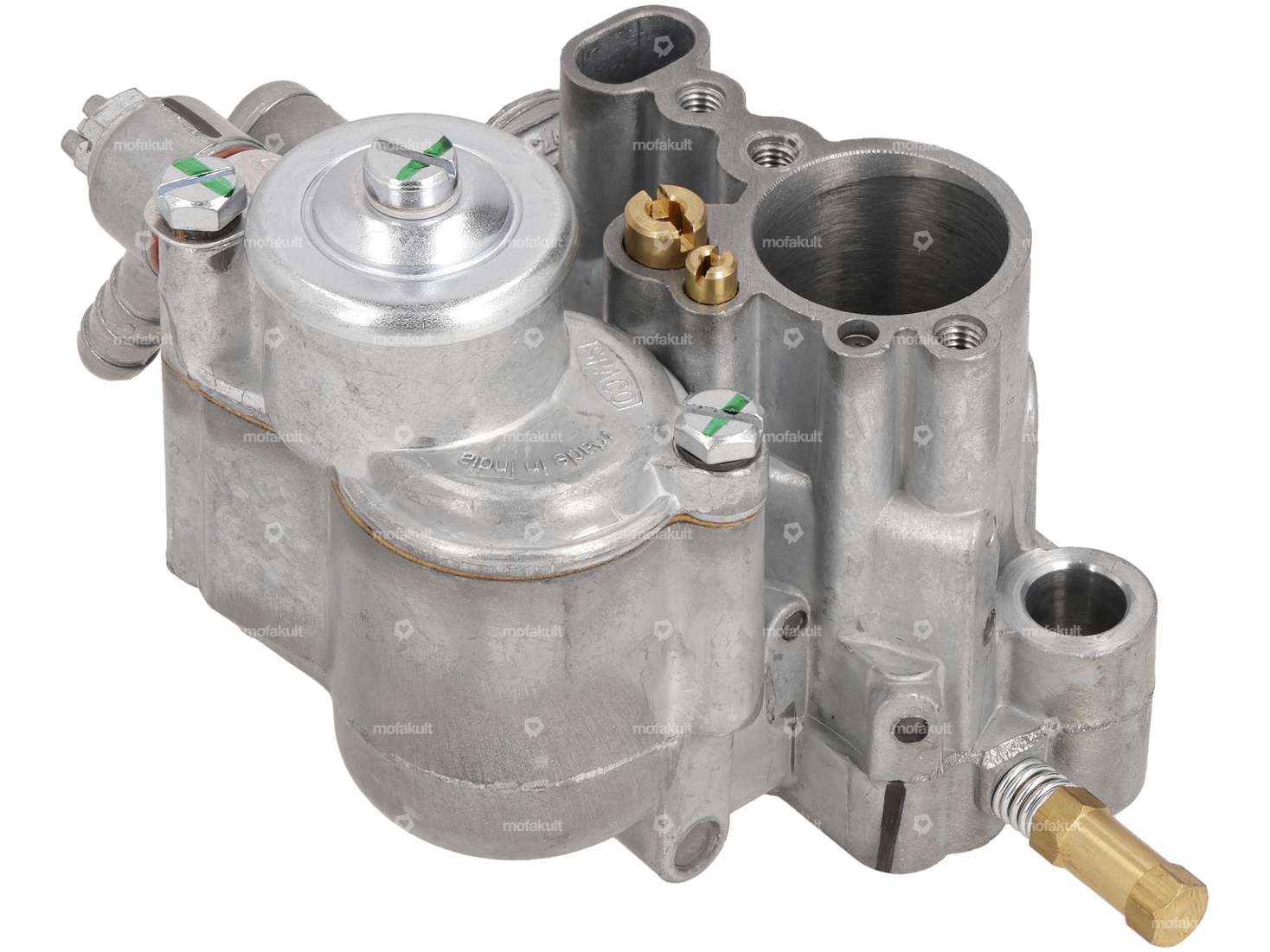

SI 24.24E carburetor with separate lubrication suitable for your Vespa P 200E, PX 200 Lusso and Rally 200 scooter with separate oil tank.
The SI 24 carburettor with separate lubrication is designed for use with a mixing connection or models with a separate oil supply and is supplied with a vehicle-specific condition, which must be adapted depending on the model and setup.
Note: For Vespa models with 125 / 150cc, the SI 24 carburettor serves as a kind of tuning carburettor, as it also fits here, but with the larger passage it harmonizes much better with various racing cylinders.
New gaskets for the carburetor sump and a new air filter can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Original Piaggio spare part number: 131220, 183099, 285328
| Nominal diameter | 24 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SI |
| Mounting type | Screws |
| Width | 78 mm |
| Ø fuel hose connection | 8.3 mm |
| Height | 81 mm |
| Nozzle size | 116 |
| Ø Inside entrance | 23.7 mm |
| Ø Output inside | 23.7 mm |
| Total length | 125 mm |
| Area of application | Standard |
| Air filter connection thread | M5x0.8 (standard thread) |
| Mixed oil connection | Yes |
| Vacuum connection | No |
| Choke control | Cable choke |
| Choke nozzle size | 60 |
| Nozzle block | BE5 |
| Camouflaged | No |
| Piaggio OEM number | 131220, 183099, 285328 |
| Vespa | Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) |
