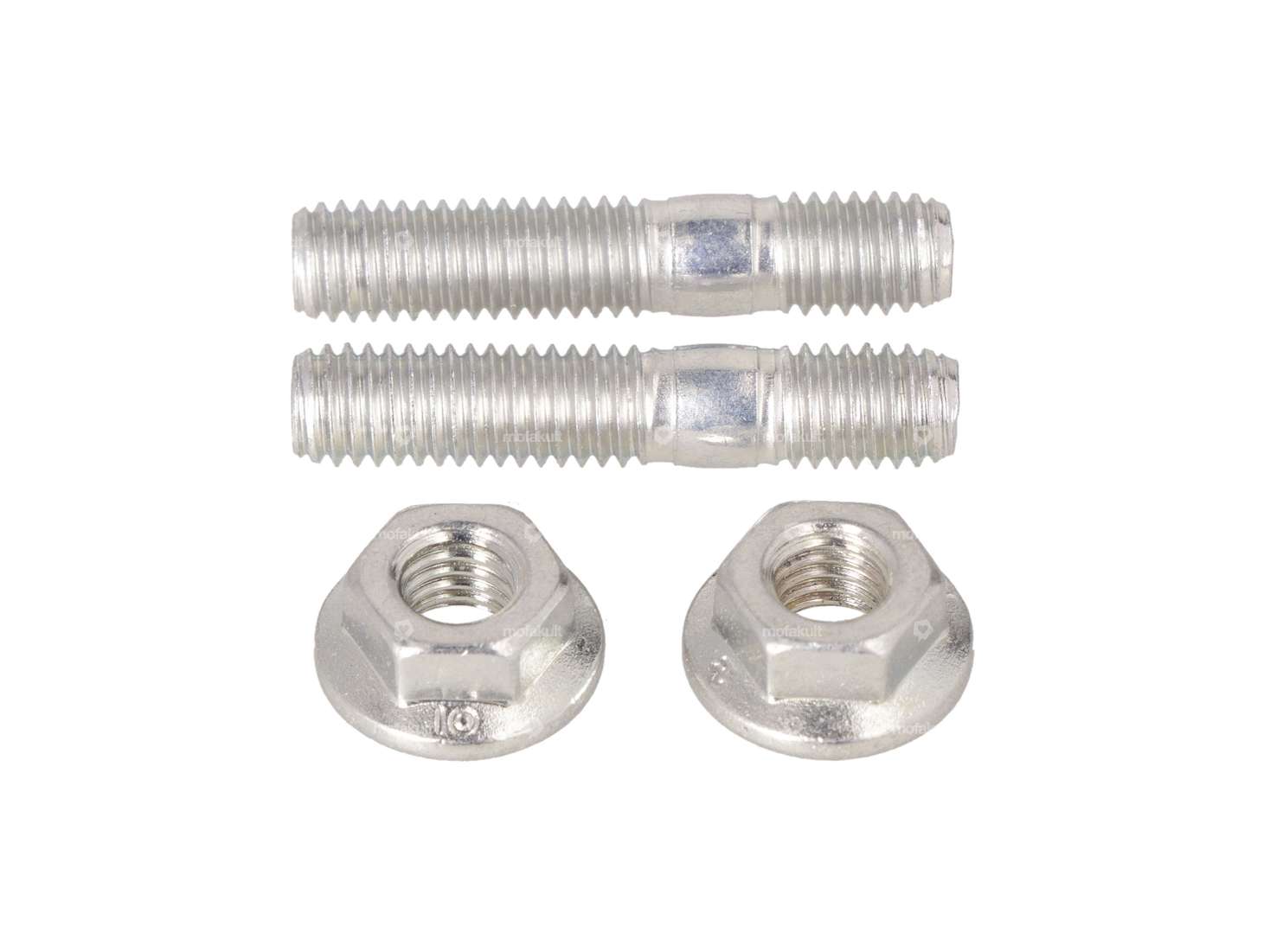

Set of galvanized M5 threaded bolts and flange nuts with increased strength for the intake manifold of slot-controlled cylinders on Sachs mopeds with 502, 50/2, 50/3, and 50/4 engines.
These stud bolts are used to secure the intake manifold.
Total length: 26 mm
Thread length: 14 / 7 mm
Threaded stud strength: 10.9
Flange nut strength: 8
Material: Steel, galvanized
A nostalgic product meeting the highest standards from the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Total length | 26 mm |
| Drive | External hexagon |
| Thread type | M5x0.8 (standard thread) |
| Nominal diameter (thread) | 5 mm |
| Width across flats | 8 mm |
| Thread length | 14 mm, 7 mm |
| Strength class | 8, 10.9 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
