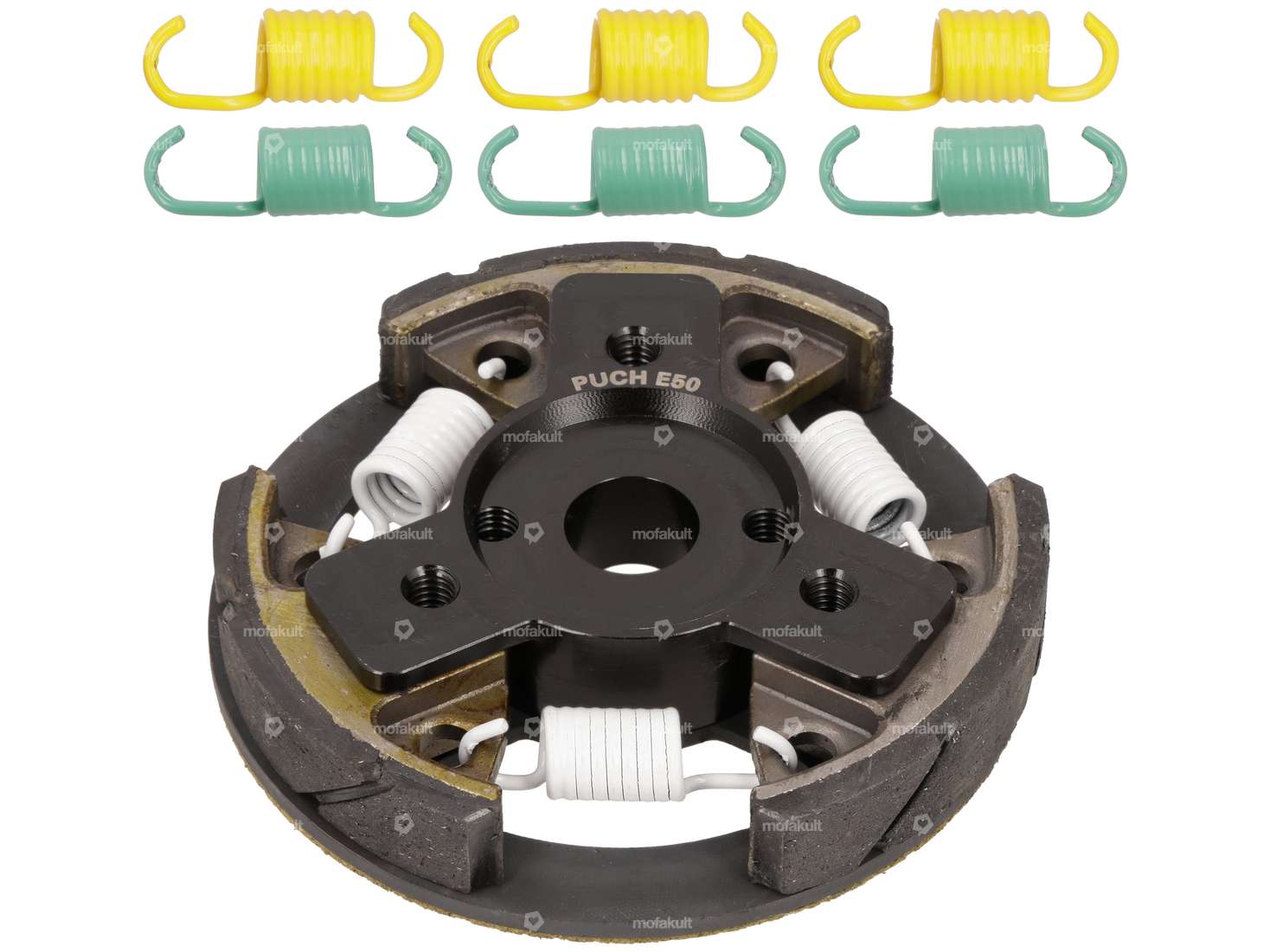

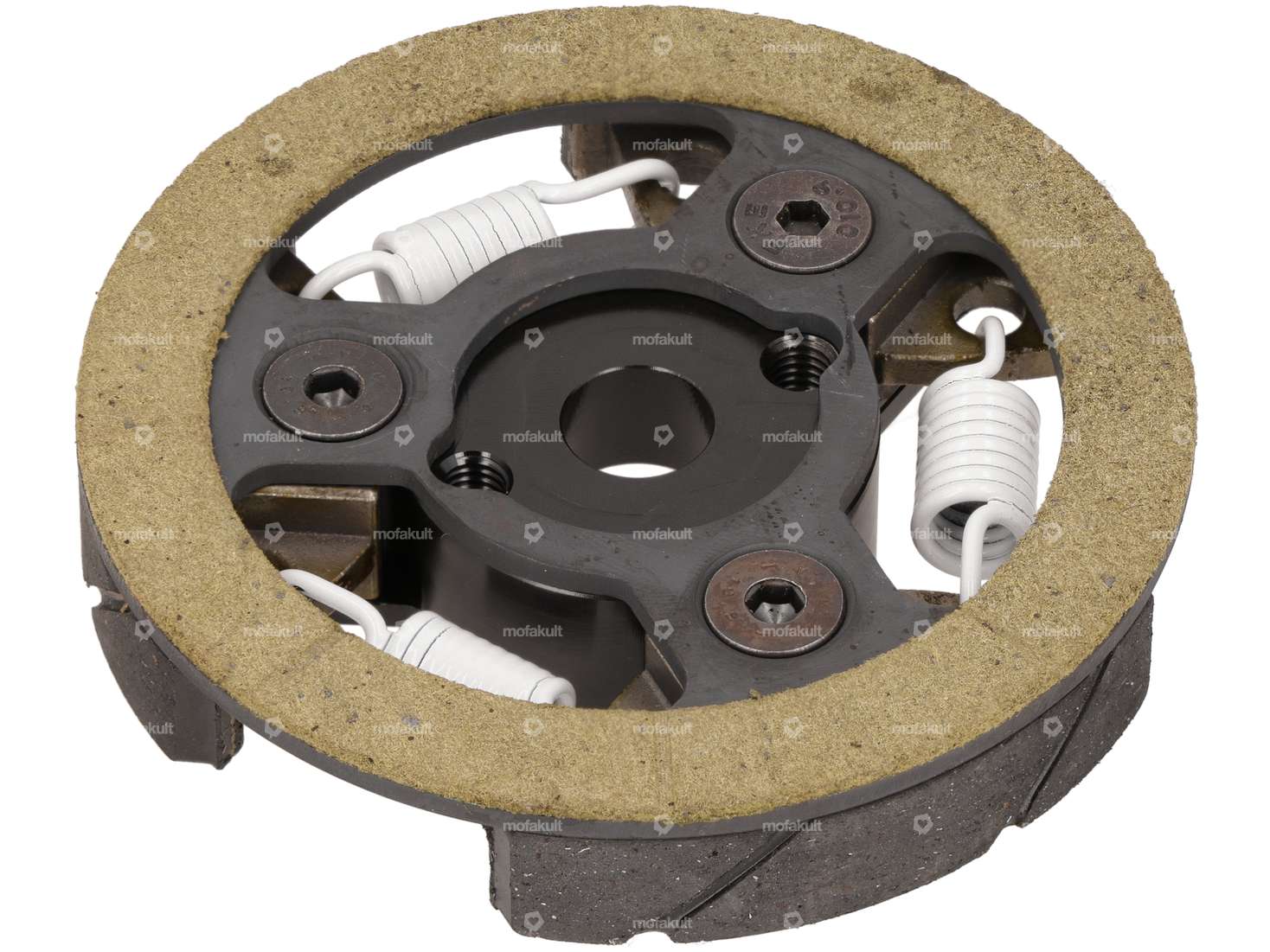

Racing clutch compatible with your Puch Maxi S / N moped with an E50 engine.
This high-quality centrifugal clutch is suitable for racing and tuning applications. The clutch consists of three clutch plates and features a reinforcement plate that significantly increases stability. With the three included spring strengths, the engagement characteristics can be adjusted to suit various engine setups. The weakest springs are already installed.
Package contents:
• Racing clutch, 409 gr
• White clutch spring set with 1.5 mm wire diameter
• Green clutch spring set with 1.6 mm wire diameter
• Yellow clutch spring set with 1.7 mm wire diameter
Notes: The clutch should be soaked in oil for 24 hours before installation so that the friction plates can become saturated with oil. After selecting the appropriate clutch springs for your engine, the M6 countersunk screws on the racing clutch must be secured with medium-strength threadlocker and tightened to 6 Nm.
You can find the appropriate oil and threadlocker among the accessories.
High-quality product from the American manufacturer Jammer Clutches.
Alternative to the original Puch part number: 349.1.12.504.0
| Manufacturer | Jammer |
| Material | Steel |
| Area of application | Tuning |
| Material addition | Composite materials |
| Surface | burnished |
| Ø inside | 12.5 mm, 13.9 mm |
| Recording type | Cone mounting |
| Ø outside | 92 mm |
| Number of jaws | 3 pcs |
| Number of springs | 3 pcs |
| Thickness | 19.75 mm |
| Alternative version of the Puch OEM number | 349.1.12.504.0 |
| Puch | E50 |
