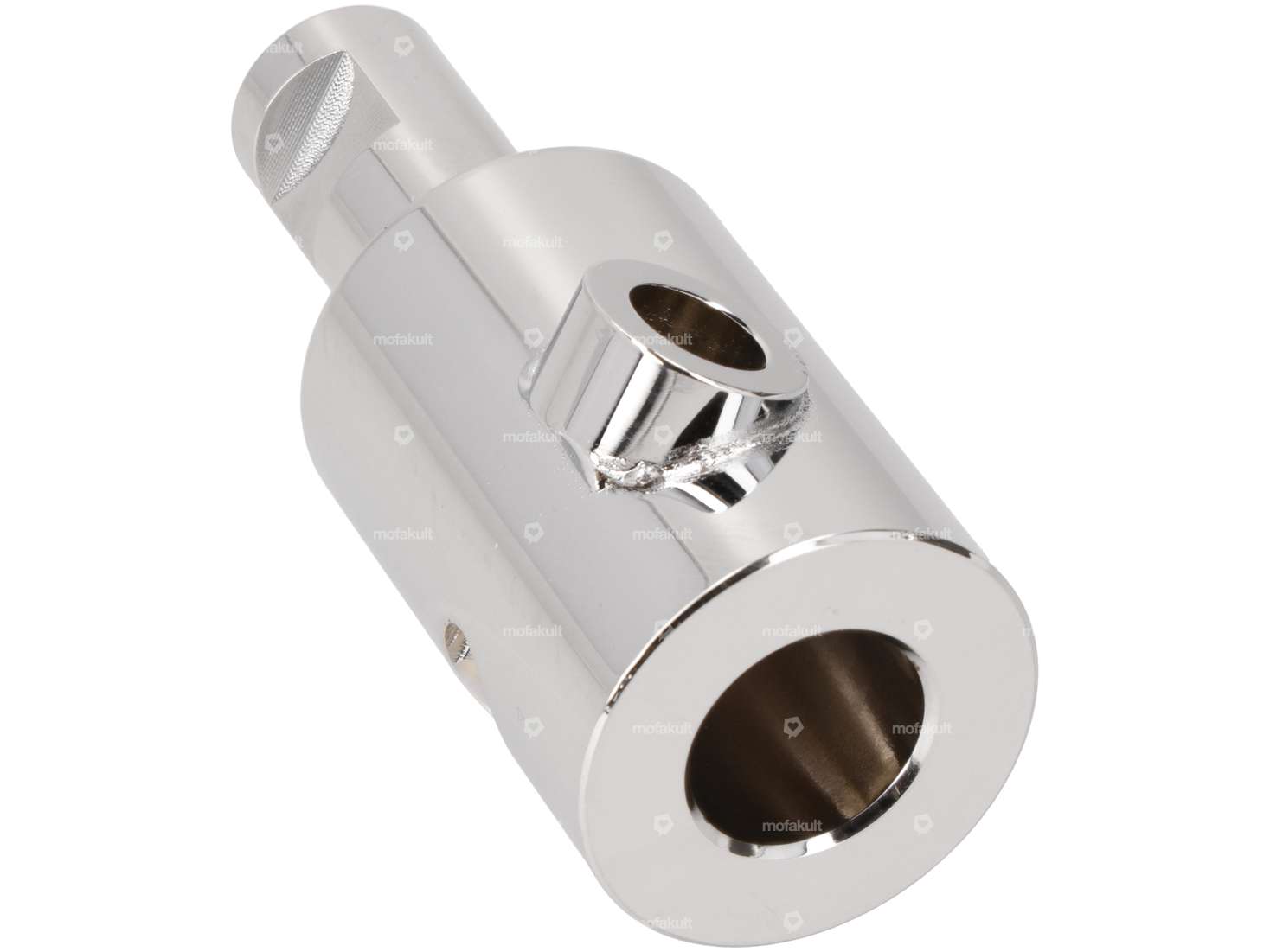

Extension bushes made of stainless steel to lengthen your pedal axle on your moped / moped.
The pedal axle extension (also known as pedal extension, axle extension) is used, for example, when using a kick starter or cable starter in order to still be able to operate the pedals.
The pedal axle extension is designed for 9.5 mm wedges.
- Total length: 78 mm
- Length of tenon: 30 mm
- Length of inner bore: 35 mm
- Ø outer mount: 15.8 mm
- Ø inner mount: 16.1 mm

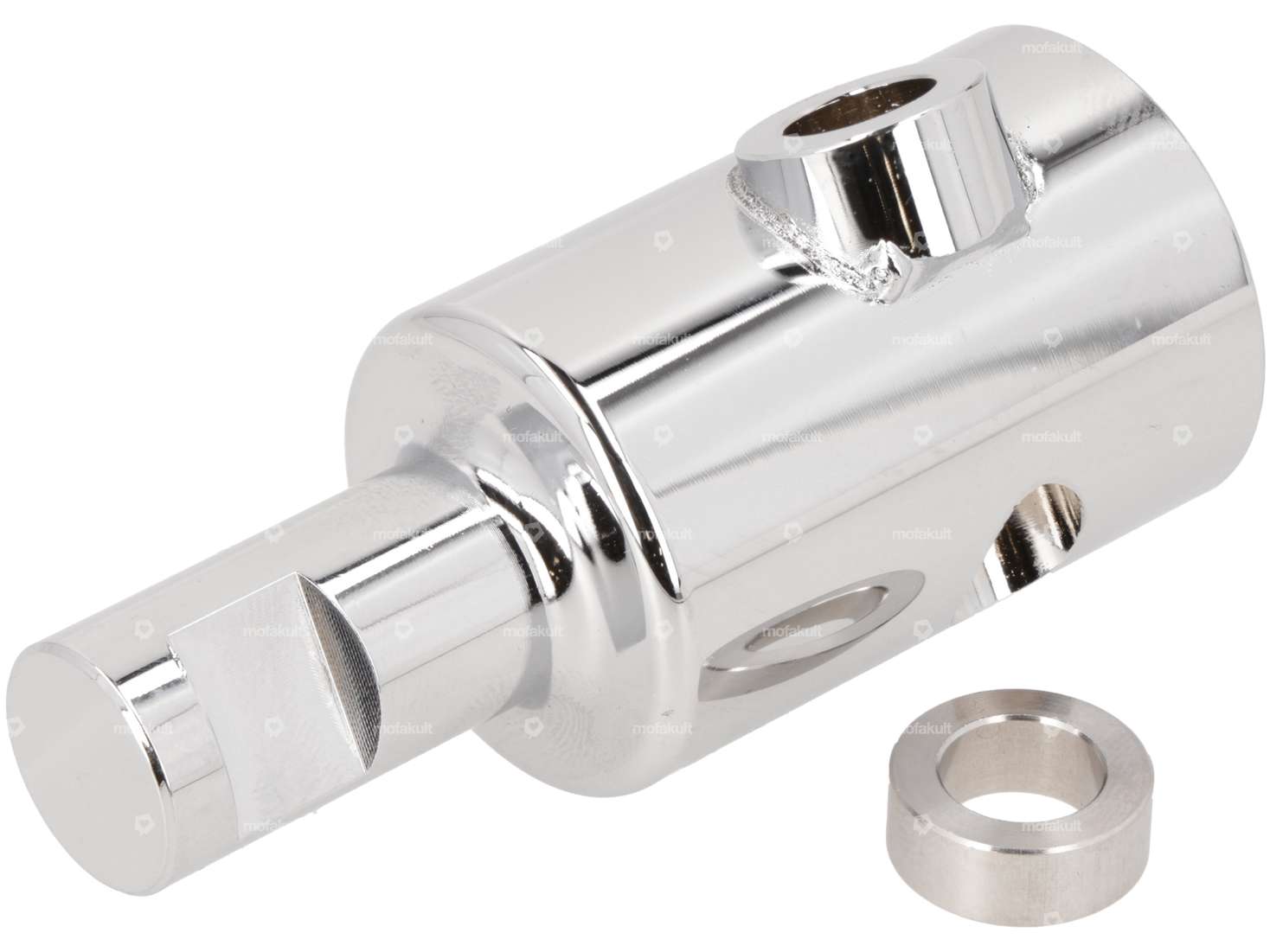

Note: Depending on the wedge and the pedal axle used, there may be differences in how far the wedge slides through the hole. To compensate for these differences, a suitable washer is also included, which can be placed under the nut if required. This allows the wedge to be pulled further and the axle extension to be fixed properly.
Ideally, use wedges with a pitch of 3.5° and a diameter of 9.5 mm.
Details
| Material | Chrome steel (known as Nirosta®) |
| Ø bore | 16.1 mm |
| Ø outside | 32 mm |
| Depth | 35 mm |
| Total length | 78 mm |
| Ø Pedal arm holder | 15.8 mm |
