Intake manifold

BING O-ring Bing SRE & 85, Ø 20 mm

Cord thickness: 1.4 mm · Manufacturer: BING · Material: Rubber · Surface: raw · Place of use: Carburetor · Color: black · Number of components: 1 pcs · Ø outside: 20 mm · Ø inside: 17.2 mm · Area of application: Standard · Pony spare part no.: A4281 · Sachs spare part no.: 0250 160 101

Inlet gasket 3 mm square | Puch

Material: Sealing carton · Area of application: Standard · Place of use: Admission · Reinforced: No · Thickness: 3 mm · Ø screw holder: 7.1 mm · Hole spacing inlet: 38 mm

swiing® ingenious 15 mm intake manifold camouflaged (Version 2.0) | Puch E50

Ø inside: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Total length: 46 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Total height: 53 mm · Height flange center hole: 43 mm · Number of fixing points: 2 pcs · Ø External connection: 20 mm

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Diameter: 4.9 mm · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

swiing® ingenious intake manifold 17 mm SRF | Puch E50

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53.5 mm · Height flange center hole: 42 mm · Total length: 38 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

15 mm intake manifold | Puch E50

Total height: 54 mm · Camouflaged: Yes · Material: Aluminum · Mounting type: Screws · Ø inside: 14.5 mm · Ø External connection: 20 mm · Total length: 47 mm · Height flange center hole: 43 mm · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Area of application: Tuning

Puch inlet gasket original

Ø inside: 15 mm · Area of application: Original · Material: Sealing paper · Hole spacing inlet: 32.5 - 38 mm · Thickness: 0.35 mm · Place of use: Admission · Ø screw holder: 6.3 mm

Inlet gasket angular | Puch

Place of use: Admission · Material: Sealing paper · Reinforced: No · Thickness: 0.3 mm · Ø screw holder: 6.8 mm · Hole spacing inlet: 38 mm

swiing® revival Set stud bolts M6x30 (strength 10.9) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Diameter: 6 mm · Drive: External hexagon · Width across flats SW: 10 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 8 · Strength class: 10.9

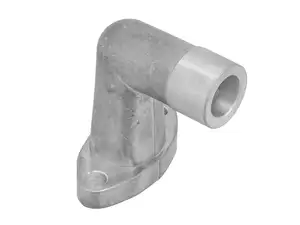

swiing® revival 12 mm intake manifold | Puch E50

Manufacturer: swiing® revival parts · Material: Aluminum · Total height: 53 mm · Area of application: Original · Mounting type: Screws · Number of fixing points: 2 pcs · Ø inside: 12 mm · Ø External connection: 20 mm · Height flange center hole: 43 mm · Total length: 45.5 mm · Camouflaged: No · Hole spacing inlet: 38 mm

Nut M6 raised galvanized

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 1D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 6 mm · Width across flats SW: 10 mm · Strength class: 8

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Carburetor type: SRF · Nominal diameter: 17 mm

swiing 15 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Camouflaged: Yes · Carburetor type: SRE · Nominal diameter: 15 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Nozzle thread: M3.5 · Ø Internal connection: 20 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Clamping screw torque (max.): 4 N/m

Flange gasket for Sachs 50/2 connecting piece

Place of use: Admission · Thickness: 5 mm · Hole spacing inlet: 31 mm · Ø inside: 11.8 mm · Pony spare part no.: A1823 · Sachs spare part no.: 0250 085 000

AKOA 15 mm intake manifold camouflaged | Puch E50

Manufacturer: AKOA · Material: Aluminum · Camouflaged: Yes · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 46 mm · Area of application: Tuning

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 10.9 · Pony spare part no.: A1474 · Sachs spare part no.: 0241 031 101

GPO 15 mm intake manifold | Puch (ZA50)

Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Total length: 51.5 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Ø inside: 15 mm · Total height: 63 mm · Area of application: Tuning · Height flange center hole: 52.5 mm · Ø External connection: 20 mm · Hole spacing inlet: 32 - 38 mm

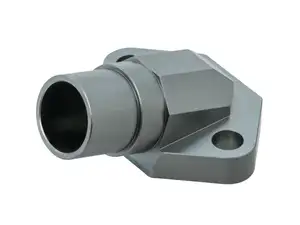

swiing® ingenious 16 mm intake manifold | Beta 521, 512

Ø inside: 16 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Color: graphite colors · Area of application: Tuning · Number of fixing points: 2 pcs · Surface: anodized · Hole spacing inlet: 35 mm · Ø External connection: 19 mm · Mounting type: Screws

Ripp-Lock washer M5 5.2/12/1.4 galvanized

Material: Steel · Surface: blue galvanized · Thread size: M5 · Ø inside: 5.2 mm · Nominal diameter (thread): 5 mm · Ø outside: 12 mm · Thickness: 1.4 mm

swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL

Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 2 pcs · Ø inside: 15 mm · Total length: 70 mm · Thread type: M6x1 (standard thread) · Height flange center hole: 70 mm · Hole spacing inlet: 32 mm · Total height: 80 mm · Ø External connection: 20 mm · Pony spare part no.: A2176

AKOA 21 mm intake manifold Dell'Orto PHBG | Puch

Ø inside: 20.7 mm · Manufacturer: AKOA · Material: Plastic · Area of application: Tuning · Color: black-matt · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Ø External connection: 26 mm

Inlet gasket 3.2 mm | Puch X30 Velux / Sachs

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm

Diaphragm seal engine Beta 521 & 512 (A8101)

Manufacturer: Pony · Place of use: Admission · Thickness: 2 mm · Hole spacing inlet: 35 mm · Area of application: Standard · Ø screw holder: 6.6 mm

Flange nut M5 galvanized (10 strength)

Height: 5 mm · Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Width across flats SW: 8 mm · Strength class: 10 · Pony spare part no.: A1501 · Sachs spare part no.: 0242 024 104

swiing® revival inlet gasket cylinder "swiing" | Sachs 503

Manufacturer: swiing® revival parts · Ø cylinder: 38 - 40 mm · Thickness: 2 mm · Place of use: Admission

Puch inlet gasket 1.6 mm thick

Place of use: Admission · Thickness: 1.6 mm · Hole spacing inlet: 32 - 38 mm

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

Thickness: 2.6 mm · Place of use: Admission · Hole spacing inlet: 30 mm

Intake gasket, engine Beta 521 & 512 (A8100)

Manufacturer: Pony · Surface: coated · Place of use: Admission · Material: Sealing carton · Thickness: 2 mm · Hole spacing inlet: 35 mm

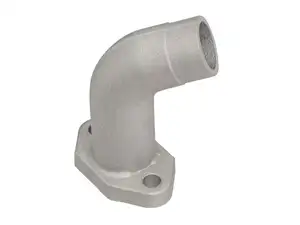

Airsal intake manifold 46 / 47 mm cylinder | Puch

Ø inside: 19 mm · Total height: 75 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 60 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Height flange center hole: 65 mm · Number of fixing points: 2 pcs · Ø External connection: 24 mm

Gasket for insulating sleeve SHA carburetor | Beta 521 & 512 (A8162)

Manufacturer: Pony · Material: Rubber · Carburetor type: SHA Spaco · Ø inside: 16 mm · Ø outside: 18 mm

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Ø inside: 18.8 mm · Total height: 57 mm · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Color: Chrome · Surface: polished · Total length: 40 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Height flange center hole: 45 mm · Number of fixing points: 2 pcs · Ø External connection: 23.9 mm

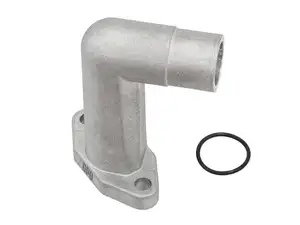

GPO intake manifold 15 mm square Puch X30 NS, NL | Sprinter

Manufacturer: GPO · Mounting type: Screws · Material: Aluminum · Camouflaged: No · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Ø inside: 15 mm · Total height: 70 mm · Height flange center hole: 60 mm · Area of application: Tuning · Total length: 48 mm · Ø External connection: 20 mm

Inlet gasket (32 mm hole spacing) Oil paper 0.45 mm

Material: Oiled paper · Hole spacing inlet: 32 mm · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Place of use: Admission

swiing® revival inlet seal | Sachs 503 AB, ADV

Manufacturer: swiing® revival parts · Place of use: Admission · Thickness: 1.1 mm · Hole spacing inlet: 38 mm

Dell'Orto reducing bush SHA 12mm (16/18 mm)

Manufacturer: Dell'Orto · Material: Plastic · Color: white · Carburetor type: SHA (type 3) · Carburetor type: SHA Spaco · Ø Passage: 12 mm · Ø inside: 16 mm · Ø outside: 18 mm · Total length: 14 mm · Piaggio spare part no.: 114482

swiing® ingenious intake manifold & carburetor 16 mm tuning set | Beta 521 & 512

Manufacturer: Dell'Orto · Manufacturer: swiing® ingenious parts · Camouflaged: No · Carburetor type: SHA (type 4) · Nominal diameter: 16 mm · Ø Internal connection: 18 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Output inside: 16 mm · Ø Air filter connection: 59 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5 · Nozzle size: 82 · Mounting type: Flange · Mounting type: Plug connection clamped · Area of application: Tuning

Dell'Orto reducing bush 26 / 24 mm PHBG 15 - 21 mm

Ø inside: 24 mm · Ø outside: 26 mm · Manufacturer: Dell'Orto · Material: Plastic · Color: white · Carburetor type: PHBG · Total length: 16 mm · Ø Passage: 20 mm

Dell'Orto reducing bush SHA 13 mm (16/18mm)

Manufacturer: Dell'Orto · Material: Plastic · Color: white · Carburetor type: SHA (type 3) · Ø outside: 18 mm · Ø inside: 16 mm · Ø Passage: 13.3 mm · Total length: 14 mm

swiing 12 mm carburetor set | Puch E50

Manufacturer: swiing · Carburetor type: SRE · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Area of application: Standard · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5 · Camouflaged: No · Nozzle size: 52 · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m

Gasket inlet 3.2 mm Puch

Thickness: 3.2 mm · Place of use: Admission · Hole spacing inlet: 32 - 38 mm

swiing® ingenious reduction sleeve air filter 15 mm carburetor (23/20 mm) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Material: Polyamide (PA) · Total length: 15 mm · Color: white · Ø inside: 20 mm · Ø outside: 23 mm

Dell'Orto SHA reducing bushing (16/19 mm)

Ø inside: 16 mm · Ø outside: 19 mm · Manufacturer: Dell'Orto · Material: Plastic · Carburetor type: SHA (type 3) · Color: white

15 mm intake manifold Dell'Orto SHA

Material: Aluminum · Ø inside: 15 mm · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Mounting type: Screws · Area of application: Tuning · Height flange center hole: 41 mm · Ø External connection: 19 mm

Inlet seal Sachs 50/3 for 17 mm connection piece (5.5 mm)

Thickness: 5.5 mm · Place of use: Admission · Hole spacing inlet: 30 mm

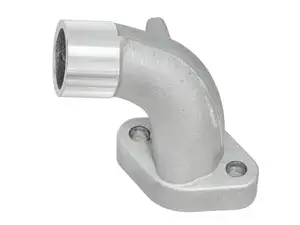

BAD ASS intake manifold 17 mm SRF short version | Sachs 503 2AL, 2BL

Ø inside: 17 mm · Manufacturer: BAD ASS · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 54 mm · Thread type: M6x1 (standard thread) · Mounting type: Screws · Hole spacing inlet: 32 mm · Total height: 56.5 mm · Height flange center hole: 45 mm · Number of fixing points: 3 pcs · Ø External connection: 23 mm

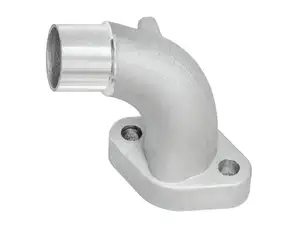

BAD ASS 17 mm intake manifold (short) Bing SRE | Sachs 503 2AL/2BL

Manufacturer: BAD ASS · Camouflaged: No · Material: Aluminum · Ø inside: 17.8 mm · Ø External connection: 20 mm · Mounting type: Stud bolt · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Total height: 55 mm · Height flange center hole: 45 mm · Total length: 65 mm · Area of application: Tuning

GPO inlet seal BAD ASS Pandora 41 & 43 mm | Sachs 503, 50/2

Manufacturer: GPO · Material: Oiled paper · Place of use: Admission · Thickness: 1 mm · Ø inside: 19 mm · Hole spacing inlet: 32 mm · Ø screw holder: 6.5 mm

Dell'Orto reducing bush 26 / 23 mm PHBG 15 - 21 mm

Manufacturer: Dell'Orto · Material: Plastic · Color: white · Carburetor type: PHBG · Total length: 16 mm · Ø inside: 23 mm · Ø Passage: 21 mm · Ø outside: 26 mm

swiing® revival inlet seal 5.5 mm Bing 13 mm | Sachs 50/3

Manufacturer: swiing® revival parts · Material: Plastic · Material: Sealing paper · Place of use: Admission · Thickness: 5.9 mm · Hole spacing inlet: 31 mm · Ø screw holder: 5.2 mm · Area of application: Standard

swiing® ingenious intake manifold 17 mm SRF | Puch Z50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Ø inside: 17 mm · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 73 mm · Height flange center hole: 61 mm · Total length: 45 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

swiing® revival gasket 2 mm inlet Ø 16 mm | Puch X30 Velux / NG-2AH

Manufacturer: swiing® revival parts · Place of use: Admission · Thickness: 2 mm · Ø outlet inside: 16 mm · Ø screw holder: 6.8 mm · Hole spacing inlet: 32 mm

Dell'Orto SHA reducing bush (18/16 mm)

Manufacturer: Dell'Orto · Material: Plastic · Ø inside: 16 mm · Ø outside: 18 mm · Carburetor type: SHA (type 3) · Carburetor type: SHA Spaco · Total length: 14 mm · Color: white

swiing® revival inlet gasket 0.45 mm oil paper | Sachs 503

Place of use: Admission · Manufacturer: swiing® revival parts · Material: Oiled paper · Ø outlet inside: 15.5 mm · Thickness: 0.45 mm · Hole spacing inlet: 32 mm · Pony spare part no.: A1886 · Sachs spare part no.: 0250 151 000

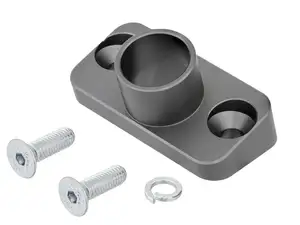

swiing® ingenious 16 mm SHA intake manifold Speed Engine (Version 2.0) | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Surface: anodized · Ø inside: 16 mm · Material: Aluminum · Color: graphite colors · Area of application: Tuning · Ø External connection: 19 mm · Total length: 29 mm · Hole spacing inlet: 36 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Total height: 24.2 mm · Camouflaged: No

Dell'Orto SHA reducing bushing (21/18 mm)

Ø inside: 18 mm · Ø outside: 21 mm · Manufacturer: Dell'Orto · Material: Plastic · Color: white · Carburetor type: SHA (type 4) · Total length: 14 mm

Inlet gasket oil paper | Puch X30 Velux

Material: Oiled paper · Place of use: Admission · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Hole spacing inlet: 32 mm

AKOA intake manifold 15 mm SRE | Sachs 503 AB, ADV (A5669, A2180)

Manufacturer: AKOA · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 36 mm · Alternative version of the Pony Spare part no.: A2180 · Alternative version of the Pony Spare part no.: A5669

swiing® ingenious 15mm tuning set carburetor HG long | Sachs 503

Manufacturer: swiing · Camouflaged: No · Color: black · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5 · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Flange · Mounting type: Plug connection clamped · Hole spacing inlet: 32 mm · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Total length: 165 mm · Width: 50 mm · Width: 68 mm · Height: 52 mm · Height: 95 mm · Area of application: Tuning

Flange nut M5 galvanized (8 strength)

Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Height: 5 mm · Width across flats SW: 8 mm · Strength class: 8
