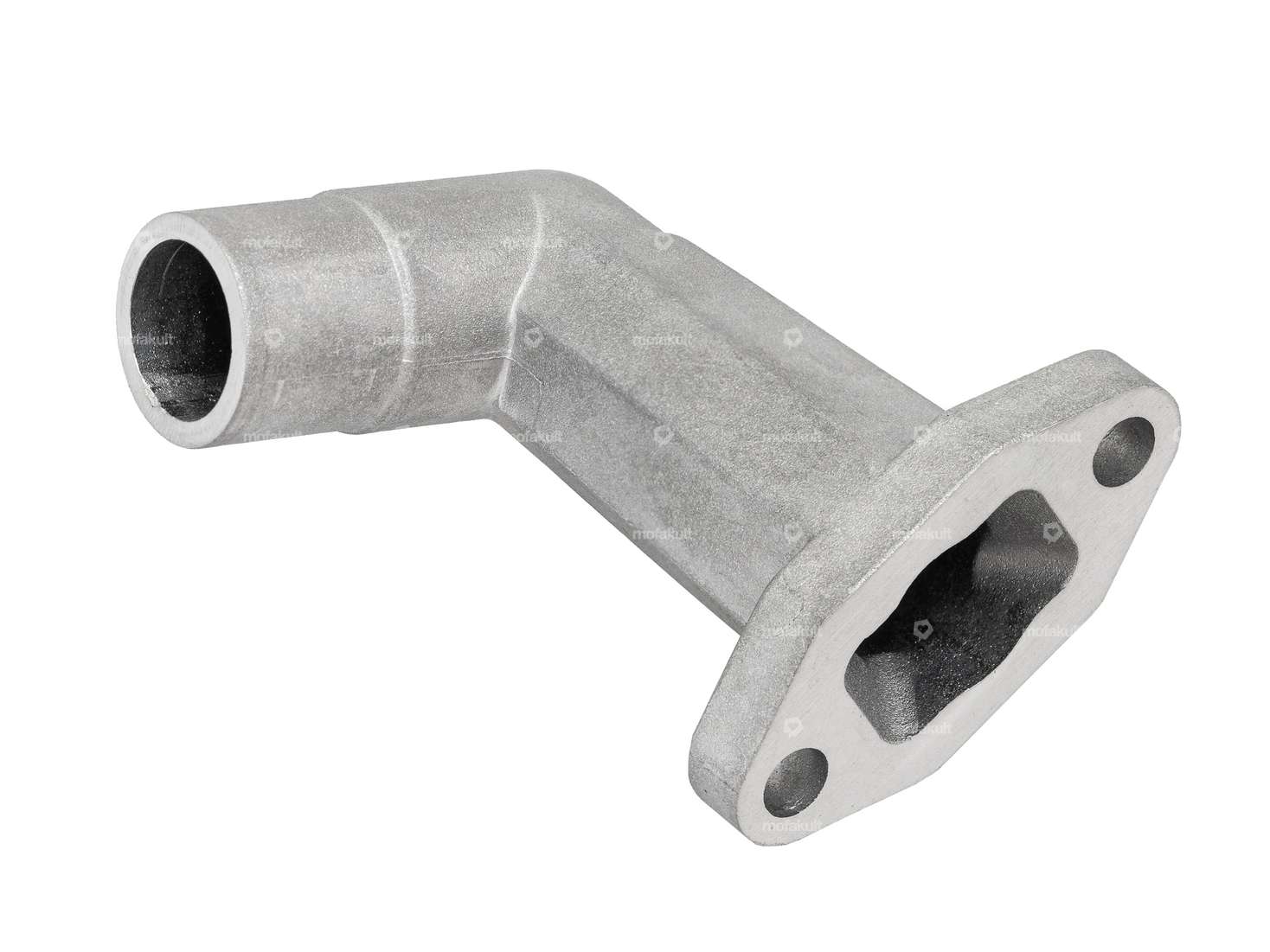

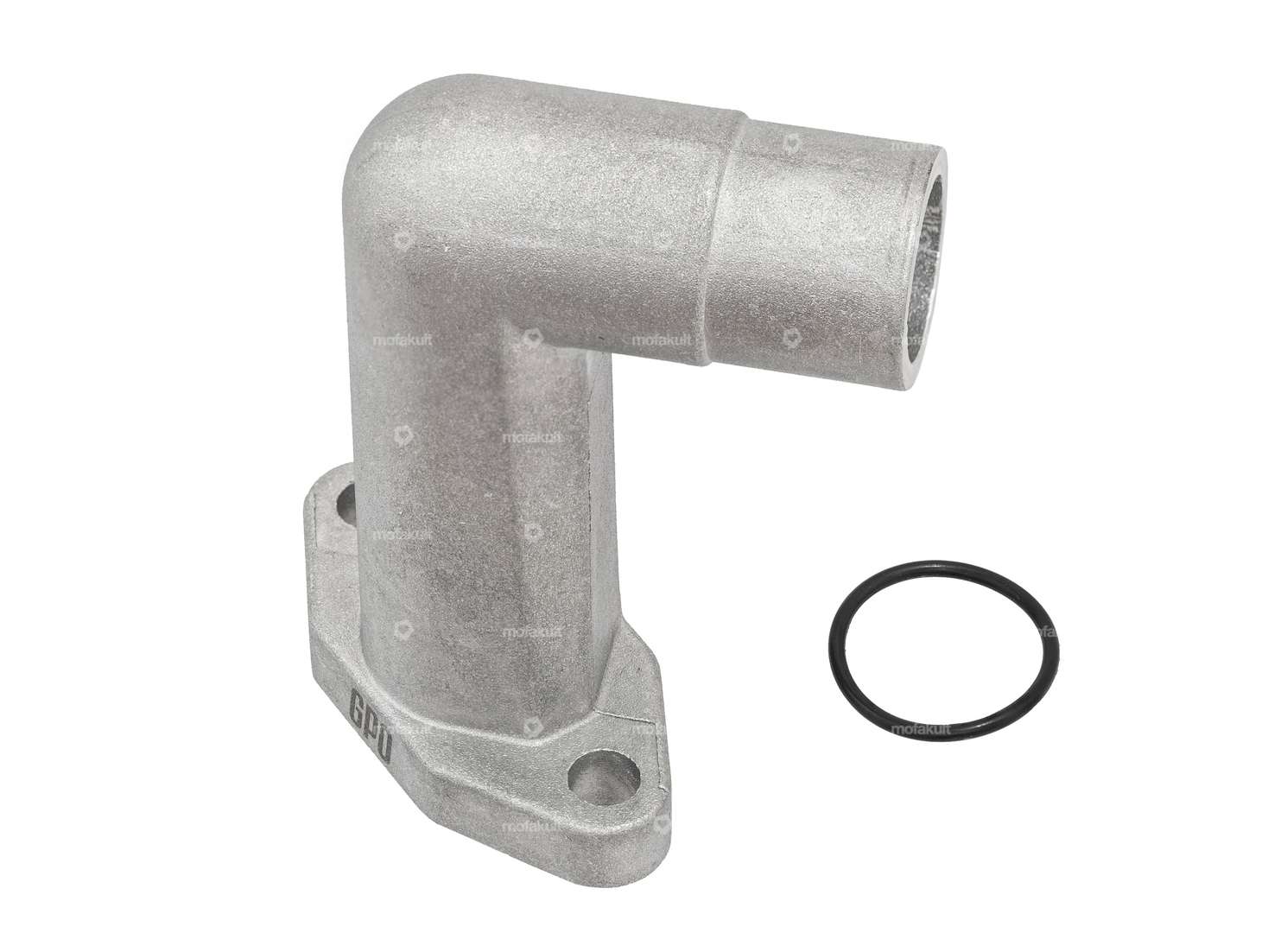

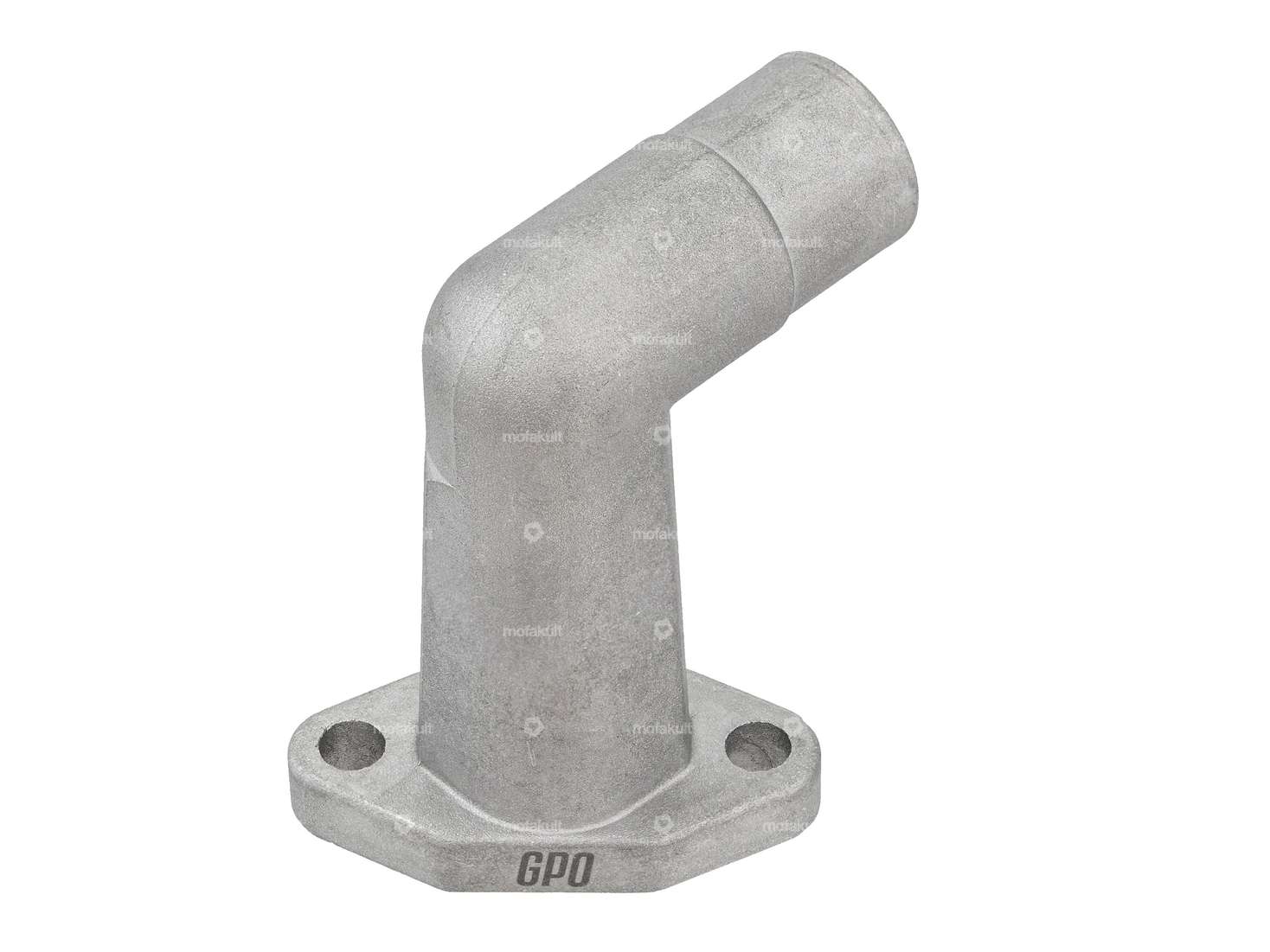

15 mm tuning intake manifold for manual Puch X30 NS and NL mopeds as well as Puch Sprinter mopeds with Z50 engine.
The 15 mm bore of the intake manifold was placed in the corners towards the cylinder so that the intake flange perfectly matches the intake of various racing cylinders.
Hole spacing of stud bolts: 38 mm
Total height: 70 mm
Total length: 48 mm
Ø carburetor connection (outside): 20 mm
In contrast to cheap aftermarket products, both connection surfaces of this connecting piece are milled flat, which prevents false air from being drawn in.
Good, inexpensive standard replacement part. GPO – GOOD PARTS ONLY.
| Ø inside | 15 mm |
| Manufacturer | GPO |
| Camouflaged | No |
| Material | Aluminum |
| Mounting type | Screws |
| Total length | 48 mm |
| Area of application | Tuning |
| Total height | 70 mm |
| Height flange center hole | 60 mm |
| Ø External connection | 20 mm |
| Number of fixing points | 2 pcs |
| Hole spacing inlet | 38 mm |
| Puch | Z50 (X30 Sport) |
