Sachs engine & gearbox

swiing® ingenious connecting rod bearing 16/21/9.7 "Racing" silver cage | Sachs

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 16/21 x 9.7 · Ø inside: 16 mm · Ø outside: 21 mm · Manufacturer: swiing® ingenious parts · Width: 9.7 mm

NTN 608 Ball bearing 8/22/7 Clutch cover | Sachs 503 AC, ABL (A5603)

Bearing type: Deep groove ball bearing · Stock number: 608 · Ø inside: 8 mm · Ø outside: 22 mm · Width: 7 mm · Manufacturer: NTN · Pony OEM number: A5603 · Sachs OEM no.: 0232 166 001

NSK 6000 ball bearing 10/26/8 | Sachs 50/2, 503 (A1177)

Bearing type: Deep groove ball bearing · Stock number: 6000 · Ø inside: 10 mm · Ø outside: 26 mm · Width: 8 mm · Manufacturer: NSK · Pony OEM number: A1177 · Sachs OEM no.: 0232 139 001

Sachs 50/3, 50/4 dabber rod with lever

Material: Aluminum · Material: Steel · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: SSB · Total length: 150 mm

Lock washer M21x1 Nut | Sachs

Material: Steel · Surface: galvanized (blue) · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm · Pony OEM number: A5612 · Sachs OEM no.: 0244 052 000

Metal housing cover cap | Sachs 50/2, 50/3, 50/4 (A2185)

Ø outside: 30.8 mm · Height: 5.5 mm · Alternative version of the Pony OEM number: A2185 · Alternative version of the Sachs OEM number: 0270 030 000

Clutch basket / pedal axle lock washer | Sachs 50/2, 503 2AL/2BL, 505/2 (A1555)

Material: Steel · Surface: galvanized (blue) · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm · Pony OEM number: A1555 · Sachs OEM no.: 0244 052 000

swiing® ingenious piston rings 40 mm (pair) | Sachs 503

Height: 1.5 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Surface: hard chrome plated · Diameter: 40 mm · Nominal diameter: 40 mm · Piston ring impact: Internal fuse (IS)

Airsal piston 43.5 mm | Sachs 504 / 505

Manufacturer: Airsal · Ø outside piston (A): 43.5 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.8 mm · Curvature (D): 4.25 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43.5 mm · Piston ring impact: Internal fuse (IS) · Piston ring mold: Rectangular ring · Piston ring height: 1 mm

swiing® revival gasket set cylinder with head gasket slot version | Sachs 50/2

Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

swiing® revival gasket set cylinder with head gasket diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 6 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

16 mm retaining ring pedal start mechanism | Sachs

Fuse type: Outside · Nominal diameter: 16 mm · Manufacturer: Sachs

GPO 41 mm cylinder kit square inlet | Sachs 50/3, 50/4 LKH

Nominal diameter: 41 mm · Manufacturer: GPO · Area of application: Tuning · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Camouflaged: No

NSK crankshaft bearing set | Sachs 50/2

Manufacturer: NSK · Manufacturer: Sachs · Number of components: 4 pcs

NTN needle roller bearing 14/20/12 clutch | Sachs 503 ABL, AB (A1164)

Bearing type: Needle sleeve · Stock number: HK1412 · Manufacturer: NTN · Ø outside: 20 mm · Width: 12 mm · Ø inside: 14 mm · Dimension needle bearing: 14/20 x 12

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette

Manufacturer: Sachs · Material: Gray cast iron · Surface: sandblasted · Nominal diameter: 38 mm · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 67 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Area of application: Original

swiing® ingenious tuning cylinder 40 mm | Sachs 503

Nominal diameter: 40 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 55 ccm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Outlet type: clamped · Number of fixing points: 4 pcs · Area of application: Tuning

swiing® ingenious tuning cylinder 38 mm | Sachs 503

Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Outlet type: clamped · Number of fixing points: 4 pcs · Area of application: Tuning

Nut M10x1 | Sachs 504, 535 (A1493)

Manufacturer: Sachs · Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Pony OEM number: A1493 · Sachs OEM no.: 0242 000 001

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats: 26 mm · Drive: External hexagon · Pony OEM number: A1504 · Sachs OEM no.: 0242 030 005 · Sachs OEM no.: 0242 030 105

Flat nut M21x1 LH pedal start mechanism | Sachs

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats: 26 mm · Drive: External hexagon

NSK crankshaft bearing set | Sachs 503 ABL CH

Manufacturer: NSK · Area of application: Standard

Engine overhaul kit small | Sachs 502, 50/2

Manufacturer: NSK · Number of components: 18 pcs · Area of application: Standard

swiing® revival engine revision set large | Sachs 503 HG

Manufacturer: swiing® revival parts · Area of application: Standard

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard

swiing® revival engine revision set medium | Sachs 503 HG

Manufacturer: swiing® revival parts · Area of application: Standard

Shim 15/21/0.5 Crankshaft E15 Bearing | Sachs

Ø inside: 15 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø outside: 21 mm · Nominal diameter inside: 15 mm · Thickness: 0.5 mm · Pony OEM number: A1680 · Sachs OEM no.: 0246 009 001

Circlip 16 mm pedal start mechanism Sachs Inox

Nominal diameter: 16 mm · Fuse type: Outside · Manufacturer: Sachs · Material: Chrome steel (colloquially known as stainless steel)

swiing® revival clutch revision set small | Sachs 50/2, 503 2AL / 2BL

Manufacturer: swiing® revival parts · Number of springs: 9 pcs · Number of slats: 2 pcs · Area of application: Standard

Large clutch overhaul set | Sachs 50/2, 503 2AL / 2BL

Number of springs: 9 pcs · Number of slats: 2 pcs · Area of application: Standard

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

Ø inside: 16.1 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony OEM number: A1574 · Sachs OEM no.: 0244 081 002

Meteor piston ring 38 x 1.5 mm (FS) (aluminum cylinder)| Sachs 50/2, 50/3, 50/4

Manufacturer: Meteor · Diameter: 38 mm · Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Area of application: Tuning

NSK 6201 ball bearing 12/32/10 | Sachs 503 ABL, AB, AC, ADV (A5604)

Bearing type: Deep groove ball bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Manufacturer: NSK · Pony OEM number: A5604 · Sachs OEM no.: 0231 171 001

swiing® revival gasket 2 mm inlet Ø 16 mm | Sachs 50/2

Manufacturer: swiing® revival parts · Place of use: Admission · Thickness: 2 mm · Ø outlet inside: 16 mm · Hole spacing inlet: 32 mm · Ø screw holder: 6.8 mm

Oil seal FPM 15/30/5.5 AS crankshaft & main shaft | Sachs 503, 504, 505, 535 (A4215 / A5602)

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Manufacturer: Sachs · Material: FPM - Fluororubber · Surface: rubberized · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Shaft seal NBR 16/24/4 A Pedal start mechanism | Sachs 50/2, 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Width: 4 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized

Inlet seal oil paper | Sachs

Material: Oiled paper · Place of use: Admission · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Hole spacing inlet: 32 mm

swiing® ingenious 38 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)

Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Camouflaged: No · Area of application: Racing

GPO 38 mm cylinder kit diaphragm | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)

Nominal diameter: 38 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning

Shim 19/26/0.5 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A5615)

Ø inside: 19.1 mm · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Sachs · Material: Spring steel · Surface: Hardened · Pony OEM number: A5615 · Sachs OEM no.: 0244 171 001

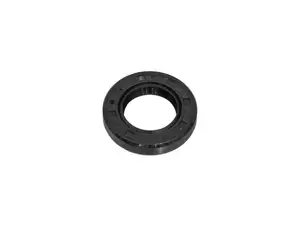

Oil seal NBR 15/25/5 AS 15 mm pinion shaft | Sachs 50

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 25 mm · Width: 5 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized

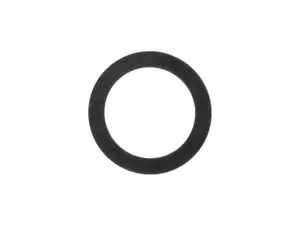

Shim 19/26/0.3 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A1197)

Ø inside: 19.1 mm · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony OEM number: A1197 · Sachs OEM no.: 0244 200 000

M6x30 bolt (hexagonal / 10.9) | Sachs 503, 502, 50/2, 50/3, 50/4

Manufacturer: Sachs · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats: 10 mm · Shank: Yes · Shank length: 12 mm · Thread length: 18 mm · Strength class: 10.9 · Pony OEM number: A1398 · Sachs OEM no.: 0240 093 001

swiing® revival nut M12x1 clutch hub | Sachs 50 / 50/2 / 50/3 / 50/4 / 503 2AL, 2BL

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Height: 4 mm · Width across flats: 17 mm · Strength class: 8 · Pony OEM number: A1502 · Sachs OEM no.: 0242 027 000

Disk 19/26/0.3 Clutch | Sachs 503 AB, ABL (A5617)

Ø inside: 19.1 mm · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Sachs · Material: Spring steel · Surface: Hardened · Pony OEM number: A5617 · Sachs OEM no.: 0244 171 003

ADDY racing clutch 4 plates High End | Sachs 503

Manufacturer: ADDY · Surface: raw · Recording type: Cone mounting · Number of slats: 4 pcs · Number of springs: 12 pcs · Area of application: High End

Squeeze ring 28 mm flame tube graphite | Sachs 50/2, 503 (A1810)

Place of use: Exhaust · Temperature resistance (min.): 550 °C · Manufacturer: Made in Spain · Material: Graphite / Graphite · Material: Sheet metal (steel) · Thickness: 4 mm · Ø inside: 26 mm · Ø outside: 32.5 mm · Pony OEM number: A1810

swiing® revival special nut M12x1 x 6 SW17 pinion attachment | Sachs 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Height: 6 mm · Width across flats: 17 mm

BAD ASS Ø 43 mm "Pandora" BigBore tuning cylinder | Sachs 503, 50/2, 502

Nominal diameter: 43 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 23 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 40 x 60 / 37 x 37 · Camouflaged: No · Area of application: Tuning

O-ring pedal axle 19 x 2 mm | Sachs 505

Ø inside: 19 mm · Ø outside: 23 mm · Cord thickness: 2 mm · Hardness: 70 Shore · Material: NBR · Sachs OEM no.: 0250 165 000
