Puch engine & gearbox

NewFren clutch 1st gear automatic | Puch X30 Velux, MS, MV

Manufacturer: NewFren · Number of jaws: 3 pcs · Area of application: Original

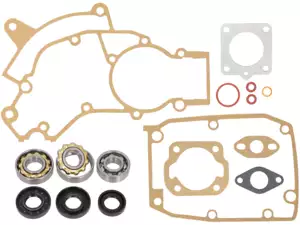

swiing® revival engine revision set large | Puch X30 Sport NS/NL

Manufacturer: swiing® revival parts · Number of components: 29 pcs · Area of application: Standard

swiing® revival engine revision set large | Puch X30 Velux

Manufacturer: swiing® revival parts · Area of application: Standard

NTN 6202 ball bearing 15/35/11 | Z50 motor

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Puch OEM number: 900.4.6202

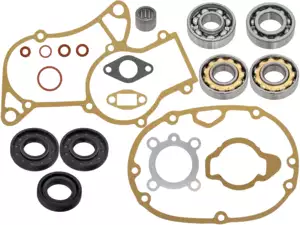

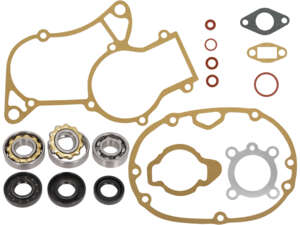

swiing® revival engine revision set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 17 pcs · Area of application: Standard

NSK L17 shoulder ball bearing 17/40/10 engine | Puch Z50, ZA50

Bearing type: Shoulder bearing · Stock number: L17 · Ø outside: 40 mm · Manufacturer: NSK · Ø inside: 17 mm · Width: 10 mm

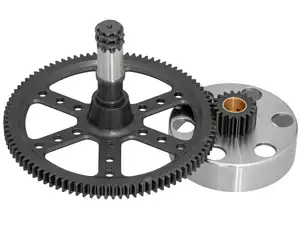

MBR clutch basket KTM & spur gear 18:94 teeth Racing straight short | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Area of application: Tuning

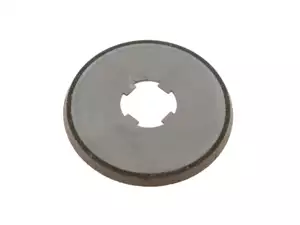

Surflex starter disk | Puch X30 Velux automatic

Manufacturer: Surflex · Material: Steel · Area of application: Original

GPO Gasket Set for E50 Engine | Puch Maxi S, N

Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm

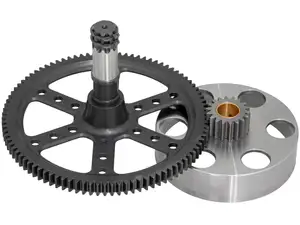

MBR clutch basket & spur gear 18:94 teeth Racing straight short | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs · Area of application: Tuning

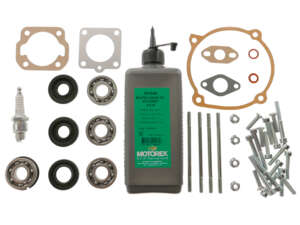

swiing® revival engine overhaul kit small | Puch E50

Manufacturer: Motorex · Manufacturer: swiing® revival parts · Number of components: 42 pcs · Area of application: Standard

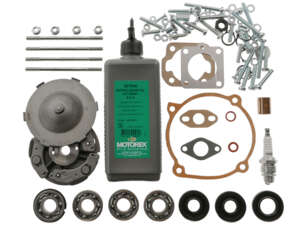

swiing® revival Engine Overhaul Kit, Large | Puch E50

Manufacturer: GPO · Manufacturer: Motorex · Manufacturer: NGK · Manufacturer: Surflex · Manufacturer: swiing® revival parts · Area of application: Standard

swiing® revival gasket 2 mm inlet Ø 16 mm | Puch X30 Velux / NG-2AH

Manufacturer: swiing® revival parts · Place of use: Admission · Thickness: 2 mm · Ø outlet inside: 16 mm · Hole spacing inlet: 32 mm · Ø screw holder: 6.8 mm

Locking plate countershaft | Puch X30 Velux

Number of lobes: 2 pcs · Ø inside: 12.7 mm · Thickness: 1 mm · Width: 6 mm · Width 2: 9 mm

Level screw M8x10 mm Inox | Puch X30 Velux

Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M6x1 (standard thread) · Drive: Slot · Screw head: Cylinder head · Thread length: 10 mm · Puch OEM number: 900.1342

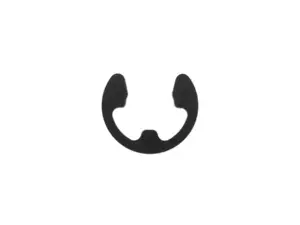

Circlip Ø 6 mm clutch shaft Puch E50

Fuse type: Inside · Nominal diameter: 6 mm · Place of use: Clutch shaft · Manufacturer: Puch · Puch OEM number: 900.4606

Circlip Ø 6 mm decoupling shaft Puch X30 Z50

Fuse type: Inside · Nominal diameter: 6 mm · Manufacturer: Puch · Place of use: Uncoupling shaft · Puch OEM number: 900.4606

swiing® revival clutch & intermediate plate set (2 pcs.) | Puch Z50

Manufacturer: swiing® revival parts · Ø inside: 46 mm · Ø inside: 51 mm · Ø outside: 70 mm · Ø outside: 75 mm · Number of slats: 2 pcs · Thickness: 1.5 mm · Thickness: 2.5 mm

Malossi gasket inlet Ø 22 mm | Puch

Manufacturer: Malossi · Place of use: Admission · Thickness: 0.55 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 36 - 45 mm

Polini gasket cylinder head Ø 43.5 mm | Puch

Manufacturer: Polini · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.4 mm · Nominal diameter: 43.5 mm · Ø cylinder: 43.5 mm · Ø outlet inside: 43.5 mm

Locking ring 15 mm clutch basket Inox | Puch E50

Fuse type: Outside · Nominal diameter: 16 mm · Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel)

Circlip 17 mm Inox | Puch E50 / ZA50

Fuse type: Outside · Nominal diameter: 17 mm · Place of use: Crankshaft · Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel)

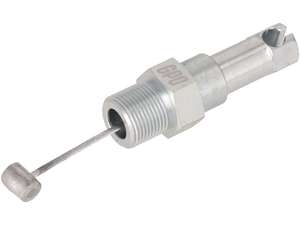

GPO starter unit set | Puch ZA50

Manufacturer: GPO · Material: Steel · Area of application: Standard · Puch OEM number: 910.4.12.001.0

Circlip Ø 4 mm decoupling shaft Puch X30 Velux

Fuse type: Outside · Manufacturer: Puch · Ø inside: 4 mm

Inlet gasket oil paper | Puch X30 Velux

Material: Oiled paper · Place of use: Admission · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Hole spacing inlet: 32 mm

Clutch retaining ring & retaining plate | Puch ZA50

Area of application: Special tool

swiing® ingenious connecting rod bearing 16/21/9.7 "Racing" silver cage | Puch

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 16/21 x 9.7 · Ø inside: 16 mm · Ø outside: 21 mm · Manufacturer: swiing® ingenious parts · Width: 9.7 mm

NTN 6203 Ball bearing 17/40/12 engine | Puch E50, ZA50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN

NTN 6203 C3 ball bearing 17/40/12 | Puch E50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN · Bearing clearance: C3

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

O-ring clutch shaft Puch E50

Place of use: Clutch shaft · Ø inside: 9.3 mm · Ø outside: 14.1 mm · Cord thickness: 2.4 mm · Manufacturer: Puch

O-ring decoupling shaft Puch X30 Velux

Place of use: Uncoupling shaft · Manufacturer: Puch

swiing® revival engine revision set ZA50 engine | Puch Maxi S LG2

Manufacturer: swiing® revival parts · Number of components: 19 pcs · Area of application: Standard

Surflex Pressure Plate Clutch | Puch E50 (Cat.)

Manufacturer: Surflex · Ø outside: 100 mm · Material: Steel · Thickness: 2 mm · Area of application: Standard

GPO gasket cylinder base 0.5 mm | Puch

Place of use: Cylinder base · Manufacturer: GPO · Ø inside: 49 mm · Material: Oiled paper · Nominal diameter: 49 mm · Thickness: 0.5 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Puch OEM number: 349.3.10.013.1

Oil seal NBR 16/28/7 BS Kickstarter | Puch Z50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Ø inside: 16 mm · Ø outside: 28 mm · Width: 7 mm · Material: NBR

swiing® revival plain bearing clutch basket | Puch Z50

Nominal diameter inside: 15 mm · Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 17 mm · Material: special bearing bronze · Total height: 16.2 mm

Oil seal FPM 17/40/7 DUO | Puch E50

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Material: FPM / FKM (colloquially known as Viton)

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Height: 8 mm · Width across flats: 17 mm

GPO screw set for galvanized engine mounting | Puch

Storage method: Sack · Manufacturer: GPO · Number of components: 12 pcs · Color: silver · Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats: 13 mm · Shank: Yes · Area of application: Standard · Storage box dimension [mm]: 100 x 90 x 10 · Thread length: 23.5 mm · Strength class: 8.8

Rito crankshaft Racing (version 2023) (old model) | Puch E50

Manufacturer: Rito · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Area of application: Racing · Area of application: Tuning · Weight: 975 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10.5 mm · Thread length: 12.5 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.015.0

DMP crankshaft full cheeks with mounted bearings | Puch E50

Manufacturer: DMP · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Area of application: Racing · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Number of gears: 1 pcs

Pedestal bearing shell | Puch

Width: 46 mm · Color: silver · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Height: 20 mm · Total length: 70 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Number of components: 1 pcs · Color: sand-colored · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

22 mm exhaust gasket copper Puch 2-piece

Place of use: Exhaust · Material: Copper · Ø inside: 27.5 mm · Ø outside: 32 mm · Ø outlet inside: 27 mm · Thickness: 1.9 mm · Area of application: Standard

swiing® revival gasket set Z50 engine | Puch X30 NS / NL

Manufacturer: swiing® revival parts · Number of components: 10 pcs · Material: Sealing paper · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Area of application: Standard · Hole pattern [mm]: 44 x 44

GPO 38 mm gasket cylinder head 0.4 mm aluminum | Puch

Place of use: Cylinder head · Manufacturer: GPO · Material: Aluminum · Ø inside: 39 mm · Ø cylinder: 38 mm · Nominal diameter: 39 mm · Thickness: 0.4 mm · Area of application: Standard · Hole pattern [mm]: 44 x 44 · Ø screw holder: 7 mm · Puch OEM number: 349.3.10.013.1

SKF 6001 2RSH Ball bearing 12/28/8

Bearing type: Deep groove ball bearing · Stock number: 6001 · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: SKF · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Ø inside: 12 mm · Ø outside: 28 mm · Ball bearing closed: Yes

swiing® revival fitting sleeve engine housing | Puch Z50, ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 10 mm · Total length: 20 mm
