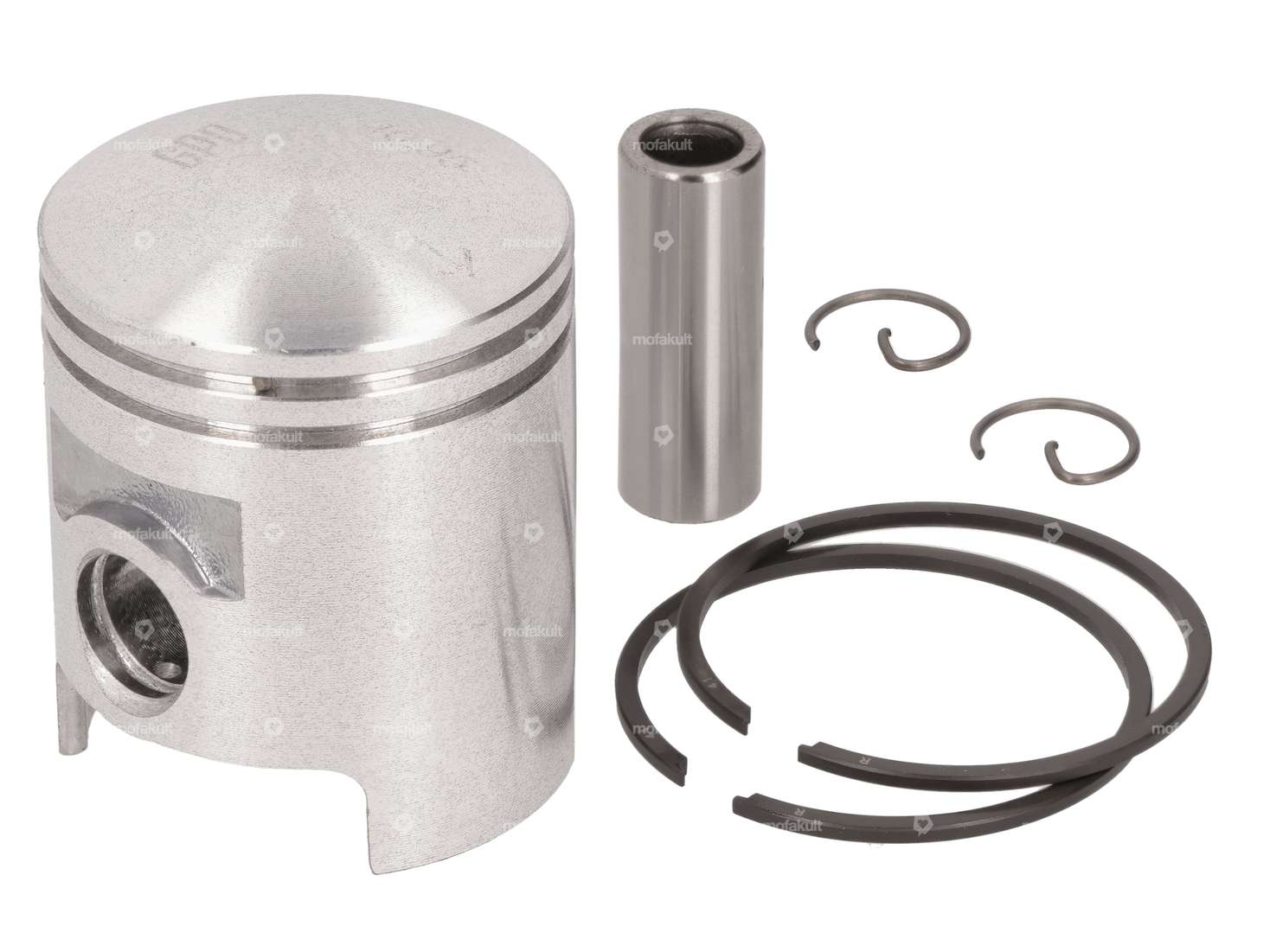

41.0 mm replacement plunger with two sticks
| Nominal diameter | 41 mm |
| Manufacturer | GPO |
| Material | Aluminum |
| Thick piston ring | 1.7 mm |

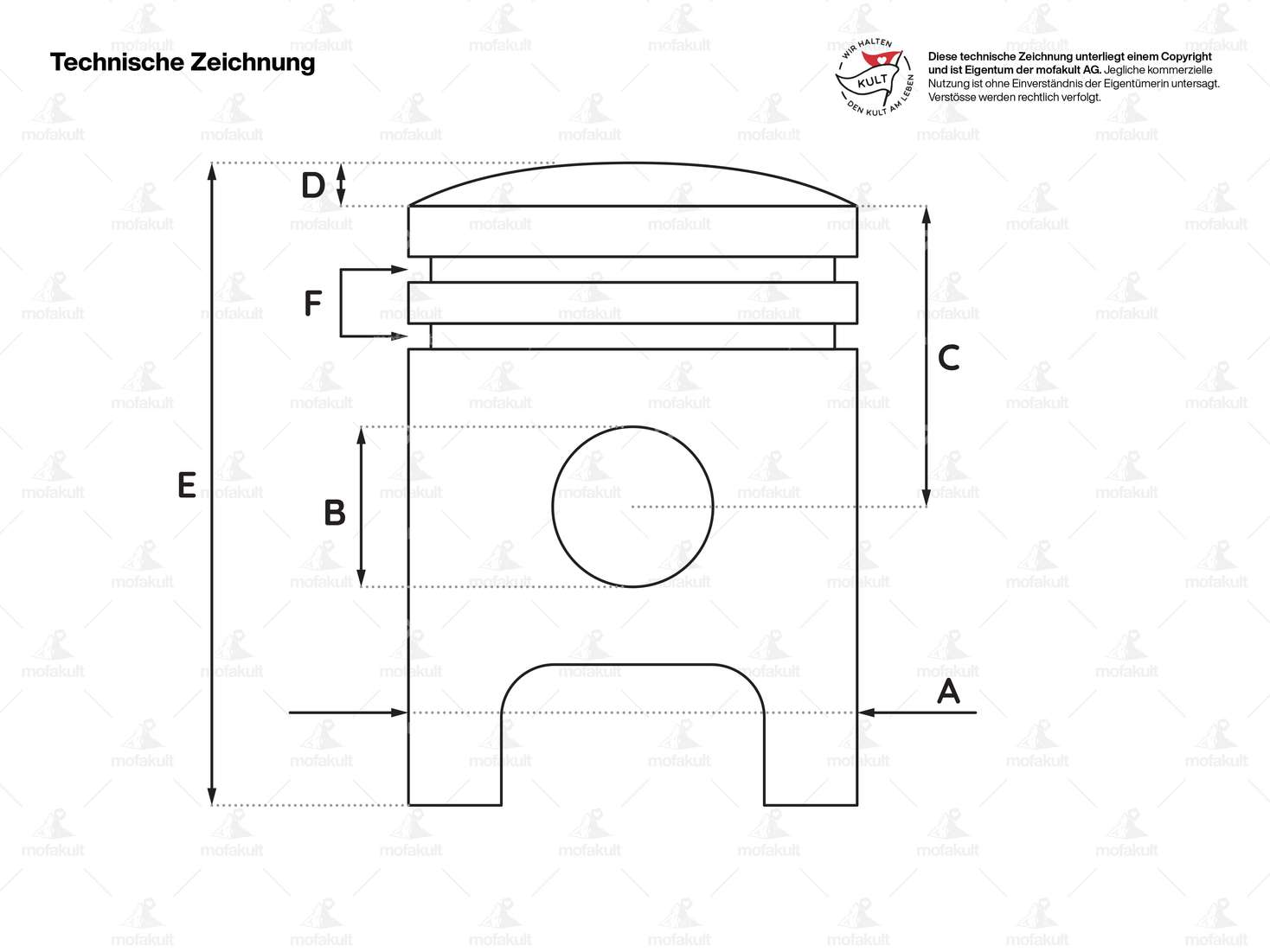

| Ø outside piston (A) | 40.95 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |

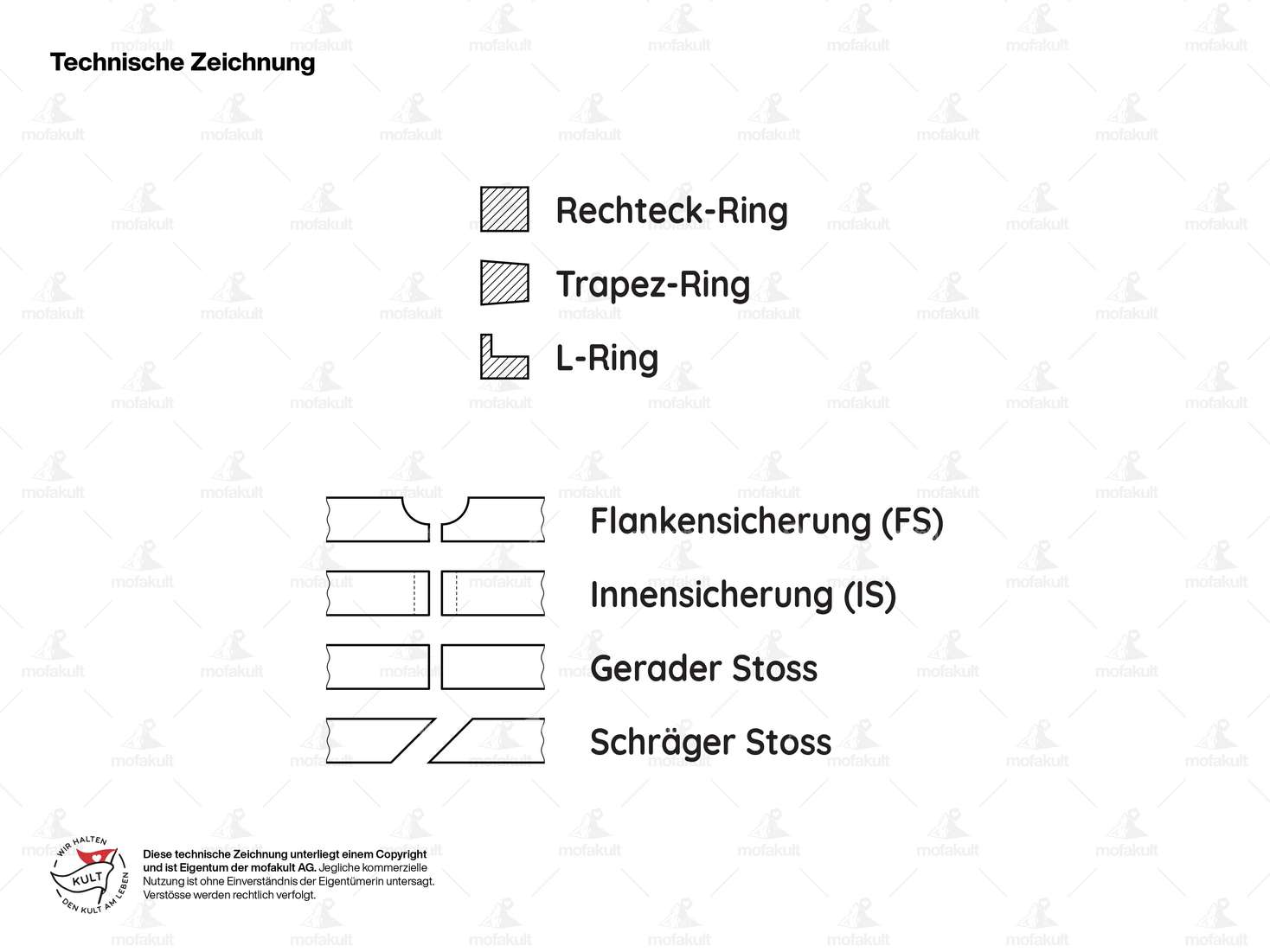

| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 |
Ratings
Accessories & related products
GPO Ø 41 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes
199,60 EUR
