For: Puch

33577

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

94,00 EUR

Incl. 20% VAT.

Description

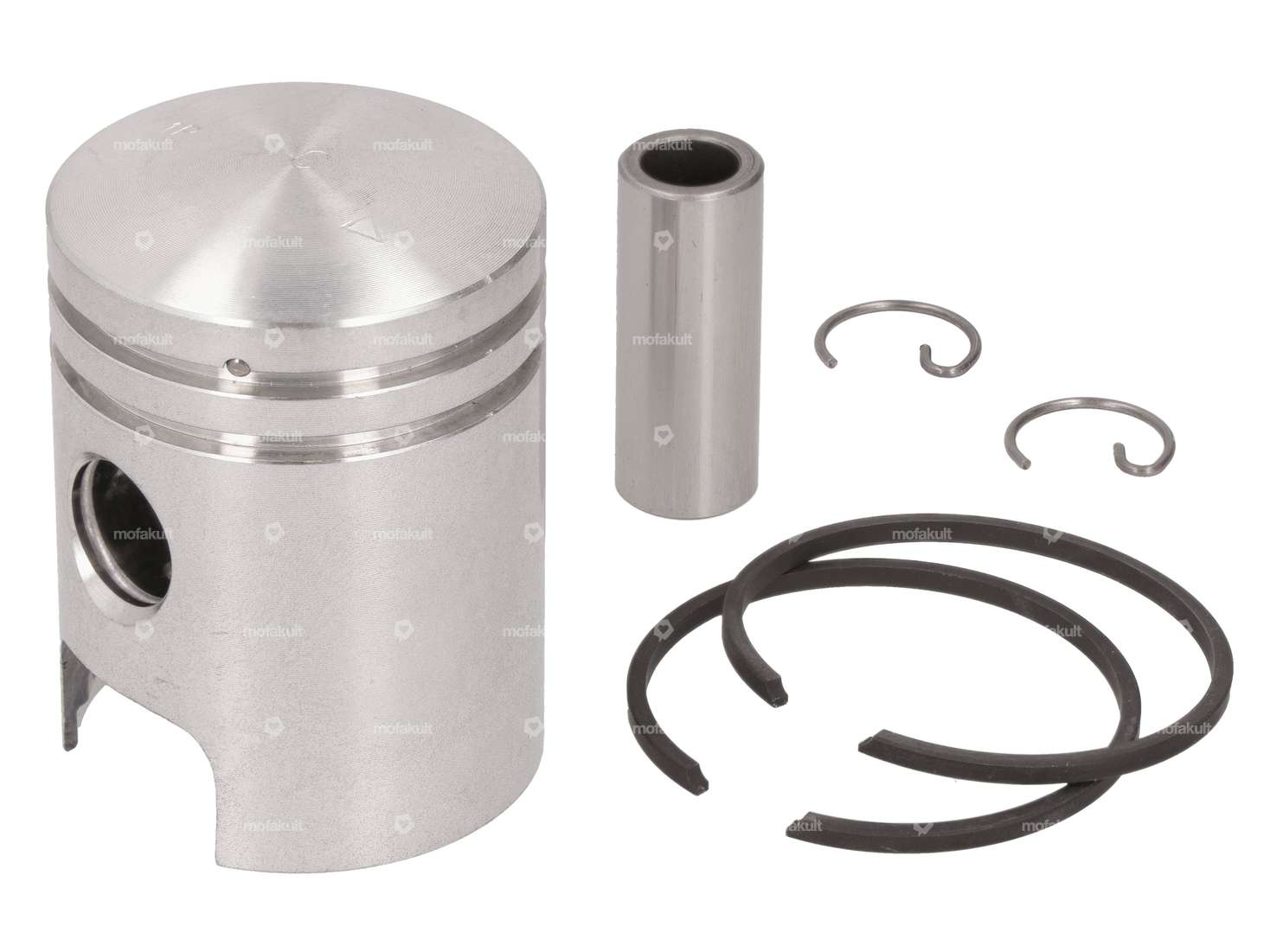

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch Maxi moped / moped.

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

Corresponding installation tools, piston pin locks and alternative pistons can be found in the accessories section.

Quality product from the Italian manufacturer Gilardoni under the italkit brand.

ManufacturerGilardoni italkit
Ø outside piston (A)37.96 mm
Compression height (C)22.7 mm
Curvature (D)3.9 mm
Total piston height (E)52.6 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Weight piston kit81 g
Puch

E50

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

1,40 EUR

Meteor piston 38 mm #2 | Puch
undefined

For: Puch

10593

Meteor piston 38 mm #2 | Puch

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: 2 · Weight piston kit: 79 g

58,70 EUR

Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

30,50 EUR

30,50 EUR/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

15,90 EUR

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

1,40 EUR

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

Universal

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Total length: 130 mm · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

23,40 EUR

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

18209

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 4 pcs · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Ø outlet inside: 20 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

8,70 EUR

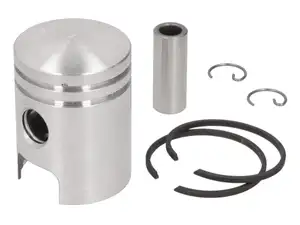

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
