Product description

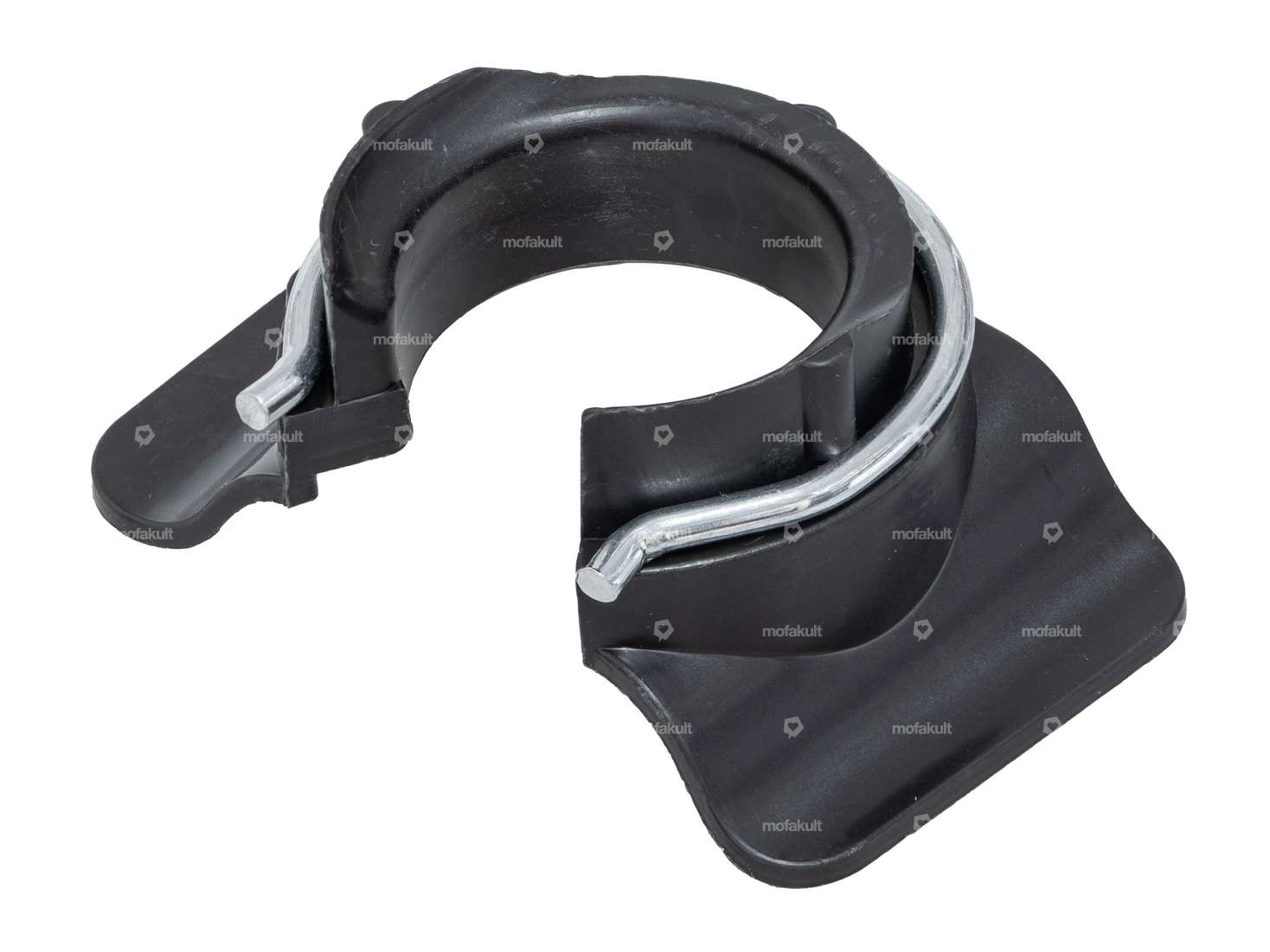

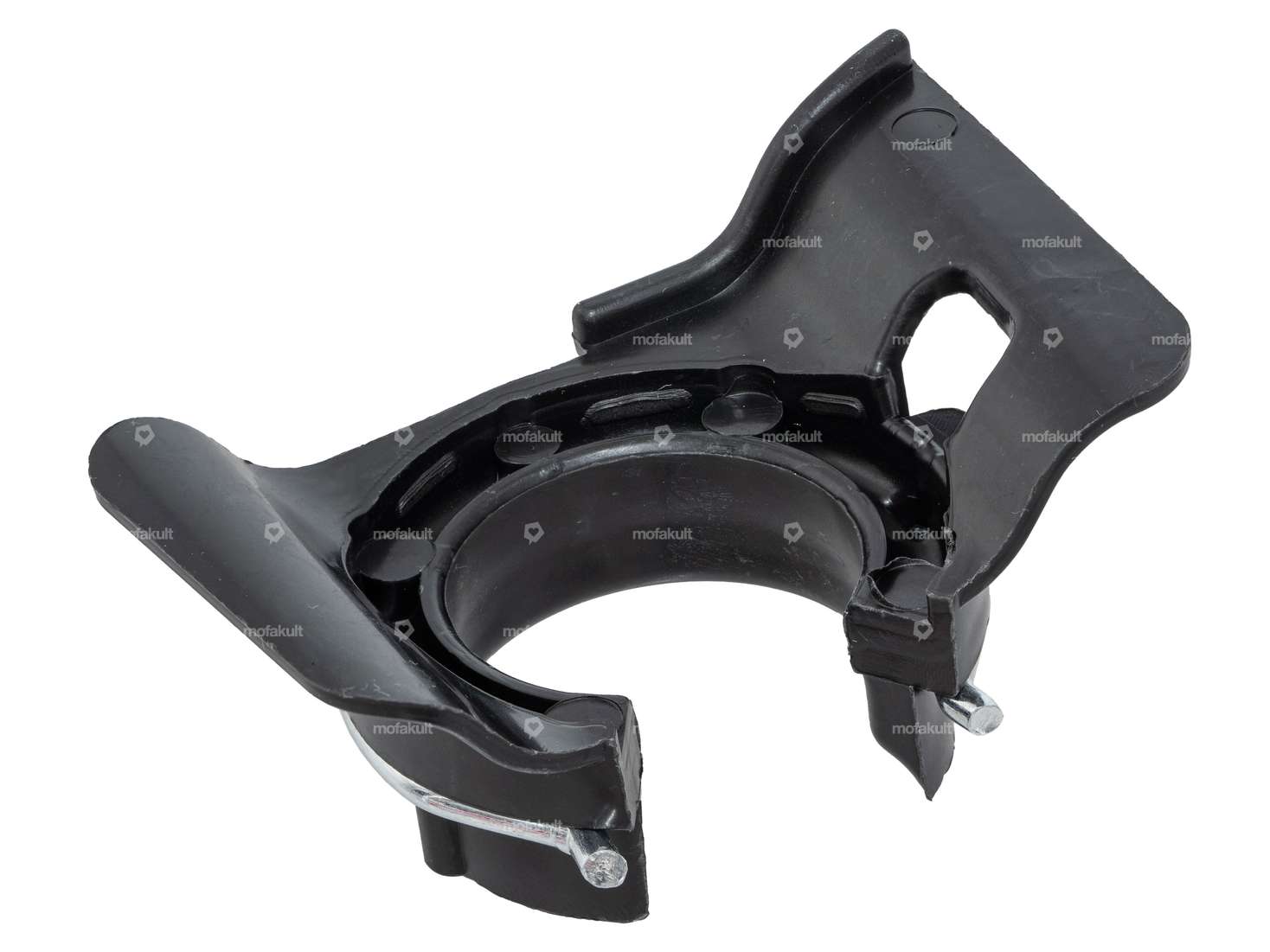

Chain guard to protect your frame from the chain, suitable for Puch Maxi S mopeds/mopeds.
To make installation easier, the plastic should be slightly heated. The frame guard can then be fitted without any problems.

The retaining ring is included in the scope of delivery.

Matching side guards and other frame parts can be found under accessories.

Original Puch spare part number: 349.1.20.535.1 + 349.1.20.536.1

Parts included in the set

For: Puch

Frame guard without clamp | Puch Maxi S

12178

Material: Plastic · Surface: raw · Color: black · Total length: 75 mm · Width: 50 mm · Height: 31 mm · Ø outside: 41 mm · Ø axle: 44 mm · Mounting type: Plug connection clamped · Ø mounting hole: 32 mm

For: Puch

Snap ring frame guard Puch Maxi

10702

Product details

Material	Plastic
Color	black
Number of fixing points	1 pcs
Mounting type	Plug connection clamped

Suitable for the following models

Puch

E50

ZA50 (air-cooled)
