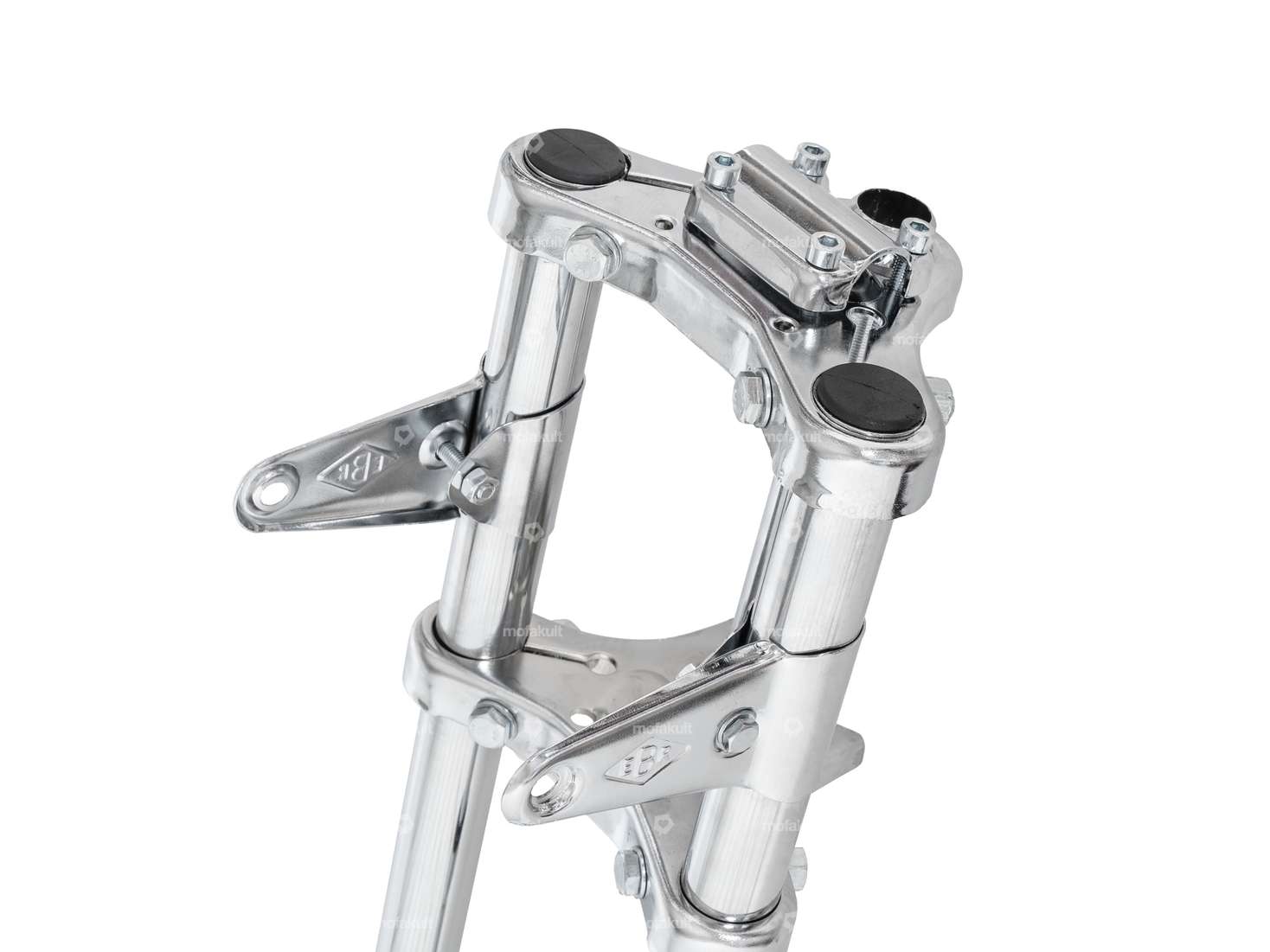

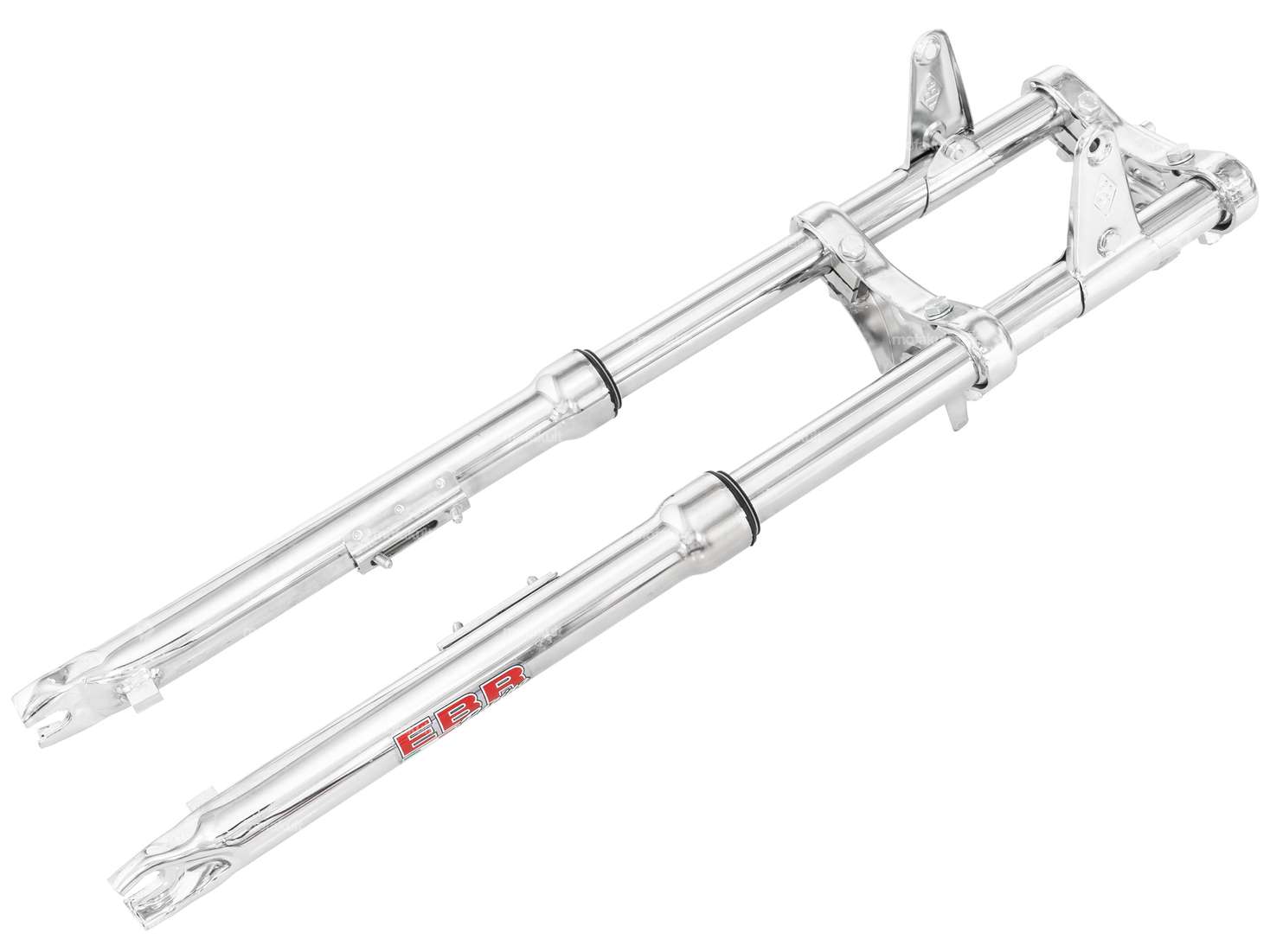

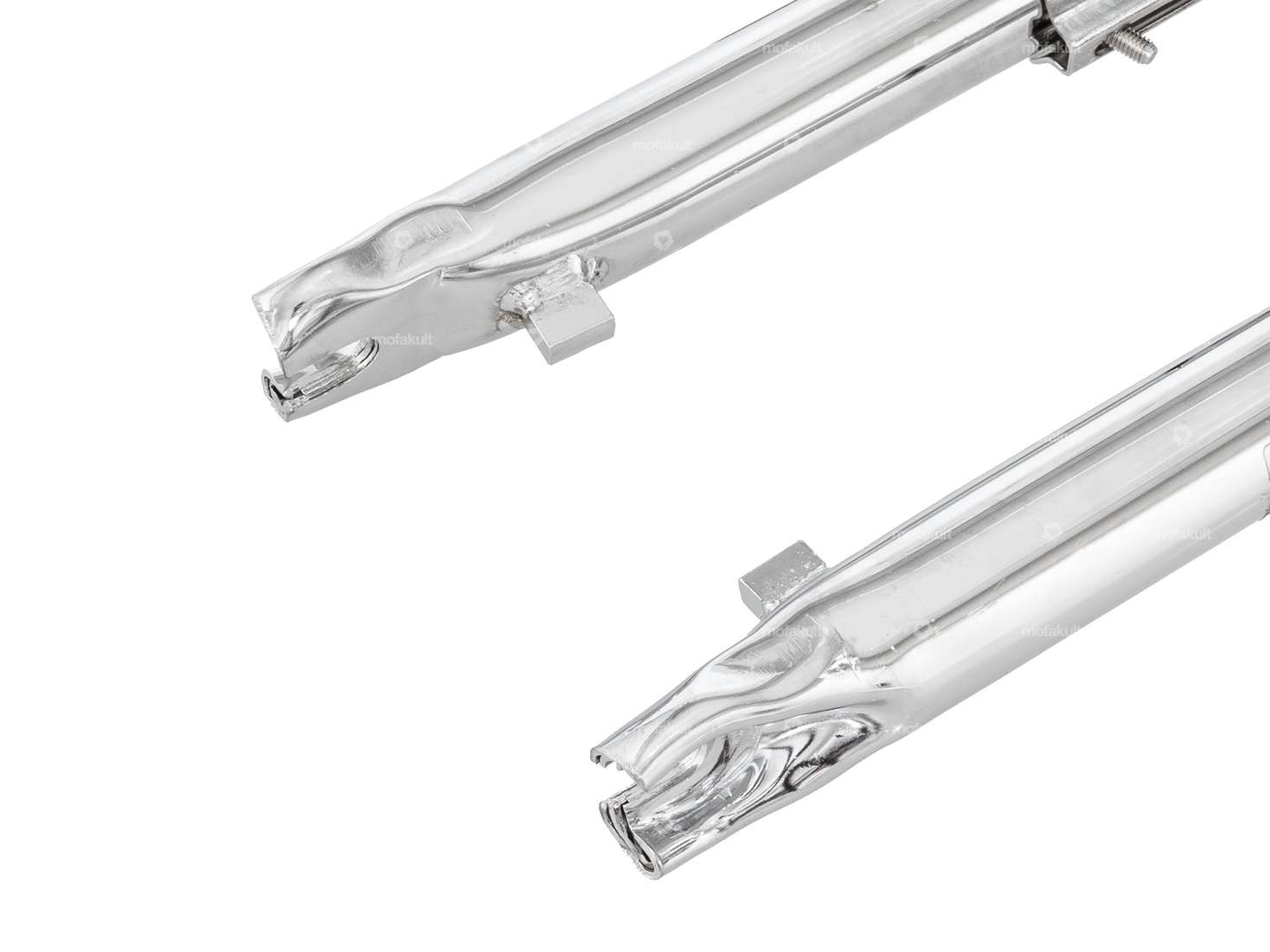

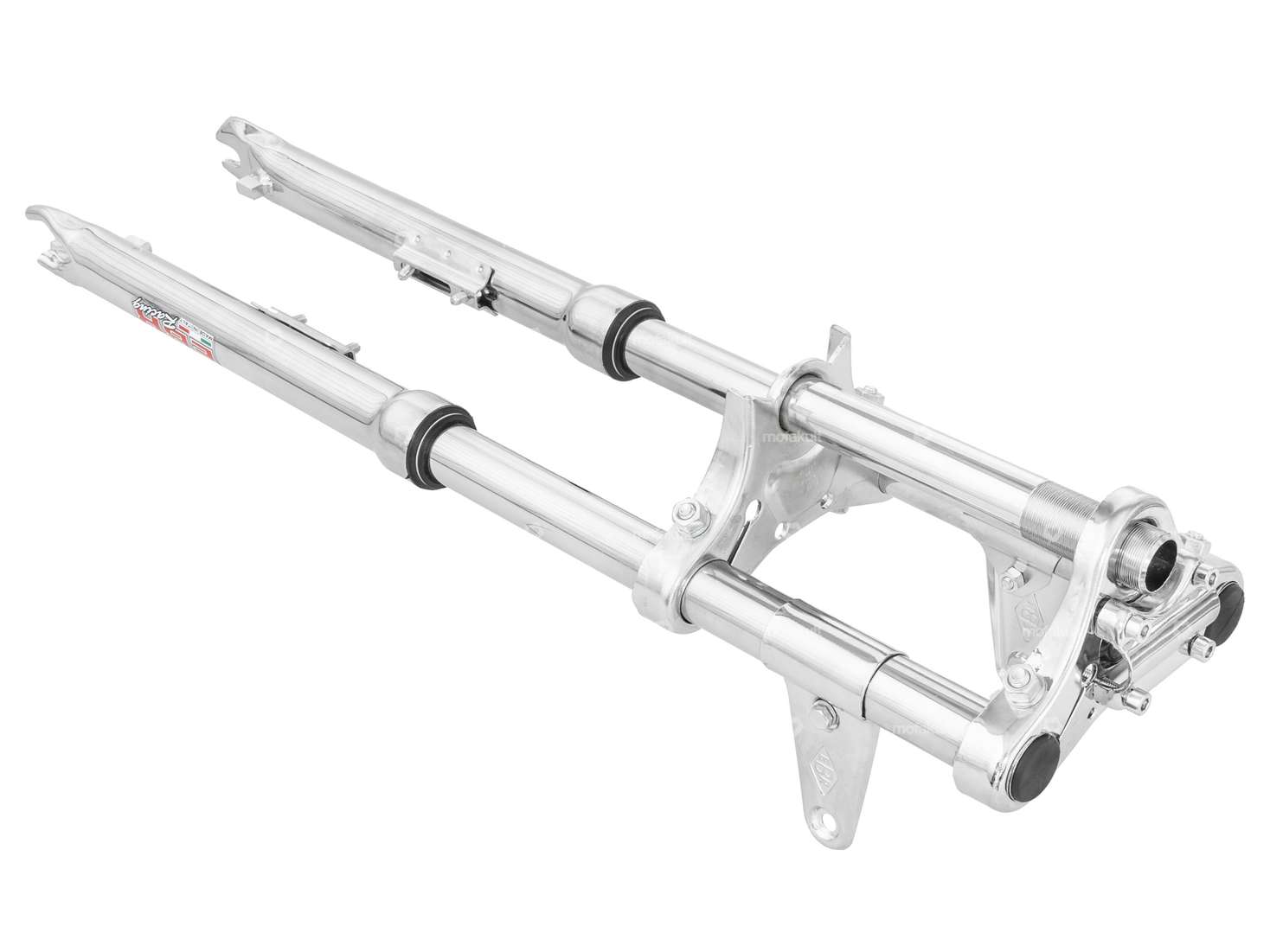

EBR telescopic fork reinforced | Puch

EBR fork reinforced black | Puch

Manufacturer: EWC · Color: Chrome · Color: black · Material: Steel · Surface: chrome-plated · Adjustable: No · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Thread length: 57 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Total length: 580 mm

EBR standard fork chrome | Puch

Surface: chrome-plated · Color: Chrome · Manufacturer: EWC · Material: Steel · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Thread type: MF26x1 (fine pitch thread) · Distance brake cam to wheel axle center-center: 40 mm · Thread length: 57 mm

EBR standard fork black | Puch

Manufacturer: EWC · Material: Steel · Adjustable: No · Surface: chrome-plated · Color: Chrome · Thread type: MF26x1 (fine pitch thread) · Color: black · Ø spars: 23 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

EBR telescopic fork hydraulic black | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Thread type: MF26x1 (fine pitch thread) · Color: black · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Total length: 635 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm

GPO screw set fork reinforced Inox

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Screw head: Hexagon · Number of components: 24 pcs

EBR Fork ULTRA LANG Chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 138 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Head tube length: 180 mm · Total length: 870 mm · Fork bridge - center wheel axle: 642 mm · Distance brake cam to wheel axle center-center: 38 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Height: 12.5 mm · Number of fixing points: 2 pcs · Total length: 74 mm · Hole spacing: 63 mm · Mounting type: Plug connection

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Thread type: MF26x1 (fine pitch thread) · Surface: galvanized (blue) · Color: silver · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm

Pedestal bearing shell | Puch

Width: 46 mm · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Height: 20 mm · Number of fixing points: 3 pcs · Total length: 70 mm · Mounting type: Screws · Hole spacing: 41 mm

swiing® revival snap ring low control bearing set

Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Thickness: 0.6 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Reserve level: 70 mm

GPO bulb 6V - 21/5W (BA15d) 2-filament

Manufacturer: GPO · Test mark: none · Color: white · Bulb holder: BA15d · Ø base: 15 mm · Tension: 6 V · Performance: 5 W · Performance: 21 W · Total length: 48 mm · Ø Lamp head: 25 mm · LED: No

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Ø Cable bushing: 1.6 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Total length: 6 mm · Drive: Slot · Screw head: Lens head · Thread type: M4x0.7 (standard thread) · Ø outside: 5 mm · Thread length: 4 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Surface: polished · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Color: Chrome · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Wheel size [inch]: 17 " · Mounting type: Nuts & bolts

GPO steerer tube nut M26x1 open stem chrome

Ø inside: 22.1 mm · Ø outside: 36.5 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 30 mm · Height: 14 mm · Thread depth: 11.5 mm
