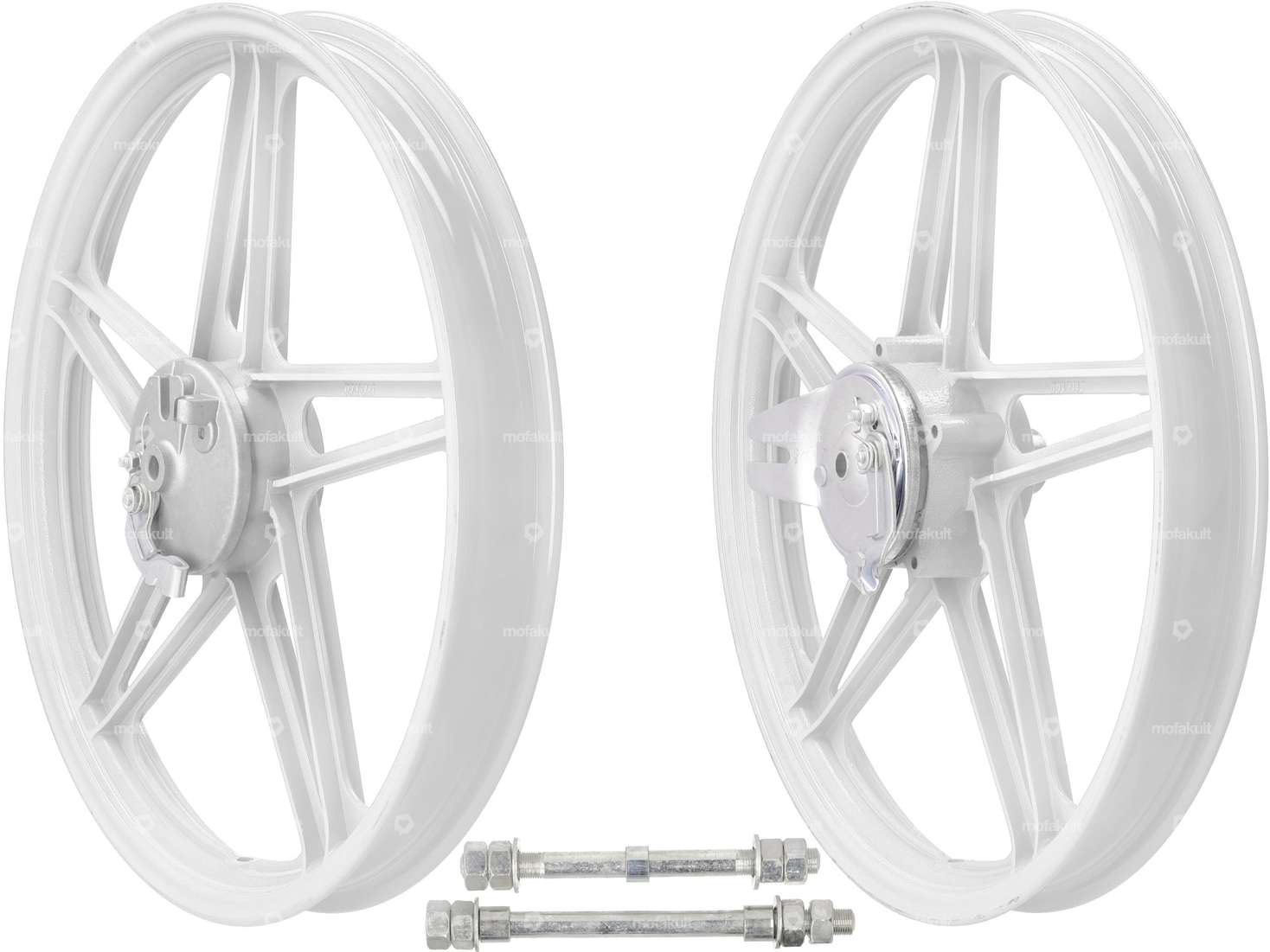

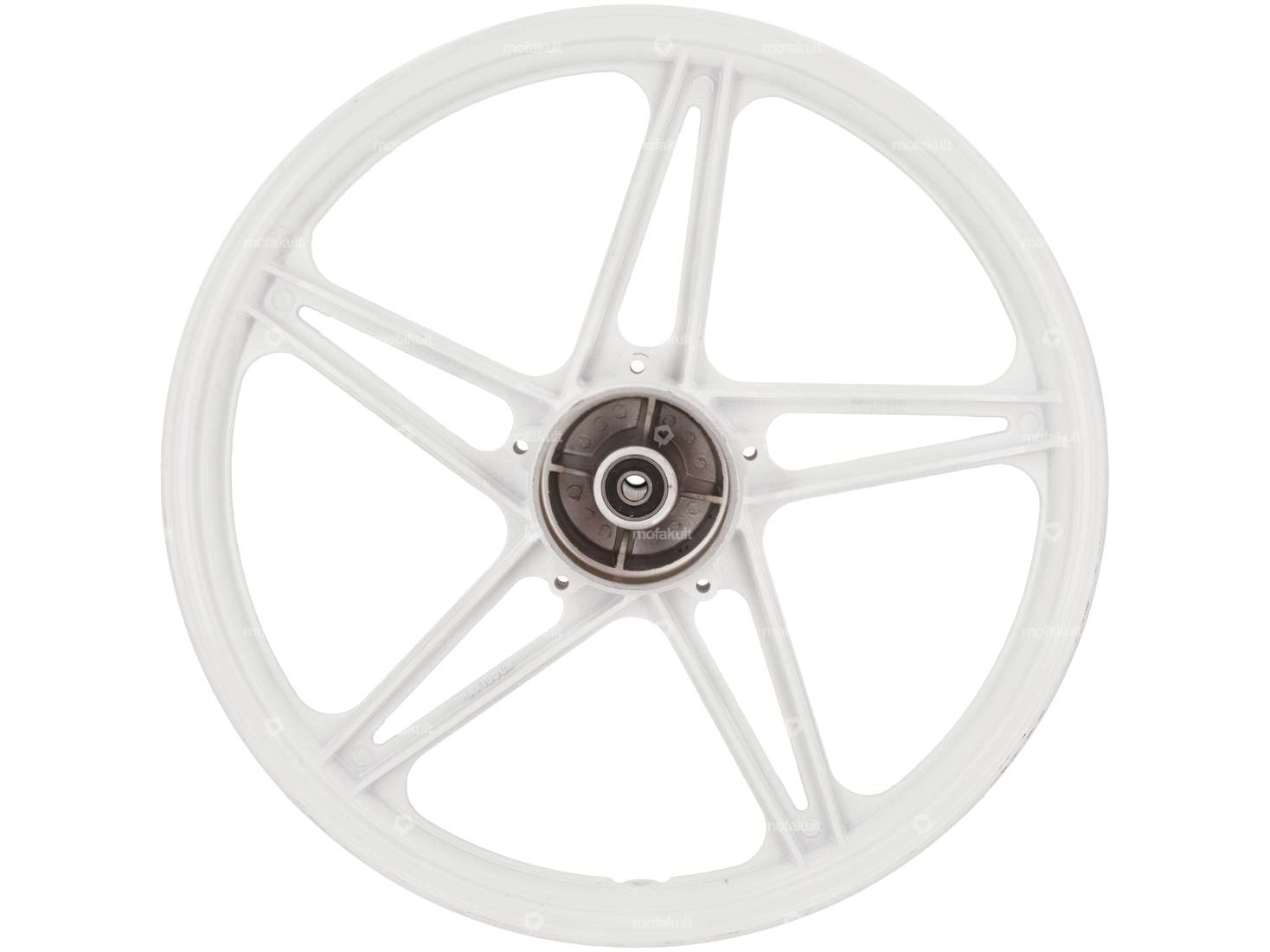

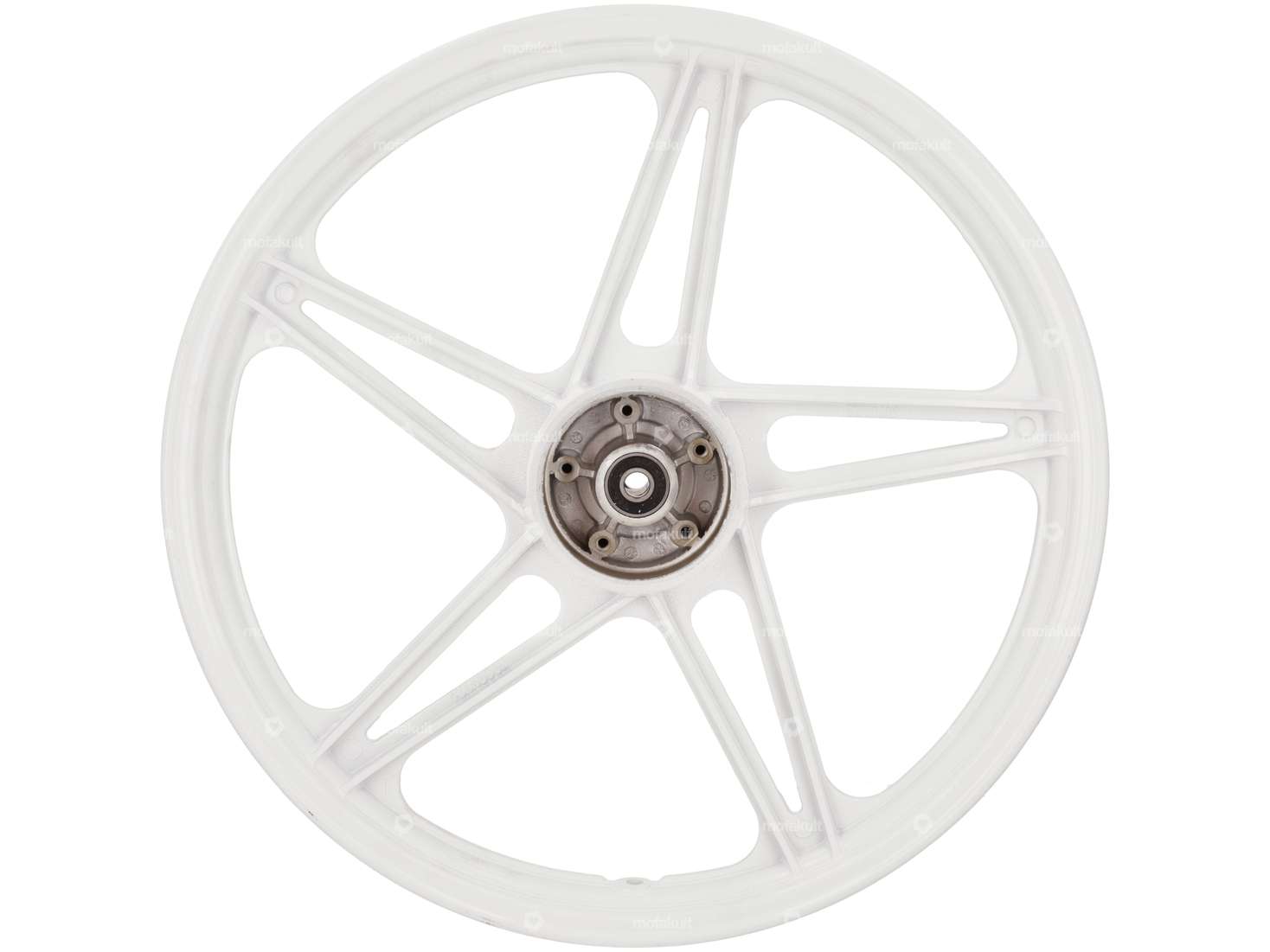

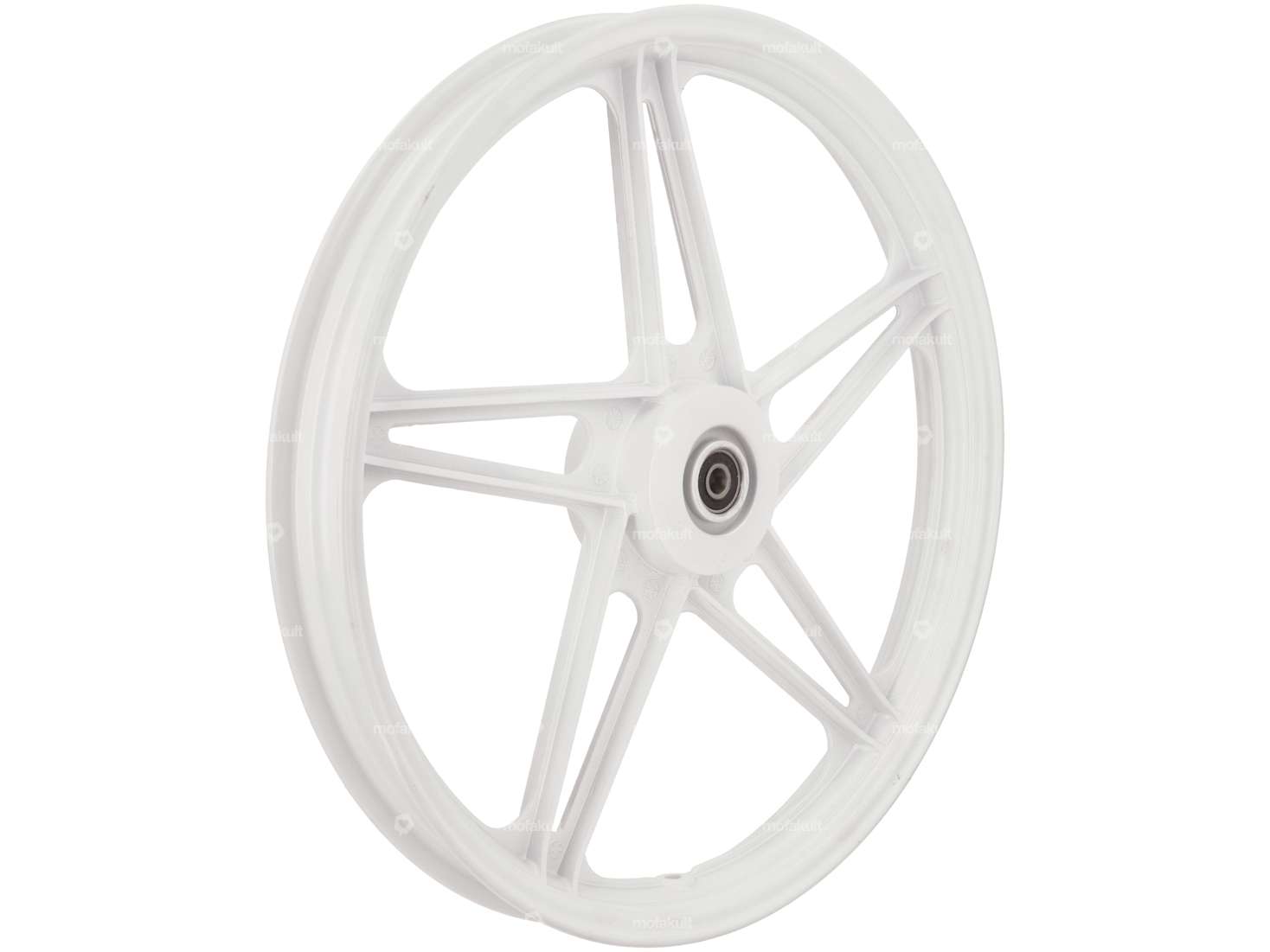

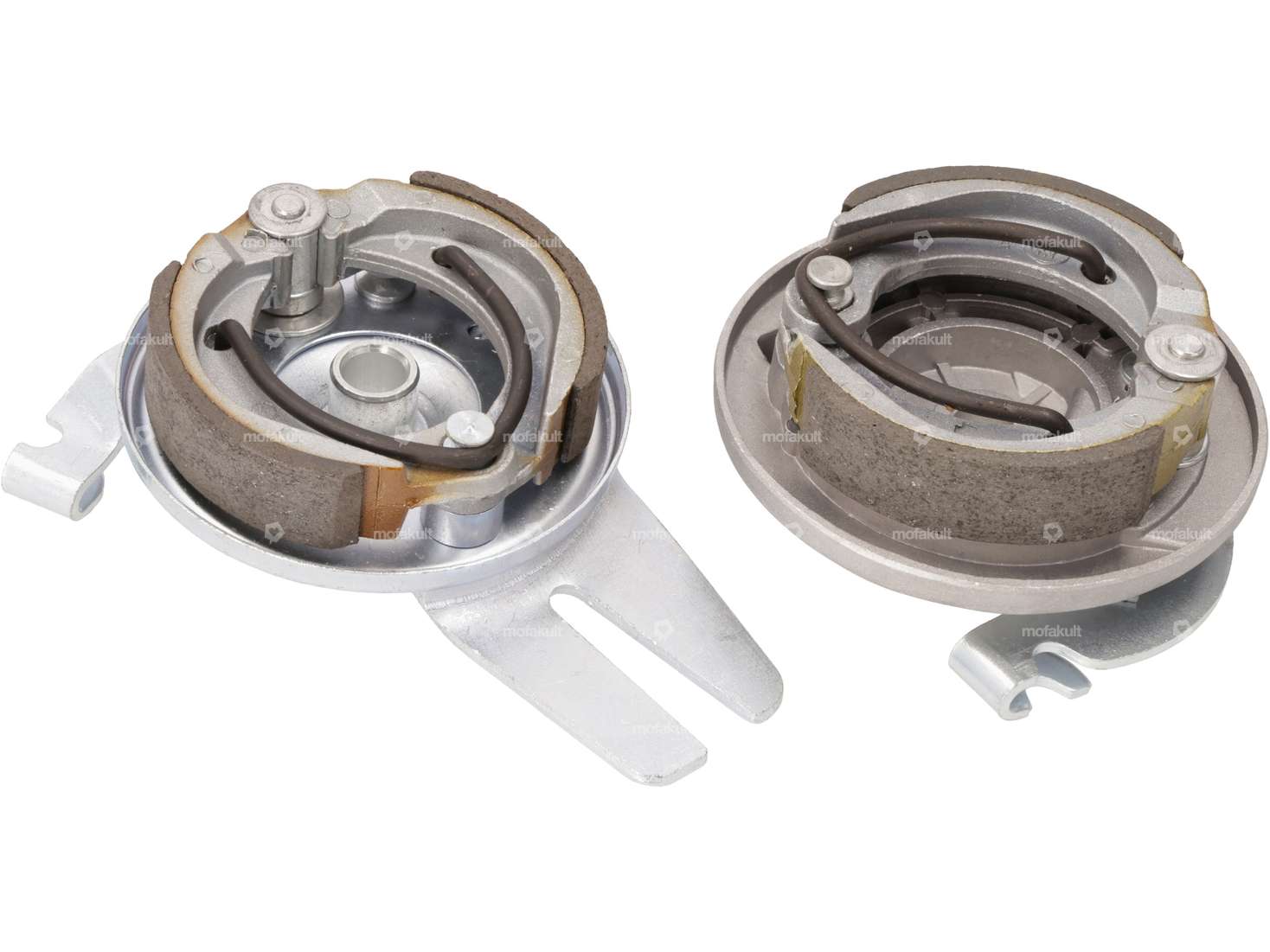

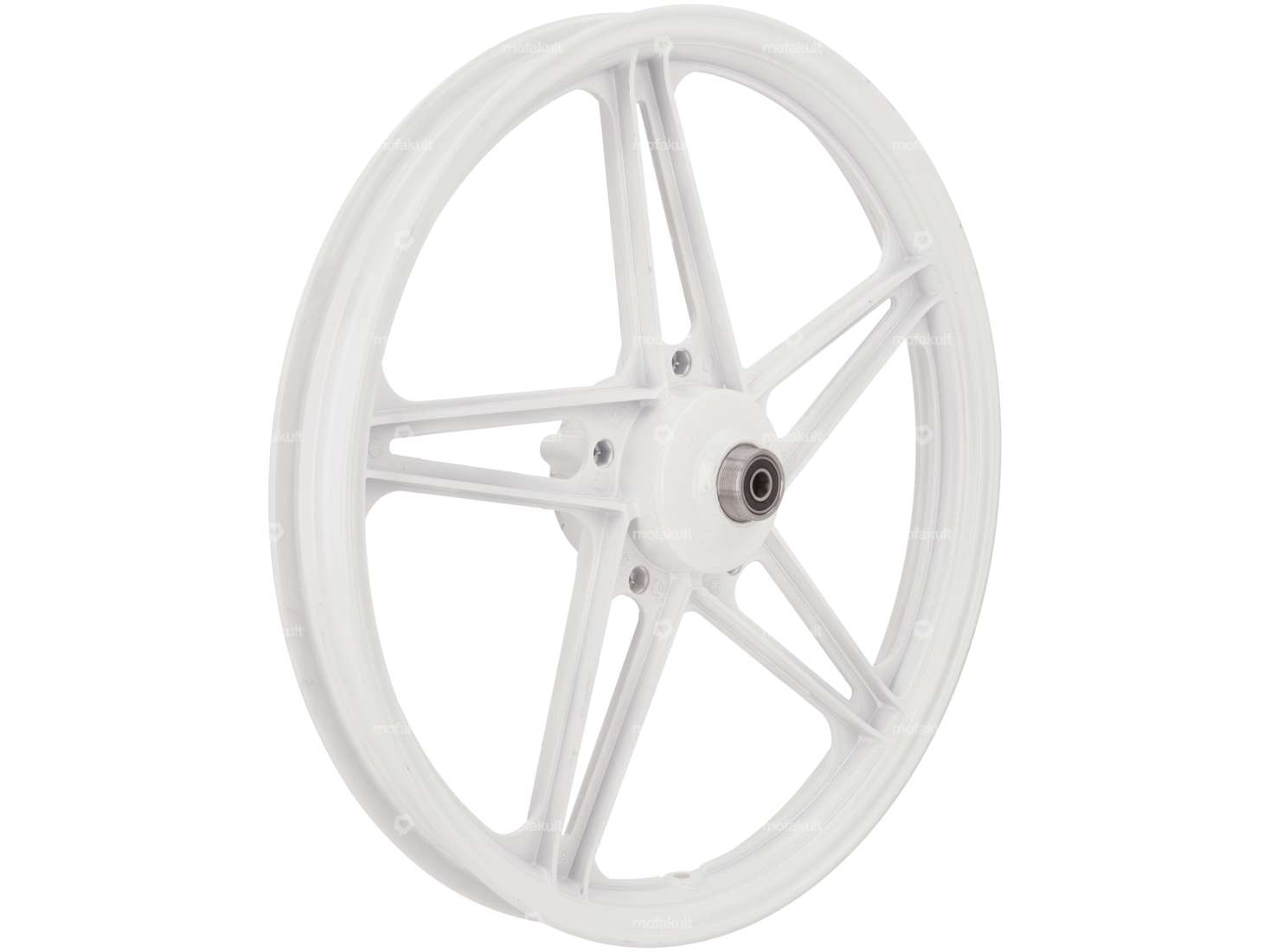

White 17 inch cast wheels front and rear with 5 spokes including brake anchor plate for your Peugeot 103 moped / moped.
Compare the dimensions listed below.
Ø outer: 457 mm
Rim width outer: 56 mm
Rim width inner: 40.64 mm (1.6”)
Ø inner bearing: 12 mm
Pitch circle sprocket mounting: 115 mm
Ø thread for freewheel: 34.75 mm
Ø Sprocket mount: 97.2 mm
Width of slot for brake cam: 8.25 mm
Ø Brake drum f. / h.: 90 mm
Wheel axle length front: 155 mm
Wheel axle length rear: 185 mm

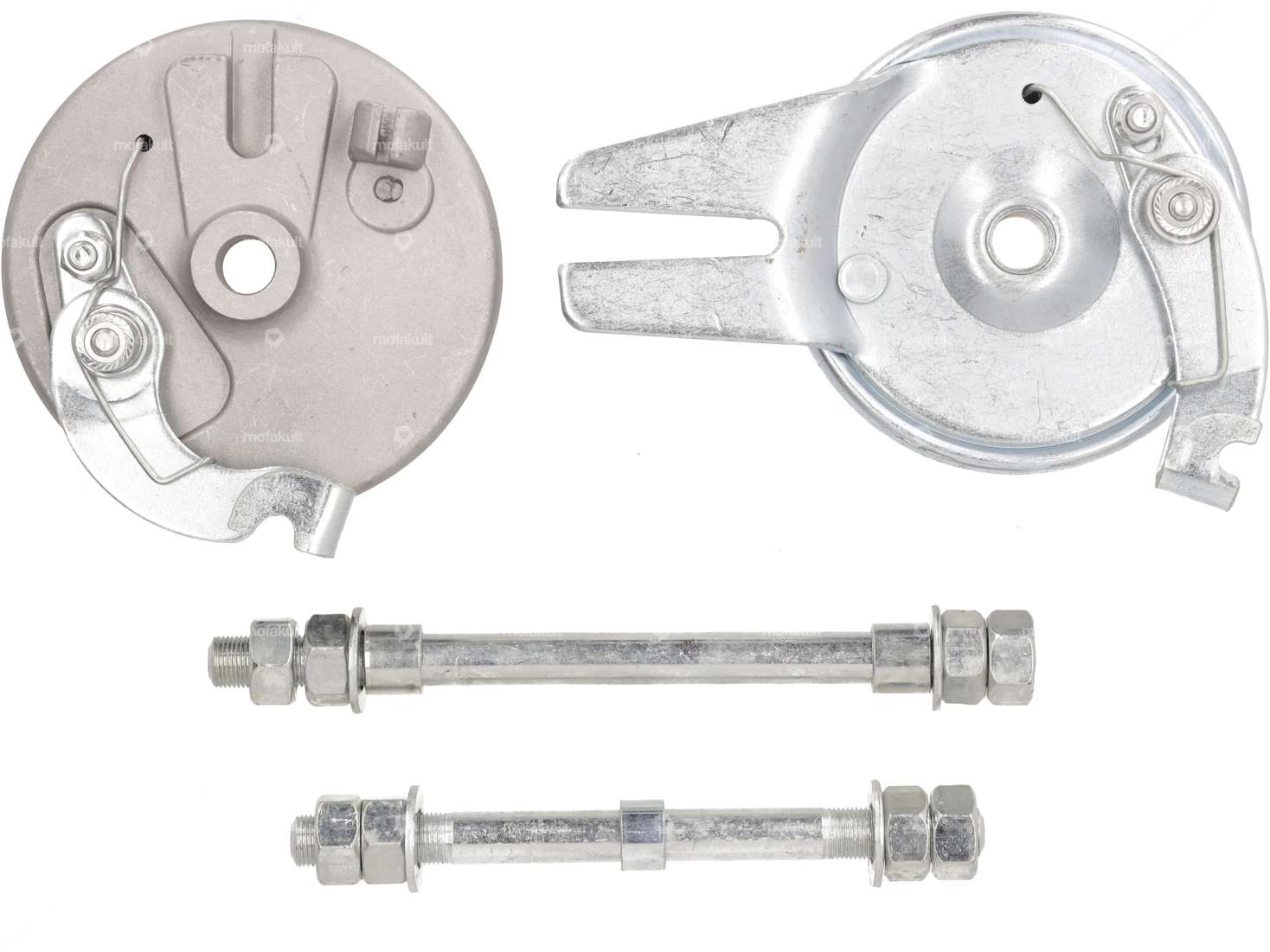

The wheel axle is also included in the scope of delivery and the ball bearings are already pressed in.
You can find more rims as well as sprockets, tires and hoses in the accessories section.
| Nominal diameter | 457 mm |
| Material | Cast aluminum |
| Surface | varnished |
| Color | white |
| Thread type | MF12x1 (fine pitch thread) |

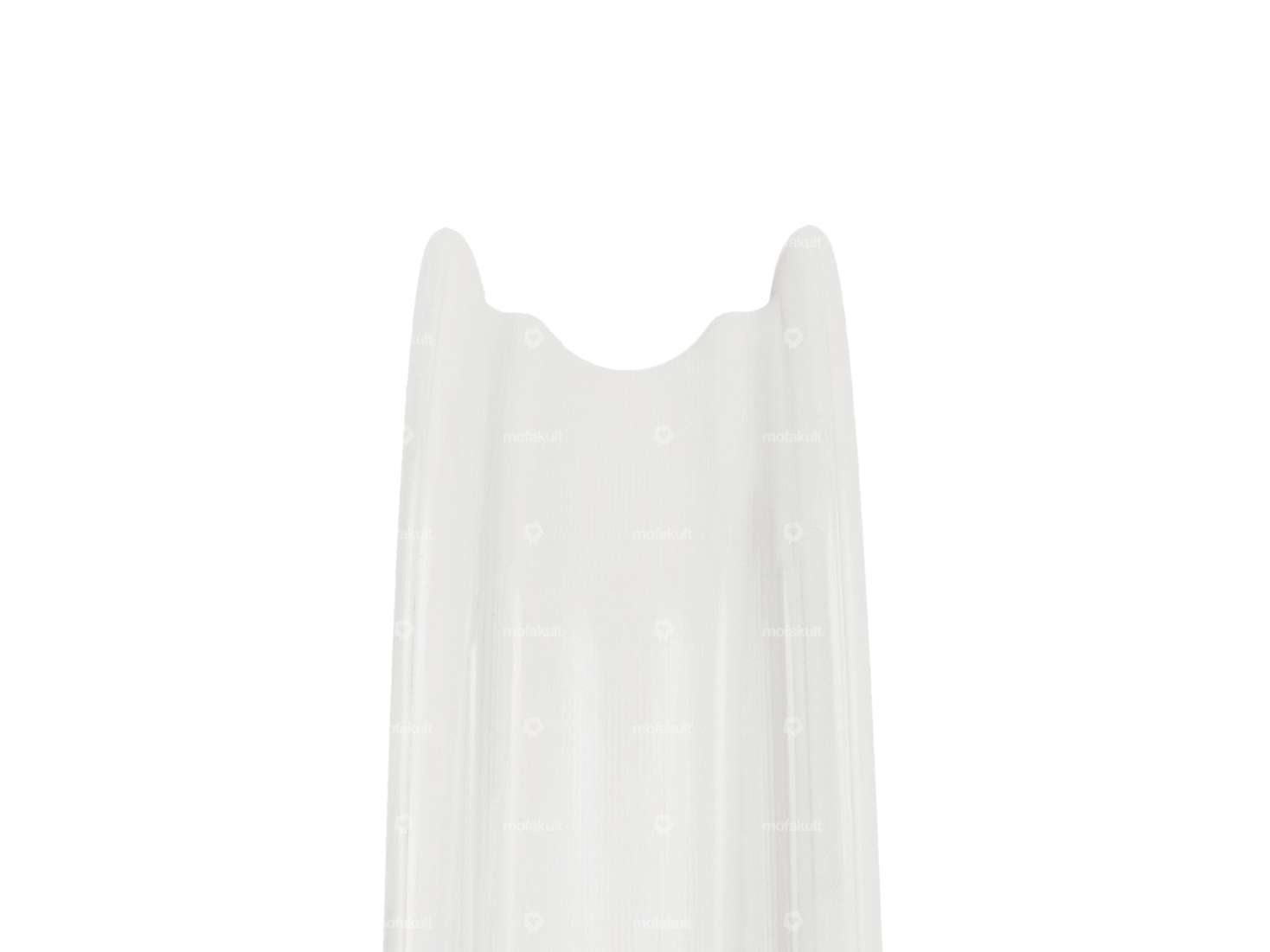

| Rim well depth | 11.5 mm |
| Overall width outside | 56 mm |
| Ø axle | 11.8 mm |
| Wheel size [inch] | 17 " |
| Axle length | 155 mm, 185 mm |
| Ø Brake drum | 90 mm |
| Universal | |
| Peugeot |
