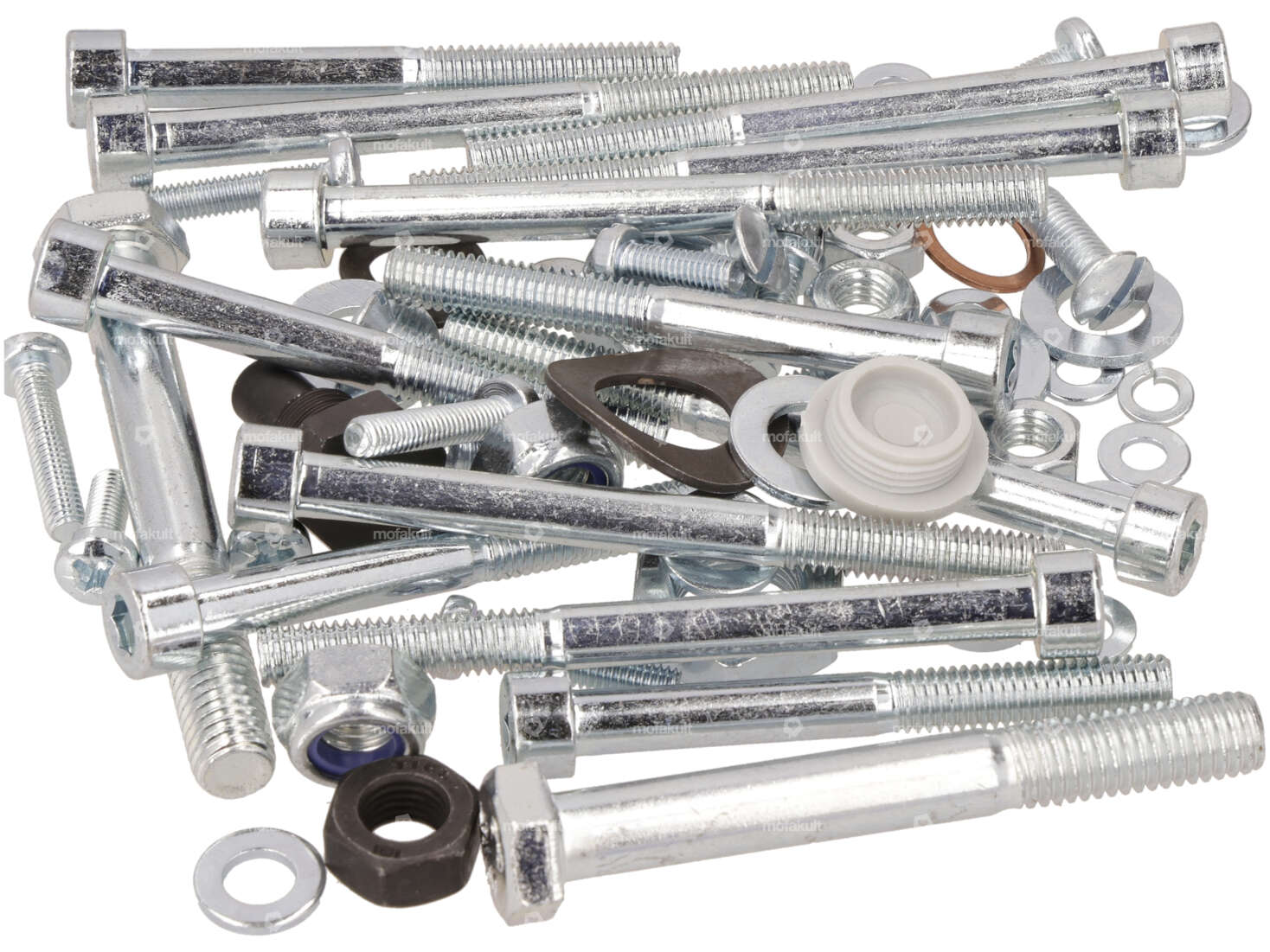

swiing® revival screw set engine galvanized | Sachs 504/1, 504/2, 508/1

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 535, 508

Material: Aluminum · Surface: sandblasted · Nominal diameter: 43.5 mm · Manufacturer: Airsal · Number of fixing points: 4 pcs · Camouflaged: No · Crankshaft stroke: 44 mm · Ø cylinder neck: 50 mm · Area of application: Tuning · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Ø piston pin (B): 12 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Outlet type: clamped · Hole spacing inlet: 31 mm · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5

Airsal gasket set 43.5 mm | Sachs 504, 505

Thickness: 0.5 mm · Manufacturer: Airsal · Number of components: 3 pcs · Area of application: Tuning · Ø cylinder: 43.5 mm

Engine bearing set | Sachs 504/2

Manufacturer: NTN · Number of components: 5 pcs · Area of application: Standard

Engine mount set | Sachs 504/1

Manufacturer: NTN · Area of application: Standard · Number of components: 5 pcs

swiing® revival shim set | Sachs 503, 502, 50/2, 50/3

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 13 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm · Manufacturer: swiing® revival parts · Ø outside: 18 mm · Ø outside: 21 mm · Ø inside: 12.5 mm · Ø inside: 15.2 mm

Gasket set (1A quality) | Sachs 504, 505, 535

Thickness: 0.3 mm · Thickness: 1 mm · Thickness: 2.6 mm · Manufacturer: Made in Italy · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 5 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 32 mm · Hole pattern [mm]: 81.5 x 51 mm / 58 x 58 mm · Pony OEM number: A4277 · Pony OEM number: A4278 · Pony OEM number: A4279

swiing® revival screw set Motor Inox | Sachs 504/1, 504/2, 508/1

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: stainless · Number of components: 61 pcs

Clutch plates | Sachs 504, 505, 535 (A4292)

Ø outside: 61 mm · Ø outside: 65.6 mm · Number of slats: 2 pcs · Ø inside: 37 mm · Thickness: 3.4 mm · Area of application: Standard

Oil seal NBR 15/32/5.5 A main shaft | Sachs 504, 505, 535 (A4216)

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø outside: 32 mm · Ø inside: 15 mm · Width: 5.5 mm · Temperature resistance (min.): -30 - 100 °C

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø outside: 30 mm · Ø inside: 15 mm · Width: 5.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø outside: 35 mm · Ø inside: 15 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

NTN 6202 Ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm

Engine bearing set | Sachs 504/2

Manufacturer: NTN · Number of components: 5 pcs · Area of application: Standard

Clutch cover gasket | Sachs 504, 505, 535 (A4278)

Material: Sealing paper · Manufacturer: Sachs · Number of fixing points: 5 pcs · Number of components: 1 pcs · Pony OEM number: A4278 · Sachs OEM no.: 0250 131 000

swiing® ingenious brake shoes Ø 90 x 17 Racing slotted

Slotted: Yes · Manufacturer: swiing® ingenious parts · Ø drum: 90 mm · Color: silver · Springs included: Yes · Ø locating bolt: 10 mm · Number of springs: 1 pcs · Width: 17 mm · Area of application: Racing

swiing® revival silent blocks Alu Racing | Sachs 503 / 504 / 505 / 535

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Nominal diameter inside: 8.5 mm · Ø outside: 21.95 mm · Ø inside: 8.3 mm · Ø Bundle: 26 mm · Total length: 13 mm · Alternative version of the Pony OEM number: A4286 · Alternative version of the Sachs OEM number: 0251 121 000

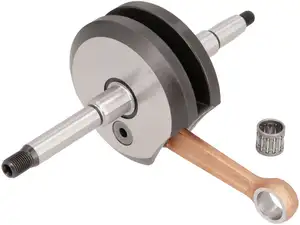

Crankshaft | Sachs 504 (A4376)

Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Ø coupling pin / vario pin: 15 mm · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 85 mm · Total length crankpin ignition side: 70.2 mm · Ø crank webs: 80.5 mm · Thread length: 9.5 mm · Thread length: 11.5 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 22.5 mm · Dimension needle bearing: 10 / 15 x 14 · Wide crank webs: 34.2 mm · Length 1st paragraph: 43.5 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 11.65 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 11 mm · Length of shoulder (ignition side): 25.25 mm
