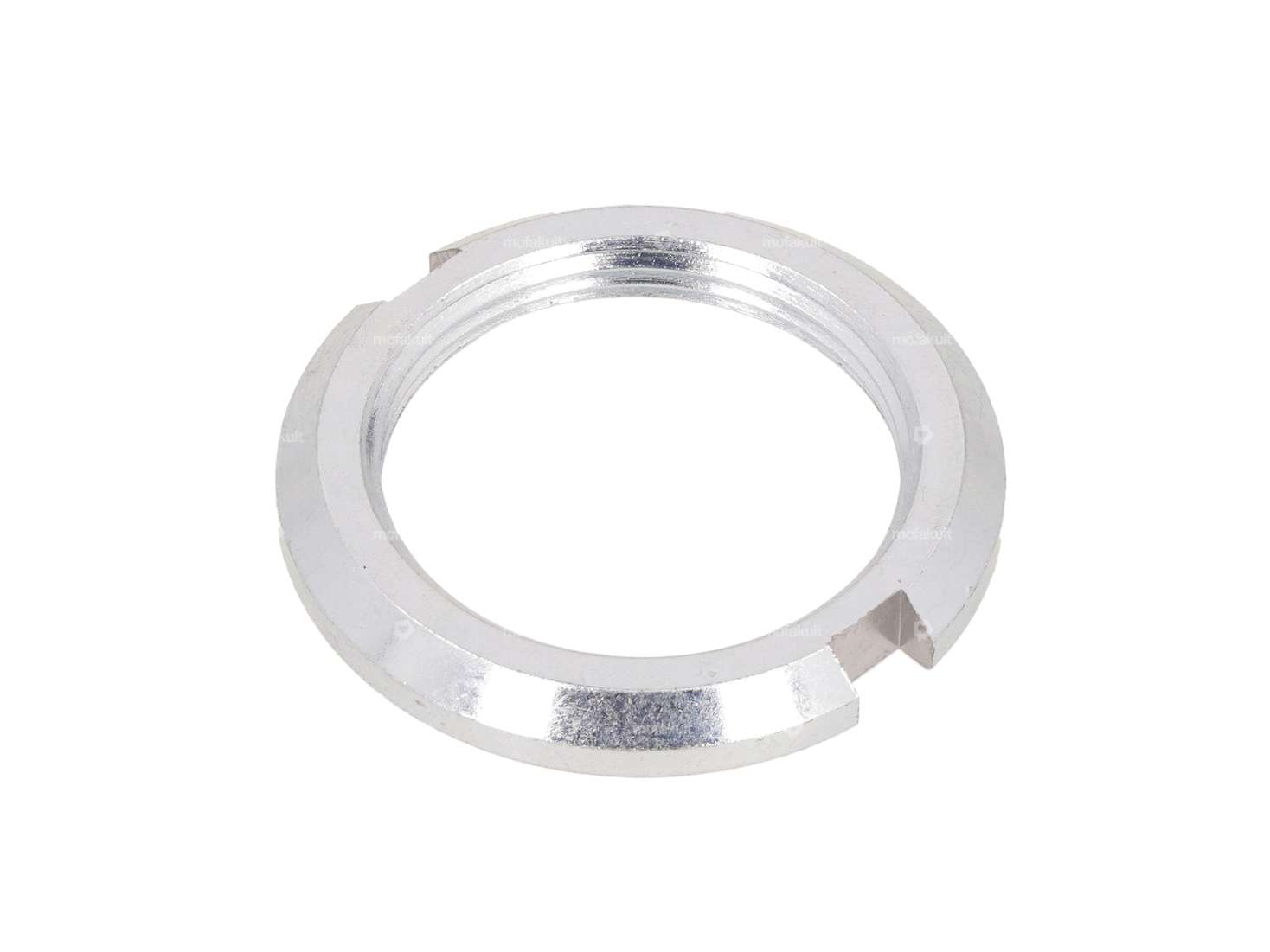

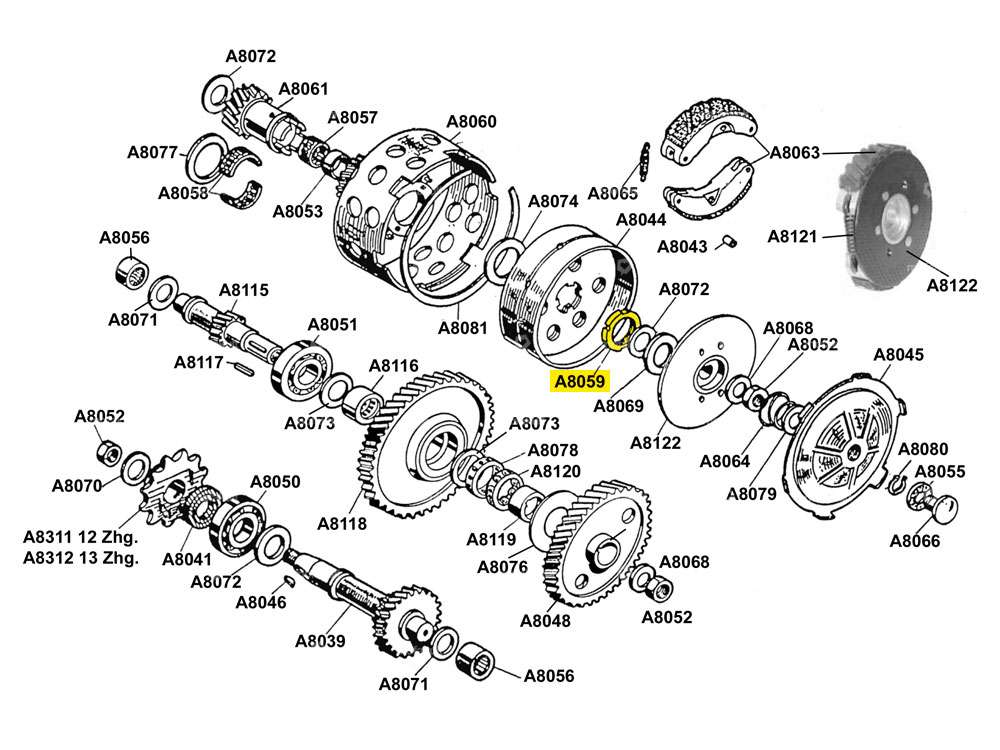

swiing® revival nut M22x1.25 clutch hubs engine | Beta 521 & 512 (A8059)

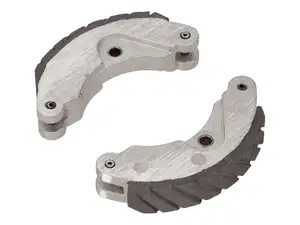

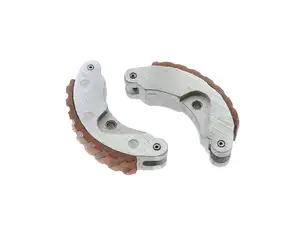

Clutch shoes (1st & 2nd gear) Engine | Beta 521 & 512 (A8063)

Manufacturer: Pony · Number of jaws: 2 pcs

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Oil type: ATF Dexron 3 (DEXIII) · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -36 - 200 °C

GPO wheel clamp large

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø outside: 30 mm · Ø inside: 12.8 mm · Total length: 76 mm · Thread type: M6x1 (standard thread) · Thread length: 31.5 mm

NTN 6201 2RS ball bearing 12/32/10

Bearing type: Deep groove ball bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: NTN · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided

Road Master 2.25 x 16" (white lettering)

Manufacturer: Road Master · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 16 " · Old designation: 20 x 2.25 · Speed index: B = 50 km/h · Load capacity index: 38 = 132 kg · Profile type: Racing XC · Tire type: Allround · Color: black · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

ESJOT sprocket 12 teeth | Beta 521 & 512 (A8311)

Material: Steel · Surface: varnished · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø inside: 14.6 mm · Manufacturer: ESJOT · Number of teeth: 12 pcs · Thickness: 4.4 mm · Recording type: Cone mounting · Total thickness: 13 mm · Thread type: MF24x1.5 (fine pitch thread)

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 7 pcs

Clutch lever long engine Beta 521 & 512 (A8025)

Spring design: Leaf spring · Total length: 47 mm · Ø mounting hole: 6.1 mm · Manufacturer: Pony · Material: Spring steel

Needle bearing 15/18/16 clutch basket | Beta 521, 512 (A8057)

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Dimension needle bearing: 15/18 x 16 · Ø inside: 15 mm · Width: 16 mm · Ø outside: 18 mm

Clutch spring 1 & 2 speed engine | Beta 521 & 512 (A8065/A8121)

Spring design: Tension spring · Manufacturer: Pony · Material: Spring steel · Area of application: Original · Area of application: Standard

Shim 25/34/0.3 Clutch | Beta 521, 512 (A8077)

Ø inside: 25 mm · Nominal diameter inside: 25 mm · Ø outside: 34 mm · Thickness: 0.3 mm · Manufacturer: Pony · Material: Steel · Surface: blank / oiled
