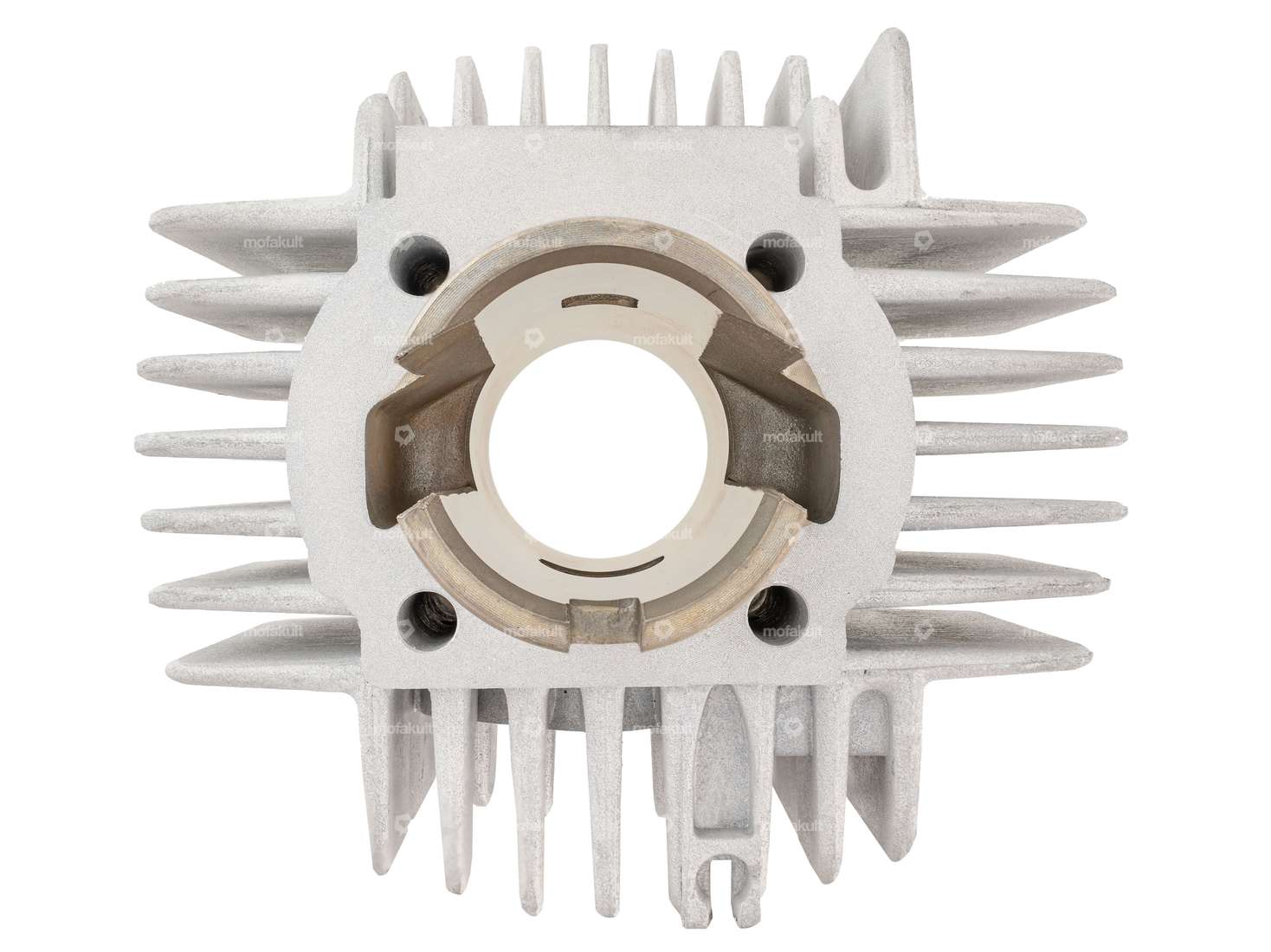

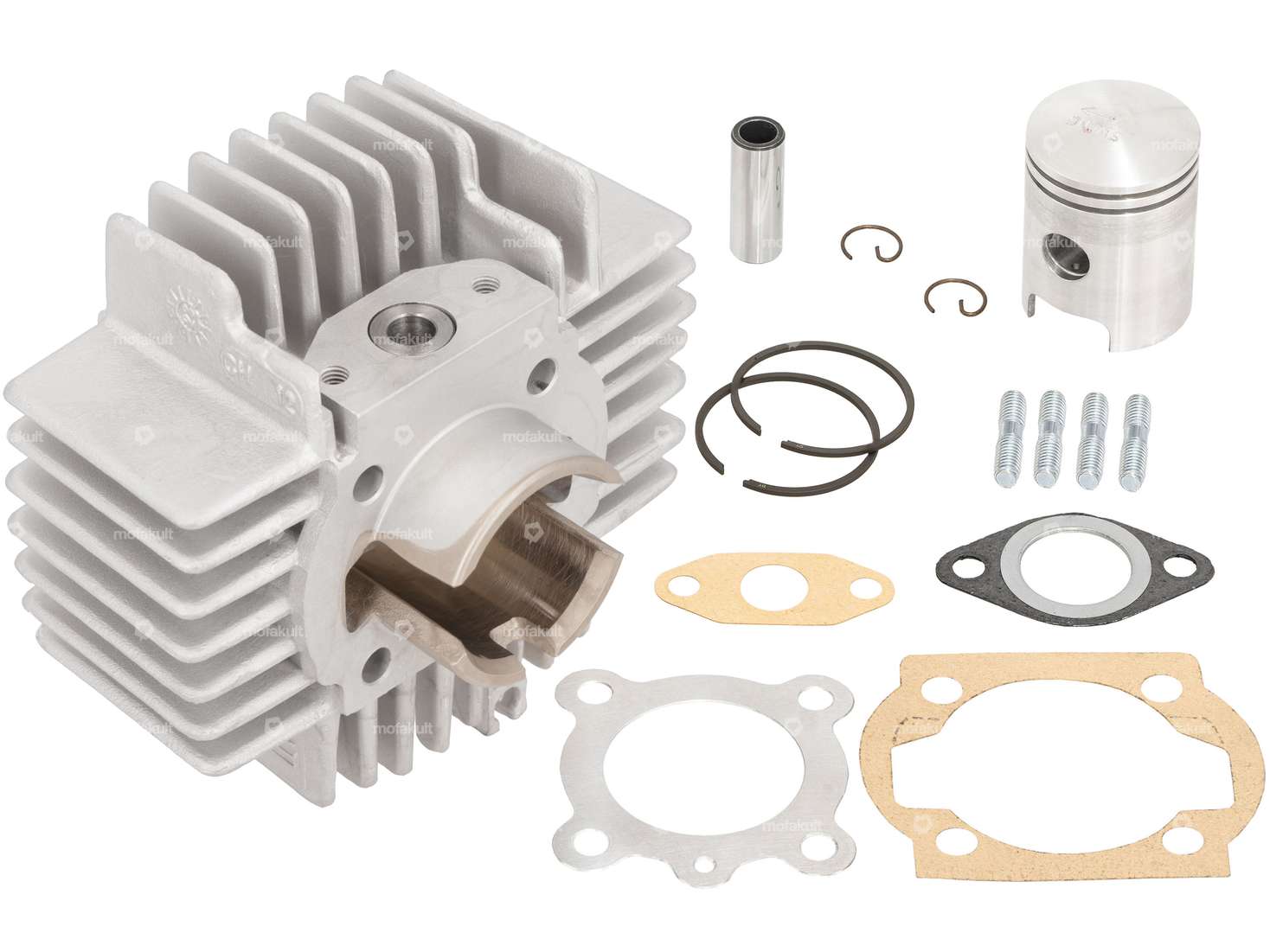

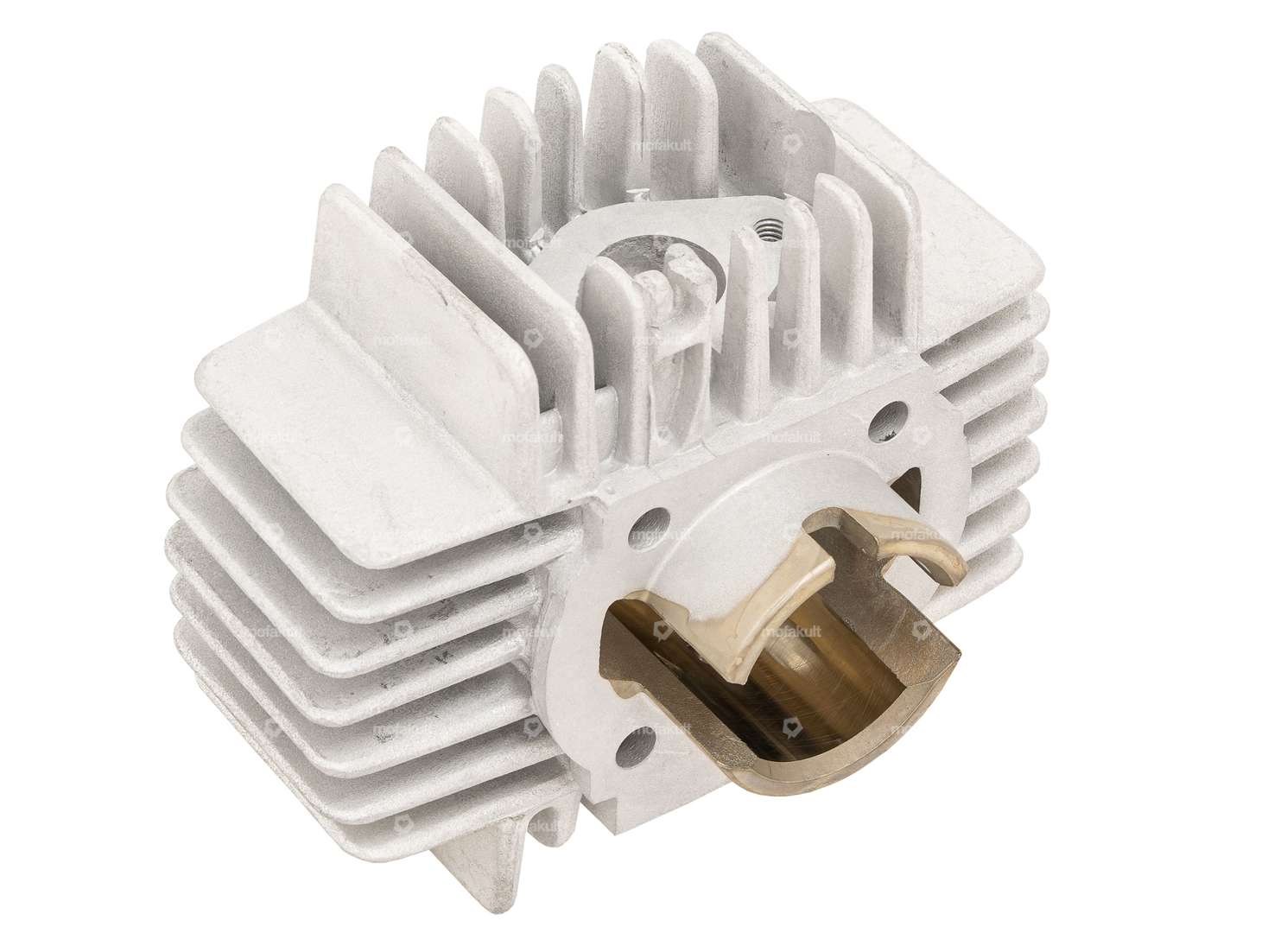

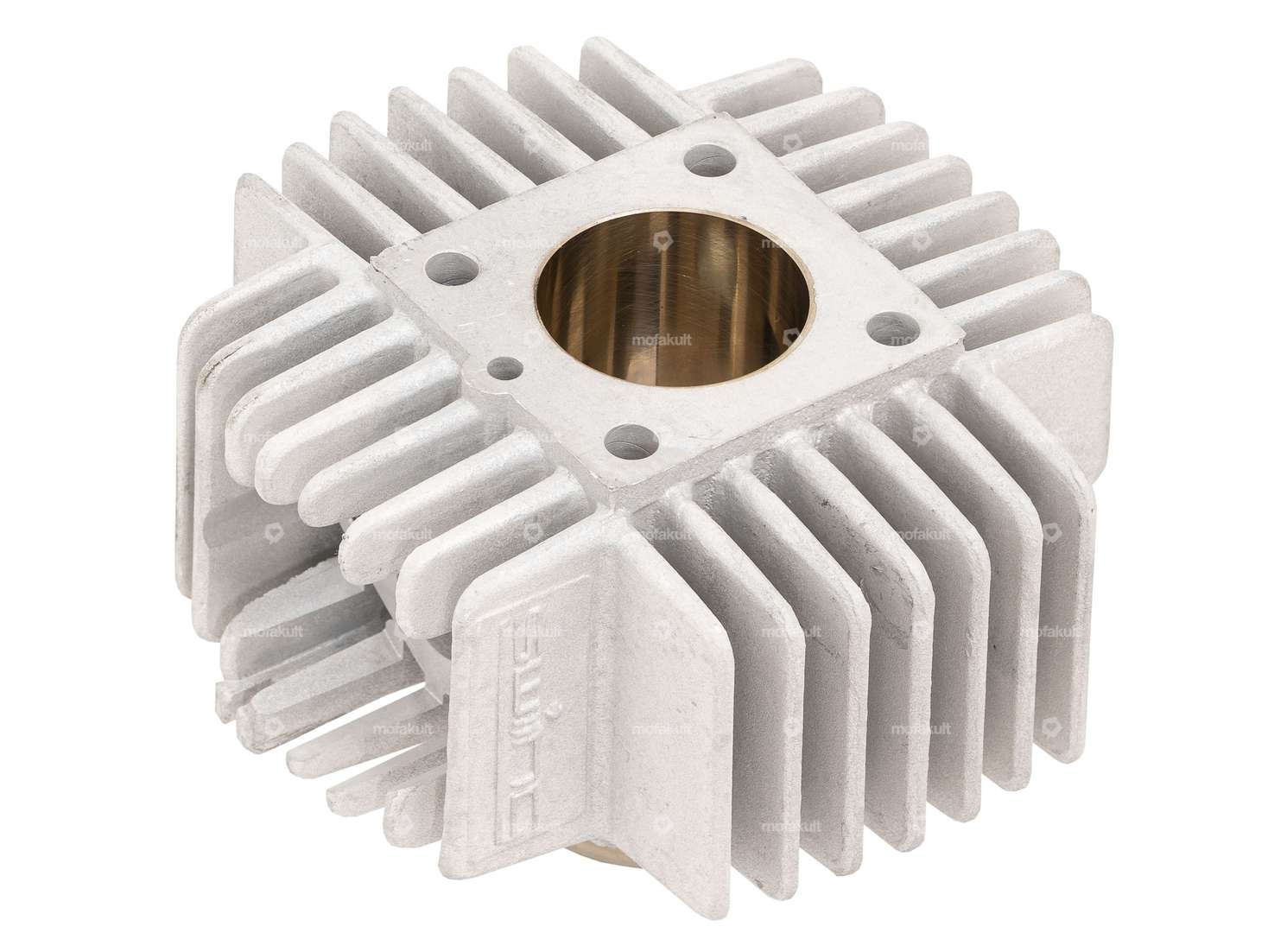

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
152,90 EUR

Incl. 20% VAT.

Description

Lightly optimized, high-quality 38 mm original cylinder suitable for various Puch mopeds / mopeds such as Maxi S / N and Puch X30 NS / NL.

With this cylinder, you can reach your destination quickly and powerfully

.
  • The intake window has been moved slightly downwards to achieve better timing
  • Lubrication holes on the piston to the piston pin.
  • The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
  • The piston skirt has been optimized
  • The inlet angles of the transfer ports have been adjusted
  • Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)

With these optimizations, the 38 mm cylinder kit delivers a whopping 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

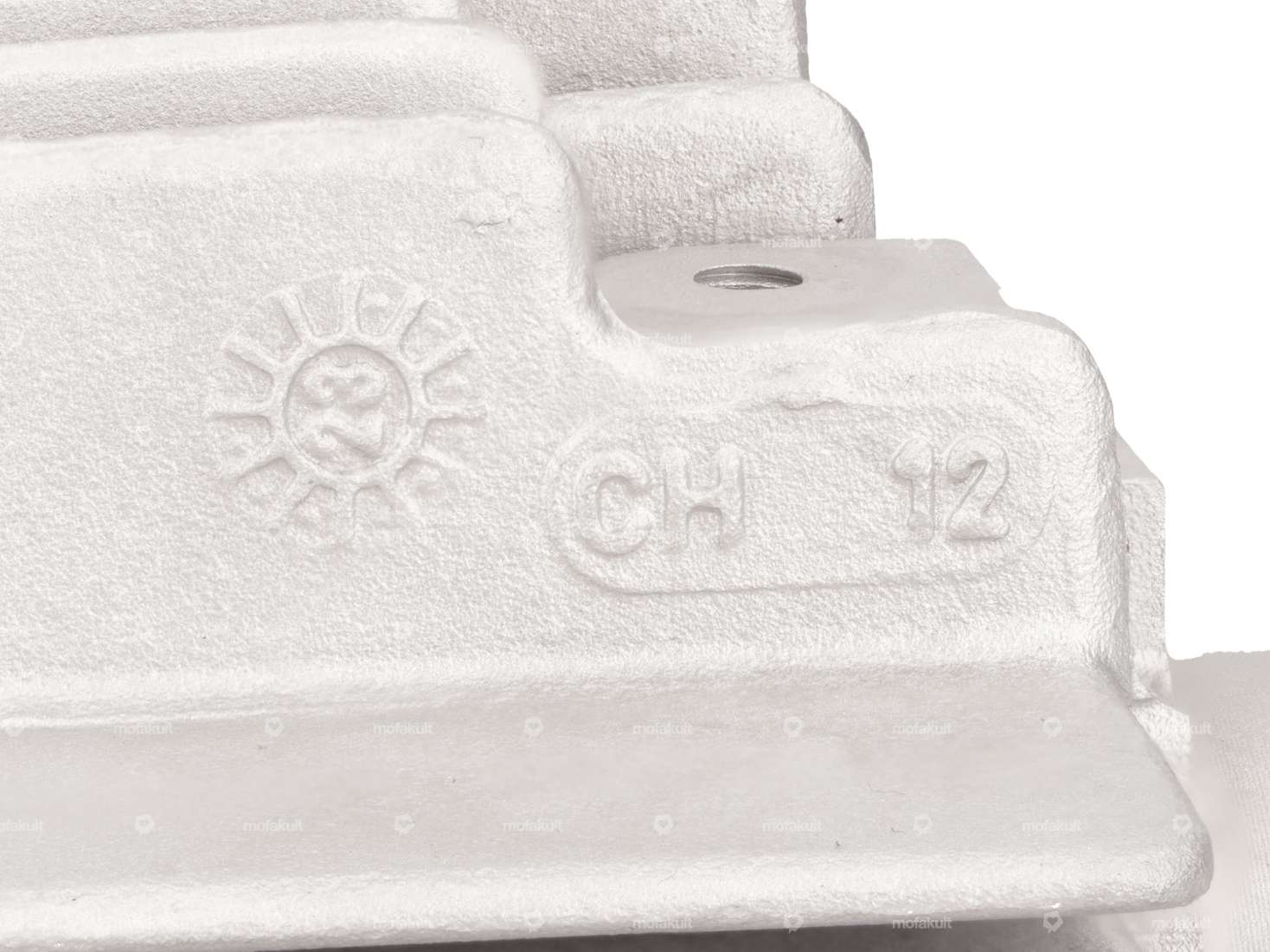

Of course, the original «CH12» is also cast in.

You can find detailed installation instructions in the video below.

Download Montageanleitung
Manufacturerswiing® revival parts
MaterialAluminum
Displacement50 ccm
Nominal diameter38 mm
Surfacesandblasted
Crankshaft stroke43 mm
Ø piston pin (B)12 mm
Ø cylinder neck48 mm
Ø Inlet inside9 mm
Area of applicationStandard
Ø outlet inside19 mm
Thread inletM6x1 (standard thread)
Hole spacing inlet38 mm
DecompressorYes
Number of fixing points4 pcs
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Hole pattern [mm]44 x 44
CamouflagedYes
Alternative version of the Puch OEM number349.7.10.105.0
Puch

E50

Z50 (X30 Sport)

Accessories & related products

Hot Hot
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

10096

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Candle thread: short · Number of fixing points: 4 pcs · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Hole pattern [mm]: 44 x 44 · Decompressor: No

38,70 EUR

swiing® revival stud bolt M6x106 (10.9 strength class)
undefined

For: Puch · Sachs

10382

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Nominal diameter (thread): 6 mm · Total length: 106 mm · Puch OEM number: 360.1.10.034.1

2,10 EUR

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)
undefined

Universal

15357

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

23,40 EUR

23,40 EUR/l

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

18209

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Number of components: 4 pcs · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Ø outlet inside: 20 mm · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard

8,70 EUR

swiing® revival 12 mm carburetor set "original" | Puch E50
undefined

For: Puch

19137

swiing® revival 12 mm carburetor set "original" | Puch E50

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 6 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Camouflaged: No · Nozzle size: 52 · Area of application: Standard · Clamping screw torque (max.): 4 N/m

111,70 EUR

swiing® revival carburetor set 12 mm "original" | Puch X30 NS, NL
undefined

For: Puch

20143

swiing® revival carburetor set 12 mm "original" | Puch X30 NS, NL

Manufacturer: swiing® revival parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Nozzle size: 52 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Area of application: Standard

211,70 EUR

swiing® revival piston 38 mm Vertex | Puch
undefined

For: Puch

22205

swiing® revival piston 38 mm Vertex | Puch

Manufacturer: Vertex · Manufacturer: swiing® revival parts · Ø outside piston (A): 37.96 mm · Compression height (C): 22.45 mm · Curvature (D): 3.5 mm · Total piston height (E): 50.45 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Tolerance group: A · Weight piston kit: 71 g

70,50 EUR

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Monark · Peugeot · Victoria · Yamaha

22386

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

14,00 EUR

swiing® revival 38 mm gasket set original cylinder | Puch
undefined

For: Puch

23689

swiing® revival 38 mm gasket set original cylinder | Puch

Number of components: 4 pcs · Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing outlet: 42 mm

11,70 EUR

swiing® revival piston 38 mm 1.6 hp | Puch
undefined

For: Puch

23998

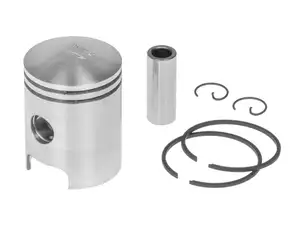

swiing® revival piston 38 mm 1.6 hp | Puch
