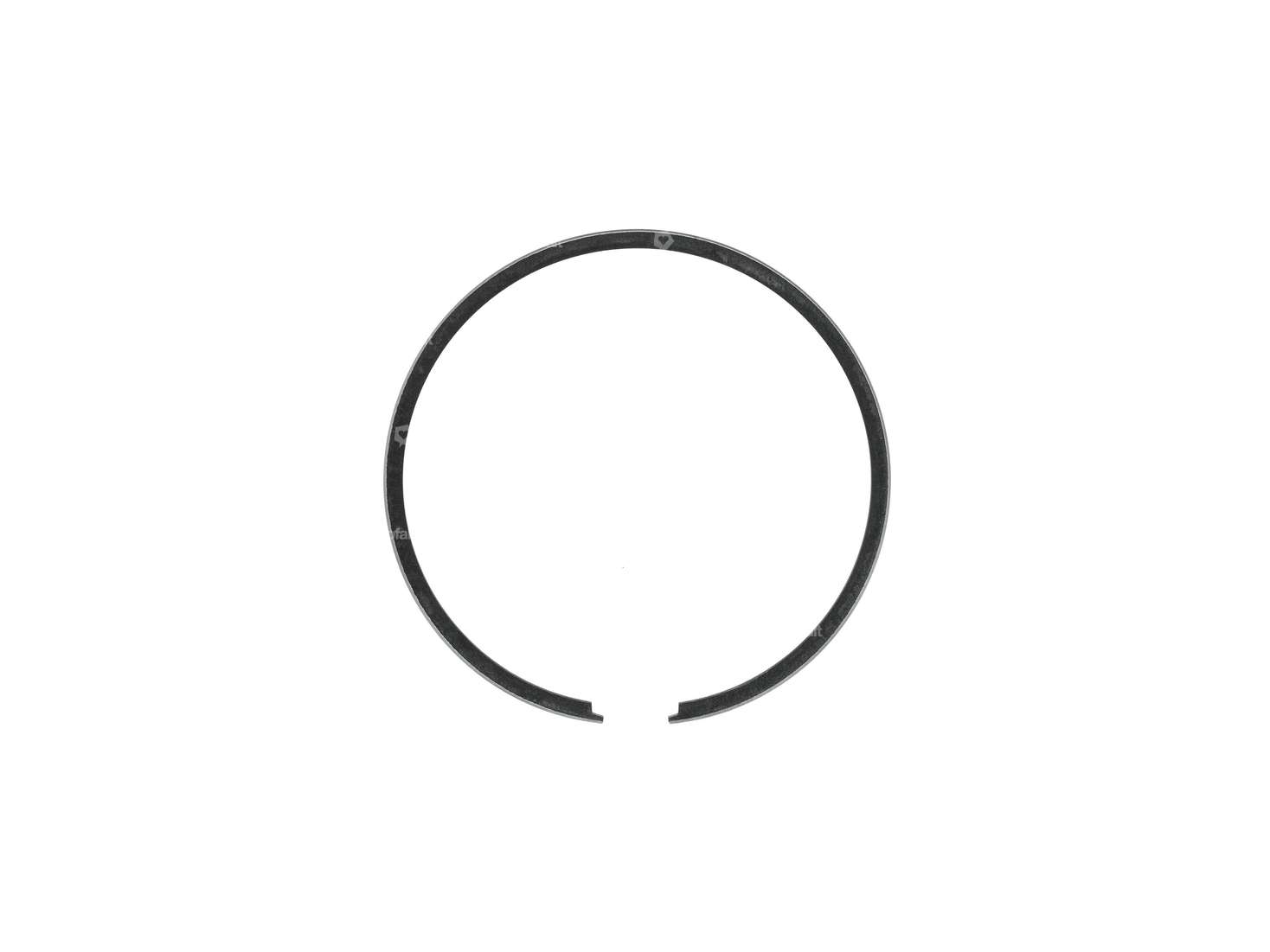

Hard chrome-plated 45 x 1.5 mm rectangular piston ring with internal fuse (IS) suitable for the swiing® ingenious 45 mm cylinder kit of your Puch Maxi S / N, X30 Sport NS / NL, X30 Sport NG-2A or Supermaxi mopeds, mopeds.
Hard chrome-plated piston rings have better tension and running characteristics, which contributes significantly to the service life.

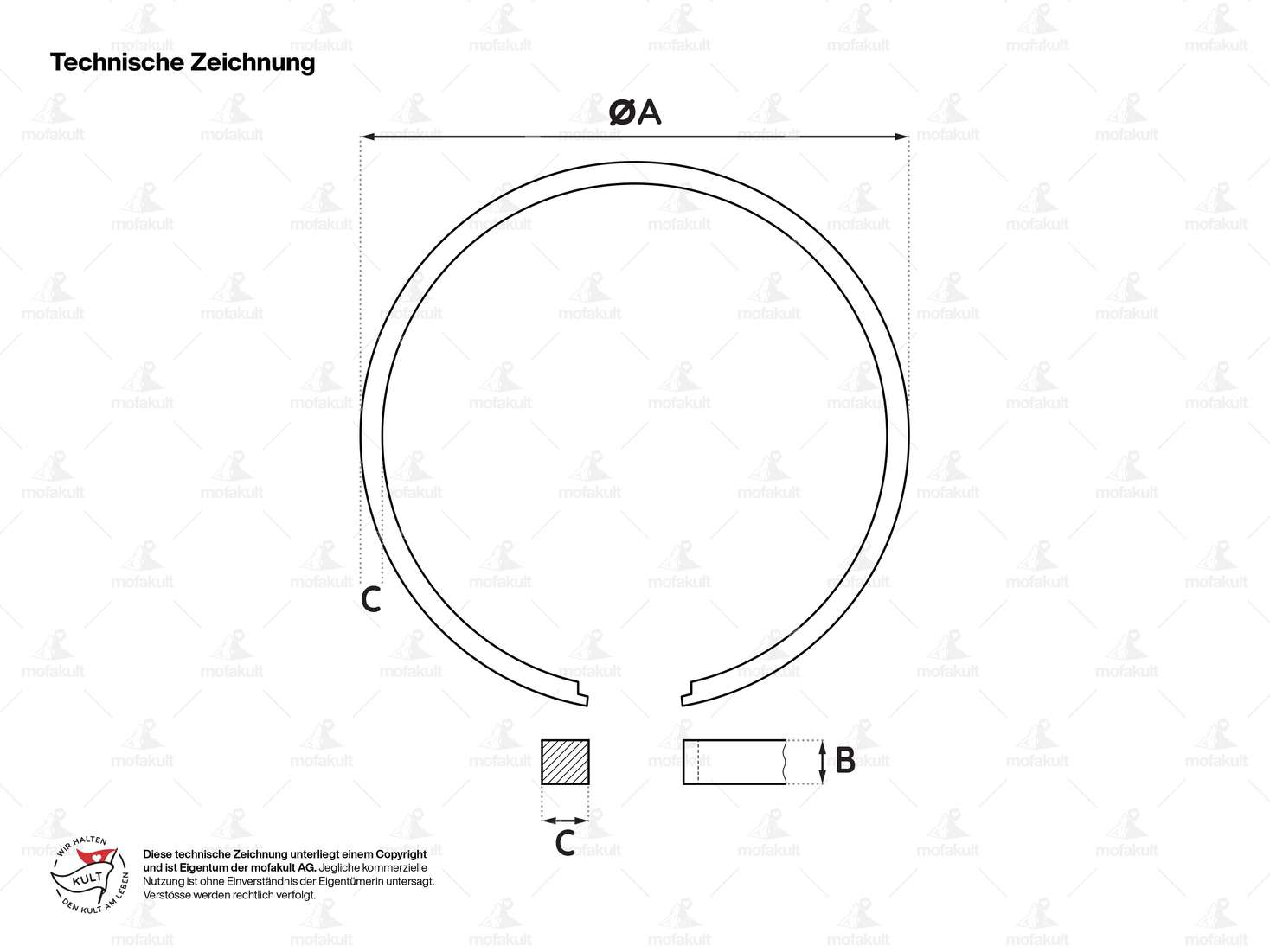

The detailed dimensioning of the piston ring according to the technical drawing can be found in the details. In addition, you can find out about the common piston rings, their stems and locking types on the legend in the images.
| Manufacturer | swiing® ingenious parts |
| Surface | hard chrome plated |
| Area of application | Tuning, Racing, High End |
| Nominal diameter | 45 mm |
| Height | 1.5 mm |
| Piston ring mold | Rectangular ring |

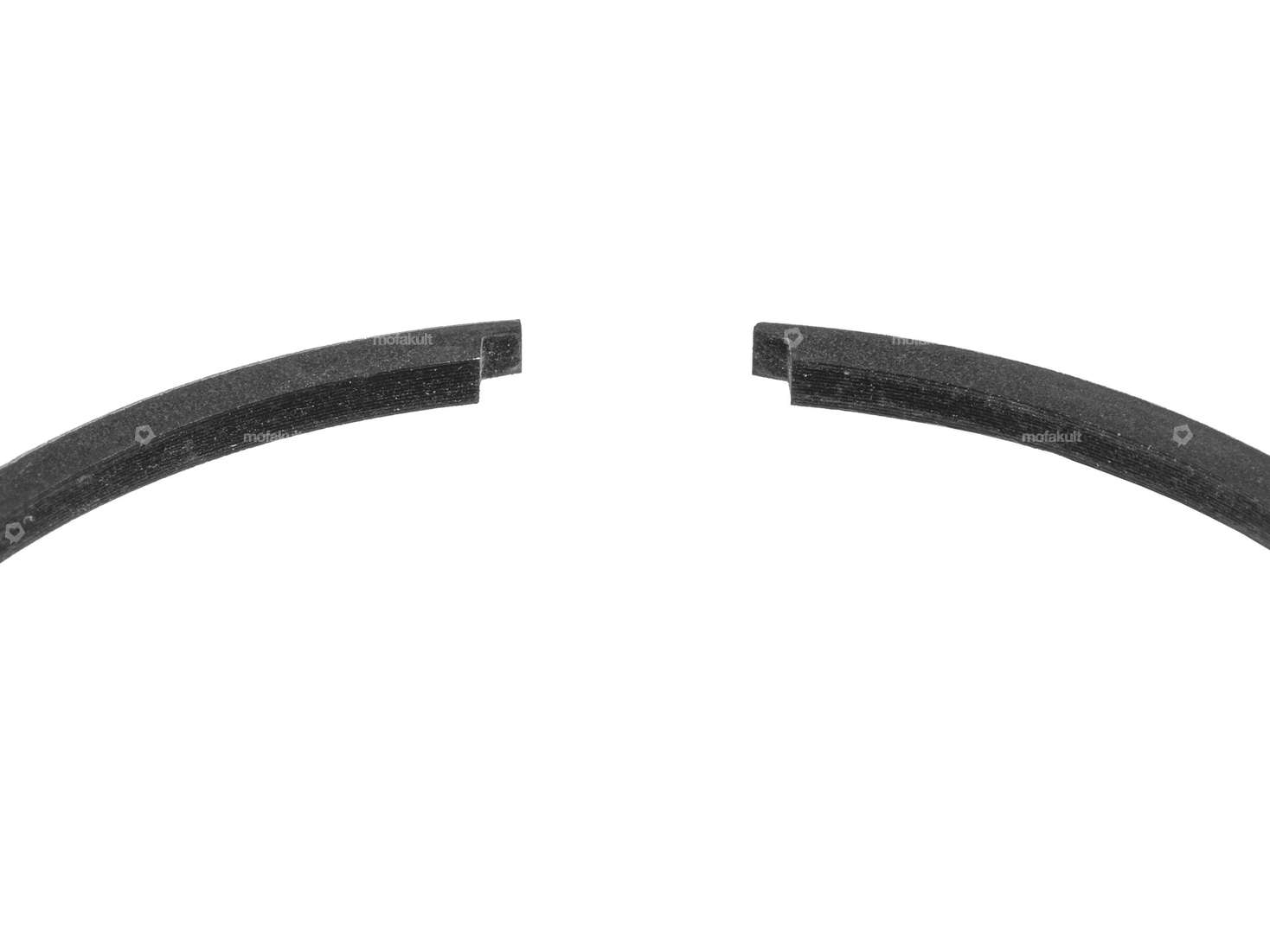

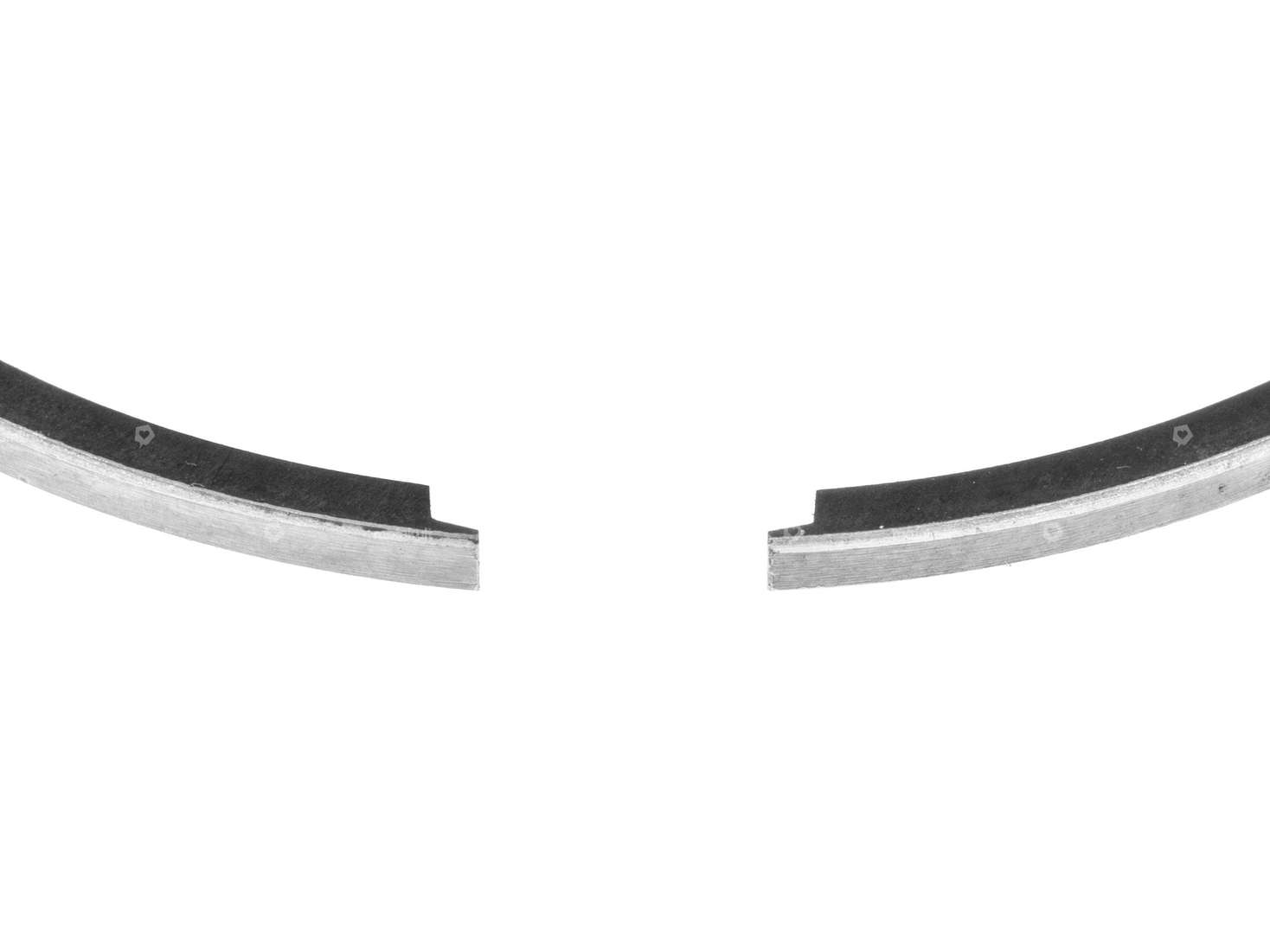

| Piston ring impact | Internal fuse (IS) |
| Thick piston ring | 1.8 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
