logo_swiing ingenious parts

For: Puch

26361

swiing® ingenious assembly tool clutch spring | Puch Z50

rating iconrating iconrating iconrating iconrating icon
No reviews
48,10 EUR

Incl. 20% VAT.

Description

Useful tool for tightening the clutch spring on manual Puch X30 Sport & Puch X30 Velux mopeds / mopeds.
By pretensioning the spring, the nut can be easily mounted on the crankshaft.

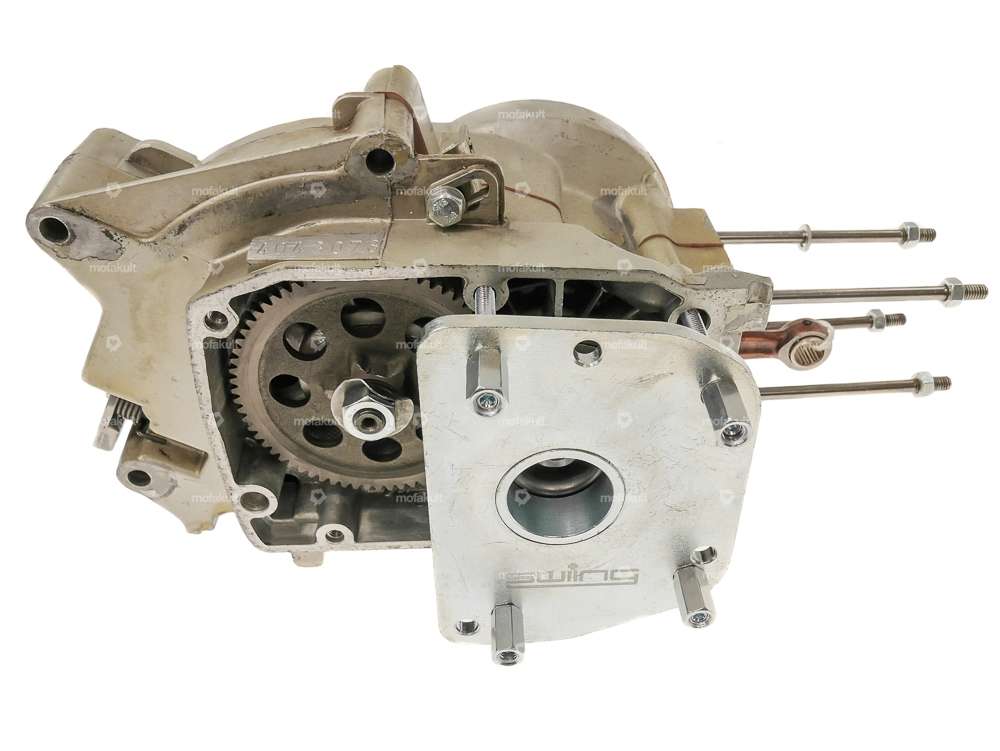

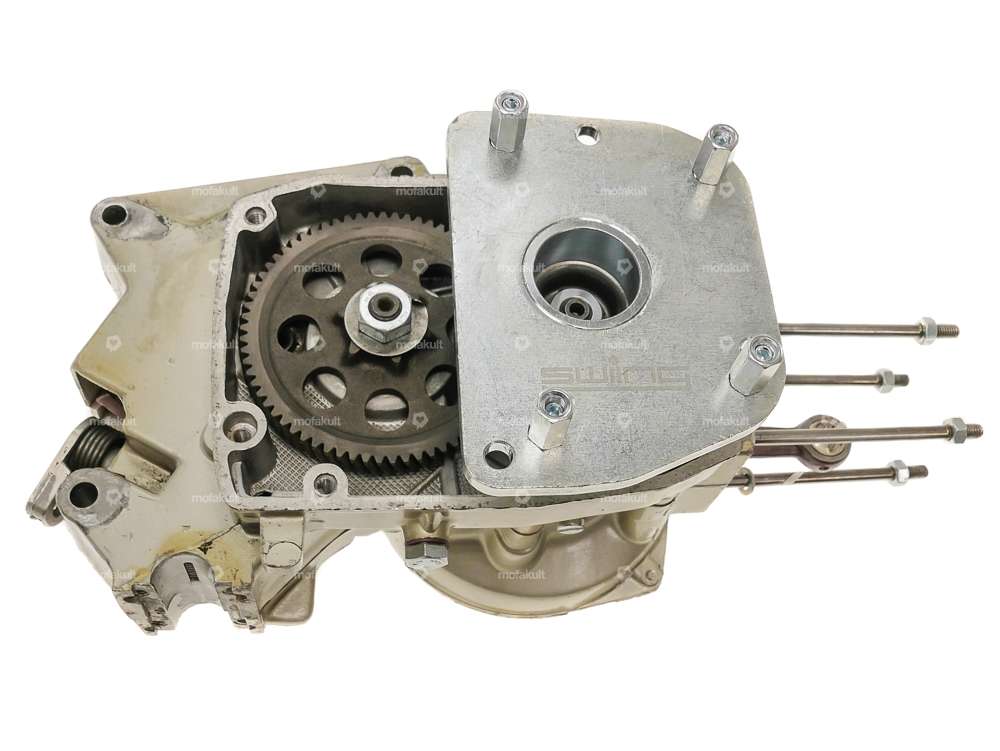

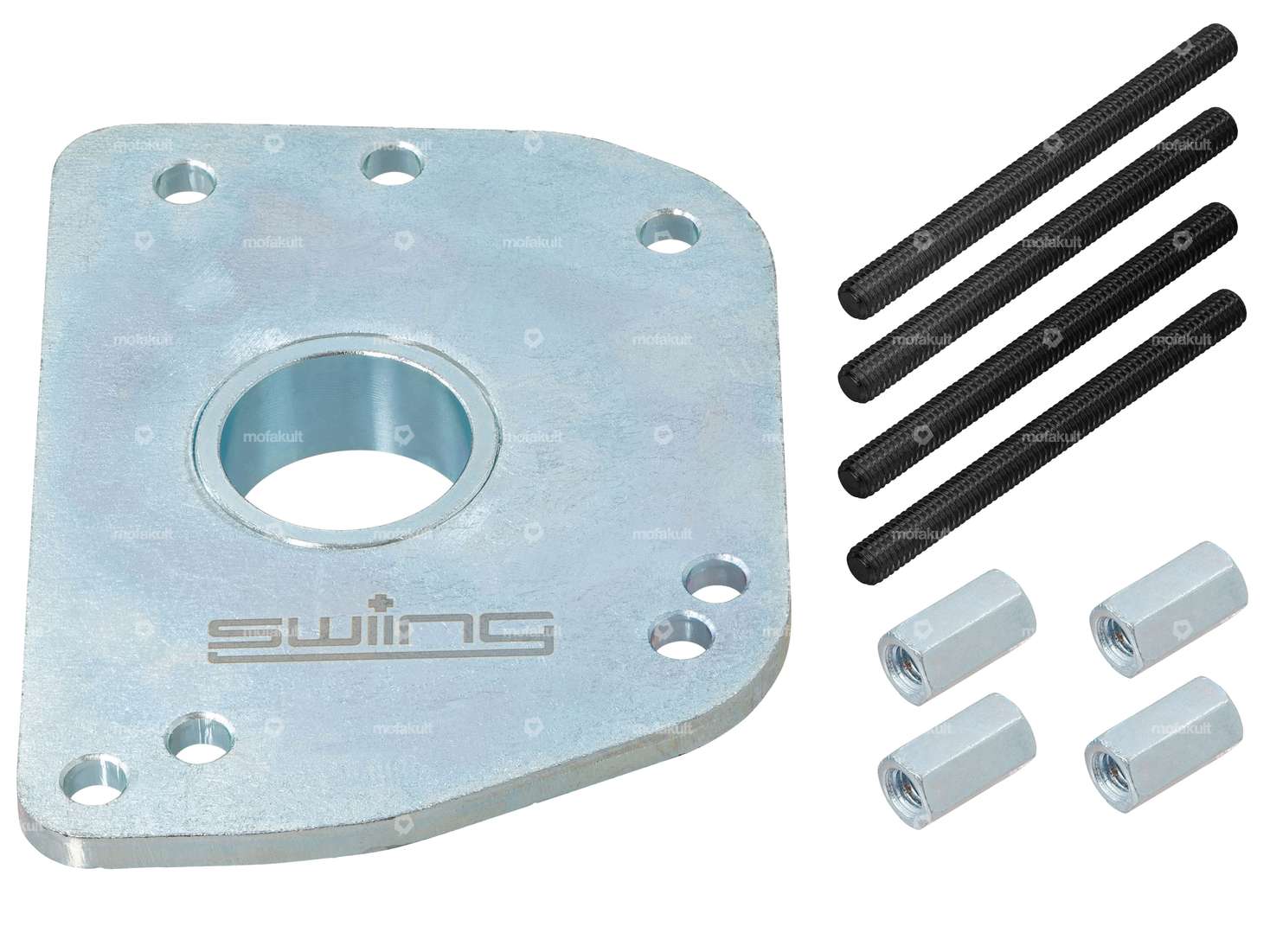

The four threaded bolts with hexagon socket are screwed into the corresponding threaded holes. The clutch spring is pretensioned by tightening the four 3D nuts.

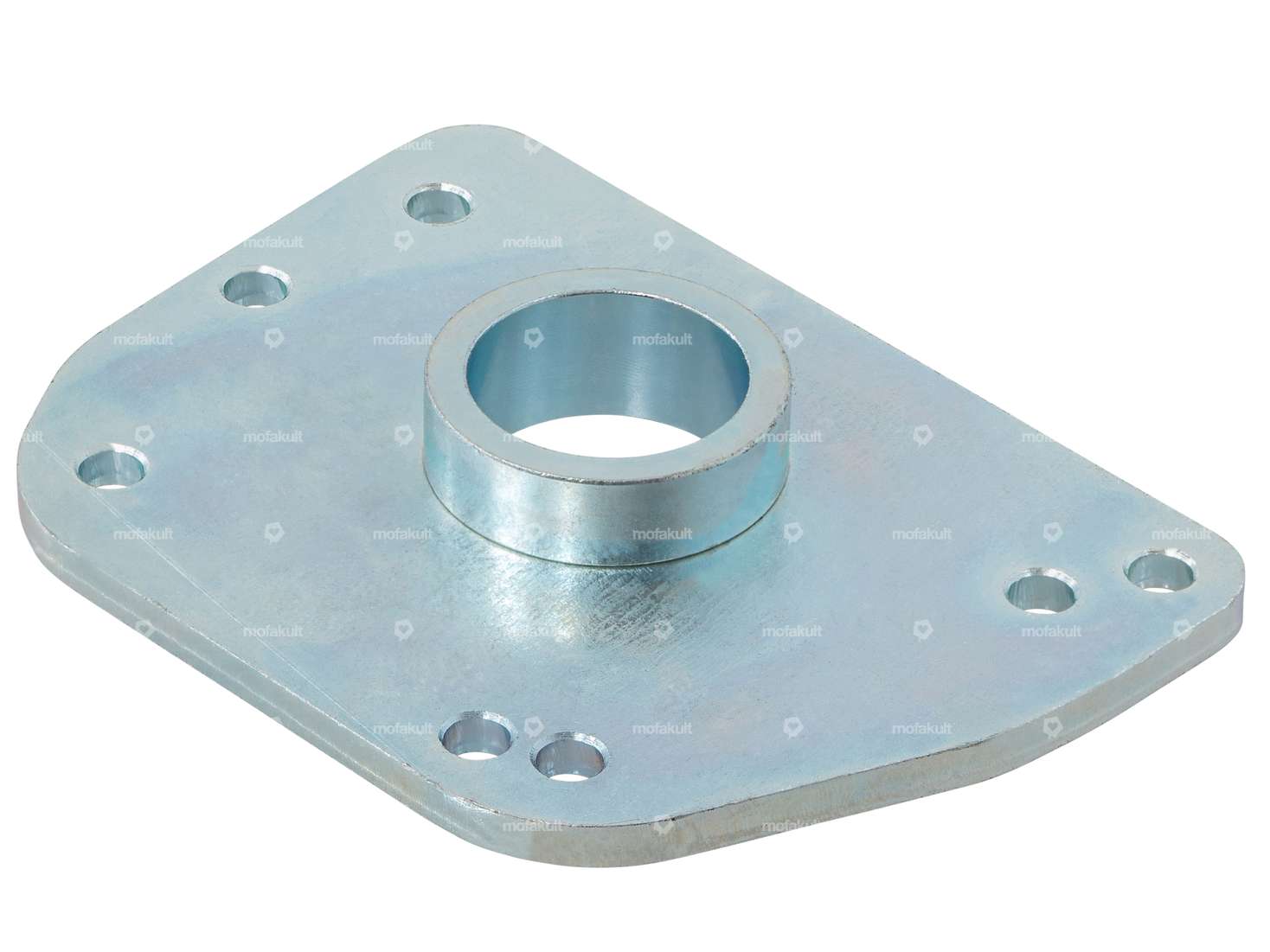

Thickness of mounting plate: 6 mm
Threaded bolts: M6 x 70 mm (with hexagon socket)
Nuts: M6 x 18 mm (SW10 mm)

Figures 4 and 5 are for illustrative purposes.

Exceptional product for the highest demands of the quality brand swiing®.

Manufacturerswiing® ingenious parts
Total length130 mm
Width96 mm
Number of components9 pcs
MaterialSteel
Area of applicationSpecial tool
Thickness6 mm
Surfacegalvanized (blue)
Thread typeM6x1 (standard thread)
Puch

Z50 (X30 Sport)

Z50 (X30 Velux)

Accessories & related products

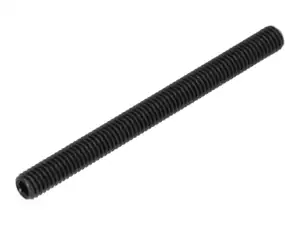

Grub screw M6x70 mm hexagon socket, blackened
