Product description

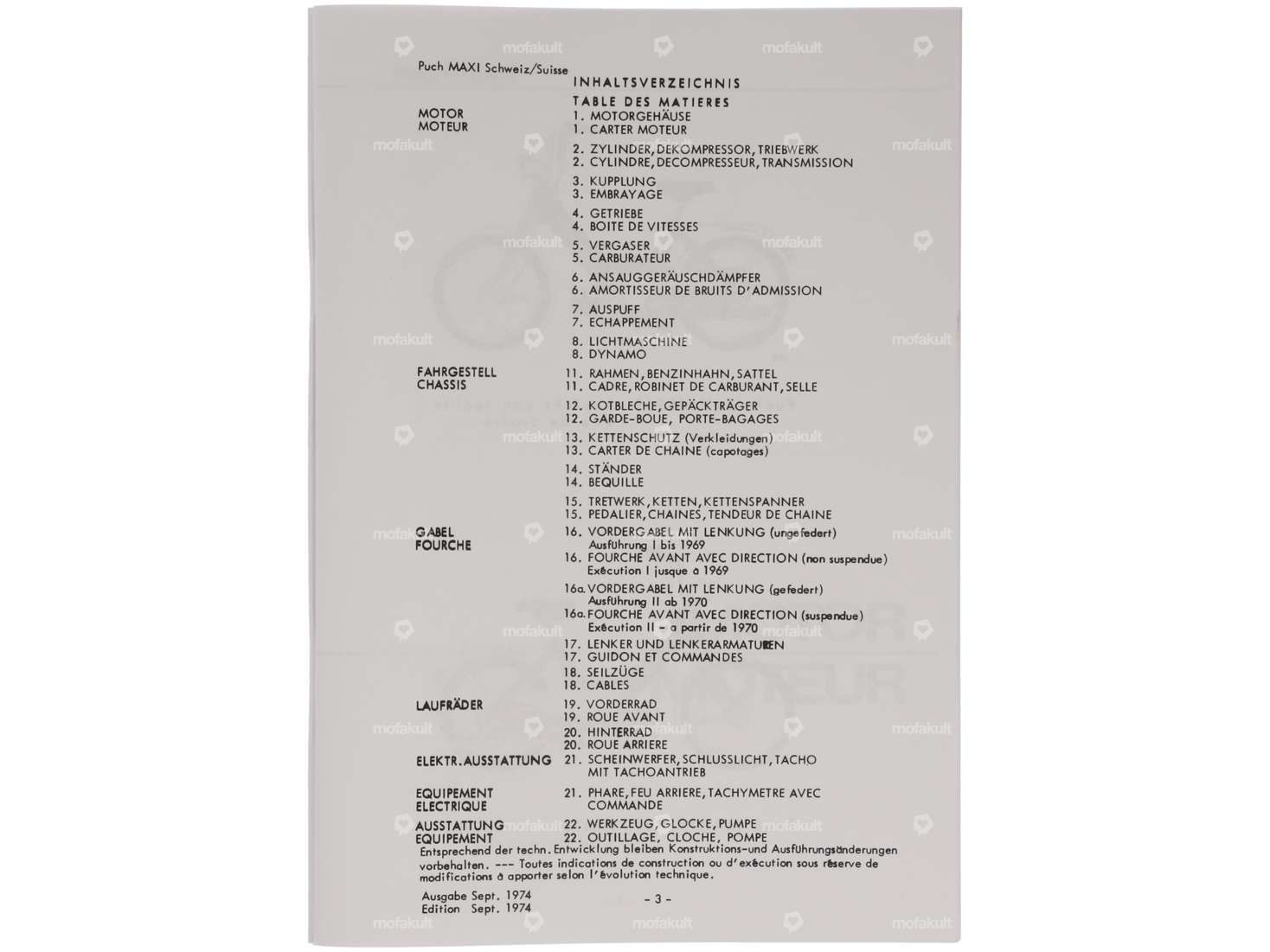

Nostalgic catalog with all exploded views and part numbers for your Puch Maxi moped / moped with 1-speed engine.

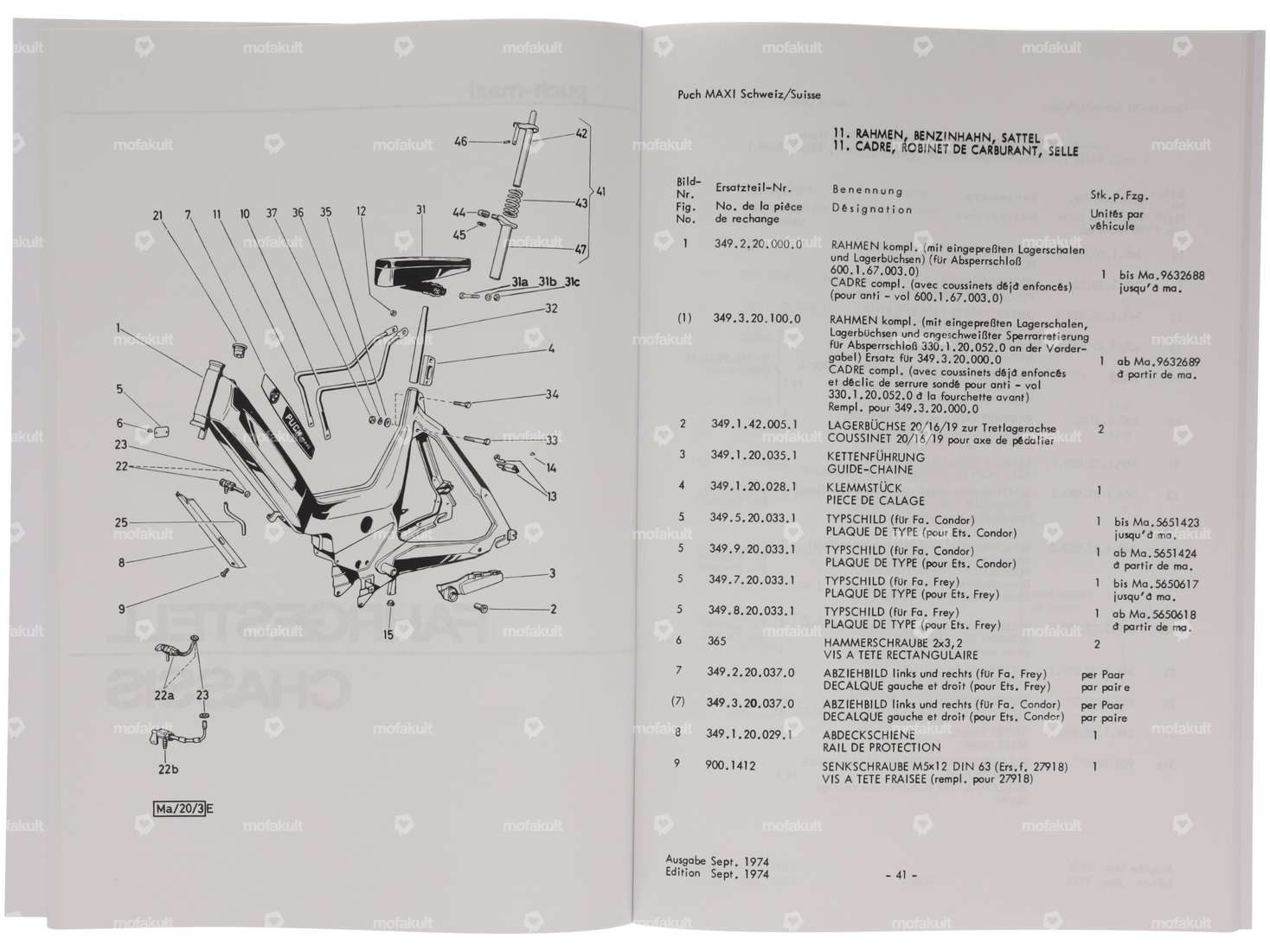

From the cylinder to the carburetor, all engine components are shown in helpful exploded views. Each individual component is provided with part number, spare part number and installation location.

Product details

Material	Paper
DIN format	A4
Number of pages	88 pcs
Language	German, French

Suitable for the following models

Puch

E50
