For: Sachs

34379

Repair instructions | Sachs 535/1 A, AS CH

41,10 EUR

Incl. 20% VAT.

Description

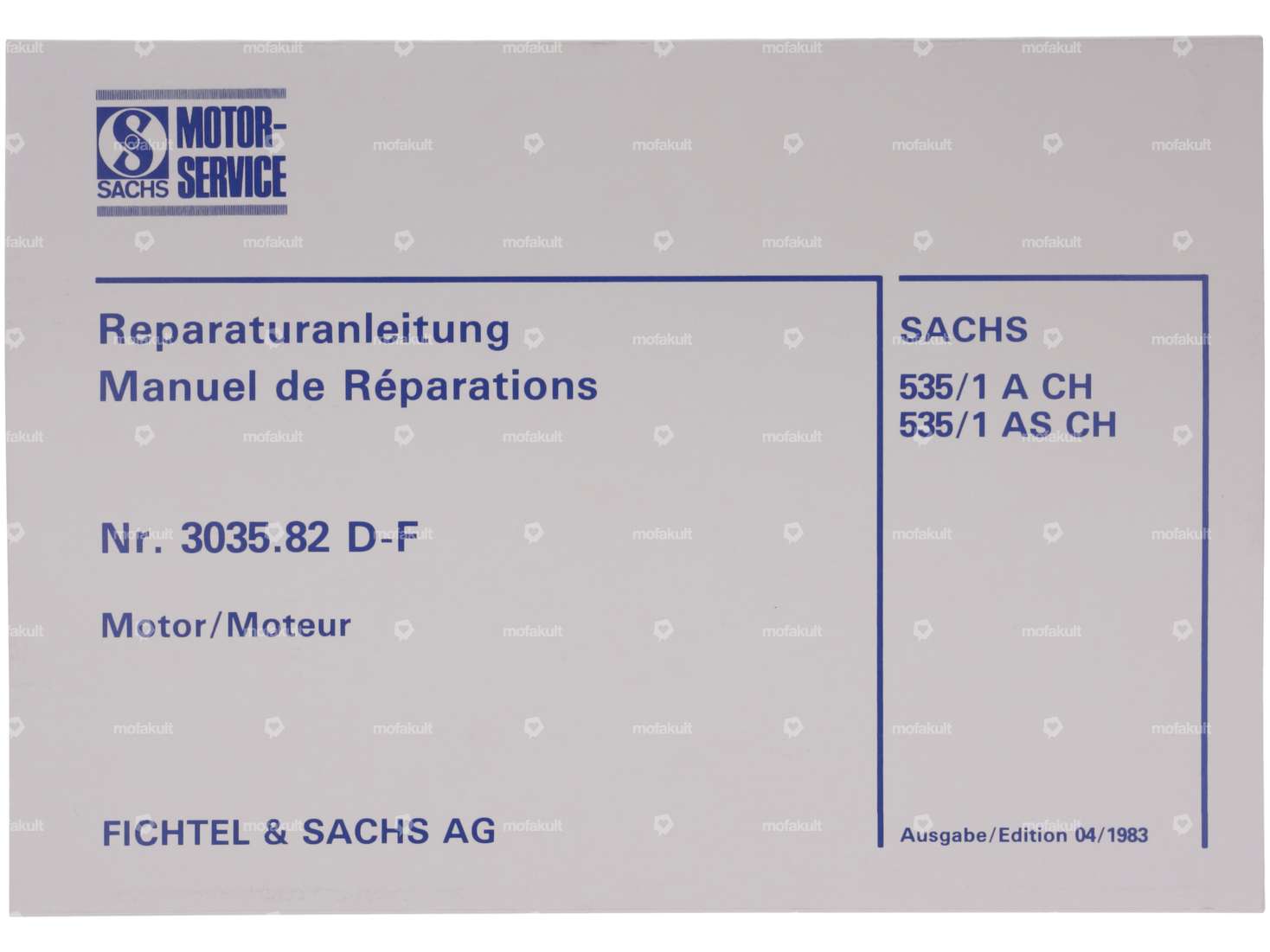

Nostalgic repair manual with complete exploded views and descriptions for repairing your Sachs 535/1 A CH and 535/1 AS CH moped / moped engine.

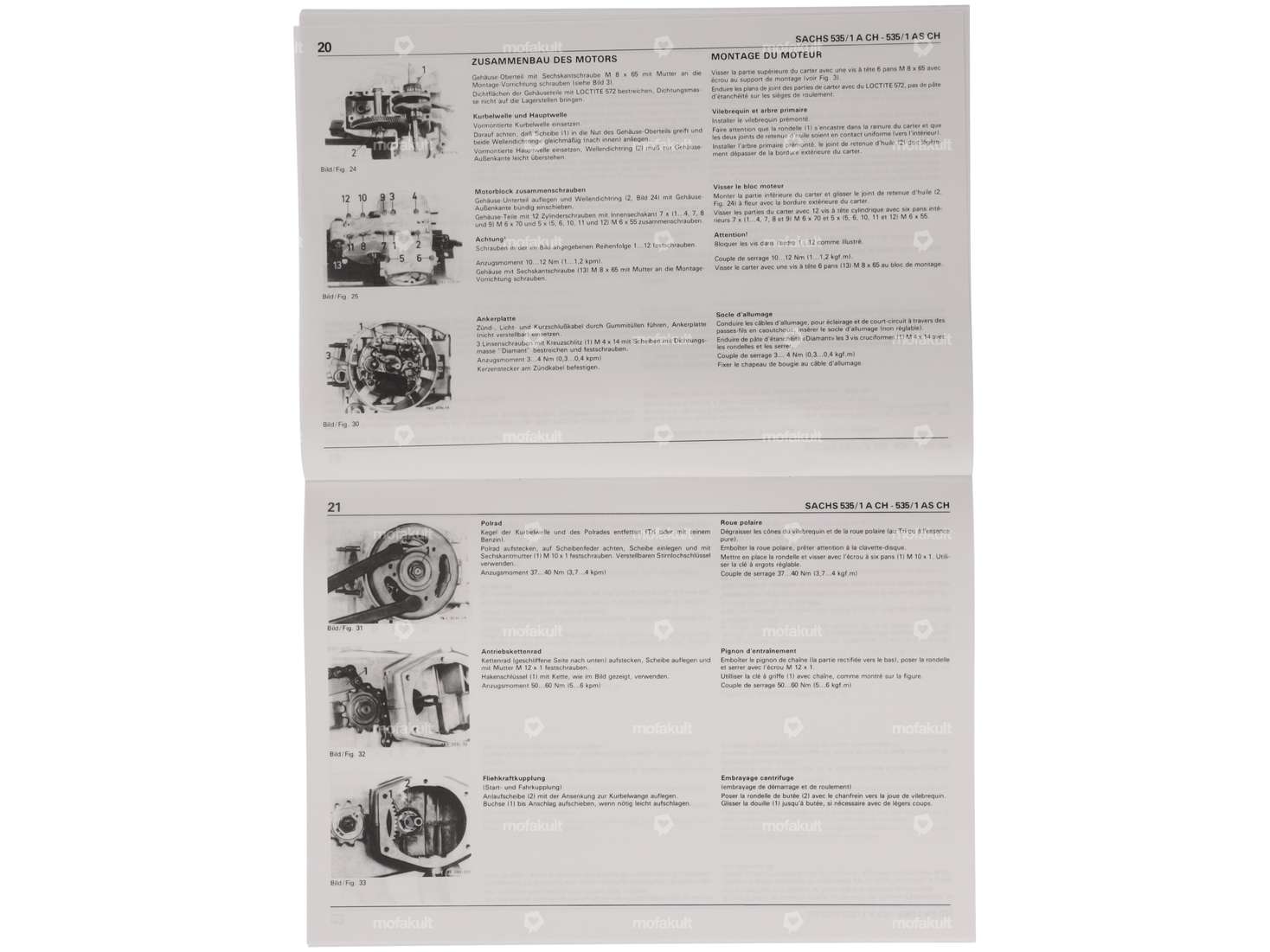

All aspects of the engine are described in detail and are illustrated by comprehensive revision instructions, numerous pictures and important facts.

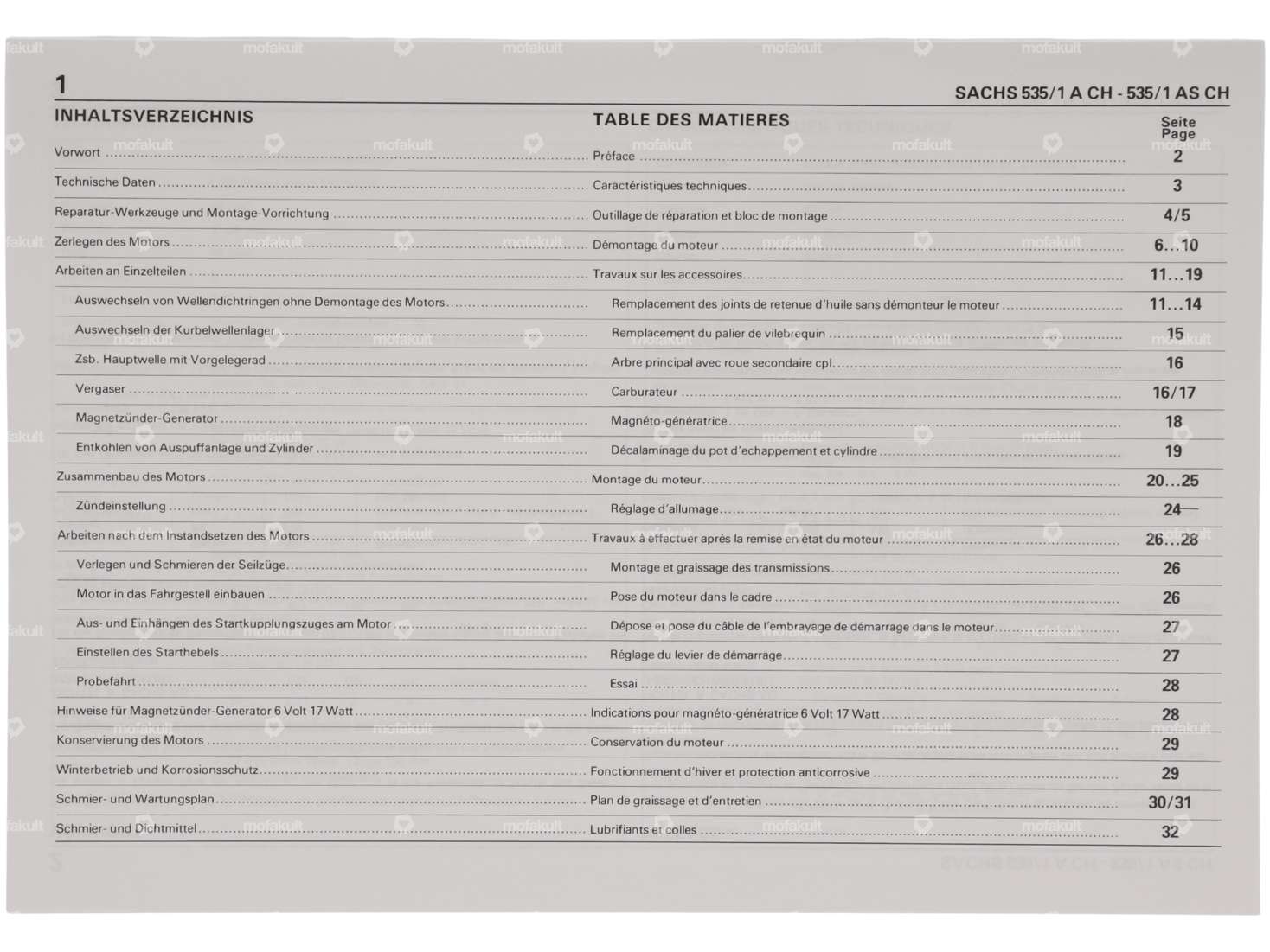

In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.

MaterialPaper
DIN formatA4
Number of pages34 pcs
LanguageGerman, French
Sachs

535
