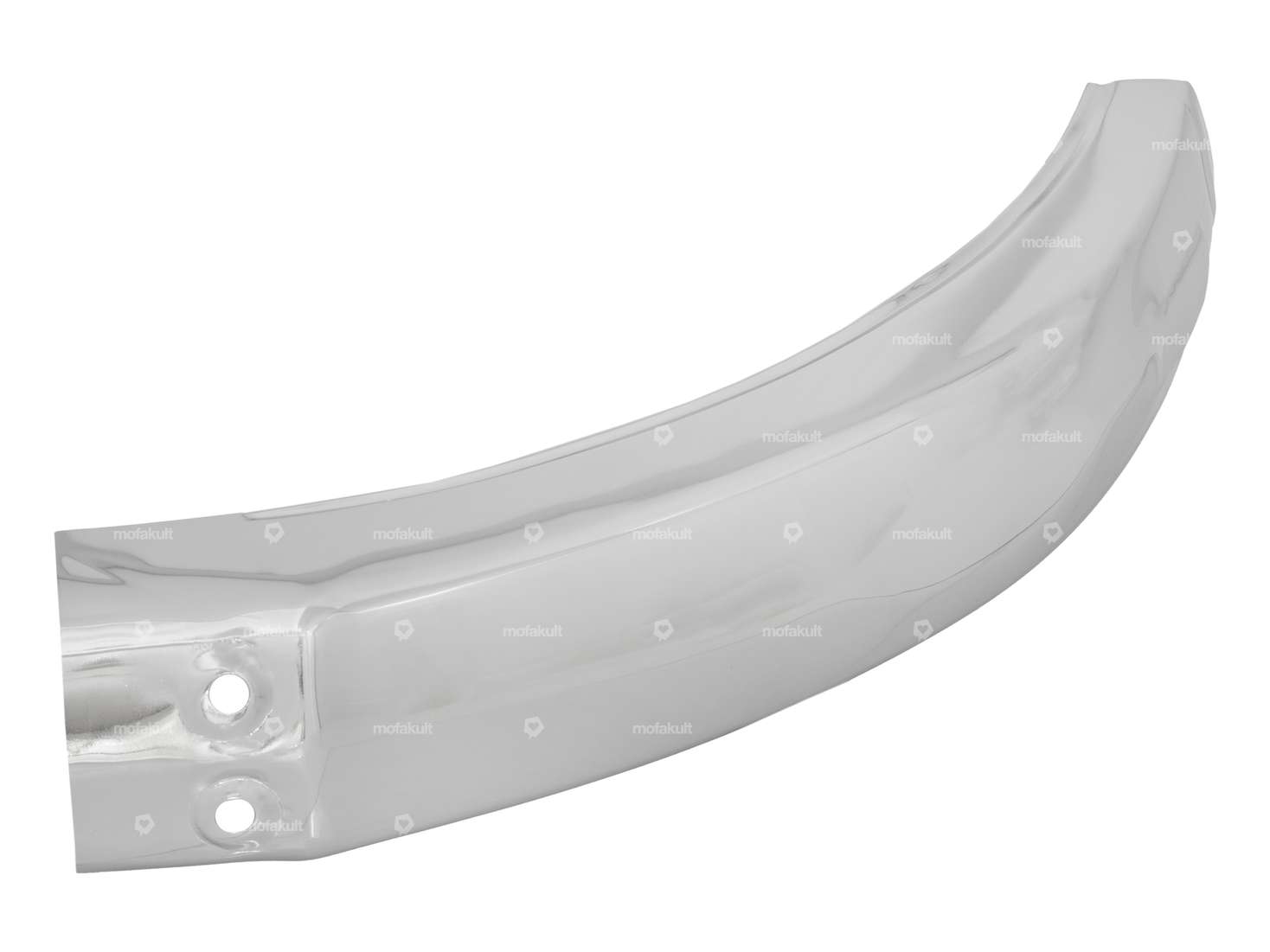

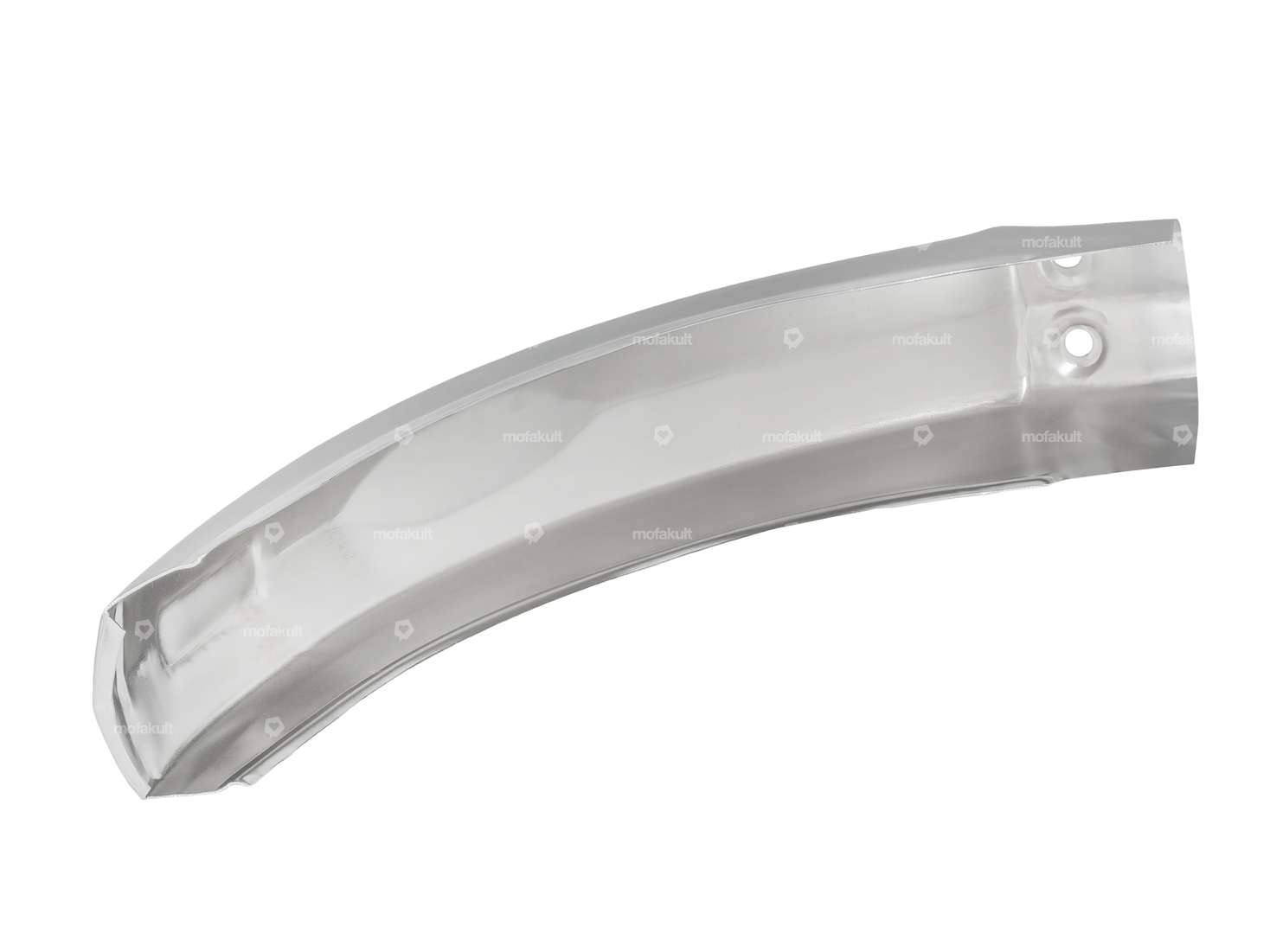

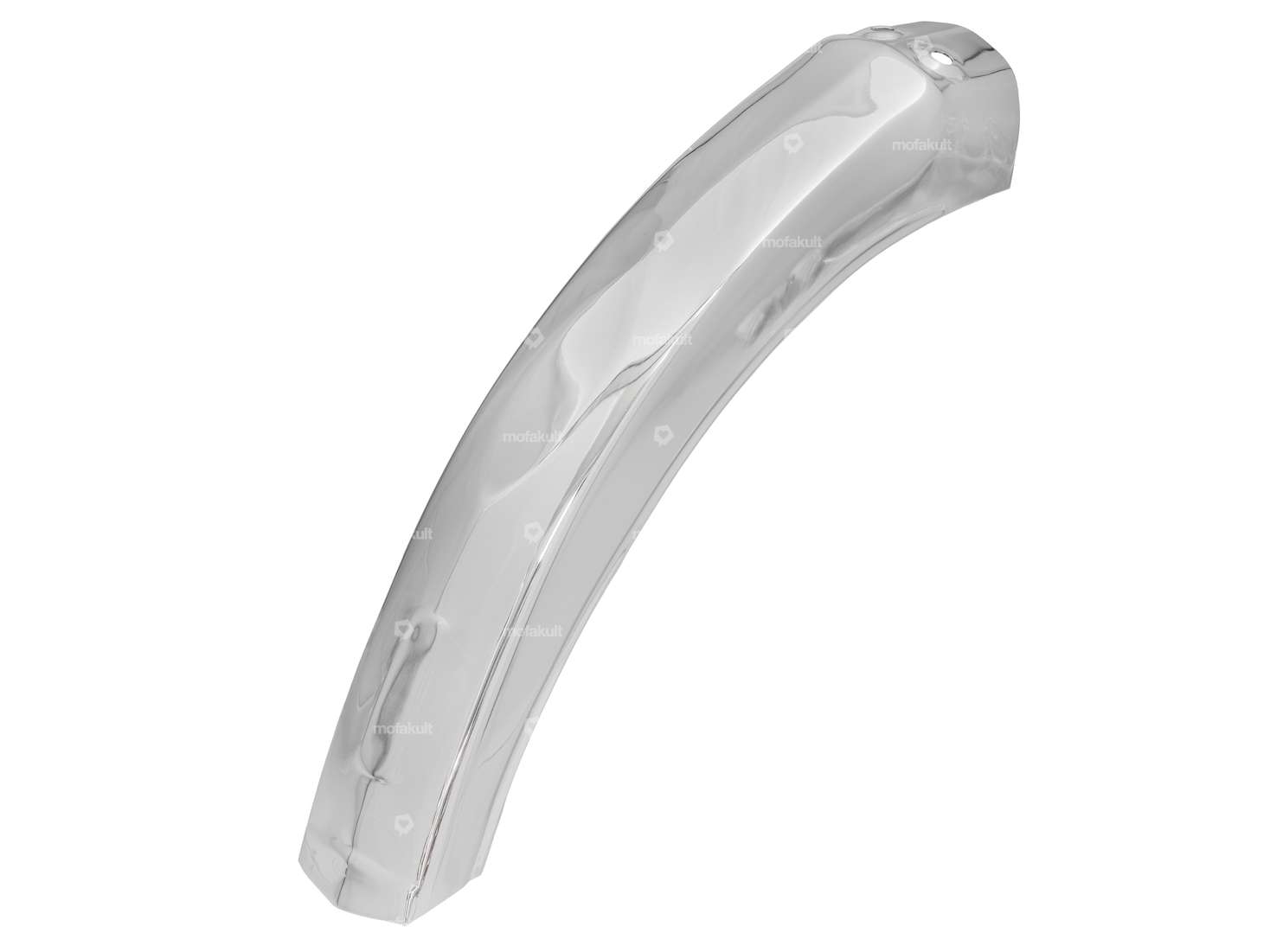

Rear fender chrome | Puch Maxi S, Supermaxi LG1 / LG2

swiing® revival 17" rear fender Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Surface: polished · Wheel size: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: angular · Mounting type: Nuts & bolts · Total length over ends: 625 mm · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 285 mm

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Wheel size: 17 " · Surface: polished · Color: Chrome · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Mounting type: Nuts & bolts

swiing® revival 17" front fender round Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Surface: polished · Wheel size: 17 " · Folding the ends: folded · Folding the ends: not folded · Shape of the mudguard: partly round · Mounting type: Nuts & bolts · Total length over ends: 570 mm · Scope: 715 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 185 mm

Rear fender blank | Puch Maxi S, Supermaxi LG1 / LG2

Material: Steel · Surface: blank / oiled · Color: silver · Wheel size: 17 " · Folding the ends: not folded · Folding the ends: open folded · Shape of the mudguard: angular · Mounting type: Weld · Total length over ends: 420 mm · Scope: 480 mm · Wide mudguard profile: 73 mm · Wide mudguard profile: 75 mm · Height of mudguard profile: 30 mm · Height of mudguard profile: 60 mm · Total height from support surface to top edge: 110 mm

Puch adhesive mudguard

Place of use: Frame (+ tank) · Material: Silicone · Width: 85 mm · Height: 45 mm · Rear side texture: Adhesive

GPO luggage rack chrome (1A quality) | Puch Maxi S, Supermaxi LG1 / LG2

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Wheel size: 17 " · Width: 165 mm · Color: Chrome · Mounting type: Nuts & bolts · Height: 31 mm · Ø mounting hole: 7.1 mm · Ø mounting hole: 8.2 mm · Number of fixing points: 4 pcs · Hole spacing: 30 mm · Total length: 430 mm

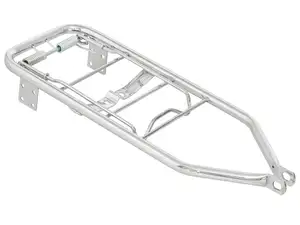

Luggage carrier NOS | Puch Maxi S, Supermaxi (reflectors)

Manufacturer: Puch · Material: Steel · Surface: chrome-plated · Wheel size: 17 " · Width: 160 mm · Color: Chrome · Mounting type: Nuts & bolts · Total length: 435 mm · Height: 31 mm · Number of fixing points: 4 pcs · Ø mounting hole: 9.8 mm · Hole spacing: 30 mm

KMC drive chain 415H (reinforced) 128L

Chain type: 415H · Chain pitch: 1/2" x 3/16" · Ø bore: 4 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Chain lock type: Spring lock · Rolling circumference: 1626 mm · Ø Pin: 3.94 mm

Chrome luggage rack | Puch Maxi S

Material: Steel · Wheel size: 17 " · Surface: chrome-plated · Color: Chrome · Number of fixing points: 4 pcs · Total length: 425 mm · Width: 168 mm · Height: 32.5 mm · Ø mounting hole: 8.3 mm · Ø mounting hole: 9 mm · Hole spacing: 29 mm · Mounting type: Nuts & bolts

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: MF26x1 (fine pitch thread) · Color: silver · Ø mounting frame: 31 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Length spring hook: 19 mm · Length spring hook: 53 mm · Material: Spring steel · Surface: galvanized (blue) · Total length: 122 mm

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Bearing type: Plain bearing · Ø inside: 16.2 mm · Ø outside: 20.2 mm · Manufacturer: swiing® revival parts · Material: Nylon · Surface: blank · Color: black · Total length: 19 mm · Ø Bundle: 24.1 mm · Puch OEM number: 349.1.42.005.1

Fork steerer nut M26x1 closed small fork plate chrome

Drive: External hexagon · Manufacturer: Quenching · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Height: 16.3 mm · Ø outside: 28.6 mm · Thread depth: 8 mm · Thread type: MF26x1 (fine pitch thread) · Width across flats: 30 mm · Area of application: Standard

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Wheel size: 17 " · Surface: polished · Color: Chrome · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Mounting type: Nuts & bolts

GPO wheel clamp 12 mm cranked reinforced (per piece)

Ø inside: 13.1 mm · Ø outside: 23.7 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 75 mm · Thread length: 35 mm · Cranking (offset): 6 mm
