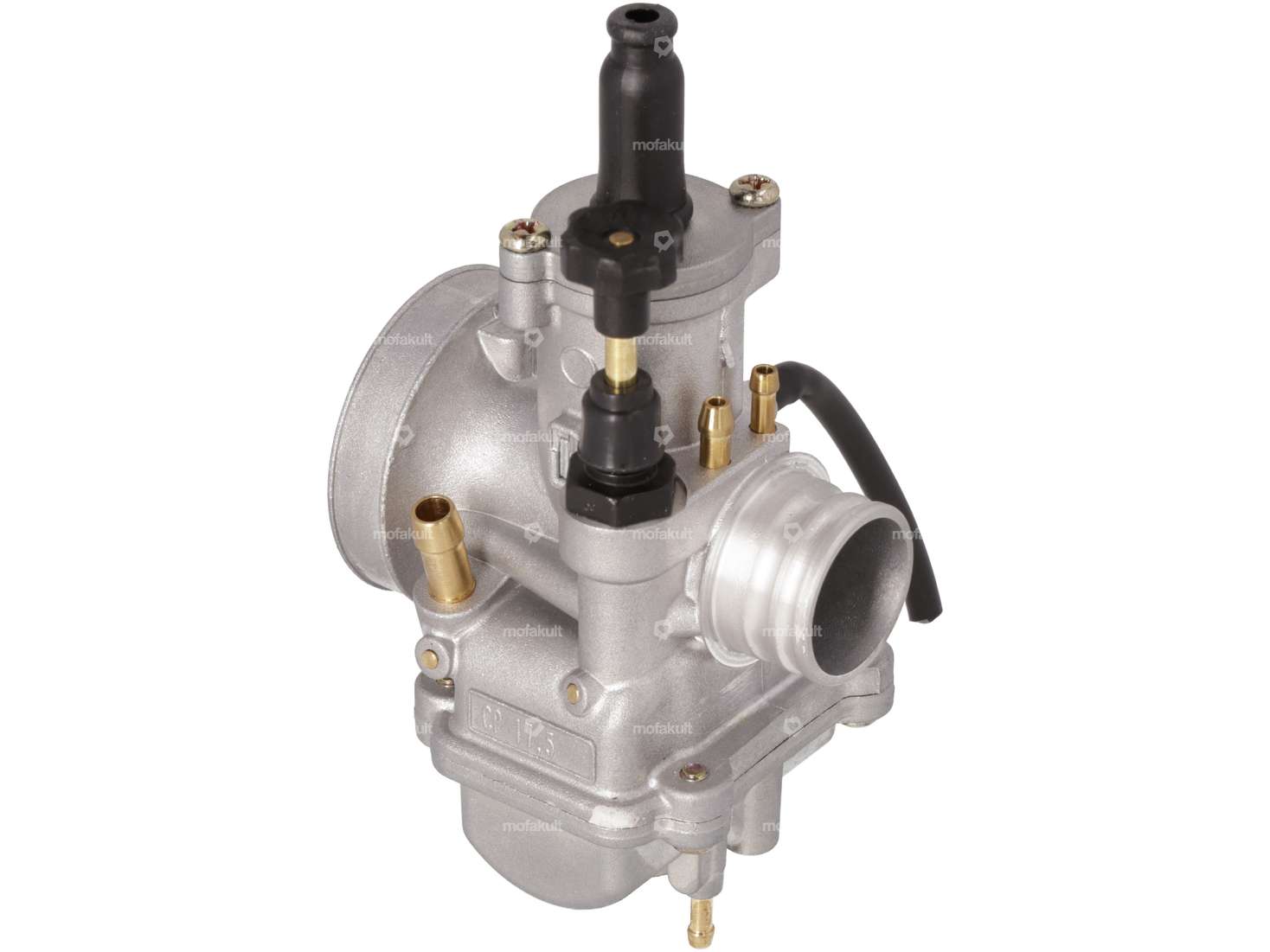

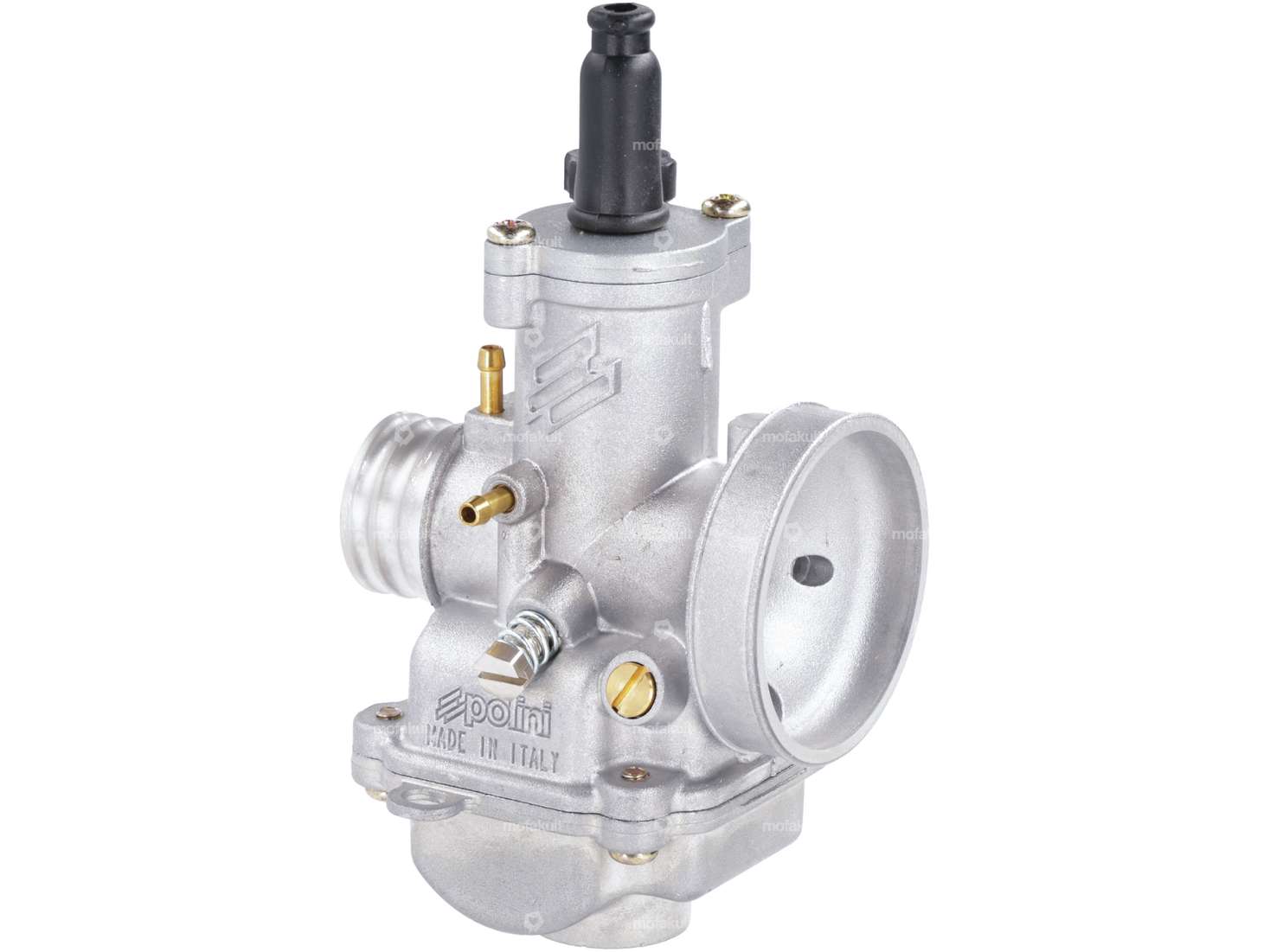

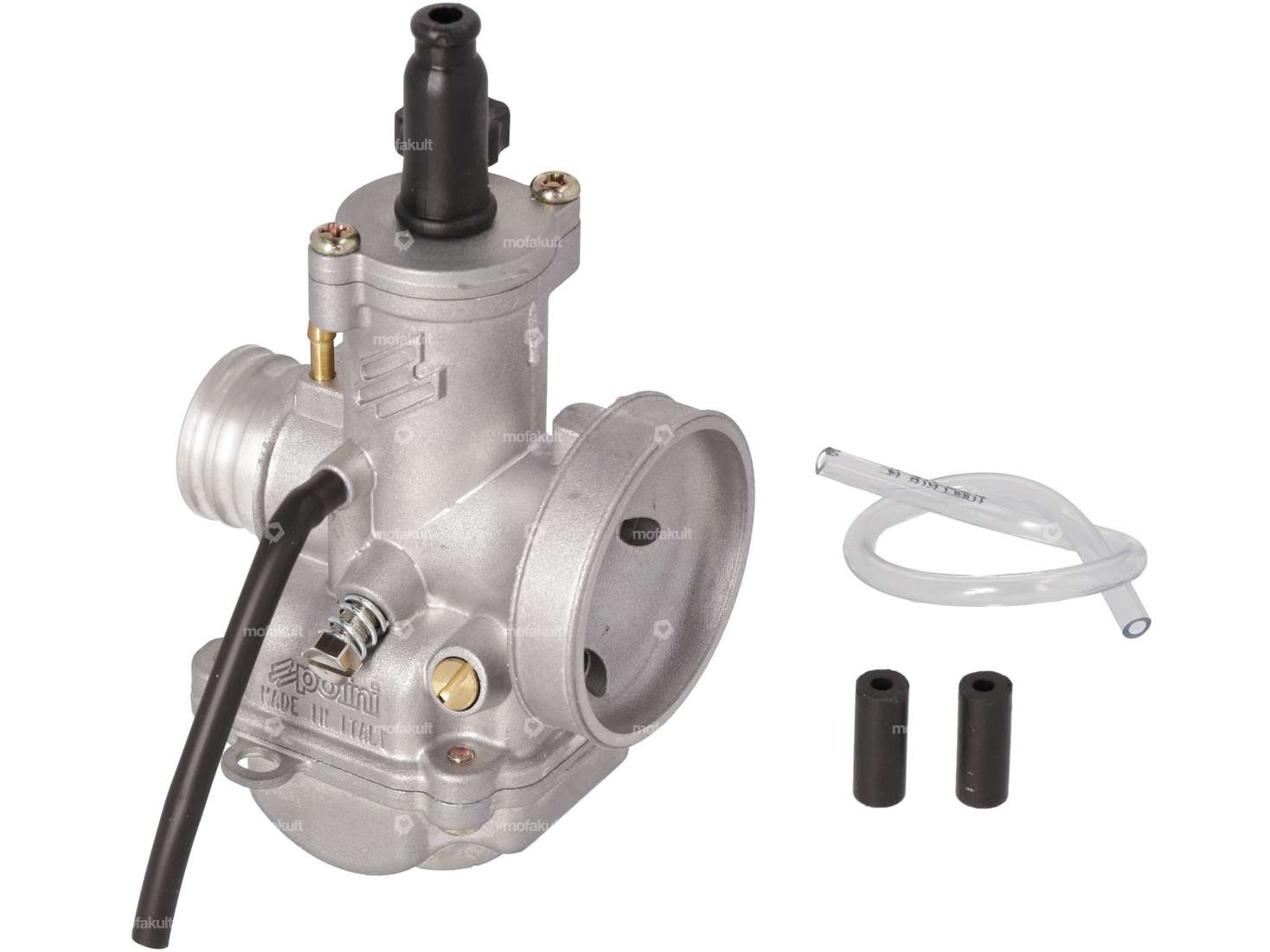

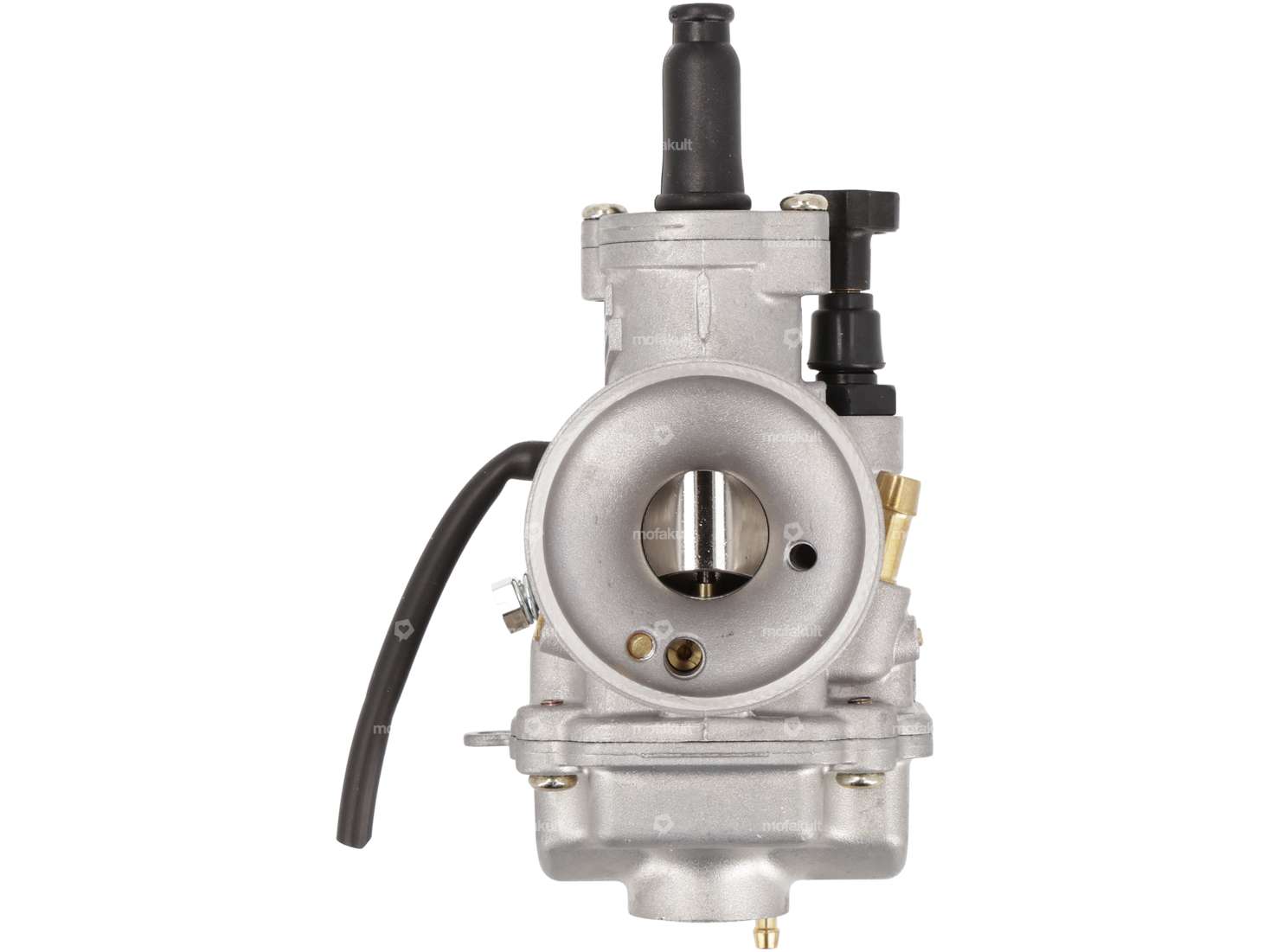

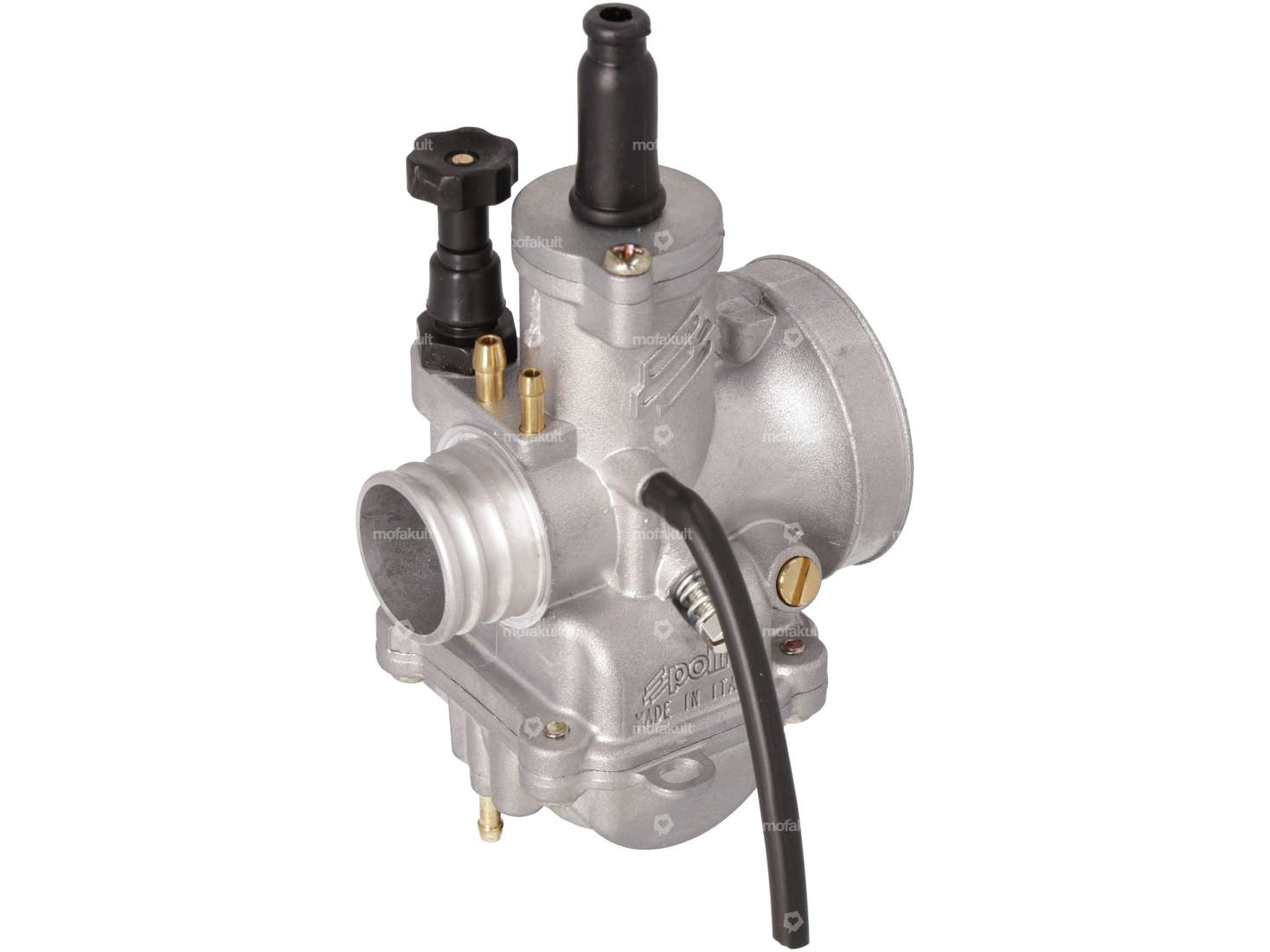

Polini CP 17.5 carburetor for your racing moped, moped and small motorcycle with the highest demands. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.
Fastening to the intake manifold is by means of a rubber sleeve.
Installed main nozzle: 80
Installed secondary nozzle: 36
Ø Nominal: 17.5 mm
Ø Connection air filter: 46 mm
Ø Connection intake manifold: 25 mm
Alternative racing carburetors, the sleeve for mounting and the matching nozzles can be found under accessories.
Quality product from the Italian manufacturer Polini.
| Width | 66 mm |
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning, Racing, Performance |
| Carburetor type | CP |
| Total length | 71 mm |
| Nominal diameter | 17.5 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Height | 132 mm |
| Nozzle size | 80 |
| Ø Inside entrance | 42 mm |
| Ø Output inside | 21.5 mm |
| Ø Air filter connection | 47 mm |
| Ø fuel hose connection | 6 mm, 7 mm |
| Mixed oil connection | Yes |
| Mounting type | Rubber sleeve |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle block | 35-12 |
| Size of secondary nozzle | 36 |
