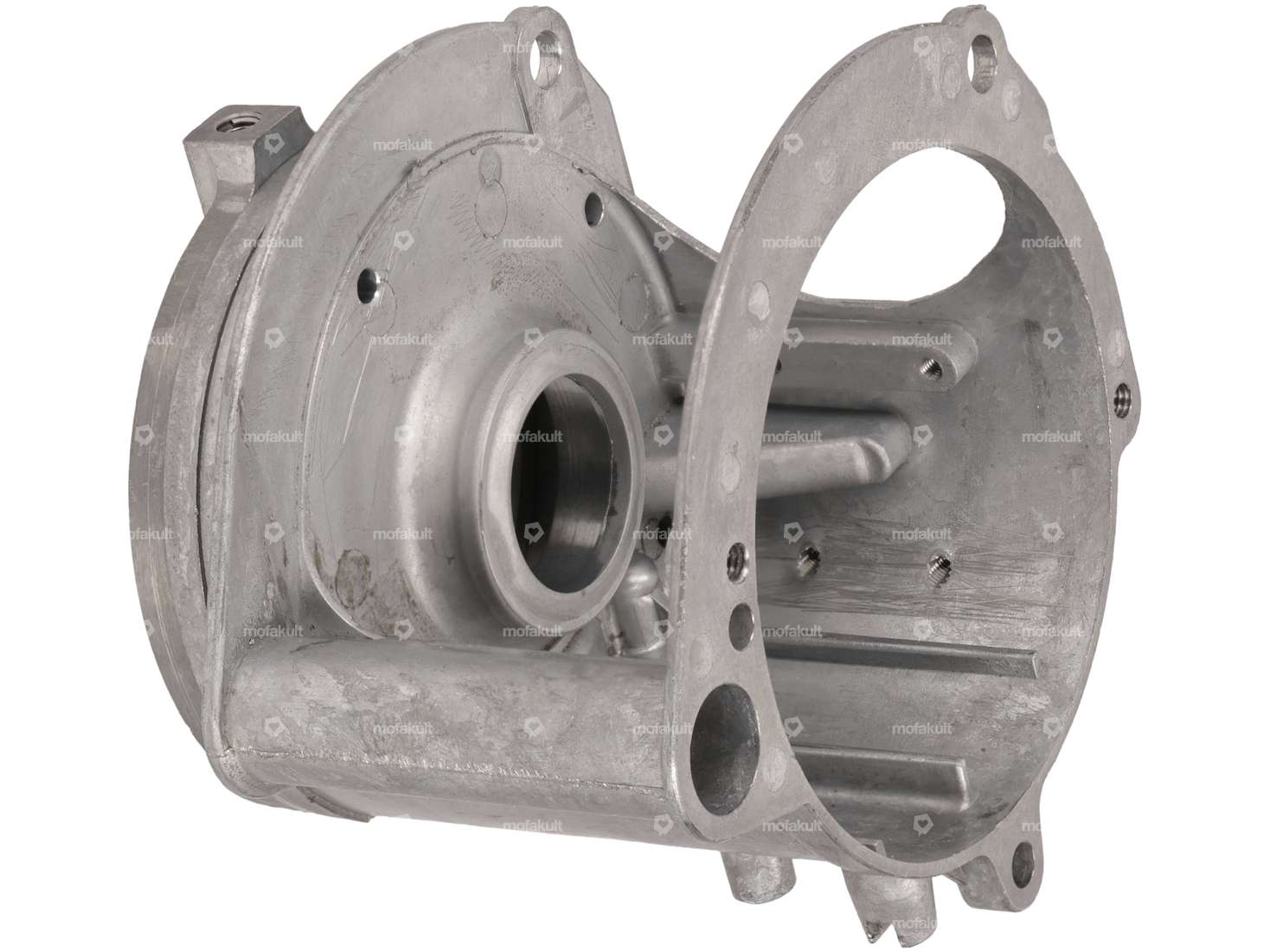

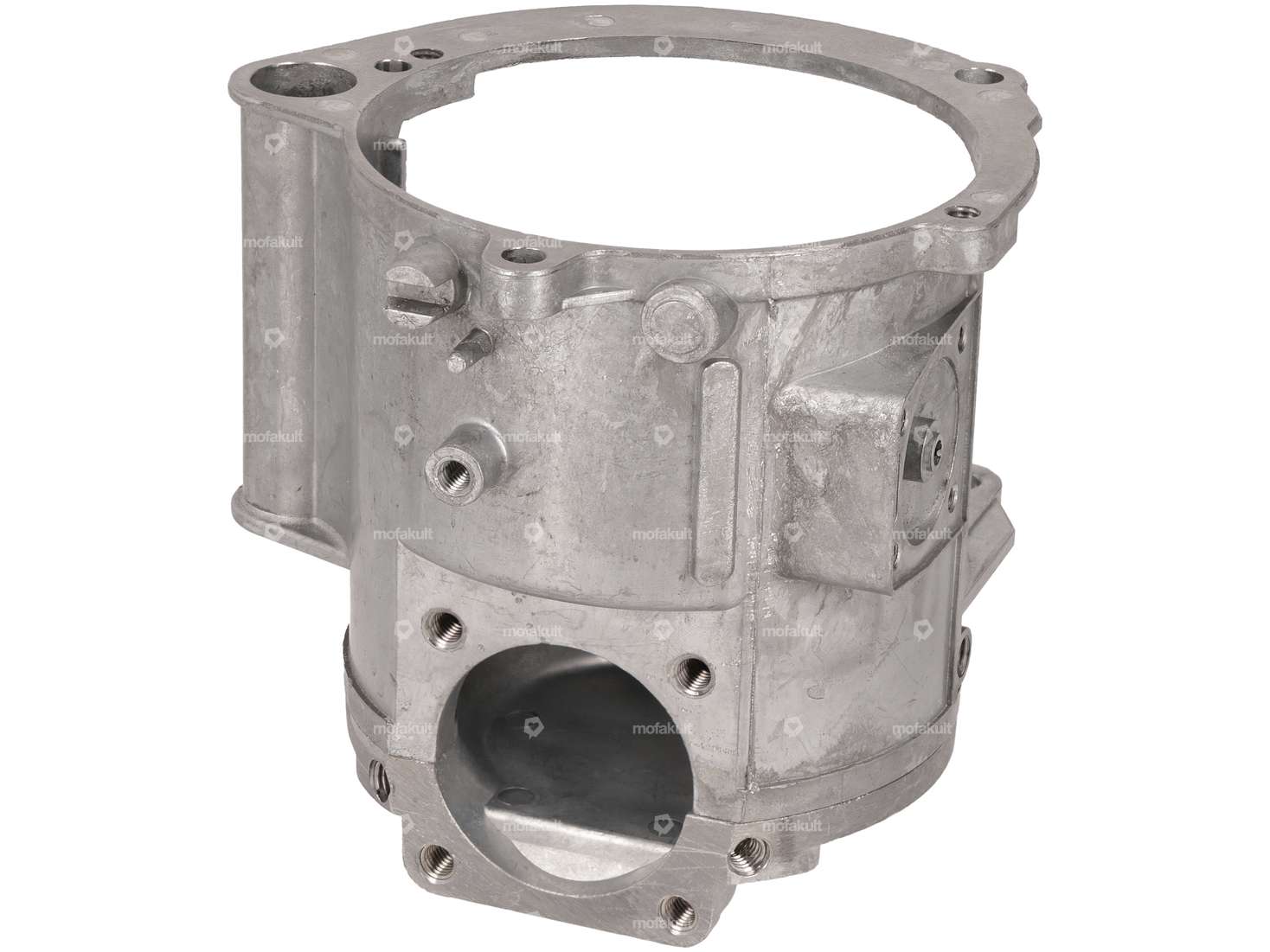

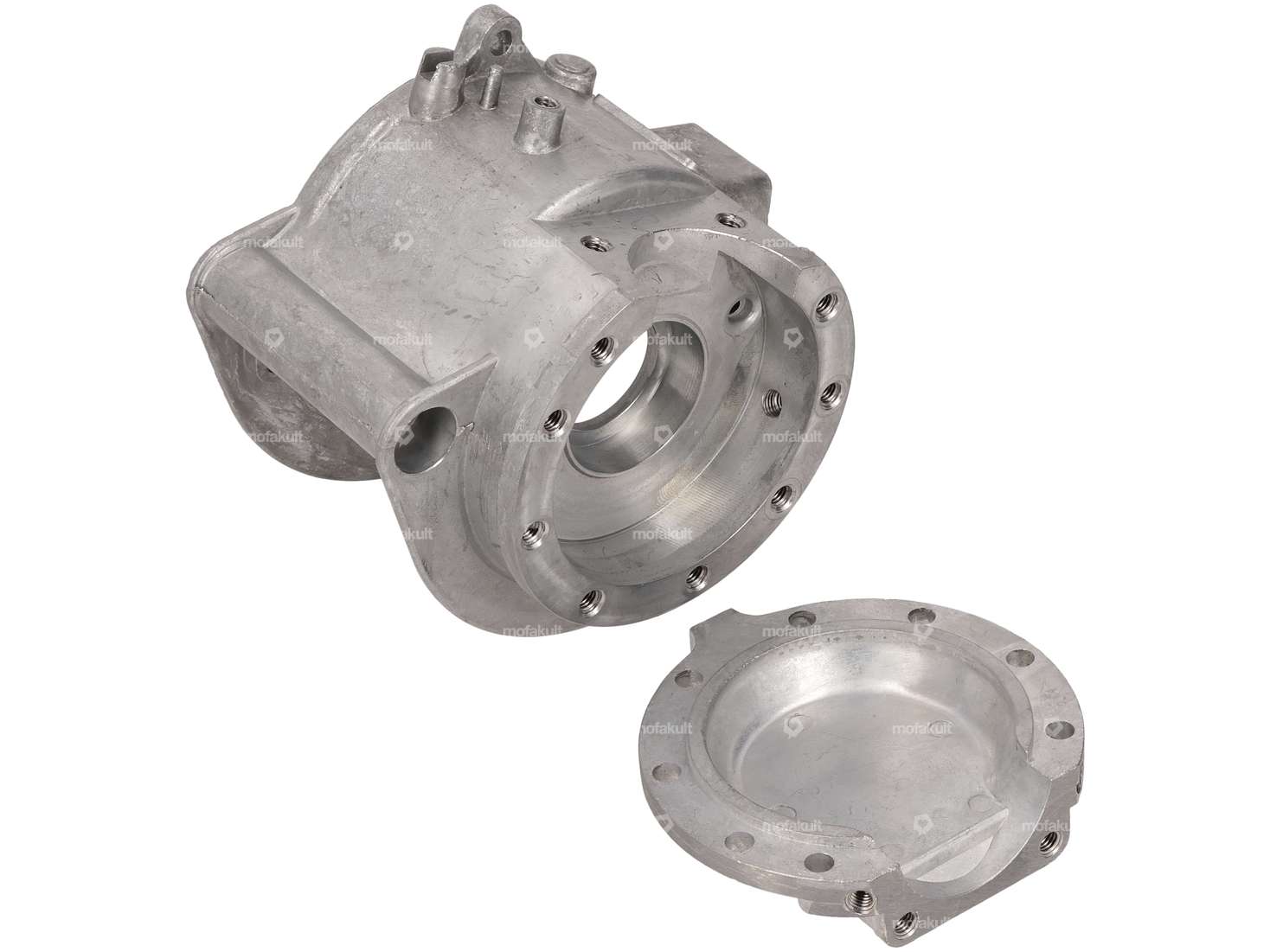

Motor housing aluminum | Solex 3800 - 5000

Jasil crankshaft | Solex 3800

Manufacturer: Jasil · Cheek type: Full cheeks · Total length crankpin ignition side: 176 mm · Ø crank webs: 74.9 mm · Ø Bearing seat (ignition side): 20 mm · Wide crank webs: 14 mm · Area of application: Racing

Crankcase cover | Solex

Material: Aluminum · Surface: raw

Airsal 41 mm cylinder kit "Special Edition" | Solex

Material: Aluminum · Surface: sandblasted · Nominal diameter: 41 mm · Manufacturer: Airsal · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning · Ø piston pin (B): 12 mm · Decompressor: Yes

Cylinder head 39.5 - 43 mm with deco valve Tuning Solex

Material: Aluminum · Manufacturer: Made in Netherlands · Number of fixing points: 4 pcs · Area of application: Tuning · Ø cylinder: 39.5 - 43 mm · Decompressor: Yes

Exhaust 18.5 mm "Racing" black | Solex 3800

Material: Steel · Surface: varnished · Color: black · Total length: 350 mm · Manufacturer: Made in Portugal · Mounting type: Welded lug · Number of fixing points: 2 pcs · Ø Silencer: 140 mm · Ø Internal connection: 18 mm · Ø Flame tube outside: 18 mm · Flame tube attachment: Plug connection

NGK BPM7A spark plug special short thread racing cylinder head | Solex

Manufacturer: NGK · Candle designation: BPM7A · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Area of application: High End · Suppressed: No · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm

NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C4 · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Surface: blank · Area of application: Standard

Motor housing CNC aluminum | Solex 3800 - 5000

Manufacturer: Made in Netherlands · Material: Aluminum

Oil seal NBR 21/31/4.5 A | Solex 3800

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Solex · Material: NBR · Surface: rubberized · Ø inside: 21 mm · Width: 4.5 mm · Ø outside: 31 mm

Airsal 39.5 mm cylinder kit "Special Edition" | Solex

Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Surface: sandblasted · Nominal diameter: 39.5 mm · Manufacturer: Airsal · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning · Ø piston pin (B): 12 mm · Decompressor: Yes

SKF 6203 2RSH Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided

SKF 6203 2RSH-C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided

Silentblock engine mount | Solex

Ø inside: 7.9 mm · Ø outside: 15.8 mm · Total length: 12 mm · Color: black · Material: Rubber
