Meteor piston 39 mm #D | Zündapp ZA, ZL, ZS, ZX, ZE

rating iconrating iconrating iconrating iconrating icon
No reviews
70,50 EUR

Incl. 20% VAT.

Description

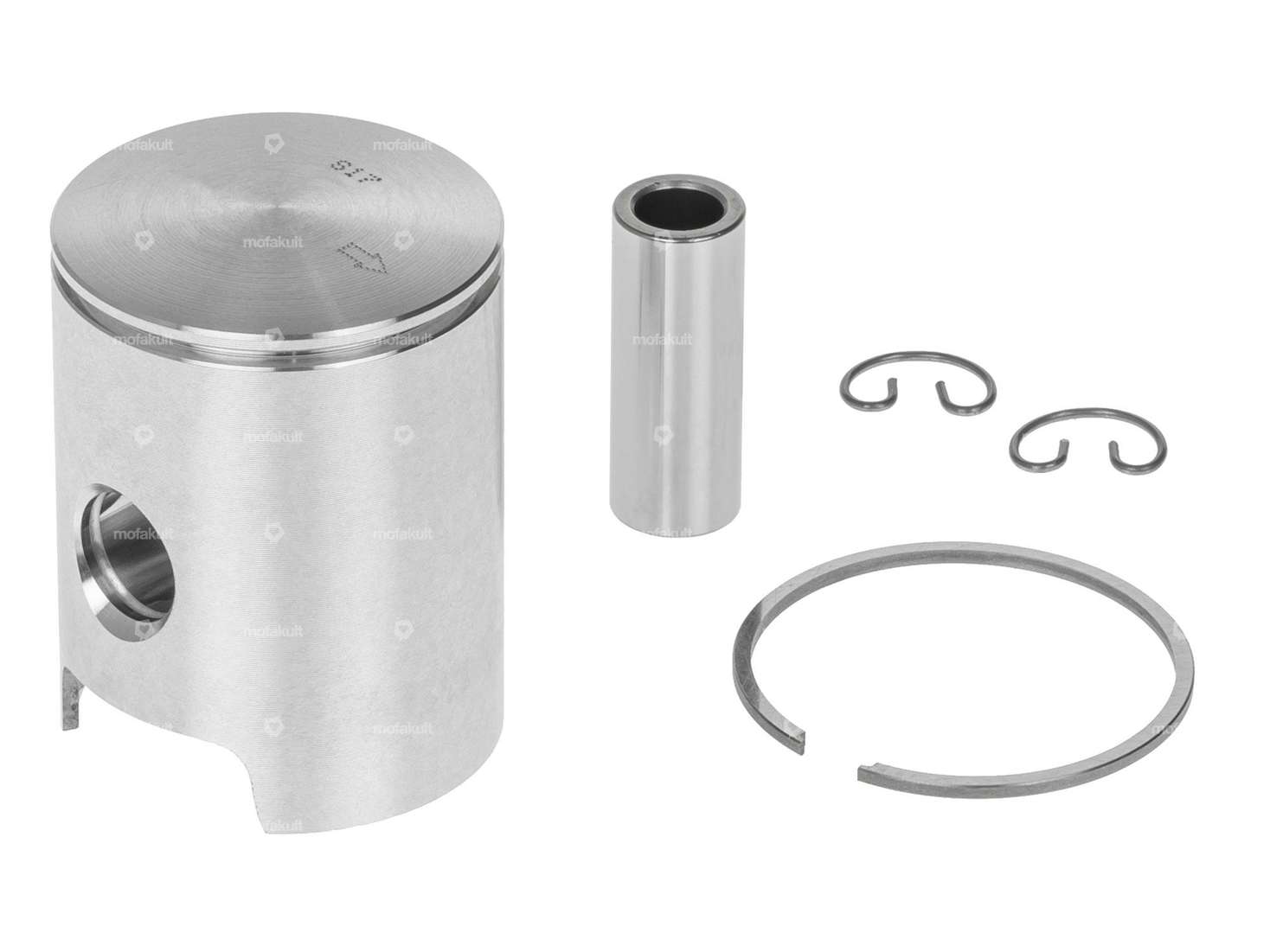

39.0 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) suitable for Zündapp ZX25 / ZA25 / ZA40 / ZL25 / ZS25 / ZE40 / X25 / A25 mopeds, which have a Zündapp engine type 460 installed.

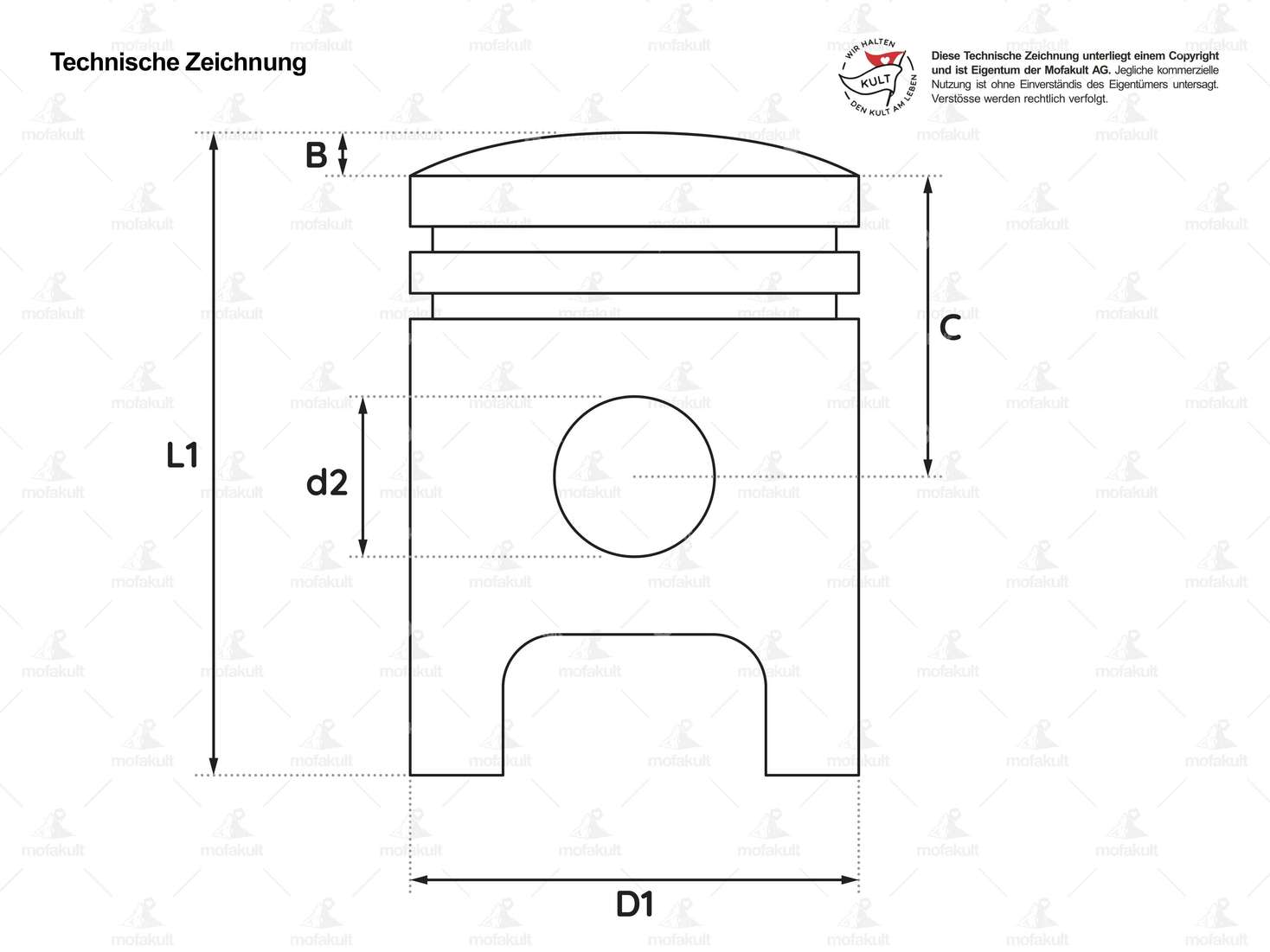

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter39 mm
ManufacturerMeteor
Ø outside piston (A)38.98 mm
Compression height (C)26 mm
Curvature (D)1.5 mm
Total piston height (E)51.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupD
Weight piston kit80 g
Zündapp

ZA 25 / ZA 40 (type 250-460)

ZL 25 / ZS 25 / ZX 25 / ZE 40 (type 278-460)
