logo_meteor-piston-mk

For: Puch

17188

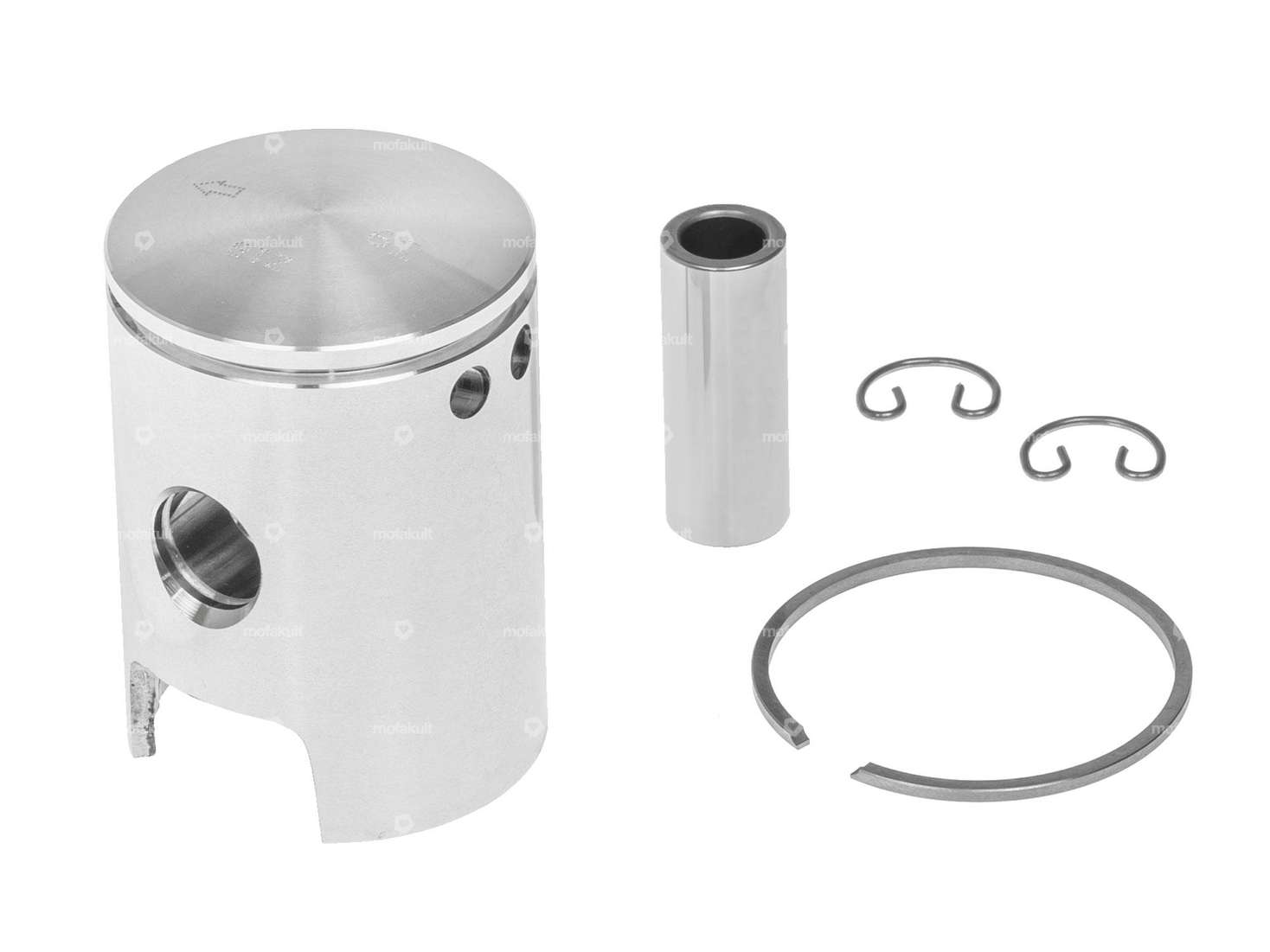

Meteor piston 38.5 mm oversize | Puch Supermaxi Cat.

rating iconrating iconrating iconrating iconrating icon
No reviews
65,80 EUR

Incl. 20% VAT.

Description

38.50 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38.5 mm
ManufacturerMeteor
Ø outside piston (A)38.5 mm
Ø piston pin (B)12 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Weight piston kit82 g
Puch

E50

ZA50 (air-cooled)
