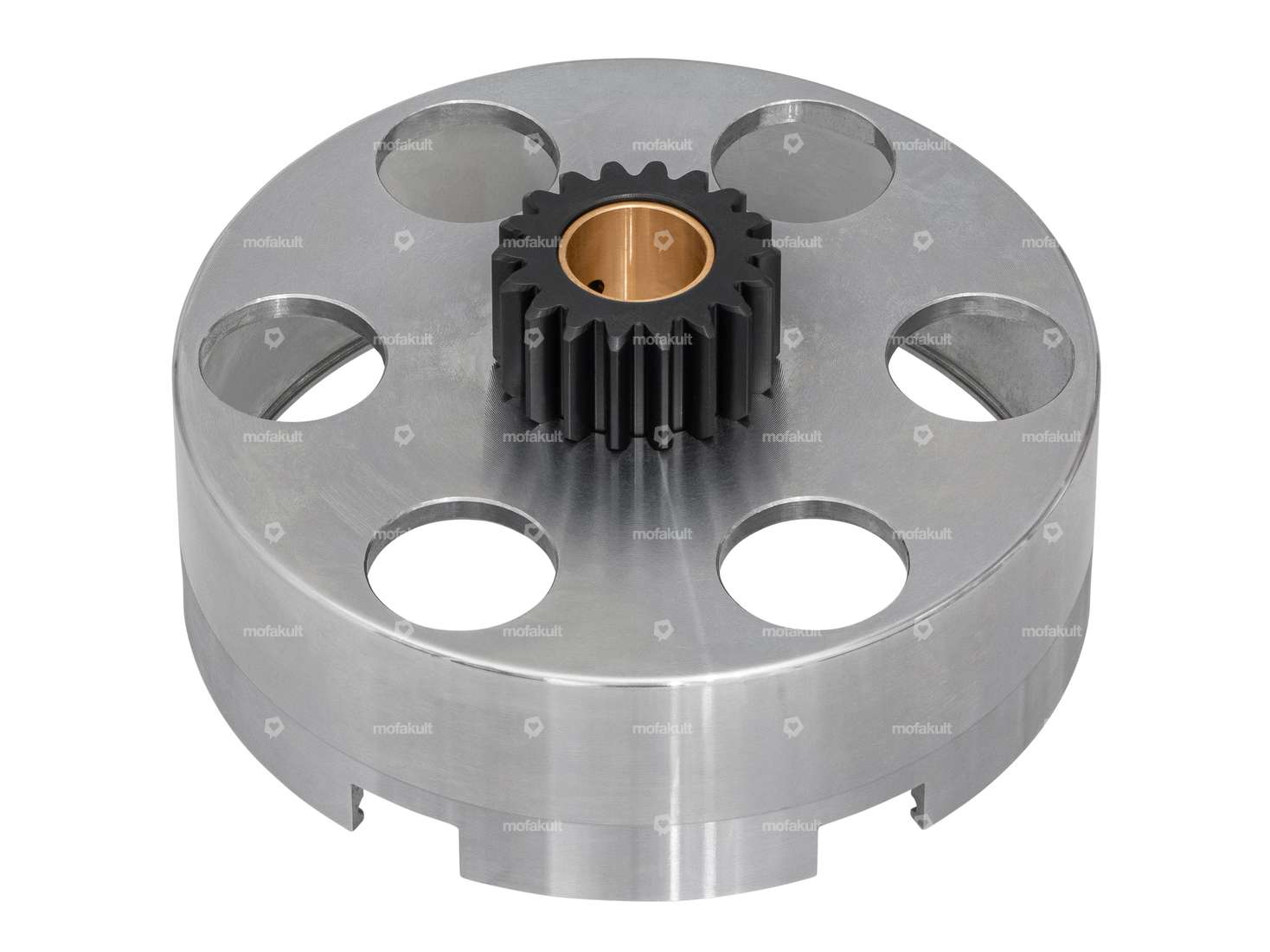

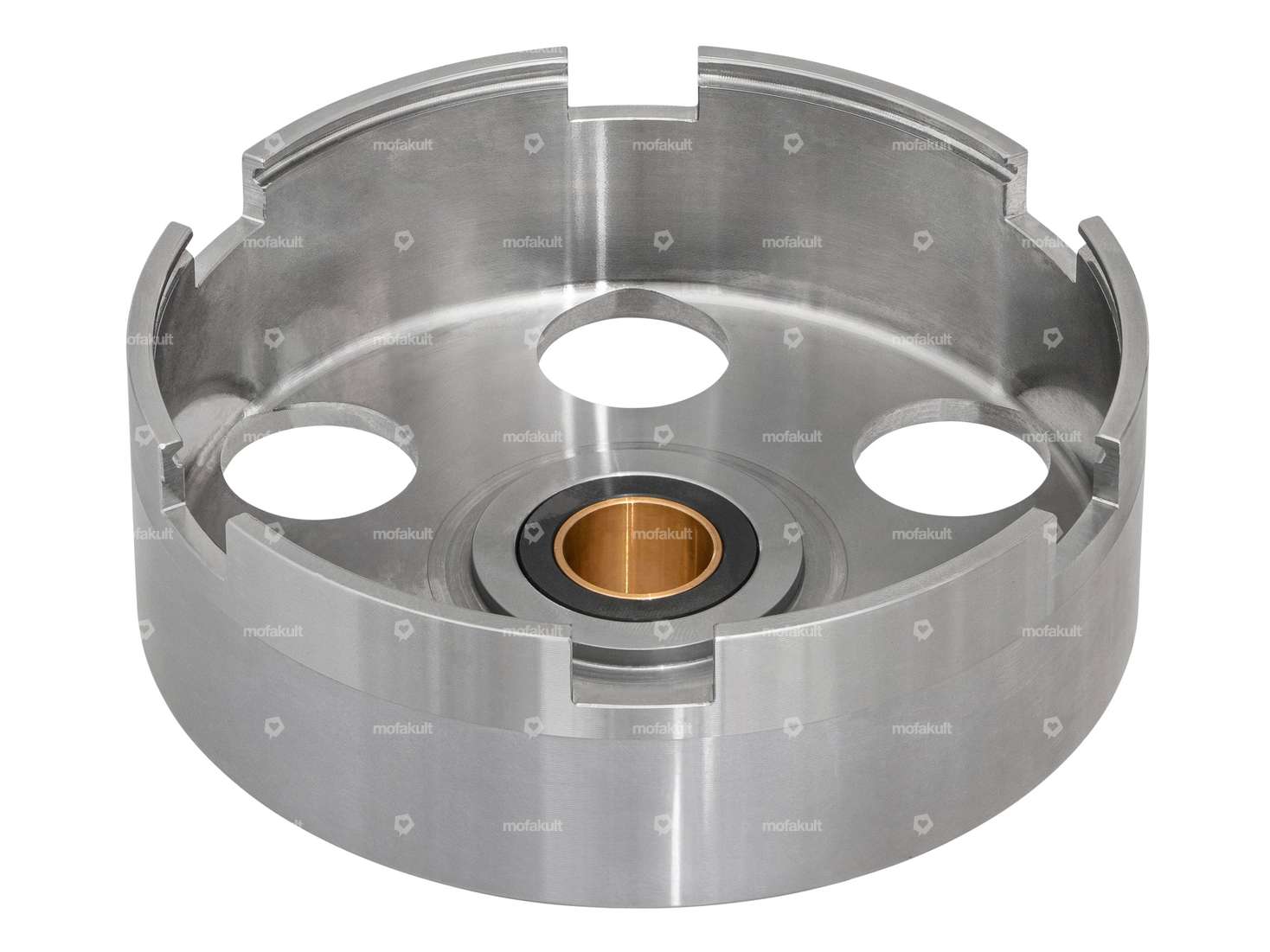

MBR clutch basket 18 teeth Racing straight | Puch E50

HK clutch "Racing" Aramid | Puch E50

Manufacturer: HK Clutches · Material: Steel · Material addition: Chrome steel (colloquially known as stainless steel) · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

MBR plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: MBR · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Ø inside: 15 mm · Total height: 21.8 mm

HK clutch "Racing" (with additional weight) Aramid | Puch E50

Manufacturer: HK Clutches · Material: Aluminum · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Material addition: Composite materials · Recording type: Cone mounting · Ø inside: 12 mm · Ø inside: 14.6 mm · Number of jaws: 3 pcs · Ø outside: 93 mm · Number of springs: 3 pcs · Thickness: 21.2 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Recording type: Interlocking · Ø axle: 17 mm · Number of teeth: 94 pcs · Ø outside: 145 mm

MBR clutch basket & spur gear 18:94 teeth Racing straight | Puch E50

Manufacturer: MBR · Area of application: Tuning · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs

Clutch basket 21 teeth lightened | Puch E50

Material: Steel · Toothing type: helical toothed · Ø Receptacle: 30.5 mm · Ø inside: 14.5 mm · Number of teeth: 21 pcs · Recording type: Interlocking · Height: 49.3 mm · Ø outside: 99.5 mm · Area of application: Tuning

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Number of components: 7 pcs · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Surflex pressure plate clutch | Puch E50

Manufacturer: Surflex · Ø outside: 94.5 mm · Ø outside: 100 mm · Material: Steel · Surface: galvanized (blue) · Area of application: Original

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.9 mm · Width across flats: 10 mm · Total length: 106 mm · Drive: External hexagon · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF10x1 (fine pitch thread) · Nut type: Hexagon nut 0.8D · Width across flats: 17 mm · Drive: External hexagon · Height: 8 mm

swiing® revival screw set engine galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Recording type: Interlocking · Ø axle: 17 mm · Number of teeth: 94 pcs · Ø outside: 145 mm

MBR clutch basket & spur gear 18:94 teeth Racing straight | Puch E50

Manufacturer: MBR · Area of application: Tuning · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Thread length: 11 mm · Thread length: 15 mm · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Area of application: High End · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs
