For: Vespa

39333

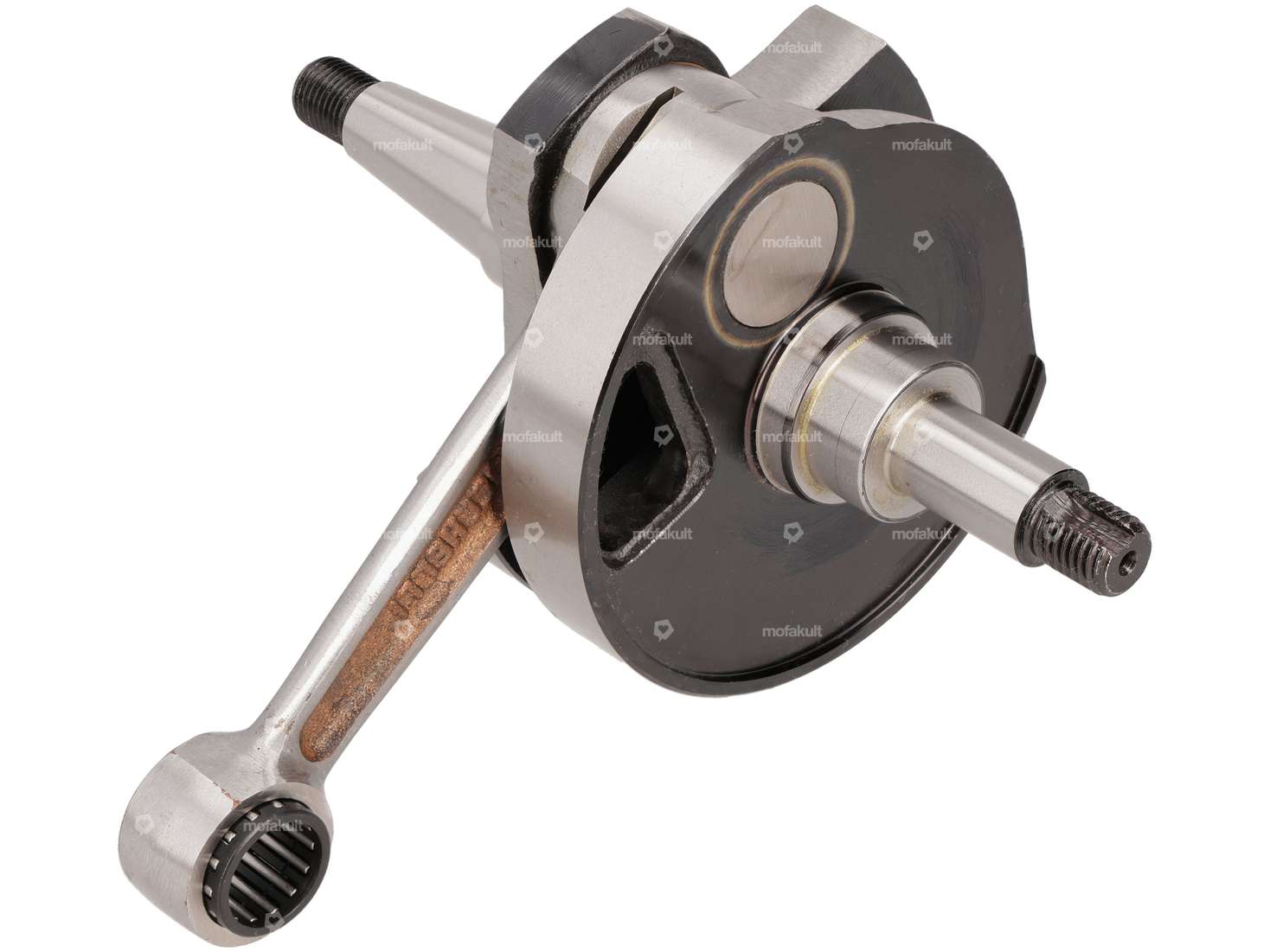

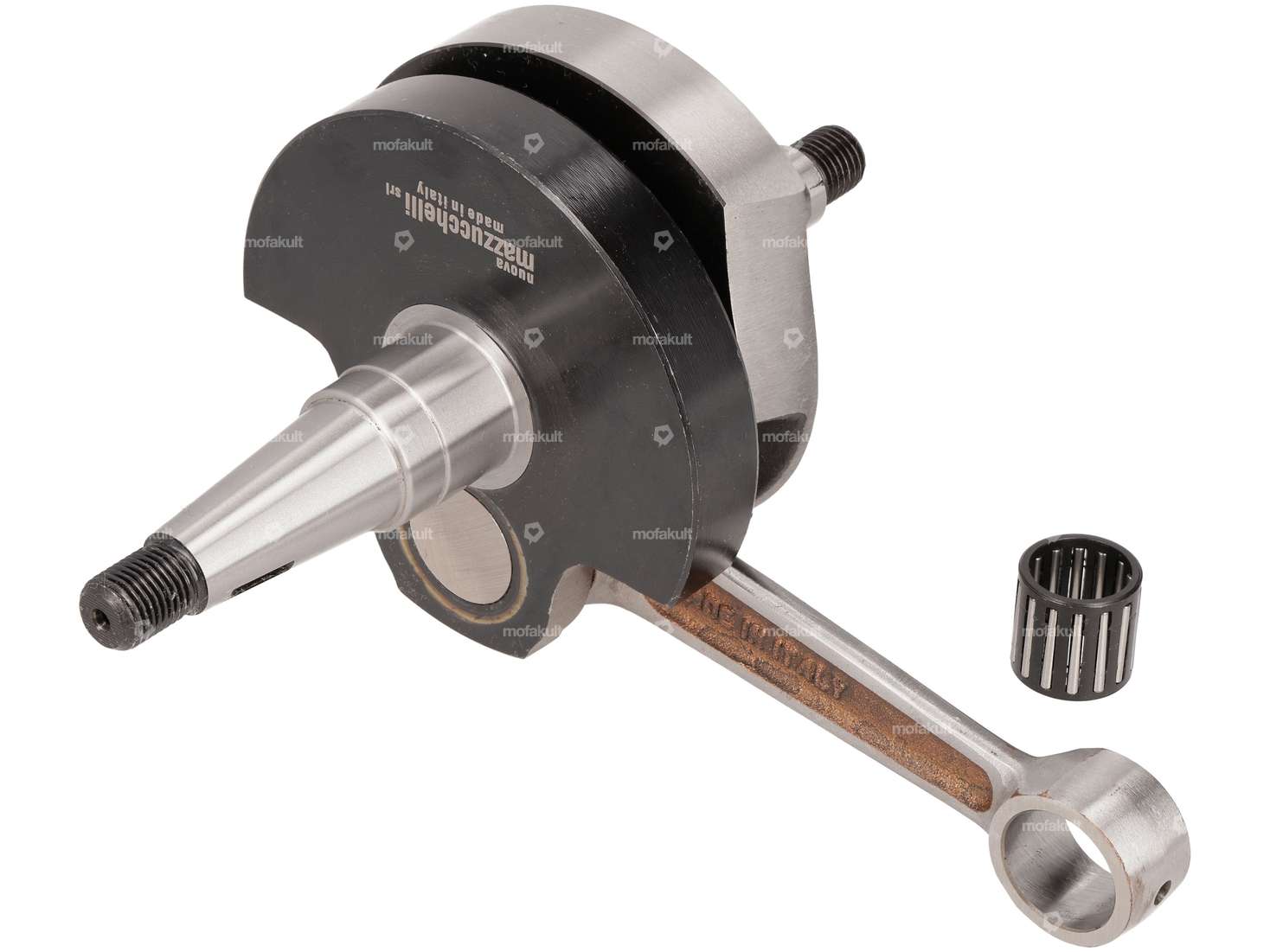

Mazzucchelli crankshaft "Sport" | Vespa PX200, P200, Rally 200, Cosa 200

211,70 EUR

Incl. 20% VAT.

Description

Precision-balanced tuning crankshaft compatible with your Vespa PX 200, P 200, Rally 200, and Cosa 200.

Thanks to its valve timing of 138° / 6° after TDC, this tuning crankshaft is ideal for light tuning setups with a rotary valve intake system. It features clean workmanship and a precise fit for Vespa large-frame engines with a 200 cc displacement and a compatible tuning cylinder.

You can find matching crankshaft bearings and shaft seals in the accessories section.

A quality product from the Italian manufacturer Mazzucchelli.

Original Piaggio part number: 238959, 1331535

Dimension needle bearing16x20x20 mm
ManufacturerMazzucchelli
MaterialSteel
Cheek typestandard
Crankshaft stroke57 mm
Connecting rod length center-center110 mm
Total length of crankpin on clutch side57.9 mm
Total length crankpin ignition side76 mm
Ø crank webs98 mm
Ø Connecting rod eye20 mm
Ø piston pin (B)16 mm
Ø Bearing seat (clutch side)25 mm
Ø Bearing seat (ignition side)25 mm
Wide crank webs40.4 mm
Area of applicationTuning
Piaggio OEM number238959, 1331535
Vespa

Vespa PX, T5, Cosa - P200E · VSX1T · 1977–1984 (Ignition Switch on Steering Head) , PX200 · VSX1T · 1984–1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993–1996 Classic , PX200 · VSX1T · 1997–1999 (Disc) , Cosa 200 · VSR1T · I 1988–1992 II 1992–1998

Vespa Rally, Sprint, GT, GTR, TS, SS180, GS160 - 200 Rally · VSE1T · 1973–1979
