Name: Mazzucchelli crankshaft "Original" | Vespa PX200, P200, Rally 200, Cosa 200
Brand: Mazzucchelli
SKU: 39332
Price: 188.20 EUR
Availability: LimitedAvailability

New

Description

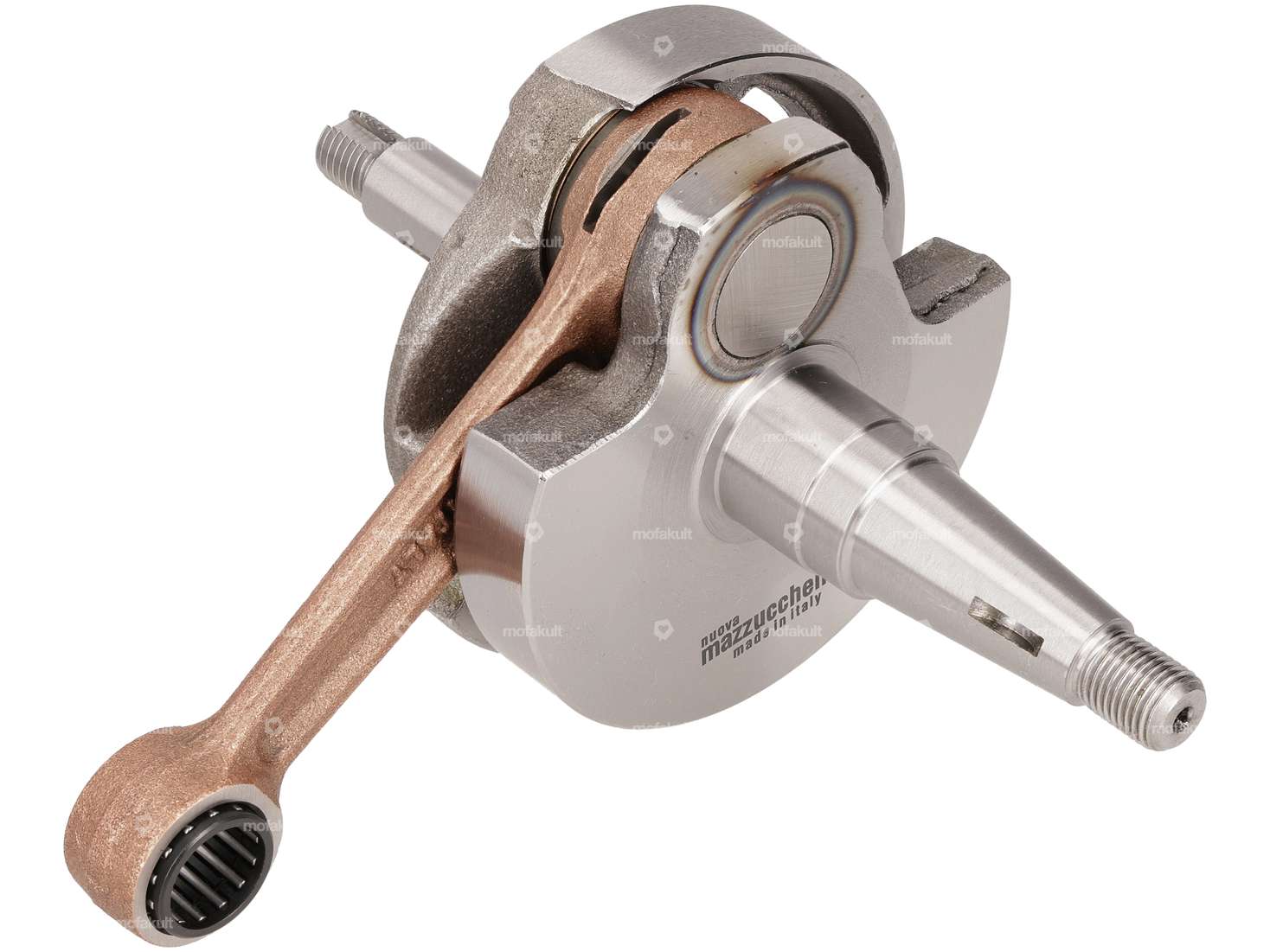

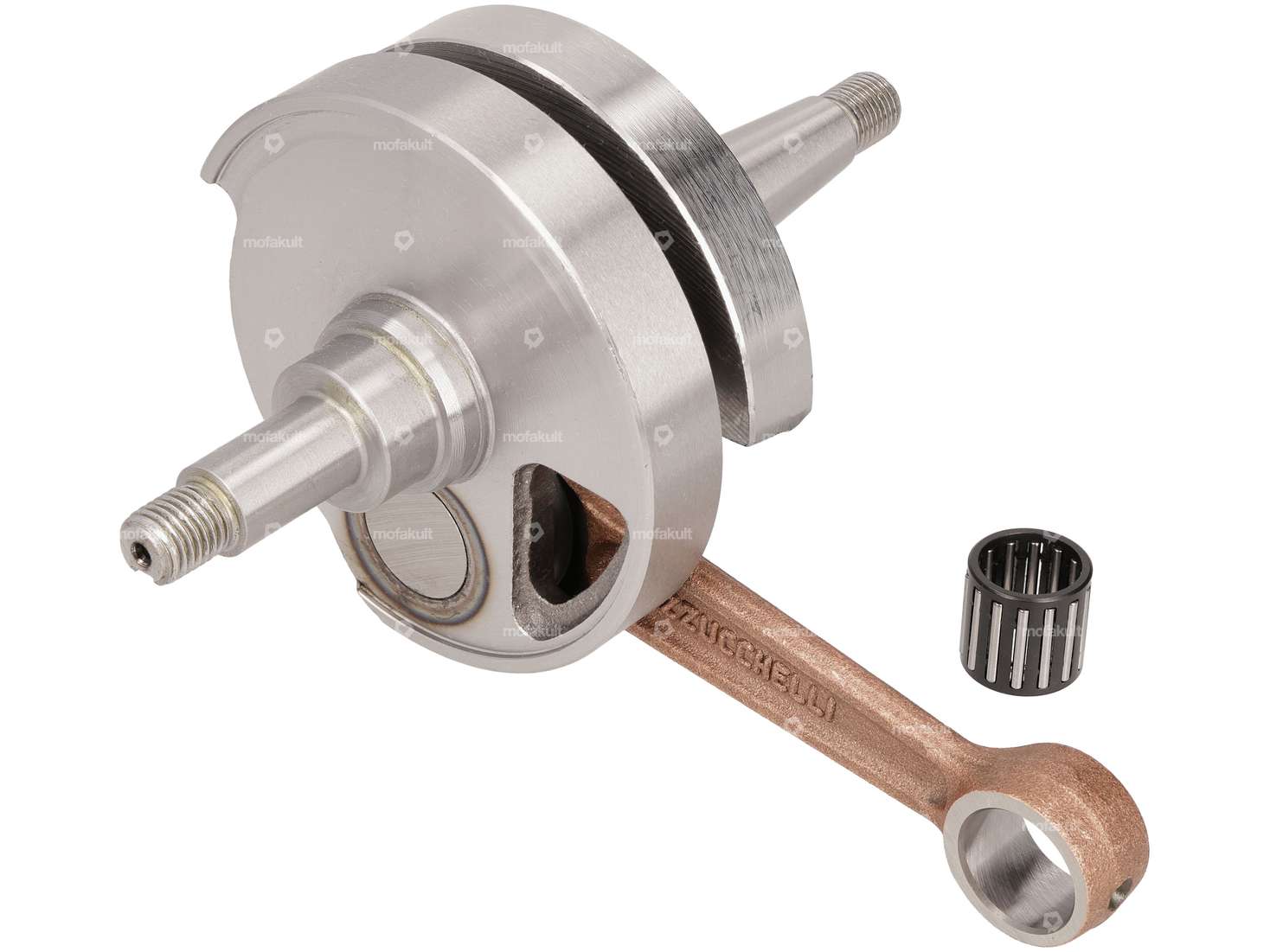

Cleanly processed Mazzucchelli crankshaft in original design suitable for your Vespa PX 200, P 200, Rally 200 and Cosa 200.

The crankshaft is designed for all standard setups with rotary valve intake and is therefore ideal for repairing your Vespa Largeframe 200 cc engine. Thanks to the defined timing of 112° / 6° after TDC, the shaft can be installed as intended in the series or standard setup.

Details

Manufacturer	Mazzucchelli
Material	Steel
Area of application	Standard
Cheek type	standard
Crankshaft stroke	57 mm
Connecting rod length center-center	110 mm
Total length of crankpin on clutch side	57.7 mm
Total length crankpin ignition side	75.65 mm
Ø crank webs	98 mm
Ø Connecting rod eye	20 mm

Ø piston pin (B)	16 mm
Ø Bearing seat (clutch side)	25 mm
Ø Bearing seat (ignition side)	25 mm
Dimension needle bearing	16x20x20
Wide crank webs	40.4 mm
Piaggio OEM number	238959, 1331535

Suitable for the following models

Vespa

Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998

Ratings

Accessories & related products

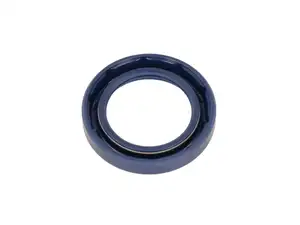

Corteco oil seal NBR 24/35/6 crankshaft Lima | Vespa Largeframe, Smallframe

For: Vespa

39324

Corteco oil seal NBR 24/35/6 crankshaft Lima | Vespa Largeframe, Smallframe

Ø inside: 24 mm · Ø outside: 35 mm · Width: 6 mm · Manufacturer: Corteco · Material: NBR · Piaggio OEM number: 158962 · Piaggio OEM number: 431121

6,50 EUR

Nadella needle roller bearing 25/38/15 crankshaft Lima | Vespa Largeframe, Smallframe

For: Vespa

39347

Nadella needle roller bearing 25/38/15 crankshaft Lima | Vespa Largeframe, Smallframe

Bearing type: Tapered roller bearing · Ø inside: 25 mm · Ø outside: 38 mm · Width: 15 mm · Material: Steel · Piaggio OEM number: 133068 · Piaggio OEM number: 133524

17,50 EUR

Nadella ball bearing 25/62/12 crankshaft Kulu | Vespa Largeframe, Wideframe

For: Vespa

39388

Nadella ball bearing 25/62/12 crankshaft Kulu | Vespa Largeframe, Wideframe

Bearing type: Deep groove ball bearing · Ø inside: 25 mm · Ø outside: 62 mm · Width: 12 mm · Inner ring width: 12 mm · Ball bearing closed: No · Groove ring: No · Material: Steel · Piaggio OEM number: 26278 · Piaggio OEM number: 097804

29,30 EUR

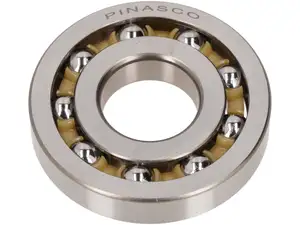

Pinasco ball bearing 25/62/12 crankshaft Kulu | Vespa Largeframe, Wideframe
