swiing® revival clutch spring 2-disc version | Puch Z50

Spring design: Pressure spring · Ø wire: 4 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: raw · Color: gray · Number of components: 1 pcs · Ø inside: 30.5 mm · Ø outside: 39 mm · Total length: 19.5 mm · Area of application: Original · Area of application: Standard

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 16.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 16.2 mm · Tomos OEM number: 035548

Rubber cap ignition cover | Puch

Material: Rubber · Ø mounting hole: 3 mm · Height: 5 mm · Ø outside: 54 mm · Material thickness: 3 mm · Total height: 9 mm · Color: black

Clutch basket 21 teeth kickstarter | Puch E50

Gearbox cover (kickstarter) | Puch Maxi

Material: Aluminum · Number of fixing points: 5 pcs

Oil seal NBR 16/28/7 BS Kickstarter | Puch Z50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Width: 7 mm · Ø inside: 16 mm · Ø outside: 28 mm

Surflex clutch 1st gear | Puch ZA50

Ø inside: 14 mm · Ø inside: 17 mm · Manufacturer: Surflex · Number of springs: 3 pcs · Ø outside: 83.5 mm · Material: Composite materials · Recording type: Interlocking · Material: Steel · Number of jaws: 3 pcs · Thickness: 12 mm · Area of application: Original · Area of application: Standard

45 mm gasket cylinder head 0.4 mm | Puch

Place of use: Cylinder head · Material: Aluminum · Ø cylinder: 45 mm · Thickness: 0.4 mm

swiing® revival nut & washer for clutch (kickstart) | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 5 mm · Width across flats: 19 mm · Strength class: 8

swiing® revival neck nut M7 fan cover | Puch X30 Velux

Manufacturer: swiing® revival parts · Thread type: M7x1 (standard thread) · Nut type: Neck nut · Drive: External hexagon

Shim 17/24/0.3 Crankshaft L17 Bearing | Puch

Nominal diameter inside: 17 mm · Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Thickness: 0.3 mm · Ø inside: 17 mm · Ø outside: 24 mm

swiing® revival thrust washer 12.5/18/2.5 gearbox | Puch Z50

Ø inside: 12.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø outside: 18 mm · Thickness: 2.5 mm

Crescent ring clutch shaft Puch E50

Fuse type: Outside · Manufacturer: Puch · Place of use: Clutch

GPO screw set for galvanized engine mounting | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M8x1.25 (standard thread) · Shank: Yes · Storage method: Sack · Drive: External hexagon · Storage box dimension [mm]: 100 x 90 x 10 · Screw head: Hexagon · Thread length: 23.5 mm · Width across flats: 13 mm · Strength class: 8.8 · Number of components: 12 pcs · Area of application: Standard

Fan cover NOS | Puch X30 NG-2AH

Manufacturer: Puch · Material: Aluminum · Color: silver

swiing® revival connecting rod bushing Ø 12 mm | Puch

Nominal diameter inside: 12 mm · Manufacturer: swiing® revival parts · Ø inside: 12 mm · Ø outside: 14 mm · Total height: 12 mm

swiing® revival gasket set engine | Puch Maxi S - 2A (ZA50 engine)

Manufacturer: swiing® revival parts · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Number of components: 10 pcs · Hole spacing inlet: 32 - 38 mm · Area of application: Standard

Rito connecting rod | Puch

Manufacturer: Rito · Area of application: High End · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Thickness: 10 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 20.5 mm · Total length: 114 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34.15 mm

swiing® ingenious puller L17 / BO15 / E15 shoulder bearing

Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Total length: 120 mm · Diameter: 24 mm · Diameter: 40.3 mm · Number of components: 1 pcs · Area of application: (Dis)assembly tool

swiing® revival snapper to gearshift | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Puch OEM number: 050.1.1421

swiing® revival snapping spring | Puch Z50

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Puch OEM number: 320.1.14.023.1

swiing® revival thrust washer 12.5/18/1.4 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.4 mm · Ø inside: 12.5 mm · Ø outside: 18 mm

swiing® revival clutch shaft Ø 14 mm | Puch E50

Manufacturer: swiing® revival parts · Area of application: Standard · Ø outside: 13.95 mm · Total length: 79.2 mm

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 16 mm · Ø outside: 25 mm

Jasil crankshaft full cheeks (new model) | Puch E50

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Jasil · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Thread length: 10 mm · Ø piston pin (B): 12 mm · Thread length: 13.5 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 964 g · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Area of application: Racing · Number of gears: 1 pcs

Jasil crankshaft | Puch 3- & 4-speed models

Manufacturer: Jasil · Total length of crankpin on clutch side: 73 mm · Area of application: Standard · Number of gears: 3 pcs · Number of gears: 4 pcs

swiing® revival gearbox cover gasket (new model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Color: sand-colored · Width: 120 mm · Total length: 170 mm · Number of fixing points: 7 pcs · Thickness: 0.35 mm

GPO 38 mm gasket cylinder head 0.4 mm aluminum | Puch

Place of use: Cylinder head · Nominal diameter: 39 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Ø inside: 39 mm · Ø cylinder: 38 mm · Ø screw holder: 7 mm · Thickness: 0.4 mm · Hole pattern [mm]: 44 x 44 · Puch OEM number: 349.3.10.013.1

swiing® revival thrust washer 15/22/1.7 clutch | Puch E50, Z50

Ø inside: 15 mm · Ø outside: 22 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.7 mm · Puch OEM number: 050.1213

Shift sleeve Occ. | Z50 2-speed engine

Manufacturer: Puch · Material: Steel · Surface: Hardened

Drive gear 69 teeth Occ. | Z50

Manufacturer: Puch · Toothing type: helical toothed · Number of teeth: 69 pcs

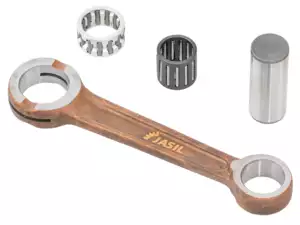

Jasil connecting rod | Puch

Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Ø piston pin (B): 12 mm · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 14 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Total length: 114.5 mm · Ø lower bearing inside: 18 mm · Ø inside upper bearing: 15 mm · Thickness: 10 mm · Dimension lower bearing: 14/15 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm · Area of application: Standard · Area of application: Tuning

GPO reinforcement plate 1.5 mm clutch (2-/ 3-jaw) Inox | Puch E50

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Ø outside: 90.5 mm · Height: 1.5 mm · Ø inside: 40 mm · Area of application: Road use

Cover plate clutch torsion spring metal | Puch MS, DS, VS

Ø outside: 21 mm · Ø inside: 8 mm

M22 sealing ring 22.5/26.6/1.5 Fiber

Surface: raw · Material: Fiber · Ø outside: 27 mm · Ø inside: 22 mm · Thickness: 1.5 mm

Gilardoni italkit diaphragm seal | Puch

Manufacturer: Gilardoni italkit · Material: Sealing paper · Thickness: 0.5 mm · Place of use: Admission · Hole pattern [mm]: 34 x 60 · Area of application: Racing · Area of application: Tuning

Oil seal NBR 22/40/7 AS crankshaft | E50

Material: NBR · Manufacturer: Puch · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 22 mm · Place of use: Crankshaft · Ø outside: 40 mm · Width: 7 mm

Oil seal NBR 17/28/7 AS Pinion shaft | Puch Z50

Material: NBR · Manufacturer: Puch · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 17 mm · Place of use: Pinion shaft · Ø outside: 28 mm · Width: 7 mm · Area of application: Standard

swiing® revival tension spring for clutch pressure plate | Puch

Material: Spring steel · Manufacturer: swiing® revival parts · Ø inside: 100 mm · Thickness: 2 mm · Place of use: Clutch cover · Ø outside: 104 mm · Area of application: Original · Puch OEM number: 349.2.30.134.1

Oil seal NBR 25/35/7 A Gearbox shaft | Puch ZA50

Material: NBR · Manufacturer: Puch · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 25 mm · Ø outside: 35 mm · Width: 7 mm

Koyo 12.7/17.46/15.8 pinion shaft | Puch ZA50

Bearing type: Needle box · Dimension needle bearing: 12.7/17.5 x 15.7 · Manufacturer: Koyo · Ø inside: 12.7 mm · Ø outside: 17.5 mm · Width: 15.7 mm

swiing® revival exhaust gasket 22 mm 2-piece reinforced | Puch

Manufacturer: swiing® revival parts · Material: Sealing carton · Surface: coated · Ø outside: 34 mm · Ø inside: 26.5 mm · Thickness: 2.15 mm · Place of use: Exhaust

swiing® revival torsion spring clutch shaft | Puch E50

Manufacturer: swiing® revival parts · Ø outside: 17 mm · Ø inside: 13 mm

Cylindrical roller Ø 3.5 x 7.5 Gearbox | Puch Z50

Manufacturer: Puch · Material: Steel · Surface: Hardened · Diameter: 3.5 mm · Width: 7.4 mm · Area of application: Standard

Gasket cylinder base 2 mm | Puch

Material: Sealing carton · Nominal diameter: 49 mm · Ø inside: 49 mm · Thickness: 2 mm · Place of use: Cylinder base · Hole pattern [mm]: 44 x 44

Motor cable routing | Z50

Puch OEM number: 128.6305

Gasket cylinder base 1.5 mm | Puch

Thickness: 1.5 mm · Place of use: Cylinder base

swiing® revival oil drain plug | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Screw head: Hexagon · Puch OEM number: 321.1.10.670.1

Starter cable in engine | Puch ZA50

Ø nipple: 6 mm · Manufacturer: Made in Austria · Ø Stranded wire: 1.5 mm · Nipple shape: Barrel (transverse) · Cable length: 68 mm · Nipple length: 8 mm · Puch OEM number: 910.4.18.001.0

O-ring oil drain ZA50 small

Manufacturer: Puch · Ø inside: 4.2 mm · Cord thickness: 2.4 mm · Place of use: Outlet · Ø outside: 9 mm · Color: black · Puch OEM number: 900.3797
