Piaggio gearbox

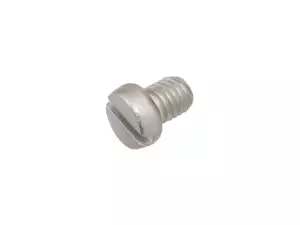

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Slot · Thread length: 10 mm · Piaggio OEM number: 030280

swiing® revival seal kit splined gearbox Mono | Piaggio Ciao C9 / P

Manufacturer: swiing® revival parts · Gearbox type: Mono · Piaggio OEM number: S.17002 · Piaggio OEM number: S.8752 · Piaggio OEM number: 397 · Piaggio OEM number: 67233 · Piaggio OEM number: 103105

Revision set gearbox keyway mono | Piaggio Ciao C9 / P

Gearbox type: Mono

Koyo needle bearing set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio OEM number: 103613 · Piaggio OEM number: 103614 · Piaggio OEM number: 103689 · Piaggio OEM number: 131509

Koyo needle bearing set MG3 & MG4 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo

EVOK gear set 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Translation: 10.73 / 1 · Gearbox type: Vario

EVOK gear set 9.5:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Translation: 9.49 / 1 · Gearbox type: Vario

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Height: 13 mm · Width across flats: 15 mm

Polini gearbox 13:1 / 11.5:1 Vario (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

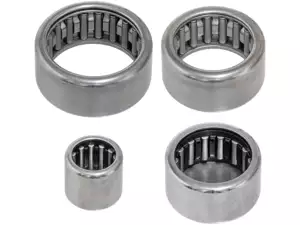

Koyo needle bearing set MG2 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio OEM number: 103613 · Piaggio OEM number: 103689 · Piaggio OEM number: 103696 · Piaggio OEM number: 131509

SKF needle roller bearing 13/19/12 Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 103614

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 20 mm · Nominal diameter inside: 20 mm · Ø outside: 33 mm · Piaggio OEM number: 131513

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard · Place of use: Gear hub · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Spacer 15/28/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 28 mm · Nominal diameter inside: 28 mm · Ø outside: 15 mm

CIF transmission 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Area of application: Racing · Area of application: Tuning · Gearbox type: Vario · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1

Pin gearbox axle shaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø outside: 6.98 mm · Total length: 30 mm

swiing® revival thrust washer 15/28/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 28 mm

Needle bearing 15/21/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 15/21 x 12 · Manufacturer: Piaggio · Bearing type: Needle box · Ø inside: 15 mm · Ø outside: 21 mm · Width: 12 mm · Piaggio OEM number: 103689

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 120 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: GPO · Material: NBR · Area of application: Original · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Width: 3 mm · Width: 4 mm · Width: 5 mm

Polini Vario input shaft & 1st gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Gearbox type: Vario · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Number of teeth: 11 pcs · Number of teeth: 23 pcs

Polini Vario 13:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Gearbox type: Vario · Toothing type: straight toothed · Translation: 12.82 / 1 · Number of teeth: 10 pcs · Number of teeth: 30 pcs · Number of teeth: 47 pcs

CIF transmission 9.5:1 Vario (long ratio) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Area of application: Tuning · Gearbox type: Vario · Toothing type: helical toothed · Translation: 9.49 / 1

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Number of teeth: 23 pcs · Ø outside: 32 mm

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 18 mm

CIF revision set gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Bearing type: Deep groove ball bearing · Stock number: 6202 · Manufacturer: CUBE · Dust protection type: 2RS - NBR contact seal on both sides · Width: 11 mm · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: Yes

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 14 mm · Nominal diameter inside: 14 mm · Ø outside: 24 mm

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø inside: 6 mm · Ø outside: 9.4 mm · Cord thickness: 1.7 mm

Oil seal NBR 22/35/6 A splined gearbox original | Piaggio Ciao

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Ø inside: 22 mm · Ø outside: 35 mm · Width: 6 mm

swiing® revival thrust washer 14/24/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14 mm · Ø outside: 24 mm

swiing® revival Shift Fork Velogang | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Gearbox type: Mono · Area of application: Original · Gearbox type: Vario · Ø outside: 8.95 mm · Total length: 60 mm · Width: 43 mm · Piaggio OEM number: 131523

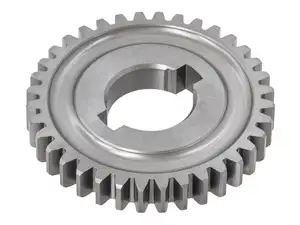

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Number of teeth: 37 pcs

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Manufacturer: Koyo · Bearing cage: Sheet steel cage · Bearing type: Needle sleeve · Ø inside: 17 mm · Ø outside: 23 mm · Width: 12 mm · Piaggio OEM number: 103696

Koyo HK2012 Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Manufacturer: Koyo · Bearing cage: Sheet steel cage · Bearing type: Needle sleeve · Ø inside: 20 mm · Ø outside: 26 mm · Width: 12 mm · Piaggio OEM number: 131509

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 23 mm · Nominal diameter inside: 23 mm · Ø outside: 34 mm

EVOK gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Number of teeth: 23 pcs · Ø outside: 32 mm

Polini Vario 11.5:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Gearbox type: Vario · Toothing type: straight toothed · Translation: 11.40 / 1 · Number of teeth: 11 pcs · Number of teeth: 30 pcs · Number of teeth: 46 pcs

swiing® revival spring freewheel lever Inox | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Torsion spring · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Ø inside: 16 mm · Ø wire: 1.25 mm · Ø outside: 18.5 mm · Piaggio OEM number: 103054

Axle shaft keyway NOS | Piaggio Ciao, Boxer

Manufacturer: Piaggio · Material: Steel · Thread type: MF12x1.25 (fine pitch thread) · Ø shaft: 15 mm · Total length: 130 mm · Piaggio OEM number: 102896 · Piaggio OEM number: 121306 · Piaggio OEM number: 123204 · Piaggio OEM number: 131501

Bolt M10x14 Gearbox frame mounting | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: No · Nominal diameter (thread): 10 mm · Total length: 22.3 mm · Width across flats: 17 mm · Strength class: 8.8 · Thread length: 14.5 mm · Piaggio OEM number: 031150

swiing® revival gasket set engine, cylinder & gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Number of components: 3 pcs

Washer 18/29/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 18 mm · Nominal diameter inside: 8 mm · Ø outside: 29 mm

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: Hardened · Gearbox type: Mono · Toothing type: straight toothed · Number of teeth: 74 pcs

swiing® revival thrust washer 10/18/0.5 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm

swiing® revival thrust washer 20/33/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20 mm · Ø outside: 33 mm

swiing® revival thrust washer 23/34/0.4 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.4 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 23 mm · Ø outside: 34 mm

swiing® revival thrust washer 10/18/0.3 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm

swiing® revival thrust washer 20/33/0.5 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20 mm · Ø outside: 33 mm

Polini gearbox housing EVO Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: varnished · Area of application: High End · Area of application: Racing · Area of application: Tuning · Gearbox type: Vario
