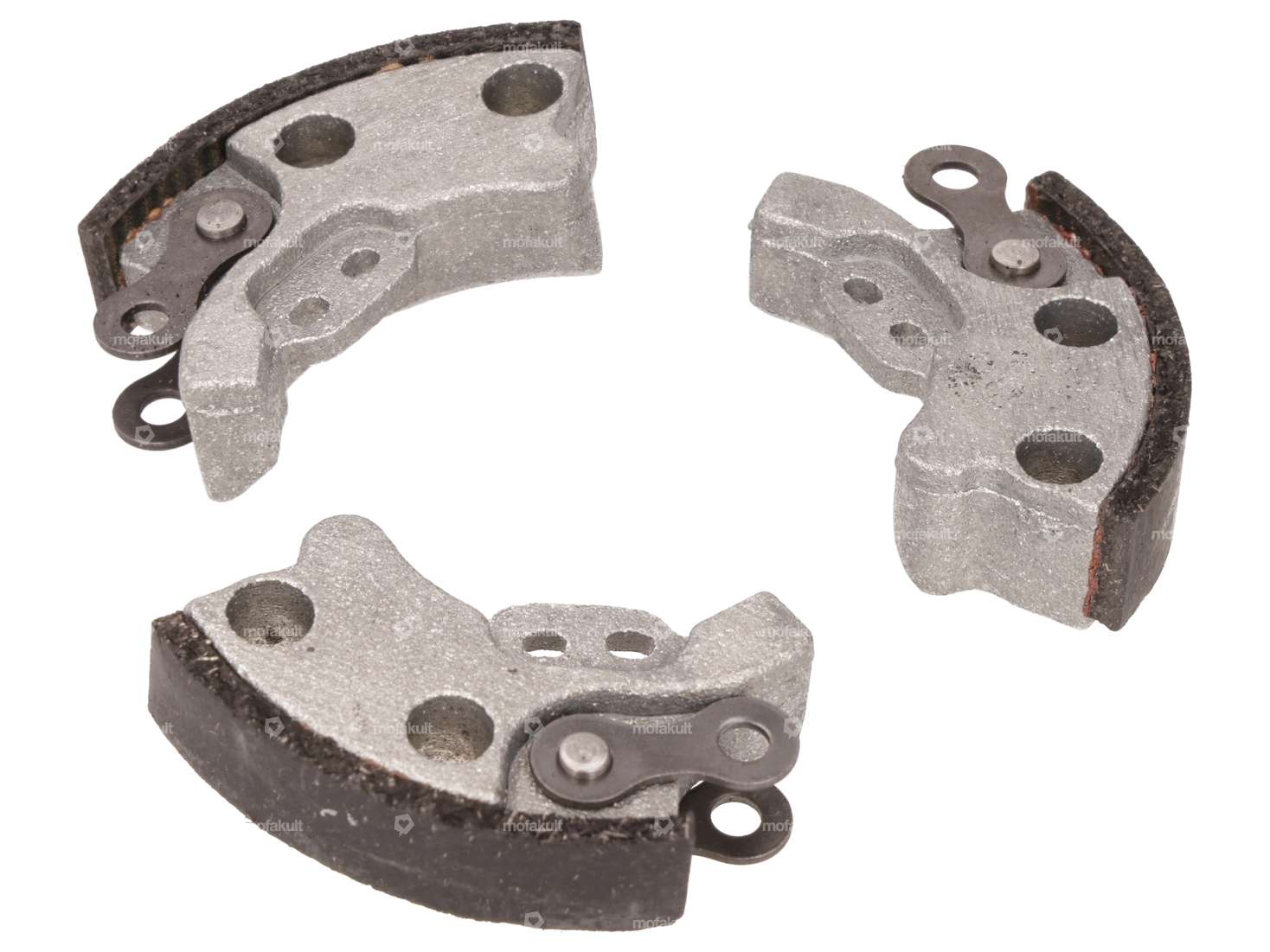

Malossi clutch linings Mono reinforced | Piaggio Ciao, SI, Bravo, Boxer

Starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Thickness: 13.4 mm · Thickness: 23.6 mm · Material: Steel · Ø outside: 79 mm · Ø inside: 75 mm · Area of application: Standard · Piaggio OEM number: 114943

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Nominal diameter inside: 12 mm · Manufacturer: CIF · Ø Bundle: 16.3 mm · Total length: 5 mm · Material: Steel · Surface: galvanized (blue) · Ø outside: 23 mm · Ø inside: 12 mm

Malossi clutch spring set mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Ø wire: 1.7 mm · Ø wire: 1.9 mm · Ø wire: 2 mm · Manufacturer: Malossi · Material: Spring steel · Color: black · Surface: varnished · Color: white · Color: yellow · Total length: 26 mm · Area of application: Tuning

Pressure plate clutch mono original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Piaggio OEM number: 104488

CIF bushing clutch mono gearbox (Ø 16x12x29 mm) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Nominal diameter inside: 12 mm · Ø outside: 16 mm · Ø inside: 12 mm · Total length: 29 mm

CIF clutch bell Ø 56 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Ø Outer pulley: 56 mm · Material: Steel · Ø outside: 90 mm · Piaggio OEM number: 165149

NewFren clutch linings Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: NewFren · Number of springs: 3 pcs · Number of jaws: 3 pcs · Piaggio OEM number: 104480

GPO clutch spring set (+20 %) Mono | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Ø wire: 1.2 mm · Manufacturer: GPO · Color: blue · Material: Spring steel · Area of application: Tuning · Surface: coated · Ø outside: 7 mm · Total length: 22 mm · Alternative version of the Piaggio OEM number: 121753 · Alternative version of the Piaggio OEM number: 289451

GPO clutch spring set (+40 %) Mono | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Ø wire: 1.3 mm · Manufacturer: GPO · Material: Spring steel · Surface: varnished · Color: red · Total length: 22 mm · Ø outside: 7 mm · Alternative version of the Piaggio OEM number: 121753 · Alternative version of the Piaggio OEM number: 289451

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Ø Cable bushing: 1.6 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Total length: 6 mm · Screw head: Lens head · Thread type: M4x0.7 (standard thread) · Drive: Slot · Thread length: 4 mm · Ø outside: 5 mm

RMS V-belt Mono 960 mm (original) | Piaggio Ciao

Manufacturer: RMS · Material: Fabric insert · Material: Rubber · Outer width: 9.8 mm · Rolling circumference: 960 mm · Height: 8.5 mm · Belt profile: untoothed / untoothed · Gearbox type: Mono

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Tuning · Color: black · Total length: 46 mm · Carburetor type: SHA (Piaggio) · Width: 60 mm · Nominal diameter: 13 mm · Height: 96 mm · Nozzle thread: M5x0.8 (standard thread) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle size: 66

Starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Thickness: 13.4 mm · Thickness: 23.6 mm · Material: Steel · Ø outside: 79 mm · Ø inside: 75 mm · Area of application: Standard · Piaggio OEM number: 114943

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Nominal diameter inside: 12 mm · Manufacturer: CIF · Ø Bundle: 16.3 mm · Total length: 5 mm · Material: Steel · Surface: galvanized (blue) · Ø outside: 23 mm · Ø inside: 12 mm

CIF Clutch 56 mm | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Ø Outer pulley: 56 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Number of springs: 2 pcs · Number of springs: 3 pcs · Ø inside: 82 mm · Ø outside: 90 mm · Area of application: Standard

Malossi clutch spring set mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Ø wire: 1.7 mm · Ø wire: 1.9 mm · Ø wire: 2 mm · Manufacturer: Malossi · Material: Spring steel · Color: black · Surface: varnished · Color: white · Color: yellow · Total length: 26 mm · Area of application: Tuning

Polini clutch spring set Mono | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Polini · Material: Spring steel · Color: blue · Surface: varnished · Total length: 23.4 mm · Area of application: Tuning

V-belt Mono 955mm original | Piaggio Ciao

Manufacturer: Piaggio · Material: Fabric insert · Material: Rubber · Outer width: 9.8 mm · Rolling circumference: 955 mm · Belt profile: toothed / serrated · Height: 7.9 mm · Gearbox type: Mono

Polini starter shoes Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Gearbox type: Mono · Area of application: Standard · Number of springs: 2 pcs · Number of jaws: 2 pcs · Piaggio OEM number: 121213 · Piaggio OEM number: 2498124
