swiing® revival cable guide mudguard black | Puch

For: Puch

10029

swiing® revival cable guide mudguard black | Puch

Total length: 74 mm · Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Number of fixing points: 2 pcs · Height: 12.5 mm · Hole spacing: 63 mm · Mounting type: Plug connection

4,60 EUR

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Universal

10181

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

11,60 EUR

Not so nice

For: Puch

10367

Main stand black (Budget) | Puch Maxi N

Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 165 mm · Total width of stand base (B): 240 mm · Wide receptacle (C): 62 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 90 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 55 mm · Total height: 180 mm

29,30 EUR

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo

10371

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 16 - 17 " · Wheel size: 17 " · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 "

11,60 EUR

Zéfal rim tape textile 22 mm (protection for inner tube)

Universal

10418

Zéfal rim tape textile 22 mm (protection for inner tube)

Manufacturer: Zéfal · Material: Textile · Color: white · Wheel size: 1 - 21 " · Width: 22 mm · Total length: 1500 mm

4,60 EUR

Nut M12x1 x 10 SW19 Wheel nut galvanized

For: Universal · Puch · Sachs

10422

Nut M12x1 x 10 SW19 Wheel nut galvanized

Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Area of application: Standard · Material: Steel · Nut type: Hexagon nut · Drive: External hexagon · Thread depth: 10 mm · Height: 10 mm · Strength class: 8 · Width across flats: 19 mm

2,35 EUR

GPO wheel clamp 12 mm cranked solid (per piece)

For: Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Bye Bike

10445

GPO wheel clamp 12 mm cranked solid (per piece)

Ø inside: 12.1 mm · Ø outside: 23 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Total length: 78 mm · Thread length: 36 mm · Thread type: M6x1 (standard thread) · Cranking (offset): 6 mm

4,10 EUR

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Zündapp Belmondo · Tomos · Bye Bike

10448

GPO chain lock drive chain

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 1 pcs · Chain lock type: Spring lock · Ø bore: 4.08 mm · Ø Pin: 3.98 mm

2,25 EUR

For: Puch

10481

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Number of fixing points: 2 pcs · Cranking (offset): 23 mm · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm

9,30 EUR

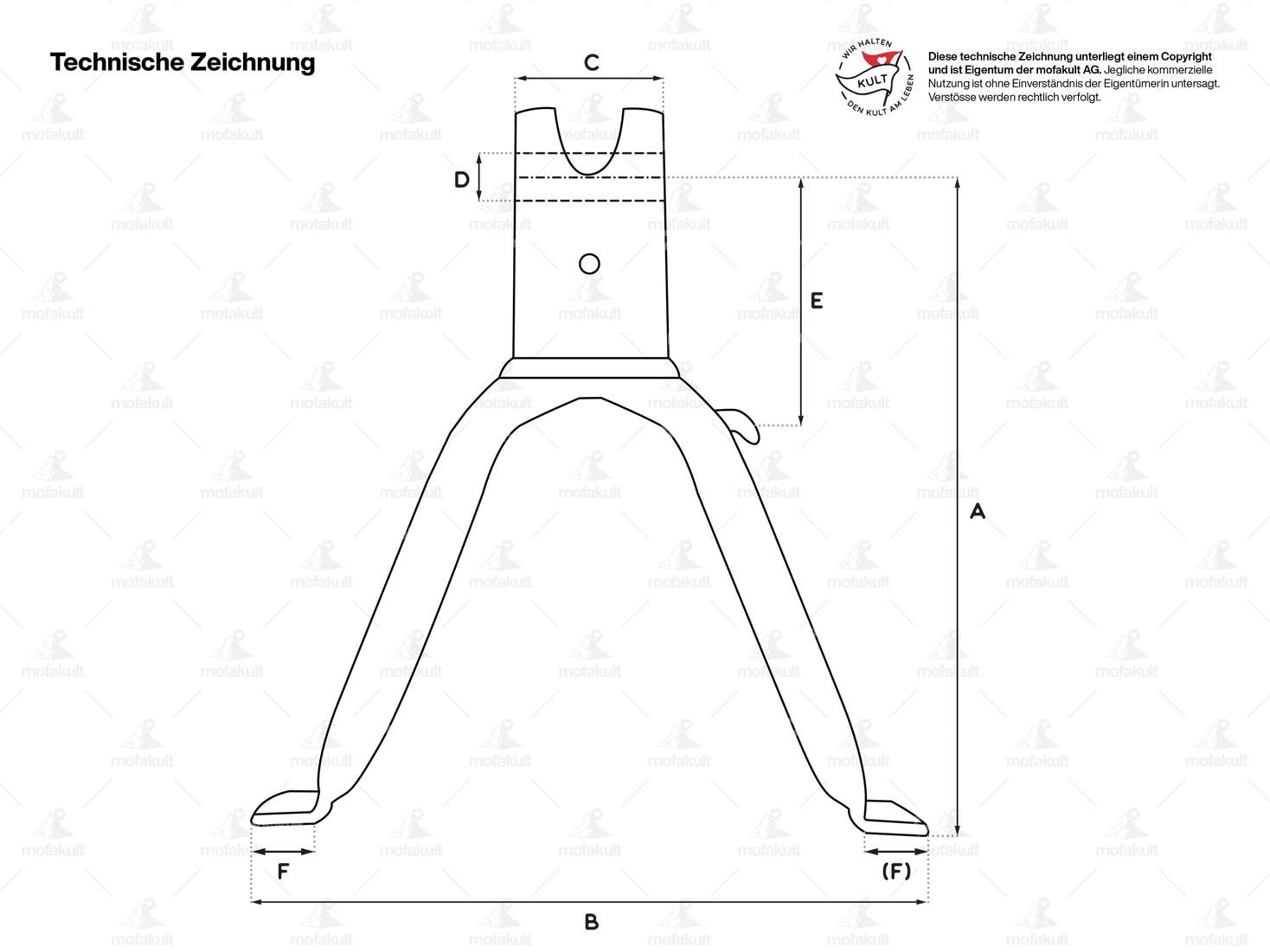

Total height	280 mm
Material	Steel
Surface	chrome-plated
Color	Chrome
Stand base - center mount (A)	265 mm
Total width of stand base (B)	250 mm
Wide receptacle (C)	58 mm
Ø Receptacle (D)	10 mm
Wide upright foot (F)	5 mm

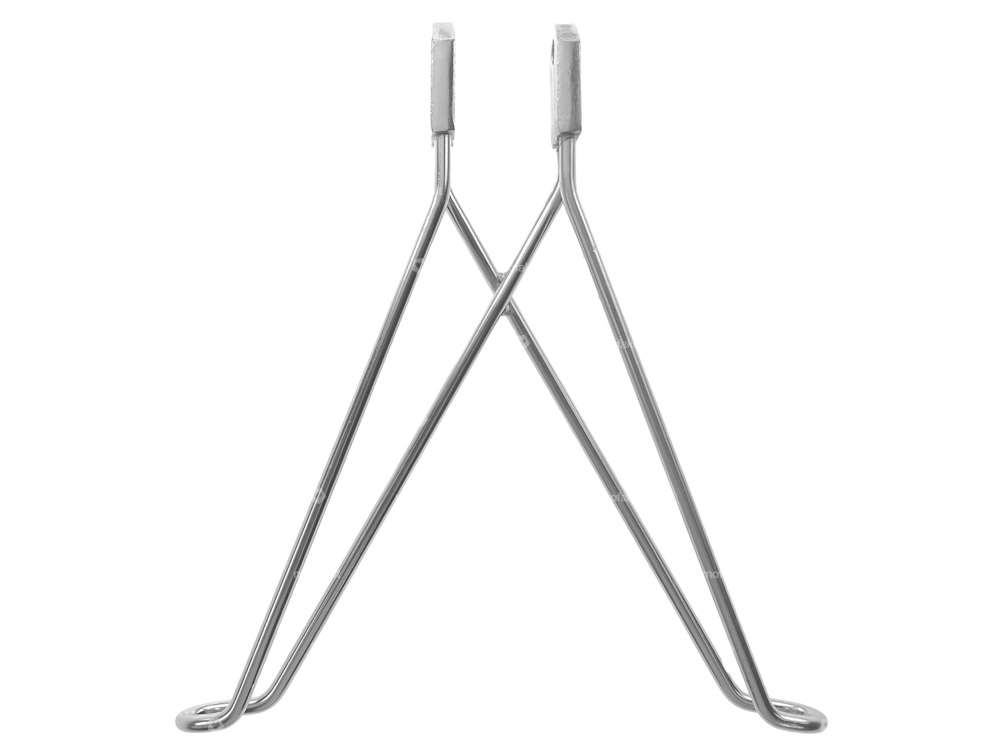

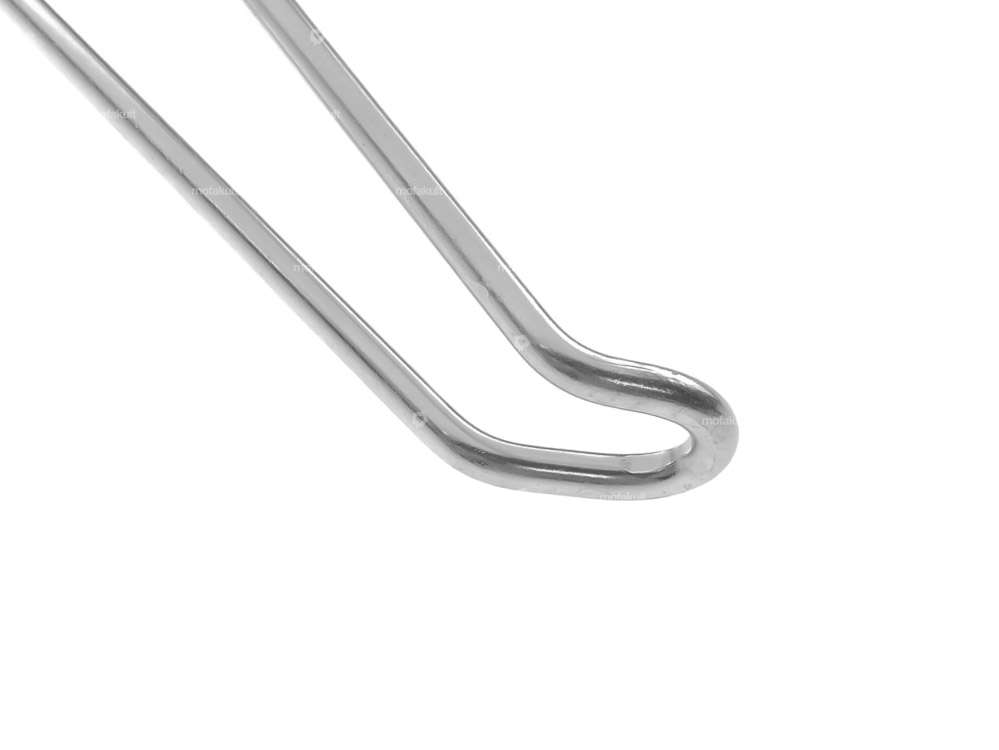

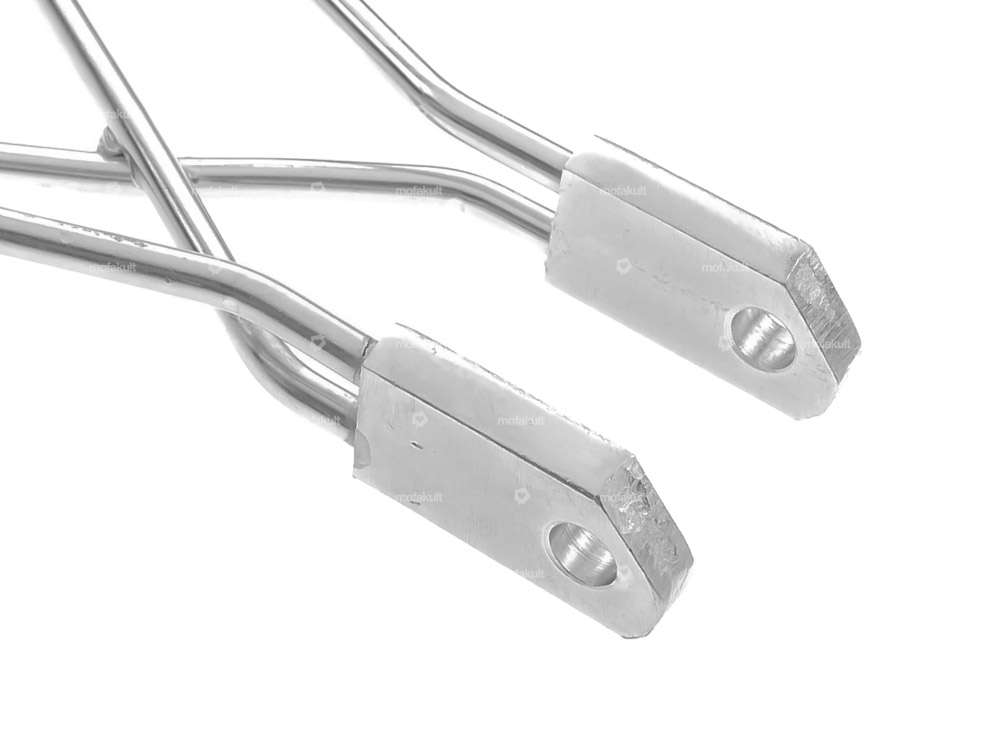

Main stand | DKW Hummel
