Universal

30483

M14 locking plate 2 tabs

rating iconrating iconrating iconrating iconrating icon
No reviews
3,90 EUR

Incl. 20% VAT.

Description

Galvanized lock washer with 2 tabs for securing nuts and bolts on your moped, moped and small motorcycle.

Dimensions according to technical drawing (Figure 2):

Ø inside (d1): 15.2 mm
Ø outer (d2): 27.5 mm
Width (b): 11.9 mm
Height (h): 17 mm
Height (h1): 30 mm
Thickness (s): 1 mm

Material: Steel, galvanized

Ø inside15.2 mm
Ø outside27.5 mm
Width11.9 mm
Total length17 mm
MaterialSteel
Surfacegalvanized (blue)
Thickness1 mm
Number of lobes2 pcs
Length 230 mm
Width 211.9 mm
Thread sizeM14

Accessories & related products

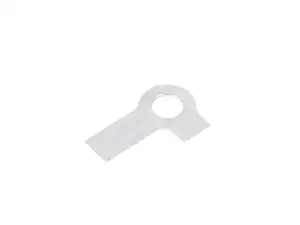

M5 locking plate 2 tabs
