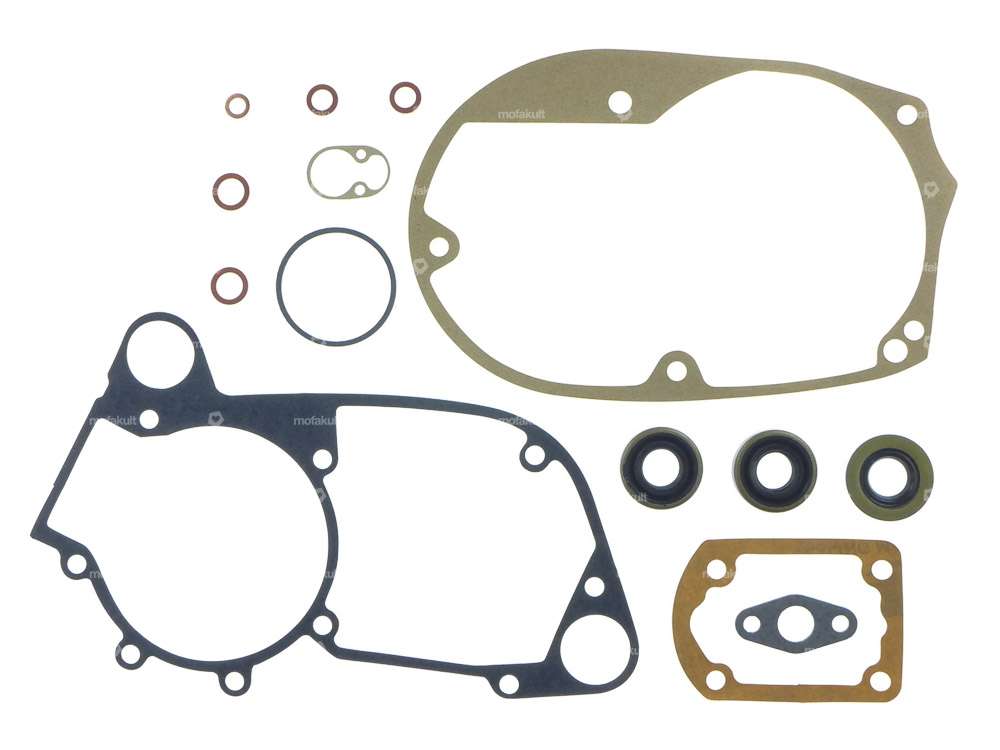

Large gasket set with shaft seals Engine | Sachs 503

swiing® revival engine seal | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1884)

Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Total length: 233 mm · Color: sand-colored · Thickness: 0.4 mm · Number of fixing points: 9 pcs · Ø inside: 87 mm · Width: 140 mm · Pony OEM number: A1884 · Sachs OEM no.: 0250 149 100

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)

Thickness: 0.35 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 200 mm · Width: 130 mm · Number of components: 1 pcs · Number of fixing points: 6 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000

swiing® revival air filter original gray | Sachs 503

Manufacturer: swiing® revival parts · Camouflaged: No · Area of application: Original · Area of application: Standard · Material: Plastic · Color: gray · Filter type: Standard sieve · Total length: 165 mm · Width: 68 mm · Height: 52 mm · Mounting type: Plug connection clamped · Ø Internal connection: 20 mm

swiing® ingenious 15 mm carburetor tuning camouflaged | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Total length: 66 mm · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Height: 95 mm · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Area of application: Tuning · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Width: 50 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

swiing® ingenious tuning cylinder 40 mm | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 40 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Hole spacing inlet: 32 mm · Area of application: Tuning

Intake manifold 15 mm short | Sachs 503 2AL, 2BL

Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Total length: 50 mm · Thread type: M6x1 (standard thread) · Area of application: Tuning · Sachs OEM no.: A2177

BING O-ring Bing SRE & 85, Ø 20 mm

Manufacturer: BING · Material: Rubber · Surface: raw · Number of components: 1 pcs · Ø outside: 20 mm · Ø inside: 17.2 mm · Color: black · Cord thickness: 1.4 mm · Place of use: Carburetor · Area of application: Standard · Pony OEM number: A4281 · Sachs OEM no.: 0250 160 101

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank · Width: 10 mm · Ø inside: 15 mm · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: No · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Pony OEM number: A1325 · Sachs OEM no.: 0239 015 000

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

swiing® revival screw set motor galvanized | Sachs 503

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

Engine revision set | Sachs 503 HG small

Manufacturer: BING · Manufacturer: NSK · Number of components: 17 pcs · Area of application: Standard

swiing® revival engine revision set medium | Sachs 503 HG

Manufacturer: swiing® revival parts · Area of application: Standard

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Drive: External hexagon · Width across flats SW: 26 mm · Pony OEM number: A1504 · Sachs OEM no.: 0242 030 005 · Sachs OEM no.: 0242 030 105

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: swiing® revival parts · Material: Composite materials · Material: Steel · Recording type: Interlocking · Ø inside: 29.7 mm · Ø inside: 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Ø inside: 15 mm · Ø outside: 35 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Width: 8 mm · Thread type: MF20.8x1 LH (fine/left-hand thread) · Area of application: High End · Area of application: Standard · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
