For: Puch

20866

GPO piston 45 mm 6-channel tuning | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
45,60 EUR

Incl. 20% VAT.

Description

45 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) suitable for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

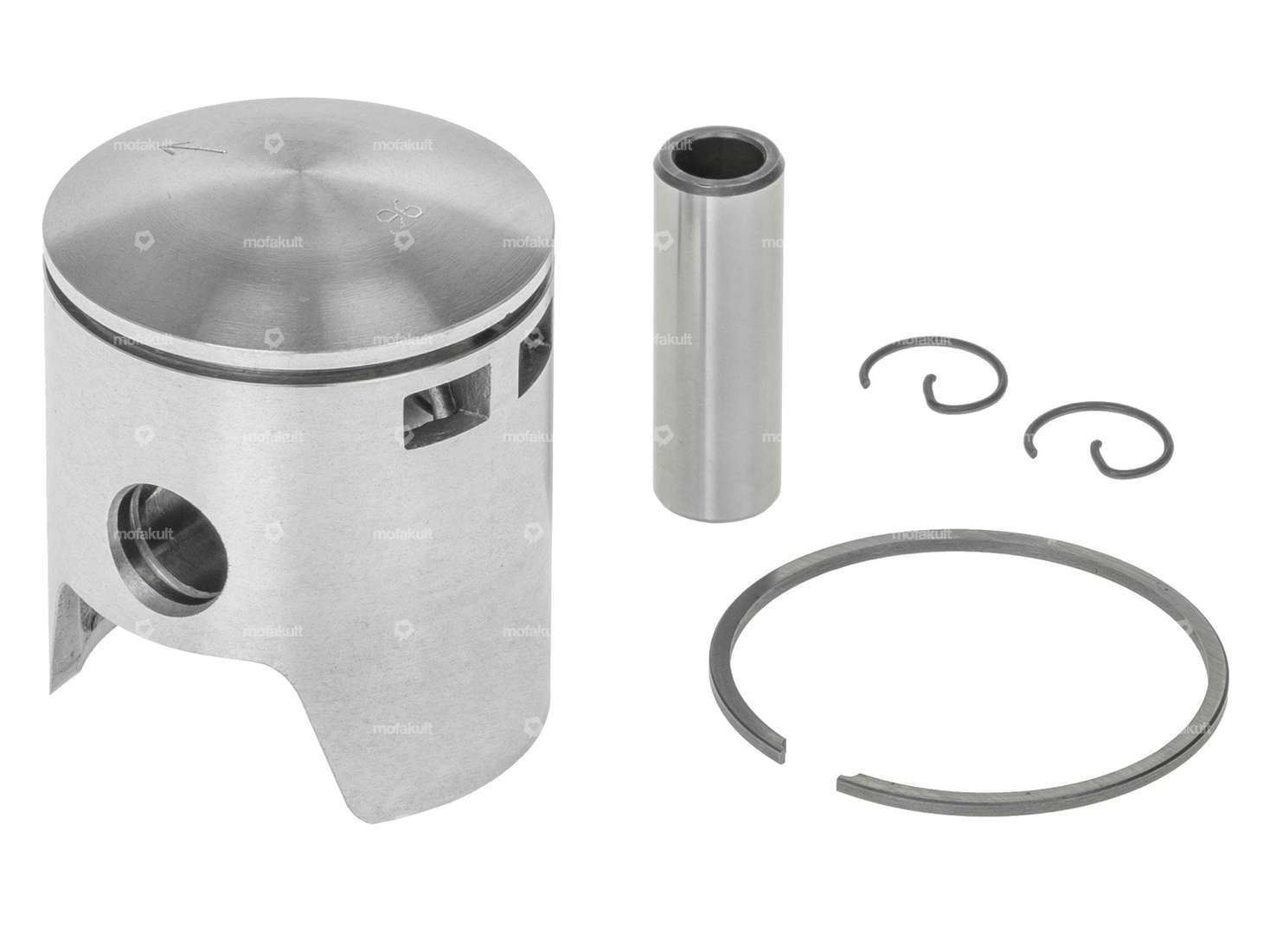

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Nominal diameter45 mm
ManufacturerGPO
MaterialAluminum
Ø outside piston (A)44.97 mm
Compression height (C)21.6 mm
Curvature (D)5 mm
Total piston height (E)53.8 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight piston kit97 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
