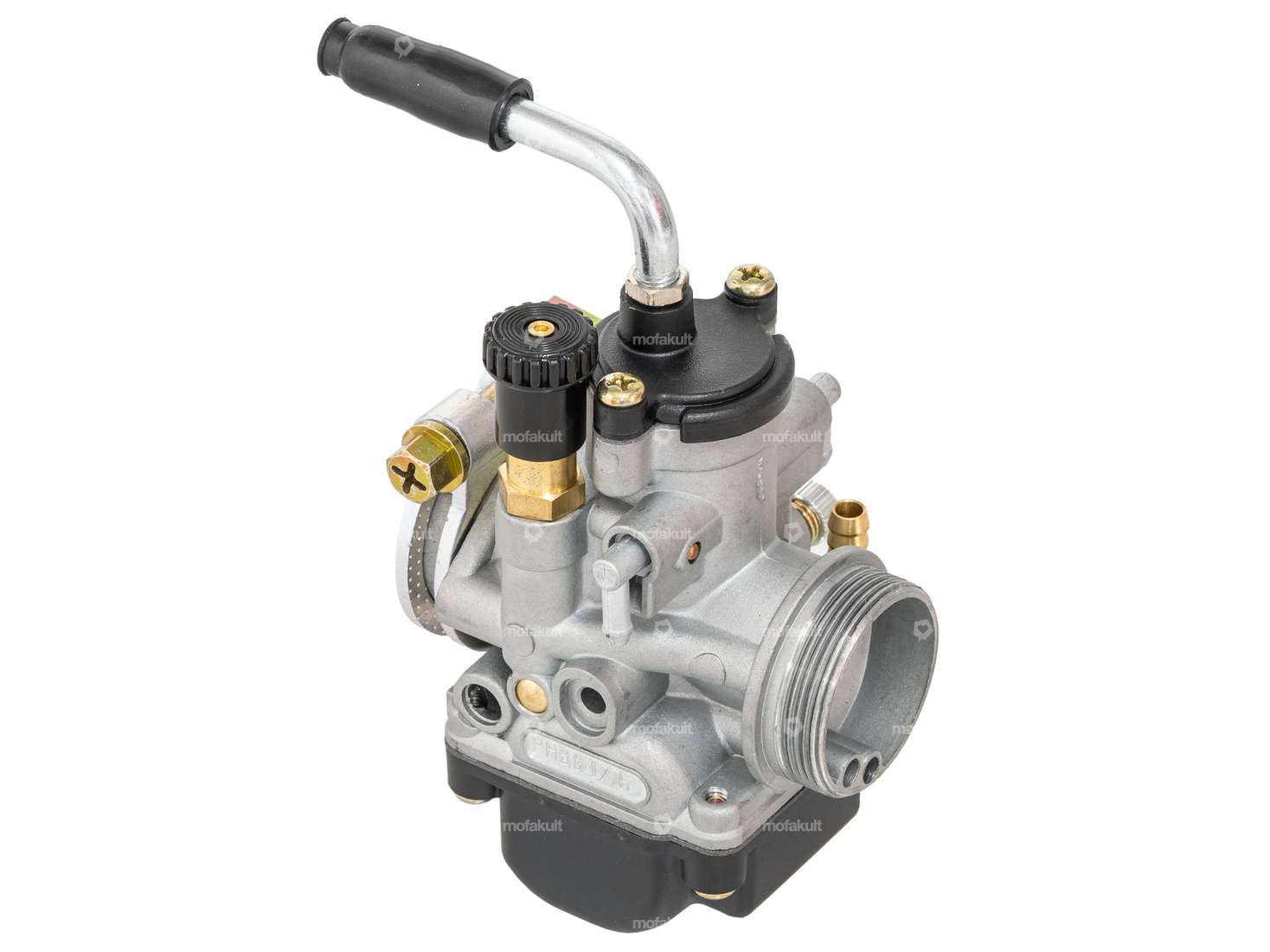

Carousel Image 1

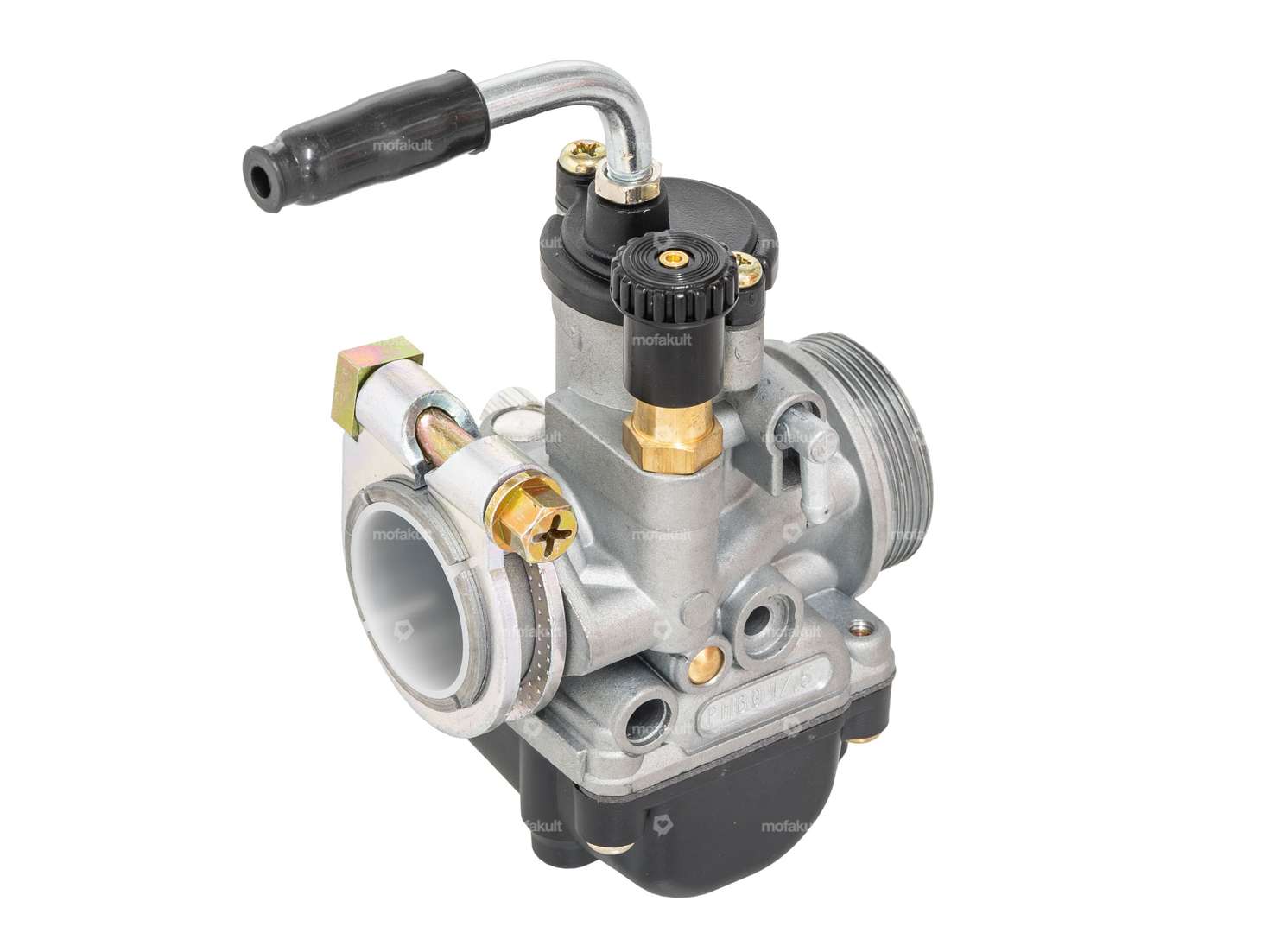

Carousel Image 2

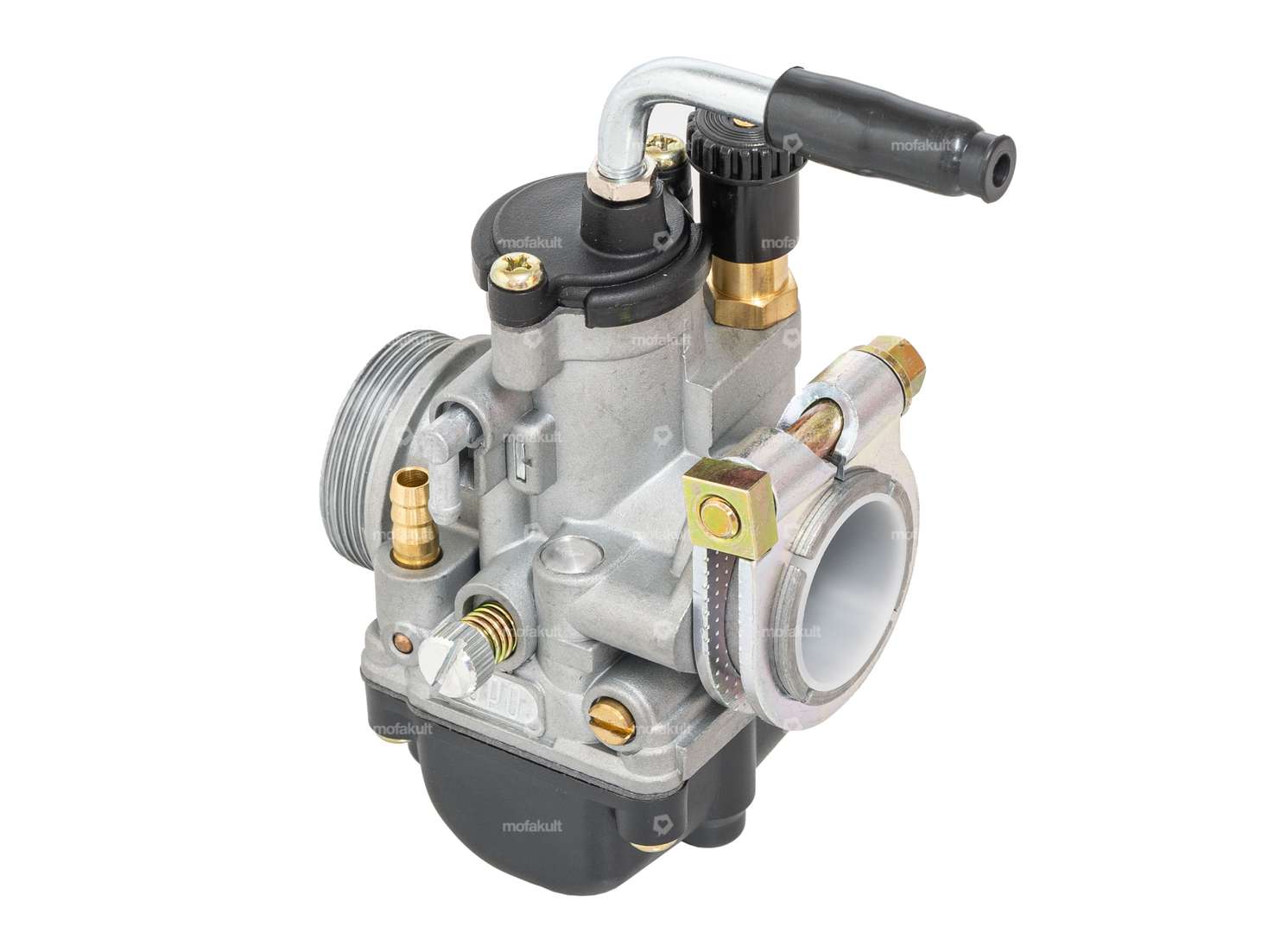

Carousel Image 3

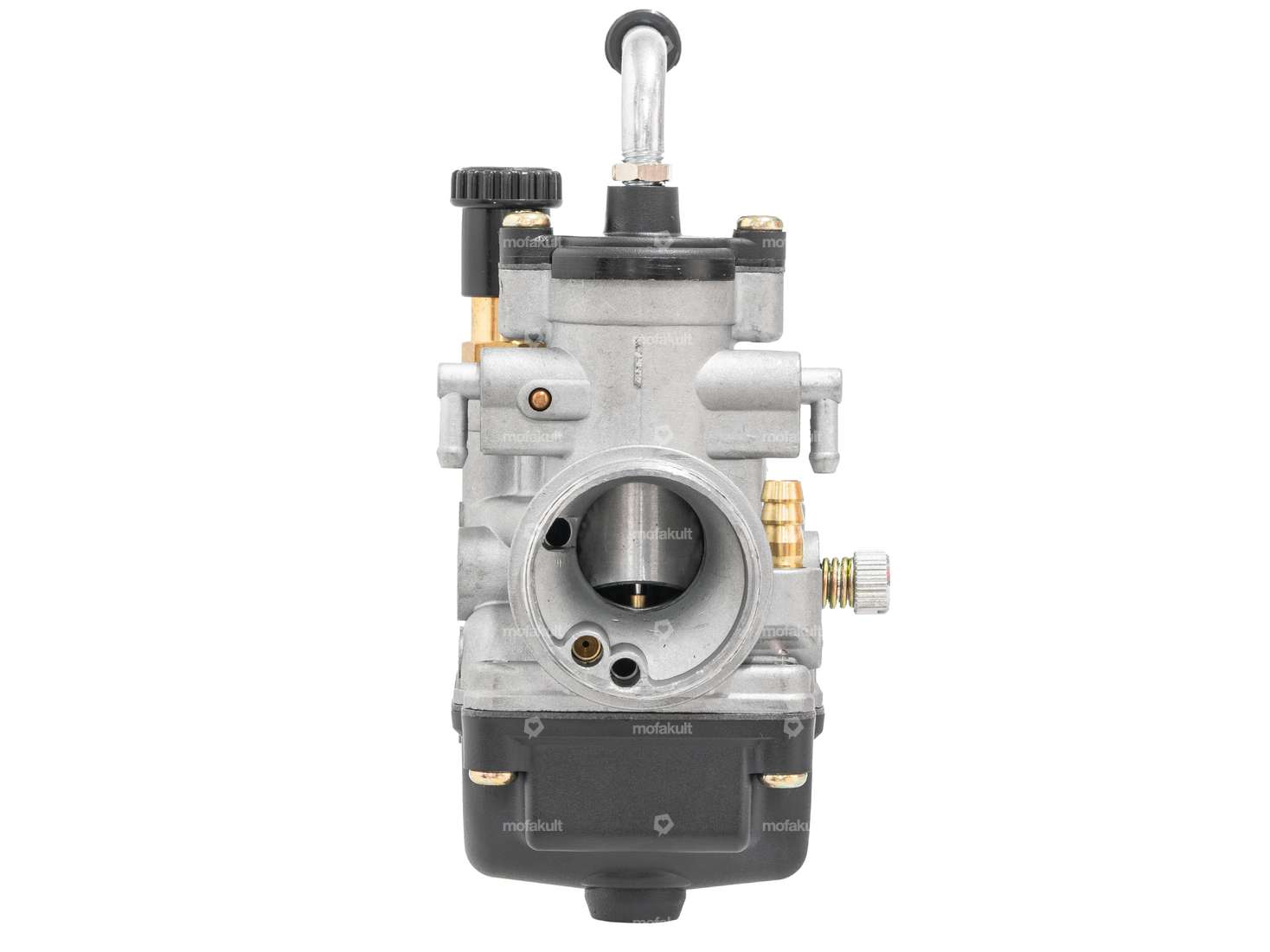

Carousel Image 4
logo_gpo

Universal

10898

GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)

rating iconrating iconrating iconrating iconrating icon
No reviews
94,00 EUR

Incl. 20% VAT.

Description

17.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary air flow as well as the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 80 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Connection diameter of intake manifold: 24 mm (or 26 mm after removing the reducer sleeve)
Total height: 130 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

ManufacturerGPO
CamouflagedNo
MaterialAluminum
Component group CarburetorCarburetor complete
Colorblack
Carburetor typePHBG AS
Total length71.5 mm
Nominal diameter17.5 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size80
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Width63 mm
Height130 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.3 mm
Mixed oil connectionNo
Mounting typePlug connection clamped, Bride
Vacuum connectionYes
Choke controlHand choke
Area of applicationTuning
Choke nozzle size55
Nozzle block262AU
Size of secondary nozzle50
