Product description

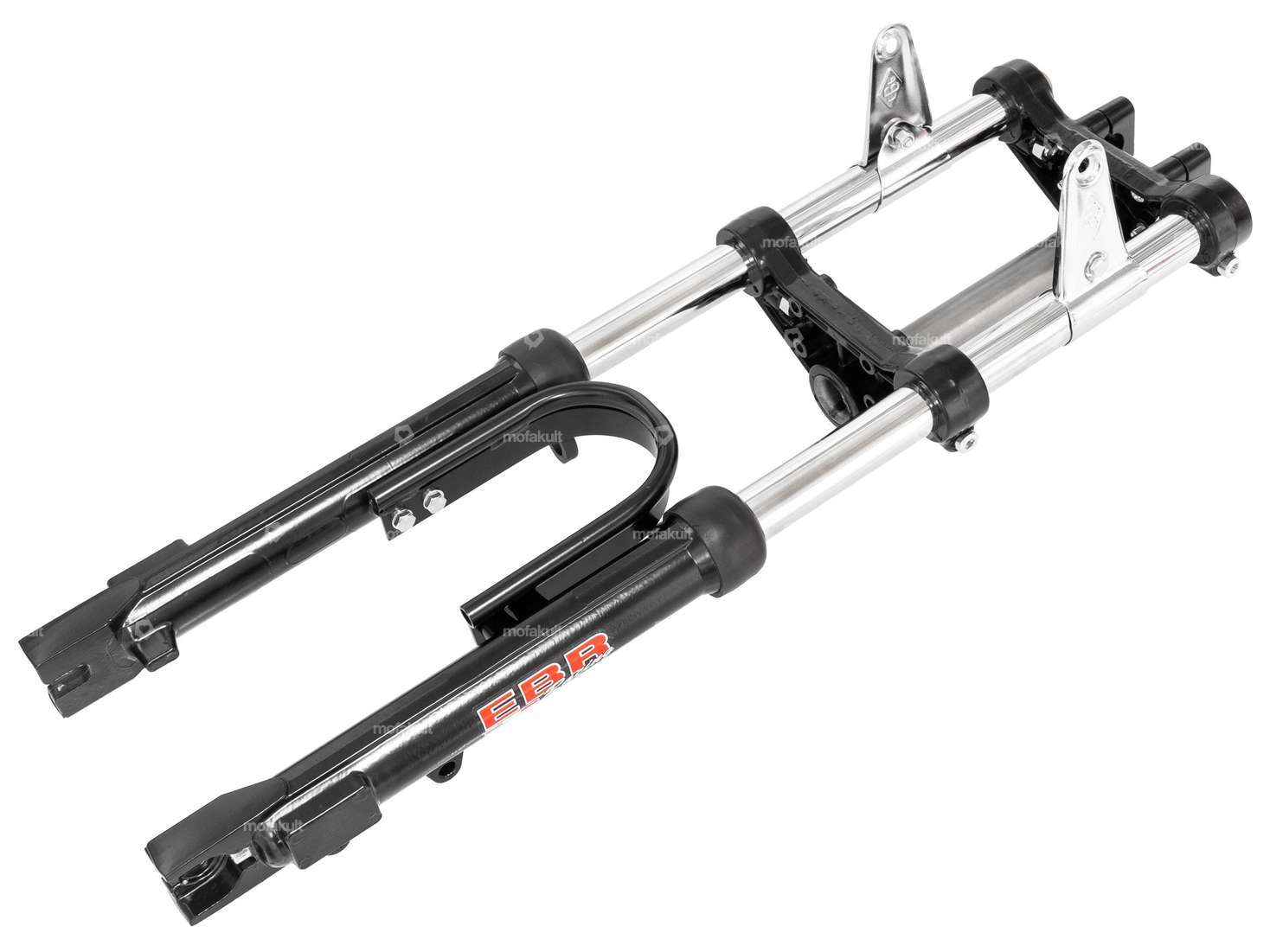

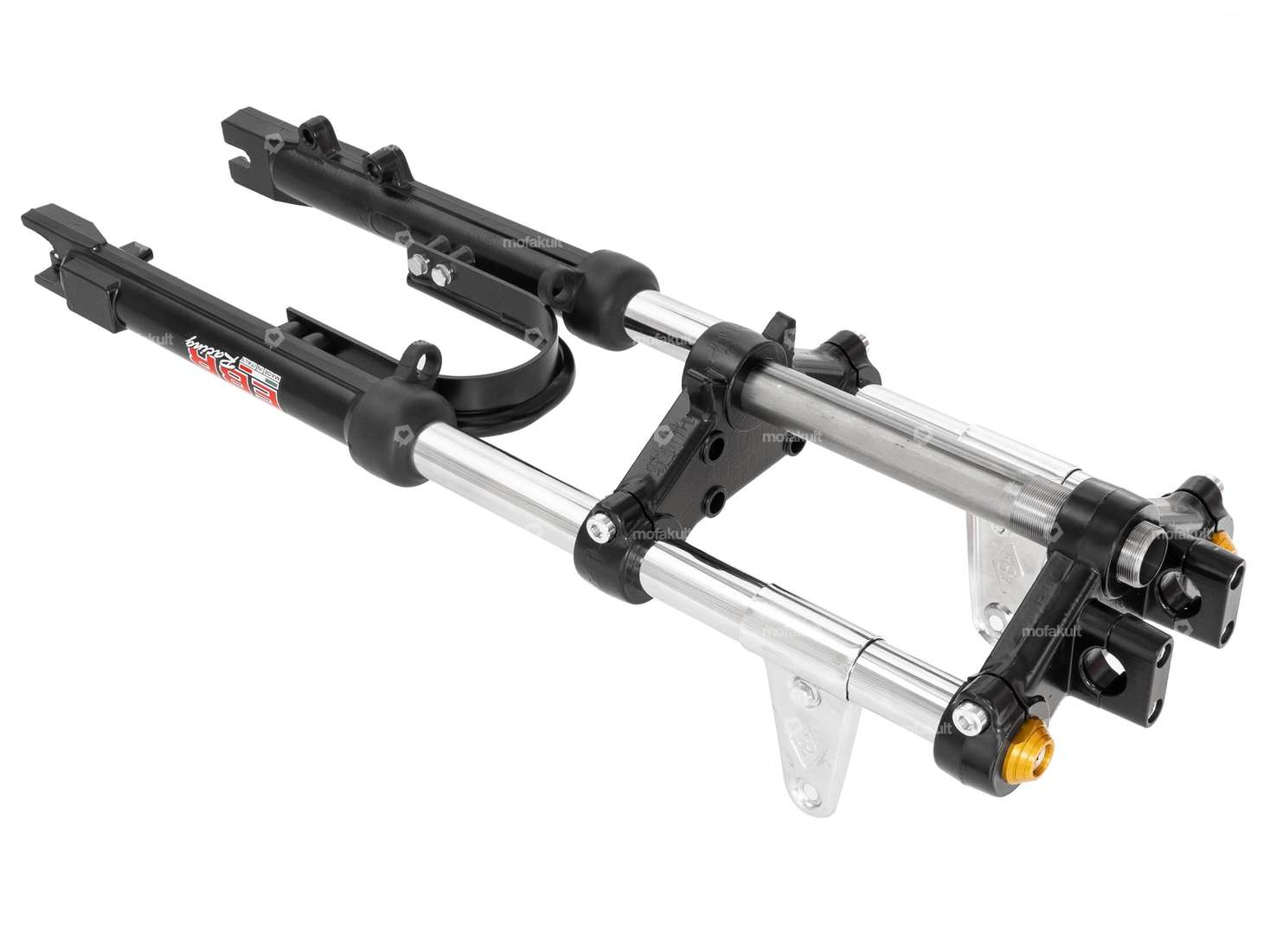

This hydraulic telescopic fork is currently the best fork available on the Puch market.

The fork has various threads and holes for mounting a brake calliper.

Mostly made of aluminum.

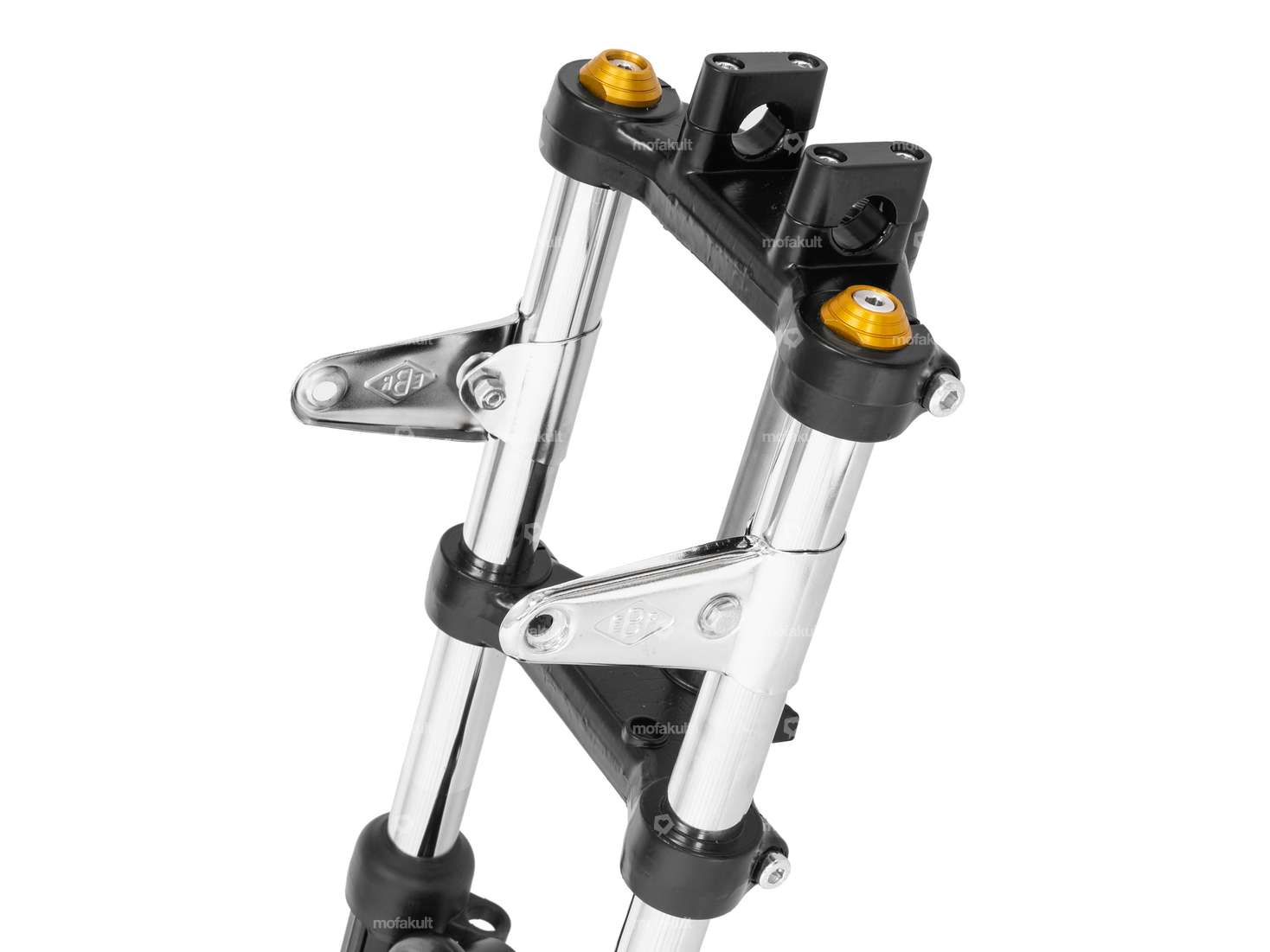

Including the handlebar clamps on the upper fork bridge.

Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 20 cm
Total length: 68 cm (but can be adjusted)
Hole spacing brake calliper mounting: 6 cm

This fork has been specially equipped with a strut bracket. The spring force is also infinitely adjustable using the two adjustment screws.

Branded product from the Italian manufacturer EBR.

Product details

Thread type	MF26x1 (fine pitch thread)
Manufacturer	EWC
Material	Aluminum, Steel
Surface	varnished, chrome-plated
Color	black, Chrome
Adjustable	Yes
Ø spars	28 mm
Spar end distance (center-center)	150 mm
Ø outer head tube	26 mm
Ø head tube inside	22 mm

Head tube length	200 mm
Thread length	60 mm
Total length	680 mm
Fork bridge - center wheel axle	605 mm

Suitable for the following models

Puch
