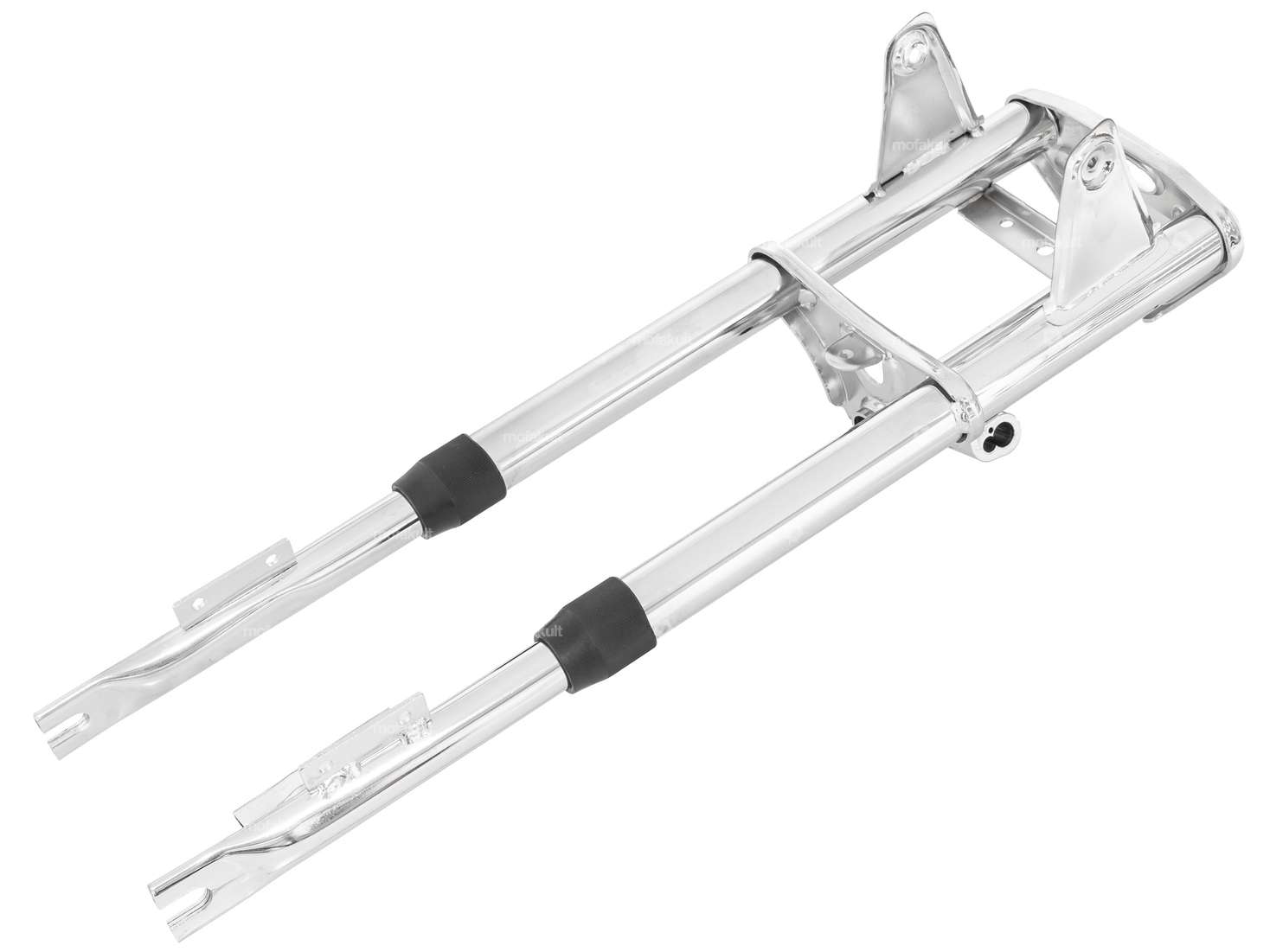

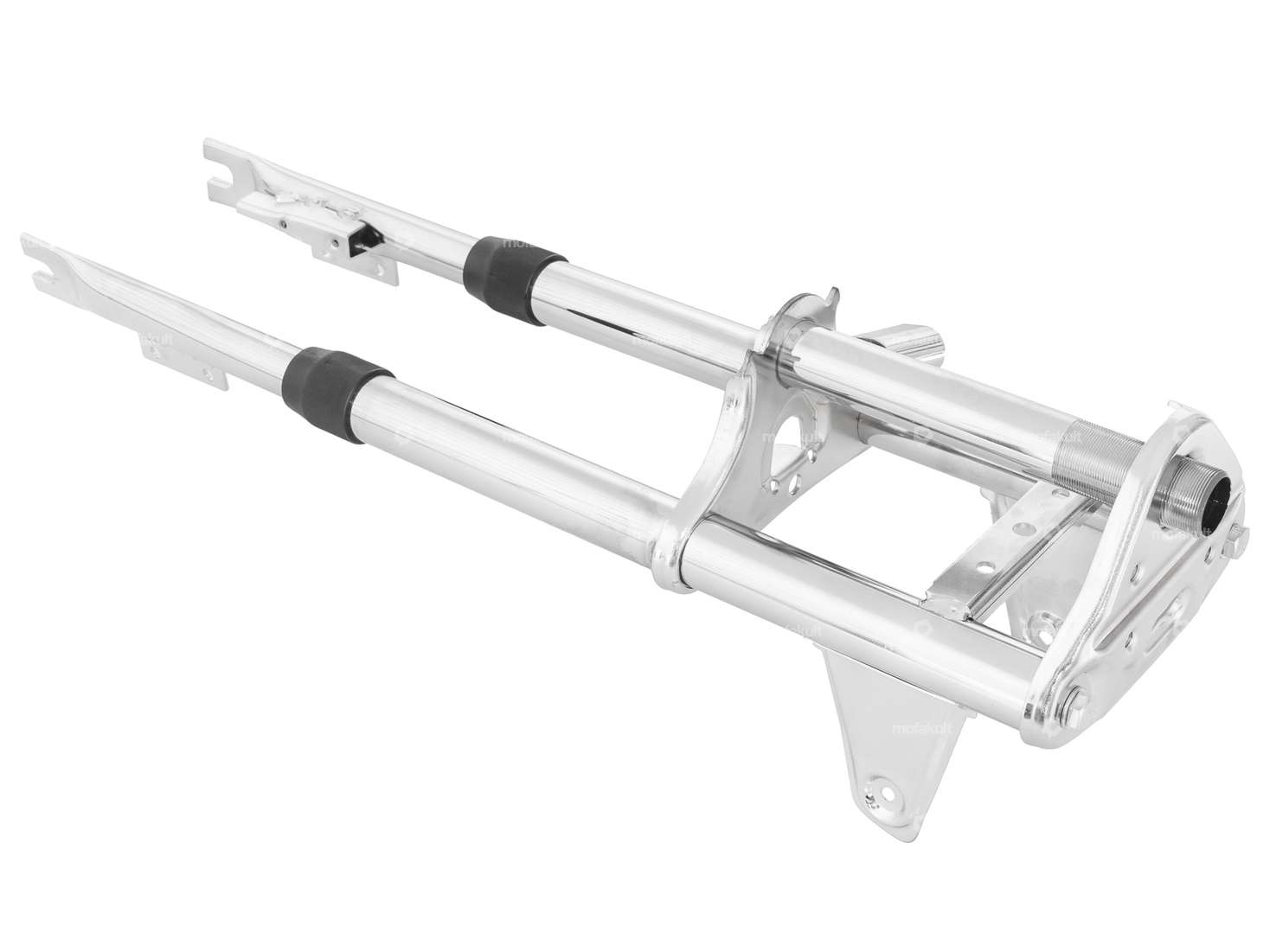

Chrome-plated EBR fork suitable for Puch X30 NS, NL, NG-2AH and Supermaxi LG1 and LG2 mopeds.
The fork has a welded fork lock mount - just like the original Puch forks. (Figure 5).
You will find the matching fork lock and the matching mudguard arch in the accessories section below.

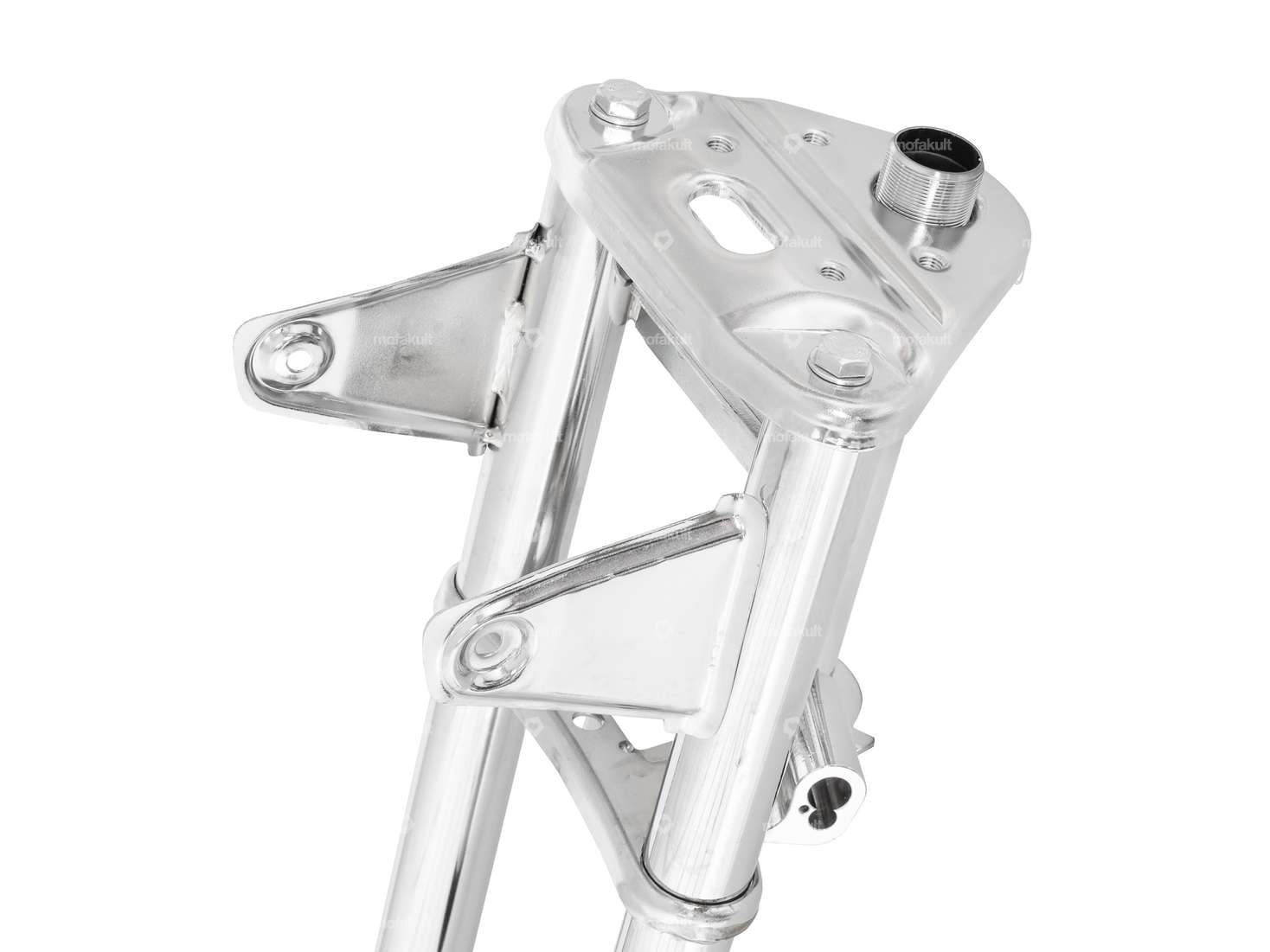

Provided for handlebar mounting on the fork plate.
Ø inner head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 57 cm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Thread type | MF26x1 (fine pitch thread) |
| Spar end distance (center-center) | 120 mm |
| Ø outer head tube | 26 mm |
| Ø spars | 23025 mm |
| Ø head tube inside | 22.3 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 380 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
| Total length | 575 mm |
| Thread length | 58 mm |
| Puch |
