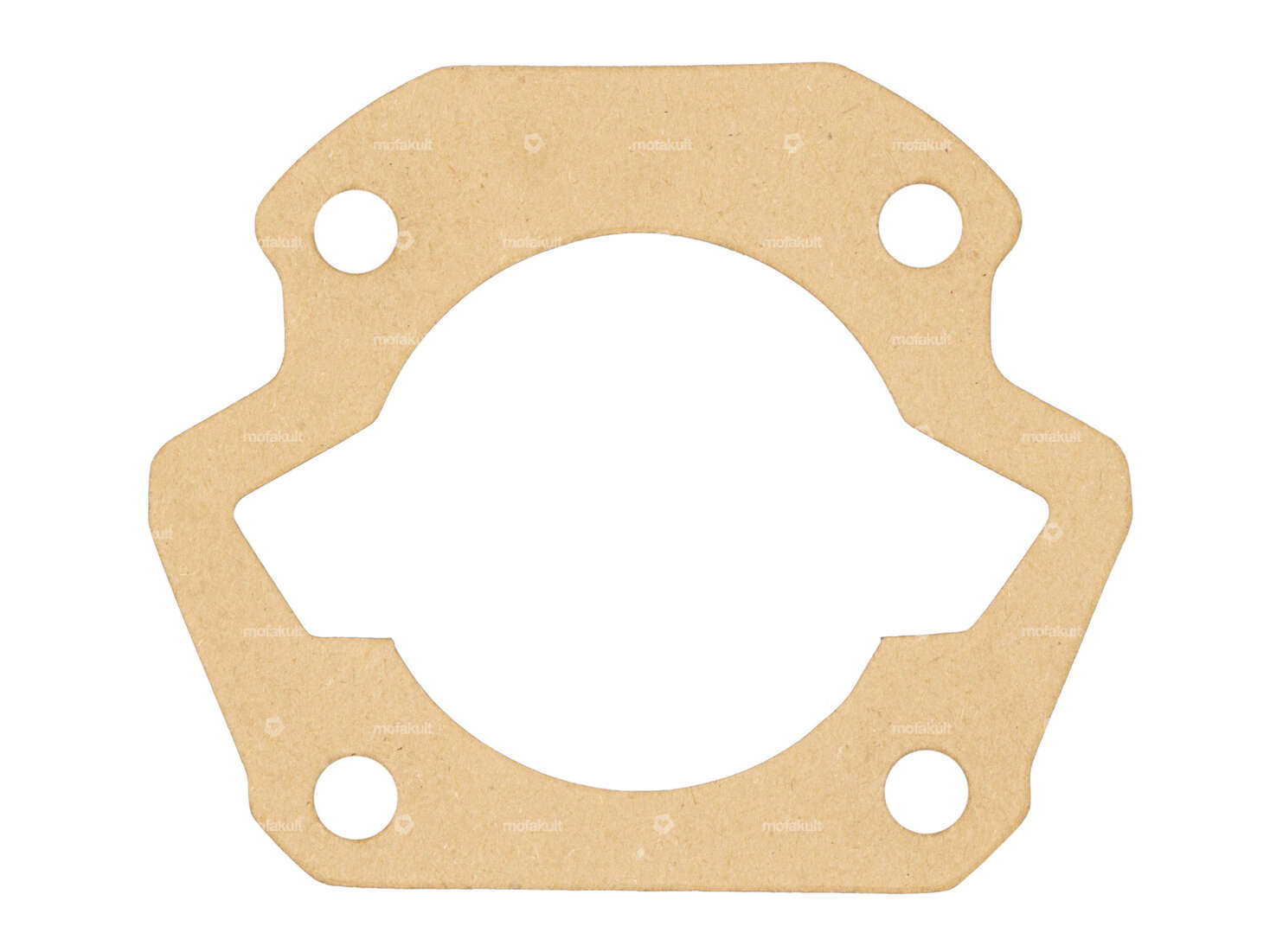

Cylinder base gasket, engine Beta 521 & 512 (A8097)

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Contents: 70 ml · Color: green · Gap dimension (max.): 0.2 mm · Area of application: Chemistry

Cylinder head gasket | Beta 521, 512 (A8098)

Place of use: Cylinder head · Manufacturer: Pony · Reinforced: Yes

swiing® revival stud bolts M6 x 116 mm galvanized (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 116 mm · Thread length: 15 mm · Thread length: 23 mm

Airsal 43.5 mm cylinder kit Beta | Cilo Cross 521 / 512, Pony Cross 521, Pony GTX 521

Nominal diameter: 43.5 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 58 ccm · Crankshaft stroke: 39 mm · Ø cylinder neck: 45.5 mm · Ø Outlet outside: 18 mm · Ø Outlet outside: 21 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 38 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 48 x 48 · Camouflaged: No

Flange nut M6 increased galvanized (10 strength)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Width across flats: 10 mm · Ø outside: 13.9 mm · Height: 9 mm · Strength class: 10 · Area of application: Standard

Ripp-Lock washer M6 6.2/14/1.4 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Nominal diameter inside: 6 mm · Nominal diameter (thread): 6 mm · Thickness: 1.4 mm · Ø outside: 14 mm · Ø inside: 6.2 mm · Pony OEM number: A1542 · Alternative version of the Pony OEM number: A1644 · Sachs OEM no.: 0244 021 000 · Alternative version of the Sachs OEM number: 0245 023 002

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Temperature resistance (min.): -36 - 200 °C · Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch

Cylinder head gasket | Beta 521, 512 (A8098)

Place of use: Cylinder head · Manufacturer: Pony · Reinforced: Yes

Intake gasket, engine Beta 521 & 512 (A8100)

Place of use: Admission · Manufacturer: Pony · Material: Sealing carton · Surface: coated · Thickness: 2 mm · Hole spacing inlet: 35 mm

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 7 pcs

Exhaust gasket exhaust | Beta 521 & 512 (A8099)

Place of use: Exhaust · Manufacturer: Pony · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 1.7 mm · Ø screw holder: 6 mm · Ø inside: 21.8 mm · Area of application: Standard

Meteor piston 40 mm "N" (A8104) | Beta 521 & 512

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.94 mm · Compression height (C): 28 mm · Curvature (D): 4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm · Ø piston pin (B): 12 mm · Weight piston kit: 83 g

GPO gasket 0.5 mm cylinder head 40 mm cylinder | Pony GTX, Cross 521

Nominal diameter: 40 mm · Manufacturer: GPO · Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 mm · Thickness: 0.5 mm · Ø inside: 40.5 mm · Hole pattern [mm]: 48 x 48 · Alternative version of the Pony OEM number: A8098

GPO 40 mm cylinder (without piston & gasket set) "original" | Pony GTX, Cross 521

Manufacturer: GPO · Material: Gray cast iron · Nominal diameter: 40 mm · Displacement: 50 ccm · Ø cylinder neck: 45 mm · Hole spacing for cylinder mounting: 48 mm · Outlet type: straight · Hole spacing outlet: 39 mm · Number of fixing points: 4 pcs · Area of application: Original

GPO 40 mm cylinder kit (Meteor Edition) "original" | Pony GTX, Cross 521

Manufacturer: GPO · Material: Gray cast iron · Nominal diameter: 40 mm · Displacement: 50 ccm · Ø cylinder neck: 45 mm · Ø outlet inside: 21.5 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 39 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 48 x 48 · Area of application: Original
