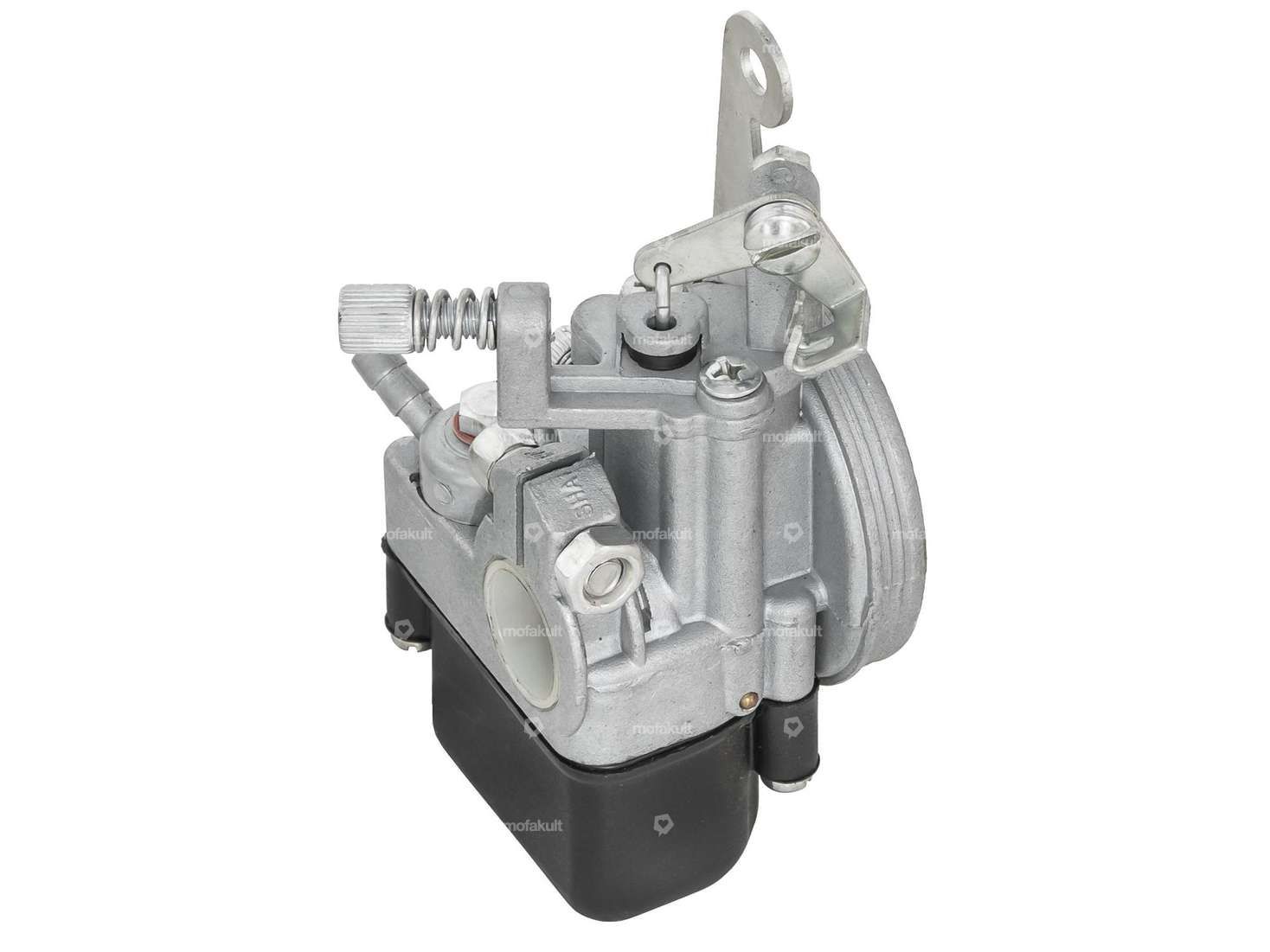

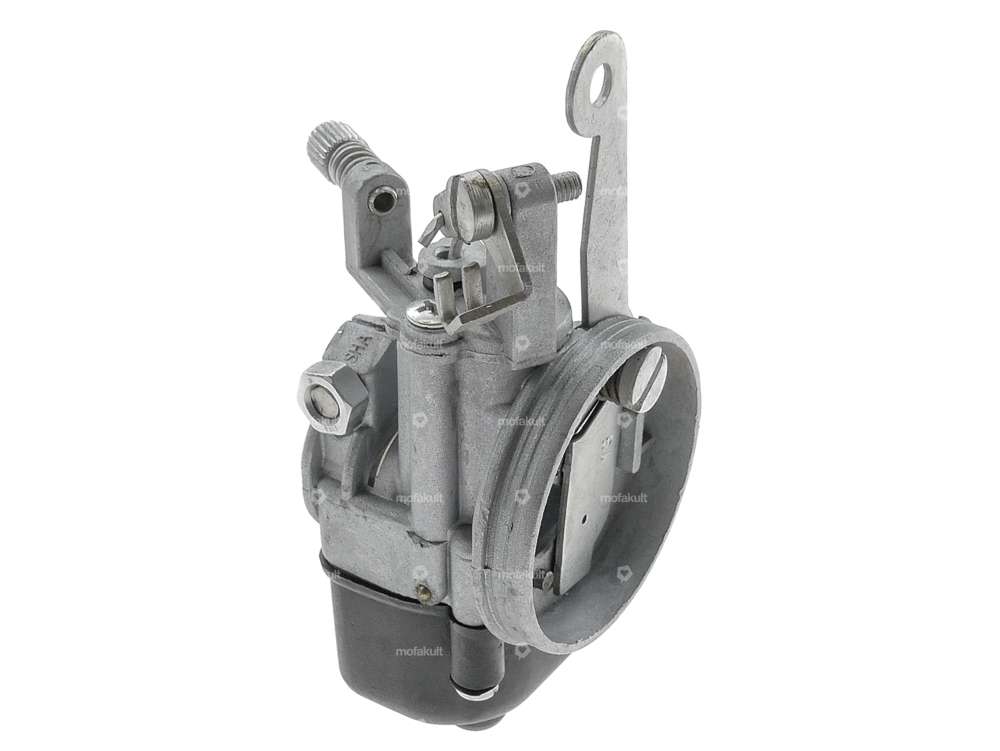

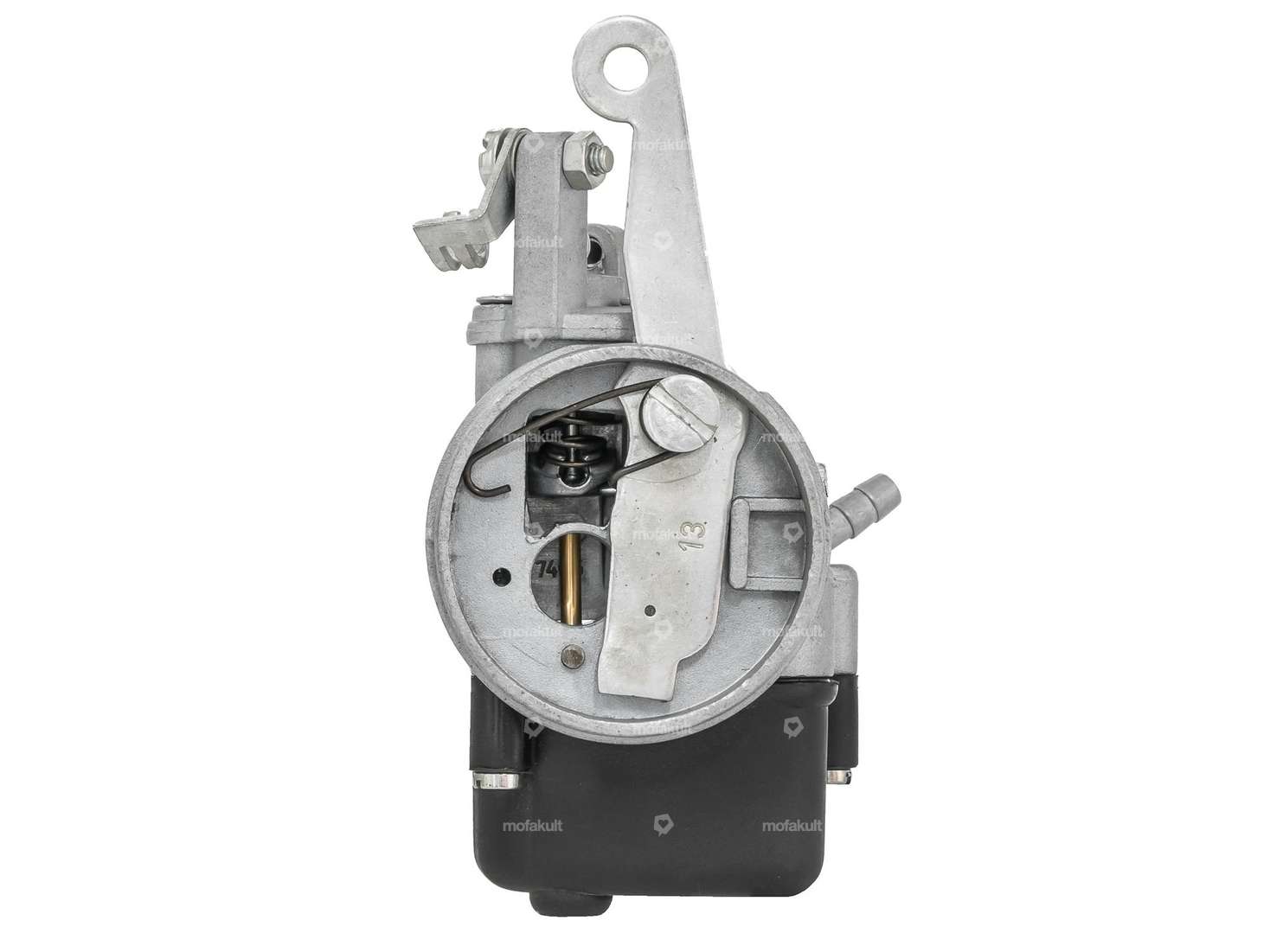

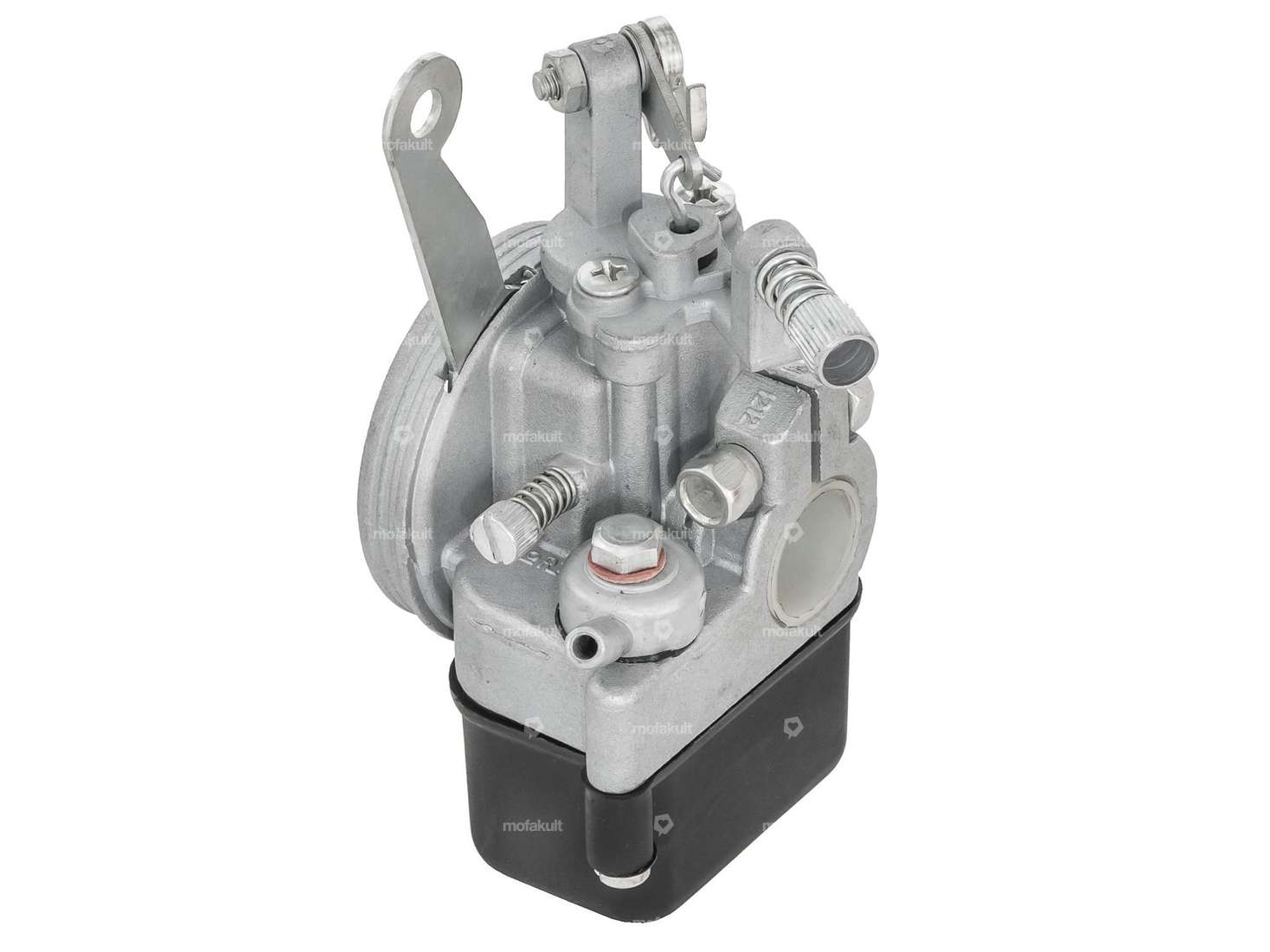

Favourable 12 / 12 replica carburettor for your Piaggio Si moped / moped.
The tuning carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 62
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.3 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 117.5 mm
Total length: 60 mm
Total width: 60 mm
Note: The finish of the aftermarket carburetors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
| Total length | 60 mm |
| Manufacturer | Quenching |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA (Piaggio) |
| Nominal diameter | 12 mm |
| Width | 60 mm |
| Ø Internal connection | 16 mm |
| Height | 118 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.3 mm |
| Area of application | Tuning |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 62 |
| Mounting type | Plug connection |
| Piaggio | Si |
Ratings
Accessories & related products
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
24,80 EUR
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Plastic · Ø outside: 53.2 mm · Filter type: Foam · Total length: 31.2 mm · Color: black · Ø Internal connection: 51 mm · Mounting type: Plug connection clamped · Camouflaged: No · Area of application: Tuning · Width: 95 mm · Height: 88.7 mm
23,60 EUR
Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Ø outside: 53 mm · Material: Plastic · Color: black · Filter type: Foam · Total length: 29 mm · Width: 98 mm · Height: 94.7 mm · Mounting type: Plug connection clamped · Ø Internal connection: 50.6 mm · Camouflaged: No · Area of application: Tuning
17,70 EUR
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Ø outside: 51 mm · Material: Plastic · Color: black · Filter type: Grille · Total length: 26.5 mm · Width: 94 mm · Height: 89 mm · Mounting type: Plug connection clamped · Ø Internal connection: 49.7 mm · Area of application: Original · Area of application: Tuning
18,80 EUR
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
4,15 EUR
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Nominal diameter: 44 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
444,20 EUR
Dell'Orto 13/13 SHA carburetor | Piaggio SI, Boss, Grillo
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Total length: 55 mm · Width: 60 mm · Height: 118 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66 · Area of application: Tuning
82,80 EUR

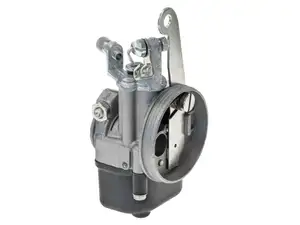

Dell'Orto 12/12 SHA carburetor | Piaggio SI
