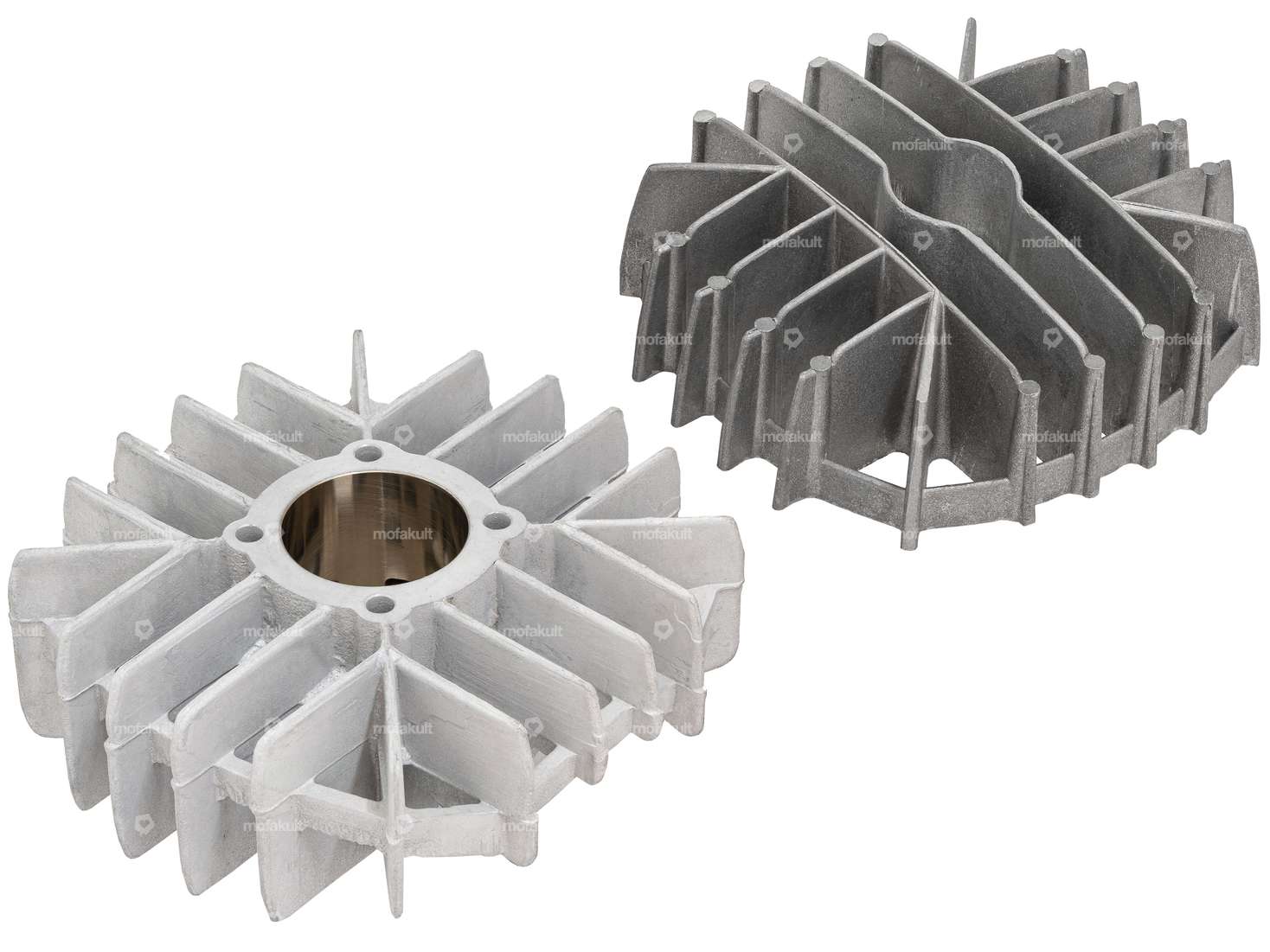

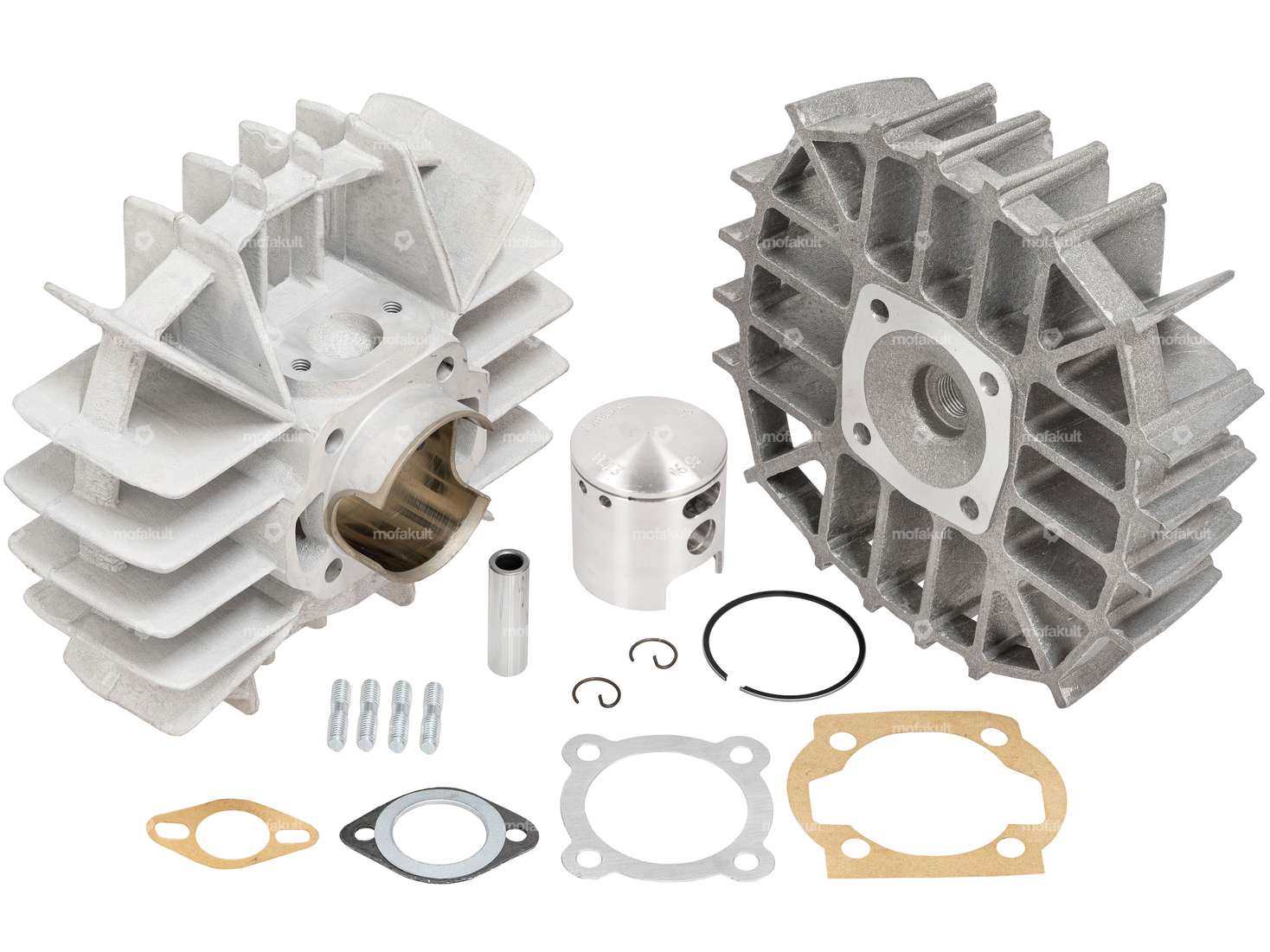

47 mm racing cylinder from Airsal suitable for Puch Maxi S & N, X30 Sport.
.The 75 cc racing kit has a narrow exhaust, which is why appropriate exhausts must be fitted.
To fit the cylinder, the engine housing must be spindled out.
The outer diameter of the cylinder neck is 51 mm.
| Nominal diameter | 47 mm |
| Manufacturer | Airsal |
| Material | Aluminum |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 75 ccm |
| Crankshaft stroke | 43 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38 mm |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
